BOXER-8240AI

Home  >   AAEON  >   AI Solutions  >
AI@Edge Solutions

AI@Edge Fanless Embedded BOX PC with AGX Xavier

Product Feature

  • 512-core Volta GPU with Tensor Cores
  • Support RJ-45 x 4 for PoE (802.11af, total 60W)
  • Support DB-9 x 1 for RS-232/422/485, CANBUS x 1
  • Support GPIO 40 pins ,Mic in and Line out
  • Supoort M.2 E key, M key and SATA storage

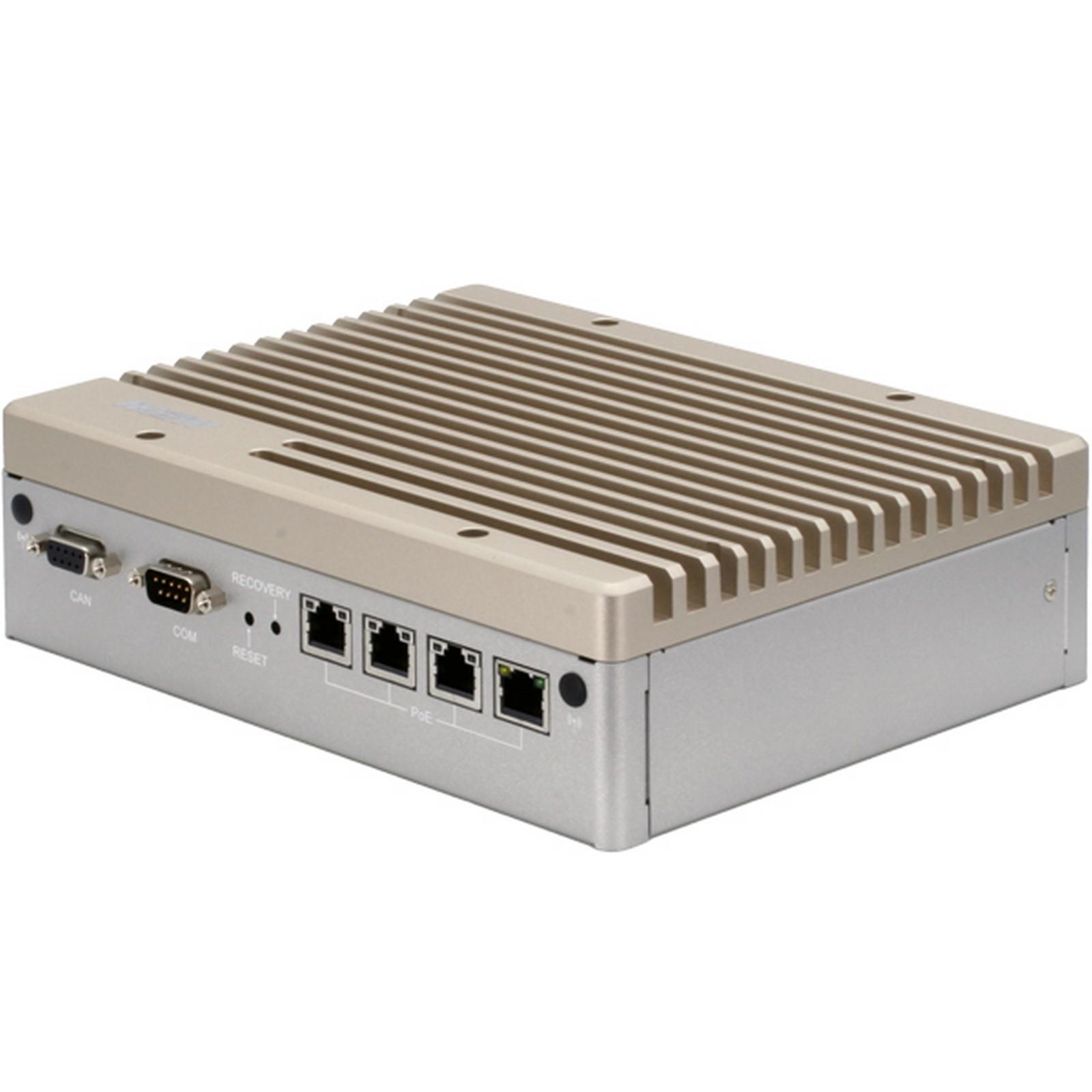

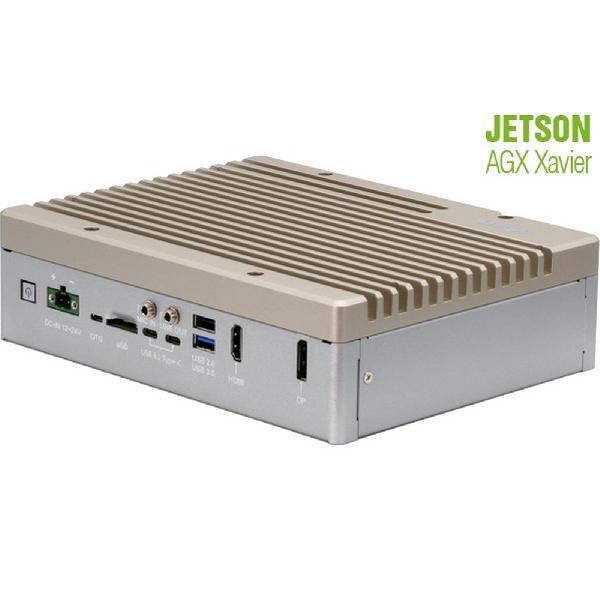

The BOXER-8240AI embedded AI Edge system features the NVIDIA® Jetson AGX Xavier™ combined with industrial rugged design, allowing developers to bring more AI edge applications wherever they’re needed.

The heart of the BOXER-8240AI is the innovative and powerful NVIDIA Jetson AGX Xavier; featuring the Volta GPU which packs an astonishing 512 CUDA cores and 64 Tensor cores, offering AI processing speeds up to 32 TOPS. The AGX Xavier also features several power modes, allowing developers and users to adjust the system to their needs, whether it’s for more power efficiency or maximizing performance. The BOXER-8240AI is built with and innovative fanless design that allows the Jetson AGX Xavier SoC to operate in ambient temperatures from -10°C to 55°C without a loss in performance while keeping out dust and other contaminants.

The BOXER-8240AI is designed to combine AI, control and communication into a single platform solution. It’s flexible range of I/O features include four PoE Gigabit Ethernet ports each designed to deliver 1 Gbps speeds, powering connected cameras while ensuring delay free streaming for real-time video processing. The BOXER-8240AI also features a 40-pin I/O connector and dual COM RS-485 ports, as well as USB3.2 Gen 1 and USB2.0 Type A ports, two USB3.2 Gen 1 Type C ports, and audio line in (mic) and audio line out ports.

The BOXER-8240AI provides expandability with M.2 2230 E-key slot, perfect for wireless communication such as Wi-Fi, giving the BOXER-8240AI the ability to deploy as a powerful Edge Network Gateway. The BOXER-8240AI also provides flexible and fast storage with M.2 2280 NVMe slot and SATA III (6.0 Gbps) storage, easy to install with easy access panels on the bottom of the system.

With this combination of AI, control and communication, the BOXER-8240AI is at home in just about any application, whether powering a single demanding task such as AGV pathfinding or collision avoidance for smart factory robots, or running multiple AI inferences side by side to provide greater coverage for intelligent security and crowd monitoring for compliance with health requirements during the ongoing pandemic.

SYSTEM
AI ACCELERATORNvidia AGX Xavier
CPU8-core ARM v8.2 64bit CPU, 8MB L2 + 4MB L3
SYSTEM MEMORY32 GB 256-Bit LPDDR4 x 1 137 GB/s
STORAGE DEVICE32GB eMMC + M.2 Key M 2280 x1 (PCIe[x4]) + uSD slot + SATA
DISPLAY INTERFACEHDMI 2.0 x 1
ETHERNET10/100/1000 Base-TX x 1 IEEE 802.11 af PoE LAN x 4
I/ORJ-45 x 4 for PoE (802.11af, total 60W)
USB type C x 2 for USB 3.2 Gen 1
USB type A x 1 for USB 3.2 Gen 1
USB Type A x 1 for USB 2.0
Mic-in x 1
Line-out x 1
HDMI type A for HDMI v2.0 x 1
DisplayPort v1.4 x 1
DB-9 x 1 for RS-232/422/485 (By switch)
CANBUS x 1
uSD card slot x 1
2-pin terminal block for 12~24V power input
Recovery x 1
Reset x 1
Power ON/OFF switch x 1tch x 1
EXPANSIONExpansion header 40-pin GPIO compliance with Nvidia Dev Kit 40 pins (4 pins
CANBUS occupied)
USB 2.0 header x 1 (Optional, circuit reserved)
M.2 Key E 2230 x 1 for WiFi/Bluetooth (PCIe[x1] + USB)
M.2 Key M 2280 x 1 (PCIe[x4])
SATA x 1
RS-232/422/485 pin header x 1
INDICATORPower LED x1
OS SUPPORTACLinux 4.9 or above (Compatible with Ubuntu 18.04)
POWER SUPPLY
POWER REQUIREMENTDC 12V~24V 2-pin terminal
MECHANICAL
MOUNTINGWallmount
DIMENSION8.26” x 6.46” x 2.32” (210mm x 164.2mm x 59mm)
GROSS WEIGHT6 lbs (2.72kg)
NET WEIGHT4.23 lbs (1.92kg)
ENVIRONMENTAL
OPERATING TEMPERATURE14°F ~ 131°F (-10°C ~ 55°C, according to IEC60068-2 with 0.5 m/s AirFlow)
STORAGE TEMPERATURE-40°C ~ 70°C
STORAGE HUMIDITY95% @ 40°C, non-condensing
ANTI-VIBRATIONRandom, 3 Grms, 5 ~ 500Hz
CERTIFICATIONCE/FCC Class A
Name Type Version Release Date
BOXER-8240AI, datasheet Datasheet V3.0 08 December 2020
