M2AI-2242-520

Home  >   AAEON  >   AI Solutions  >
AI Modules

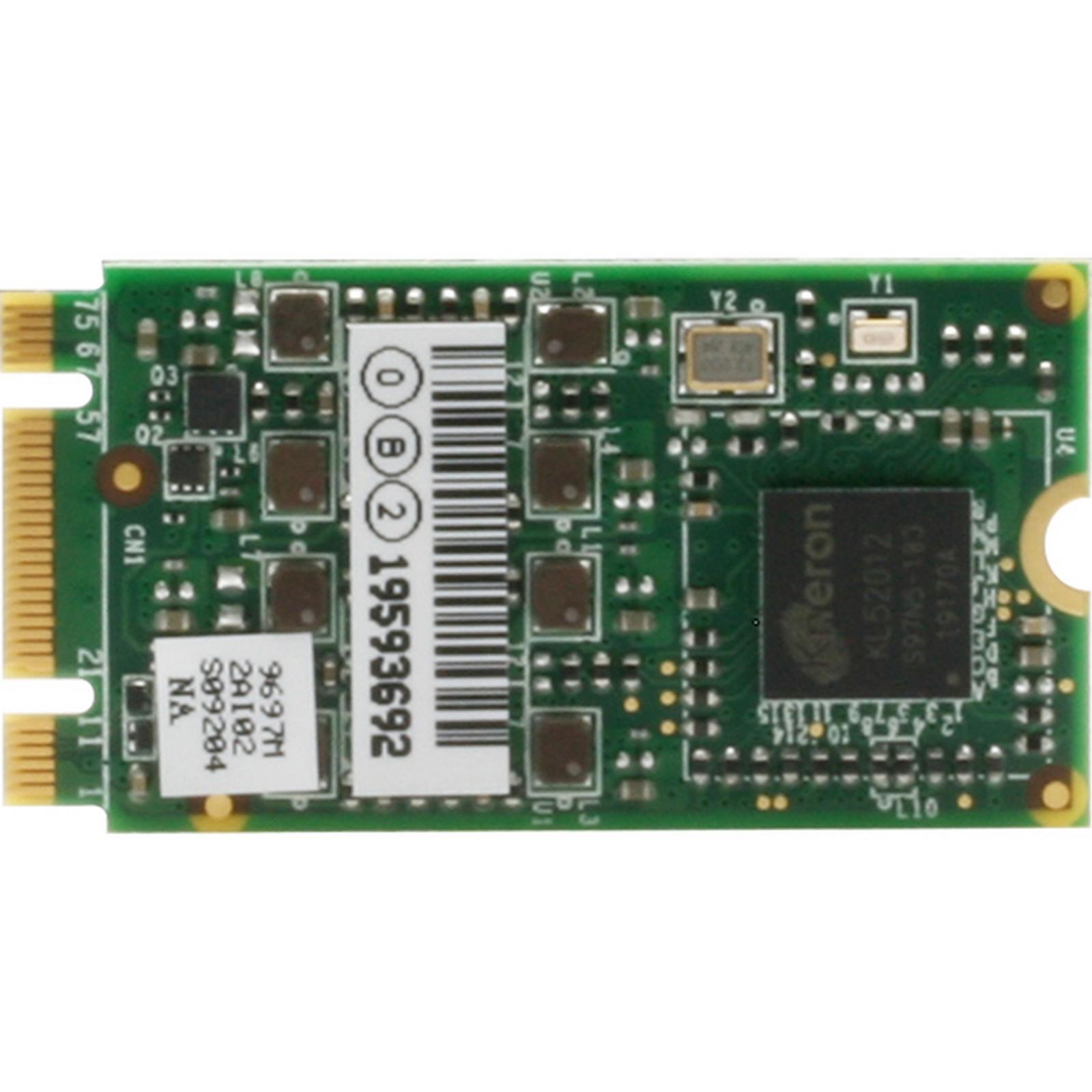

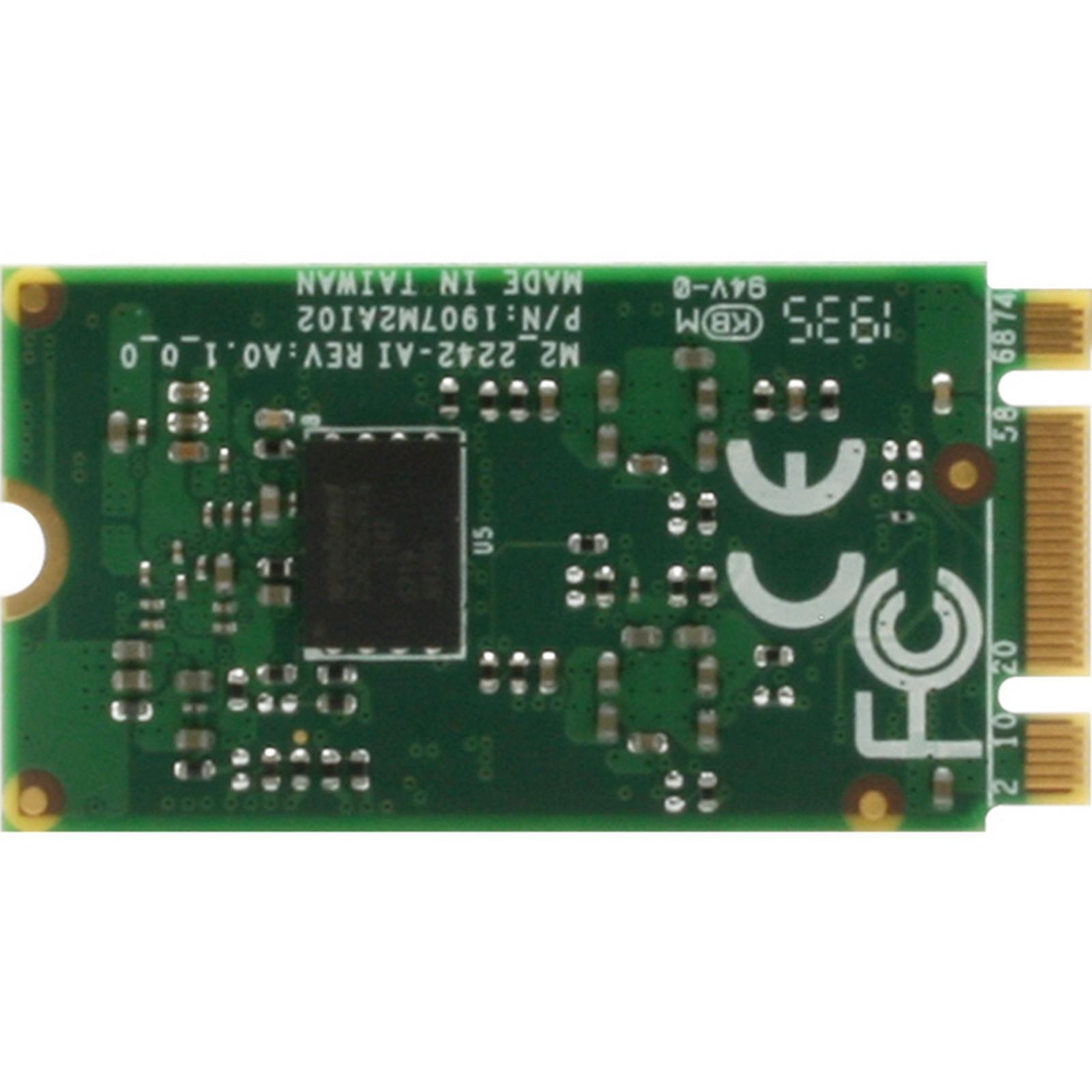

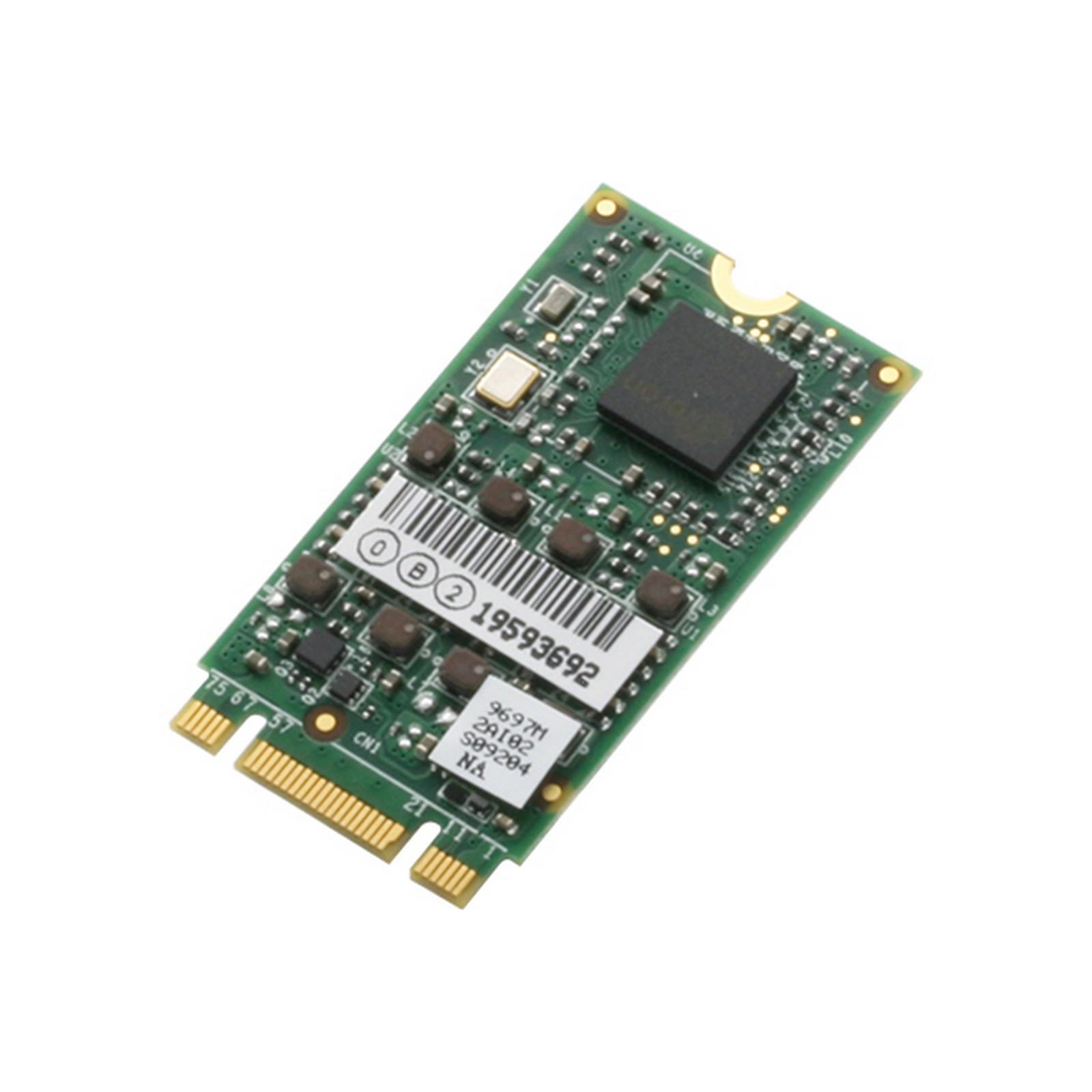

AI Edge Computing Module with Kneron KL520 NPU

Product Feature

  • Kneron KL520 NPU (Designed by ARM architecture)
  • Mini card (USB2.0 interface, Full size)
  • Accelerator for AI Edge Computing
  • Good for people monitoring, retail application

AAEON has partnered with Kneron to deliver modules featuring their innovative AI Edge Computing processor, the KL520 Neural Processor Unit (NPU). The KL520 provides efficient AI computing performance of 0.35 TOPS per Watt, perfect for remote, mobile, and unmanned applications.

The M2AI-2242-520 features the energy efficient KL520 in a M.2 22x42mm form factor that’s equally cost efficient. AAEON Kneron Modules are compatible with all of our embedded solutions which support M.2 22x42mm modules. The M2AI-2242-520 with Kneron KL520 NPU offers the best balance of performance, efficiency and cost.

SYSTEM
ICKneron KL520
TYPEIntegrated SoC
SUPPORTED FRAMEWORKSONNX, TensorFlow, Keras, Caffe
SUPPORTED MODELVgg16, Resnet, GoogleNet, YOLO, Tiny YOLO, Lenet, MobileNet, DenseNet
MEMORY TYPELPDDR2
NPU POWER EFFICIENCY0.35 TOPS
OVERALL POWER CONSUMPTION0.5 W
OTHERS
OPERATING TEMPERATURE32°F ~ 158°F (0°C ~ 70°C)
STORAGE TEMPERATURE-40°F ~ 185°F (-40°C ~ 85°C)
OPERATING HUMIDITY0% ~ 90% relative humidity, non-condensing
CERTIFICATIONCE/FCC Class A
Name Type Version Release Date
M2AI-2242-520,datasheet Datasheet V4.0 20 October 2020
