FWS-7821

Home  >   AAEON  >   Network Appliance and Video Surveillance  >
Rackmount Network Appliance

Intel® C236 1U Rackmount 8 LANs with 1 NIM Slot Network Appliance

Product Feature

  • 1U Rackmount Network Appliance
  • Intel® LGA1151 6th/7th Generation Core™/Xeon Processors
  • 288-pin ECC Dual Channel DDR4 2133 UDIMM x 4 Up to 64GB
  • 10/100/1000Base-TX Ethernet Ports x 8 (Onboard RJ-45 x 6 & SFP x 2) with Max. 3 Pairs of LAN Bypass Function
  • Internal 3.5” SATA HDD x 1 or 2.5” SATA HDD x 2 (Optional Extra 4 Pcs x 2.5” HDD without NIM and Expansion Lot Presented)
  • CFast x 1 (Optional CF Socket or mSATA Slot)
  • 8 bits GPIO (Default 4-bits Input, 4-bits Output)
  • TPM Supported (Optional Request), RAID 0,1 Supported
  • LCM with Keypad x 1, RJ-45 for Console x 1, USB 3.2 Gen 1 x 2
  • 250W AC Type Power Input
  • VGA Header x 1 (Optional VGA Cable)

Designed around a 7th Generation (Kaby Lake) Intel® Xeon® processor, the FWS-7821 supports up to 64GB DDR4, 5 x 2.5” SSD, or 2 x 40GbE QSFP to deliver unrivalled processing, massive throughput, and ultra-low latency.

The dense, feature-rich 1U design includes impressive I/O including, 8 x GbE, 2 x SFP, 2 x PCIe cards (x8), 2 x USB 3, and CFast enabling the FWS-7821 to adopt an exceptional array of easily composable configurations and customizations for seamless integration into new and existing infrastructure deployments.

The FWS-7821 is capable of supporting a broad range of configurations to ensure rapid, customized deployment in your network environment. The powerful SDK further enables high degrees of customization in addition to real-time telemetry, analytics, and easy management.

Powerful

Designed around a 7th Generation (Kaby Lake) Intel® Xeon® processor, the FWS-7821 supports up to 64GB DDR4, 2.5" SSD x 5, or 40GbE QSFP x 2 to deliver unrivalled processing, massive throughput, and ultra-low latency.

Flexible

The dense, feature-rich 1U design includes impressive I/O including, GbE x 6, SFP x 2, PCIe [x8] slot x 2, USB 3.2 Gen 1 x 2, and CFast, enabling the FWS-7821
to adopt an exceptional array of configurations for seamless integration into new and existing infrastructure deployments.

Composable

The FWS-7821 ensures rapid and composable deployment in your network environment. The powerful SDK further enables high degrees of customization in addition to real-time telemetry, analytics, and ease of management.

PLATFORM
FORM FACTOR1U Rackmount Network Platform
PROCESSOR6th/7th Generation Intel® Core™/ Xeon® processors
CHIPSETIntel® C236
SYSTEM MEMORYDDR4 1600/1866/2133/2400 UDIMM/ECC
Up to 64GB
288-pin DIMM x 4
NETWORK
ETHERNETIntel® i211 GbE x 6 + Intel® i210 GbE x 2 (SFP) + NIM x 1(Or i211 GbE x8 +NIMx1)UDIMM/ECC
BYPASSOnboard 2 pairs bypass, others depend on NIM module
NIM SLOT1
DISPLAY
GRAPHICS CONTROLLERIntel® HD graphics integrated
CONNECTORVGA cable (Optional)
STORAGE
HDDInternal 2.5” SATA HDD x 2 or 3.5” SATA HDD x 1 (Optional)
CF/CFAST/MSATAOptional BOM CFast™ socket or mSATA slot or CFast™ socket
EXPANSION/INTERNAL INTERFACE
PCIE SLOTUp to PCIe[x8] slot x 2
MINI-CARDMini Card x 1
IPMI
KB MOUSEPin-header
USBUSB 3.2 Gen 1 x 2, Box Header (2.0mm)
MISCELLANEOUS
RTCInternal RTC
WATCHDOG TIMER1~255 steps by software programmable, 1 sec per step
SOFTWARE BUTTONGPIO Programmable push button x 1
TPMTPM v1.2 9660 (TPM2.0 9665 optional)
GPIO4 bits input, 4 bits output
FAN2
MTBF (HOURS)94241
COLORBlack
PHYSICAL & ENVIRONMENTAL SPEC
POWER REQUIREMENT250W ATX PSU
OPERATING TEMPERATURE32°F ~ 104°F (0°C ~ 40°C)
STORAGE TEMPERATURE-4°F ~ 140°F (-20°C ~ 60°C)
OPERATING HUMIDITY10% ~ 80% relative humidity, non-condensing
STORAGE HUMIDITY10% ~ 80% @ 40°C, non-condensing
VIBRATION0.5 Grms/ 5 ~ 500Hz/ operation (3.5” H.D.D)
1.5 Grms/ 5 ~ 500Hz/ no operation
SHOCK10G peak acceleration (11 m sec. duration), operation
20G peak acceleration (11 m sec. duration), non-operation
DIMENSION (W X D X H)16.93” x 12.01” x 1.73” (430mm x 305mm x 44mm)
I/O INTERFACE

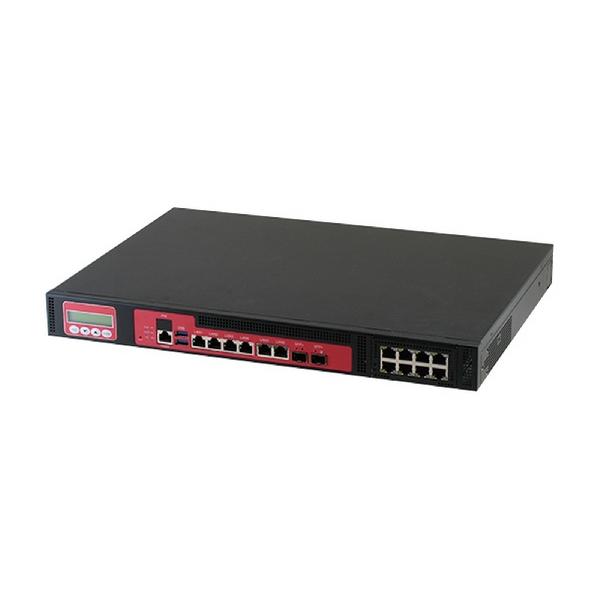

FRONT PANELPower LED x 1
Status LED x 1
HDD Active LED x 1
USB 3.2 Gen 1 Ports x 2
RJ-45 Console x 1
Parallel LCM display and 4 keypad x 1 (Optional w/ NIM slot)
Software Programmable Switch x 1
Bypass LED x 2
RJ45 X8 or RJ45 X6+SFP x 2

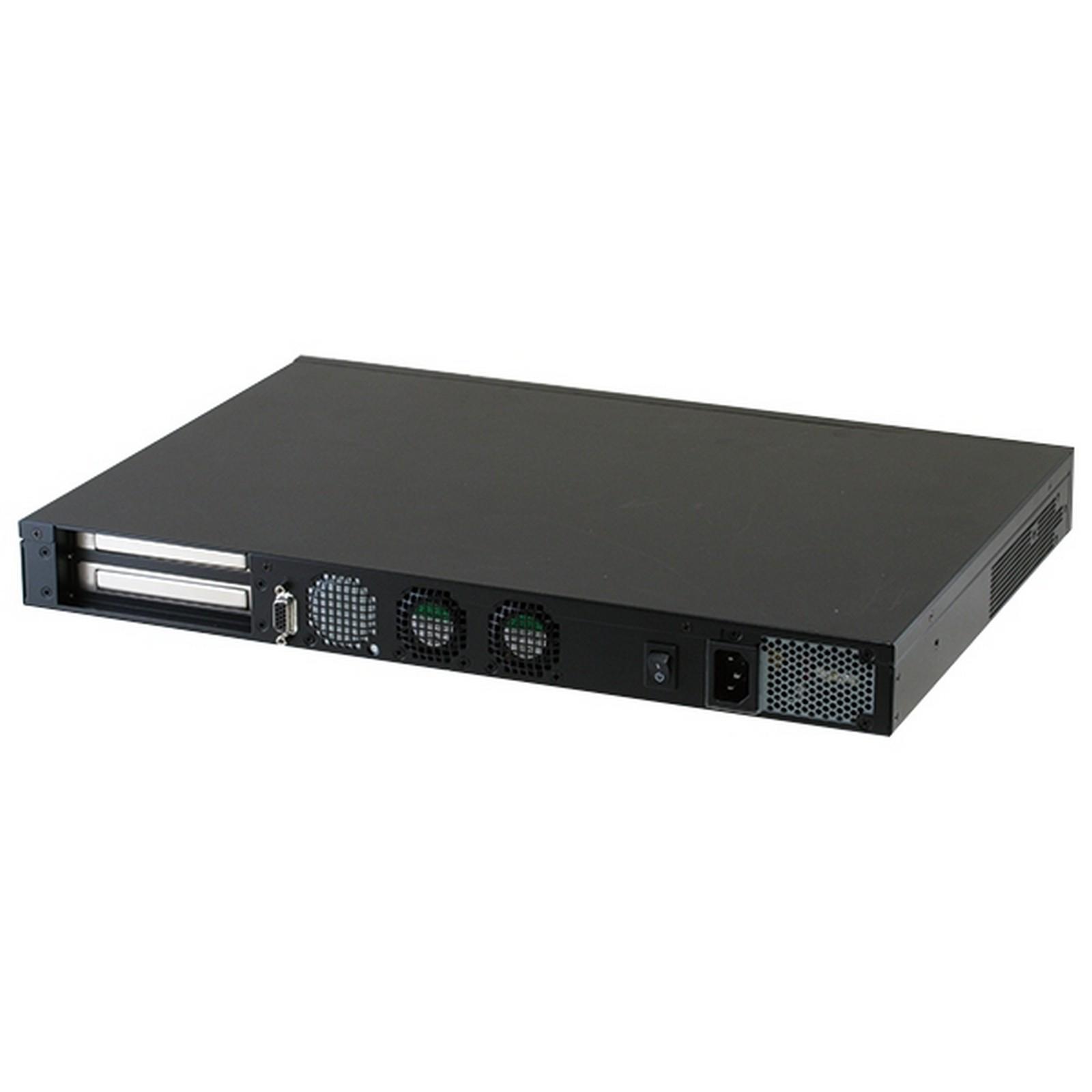

REAR PANELAC Power Input x 1
Power Switch x 1
VGA port (Optional)
Rear Expansion Slot x 2 (2 x PCIe [x8] slots, NIM slot will be disabled if PCIe Riser supported)
Name Type Version Release Date
FWS-7821, datasheet Datasheet V2.0 24 November 2020
