Along with an enhanced hardware platform, the FWS-7820 is widely deployed to defend cyber threats, such as Unified Threat Management (UTM), Virtual Private Network (VPN), Intrusion Detection System (IDS), Intrusion prevention systems (IPS), Firewall, Load Balancing, Web Content Filtering, to name a few. Hence, this device is well suited for network security, cloud computing and data centers.

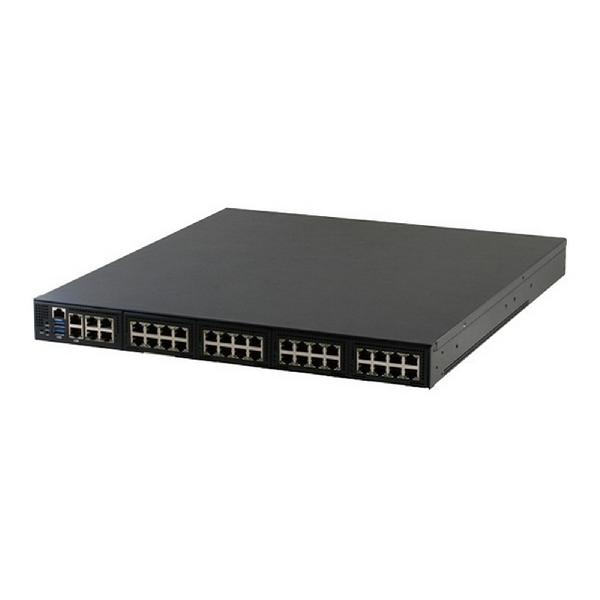

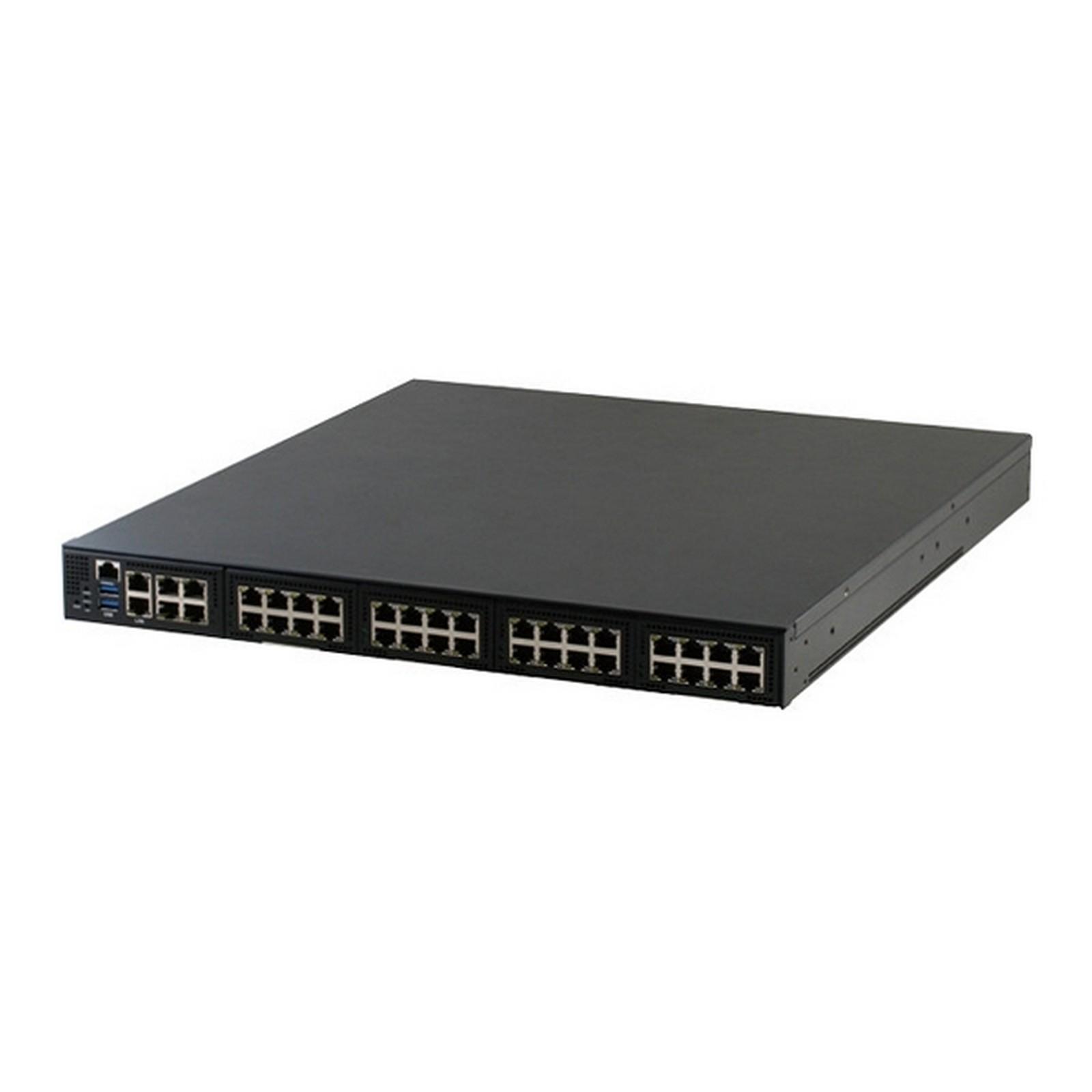

The FWS-7820, a state-of-the-art 1U rackmount appliance, is powered by 6th Gen Intel® Core™ processors, featuring Intel® C236 chipset, DDR4 memory support up to 64GB, a wide variety of I/O peripherals and a maximum of 5 NIM module slots.

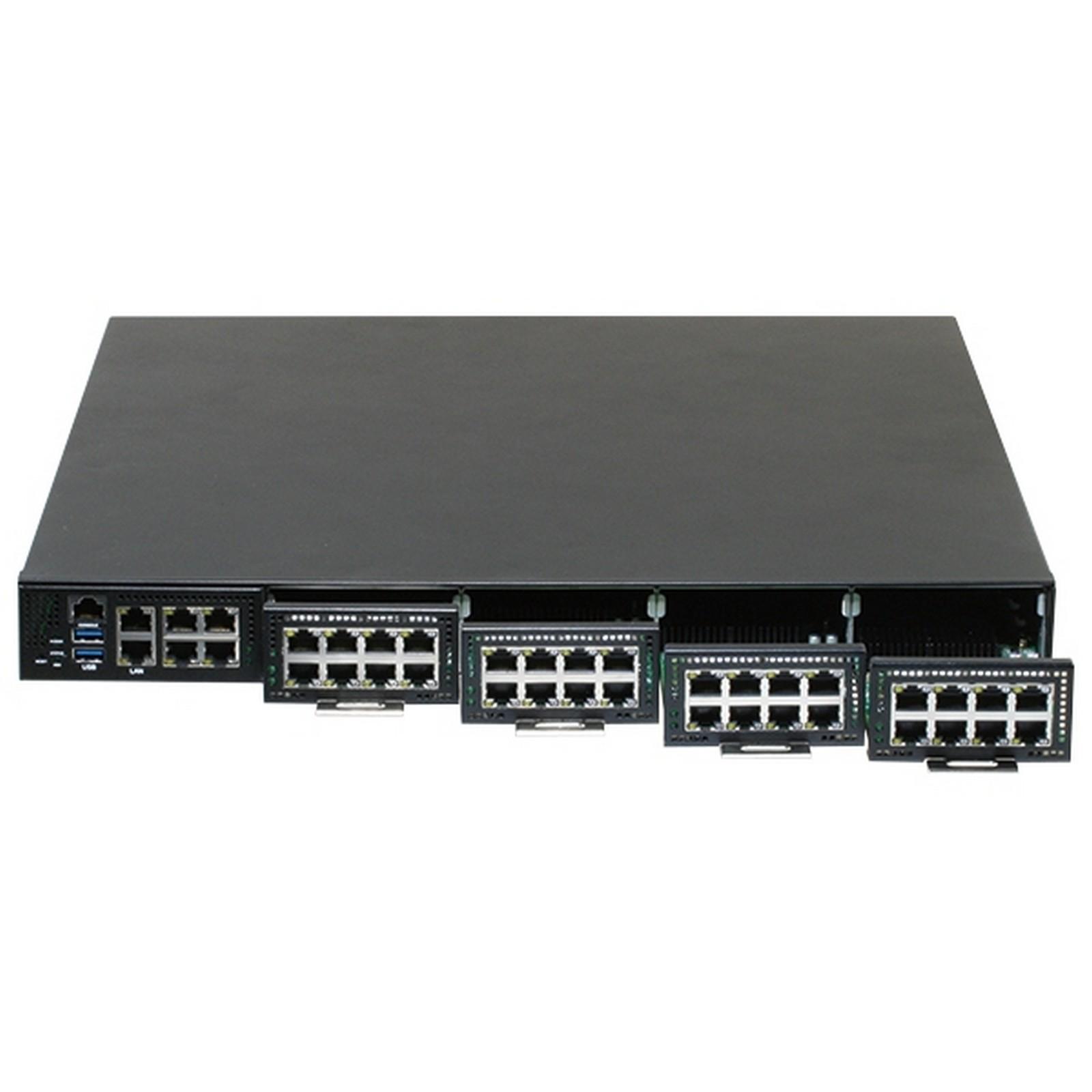

Flexible 5 NIM module expansion and high-port density are two outstanding features for AAEON’s FWS-7820. There is a variety of optional connectivity for up to 40 LAN ports, fiber or copper connections, supporting 1GbE, 10GbE and 40GbE, when compatible modules are installed.
| PLATFORM | |
| FORM FACTOR | 1U Rackmount Network Platform |
| PROCESSOR | 6th Generation Intel® Core™/ Xeon® processors |
| CHIPSET | Intel® C236 |
| SYSTEM MEMORY | DDR4 1600/1866/2133 UDIMM/ECC Up to 64GB 288-pin DIMM x 4 |
| NETWORK | |
| ETHERNET | Intel® i210 GbE x 2, Intel® 82580 x4 |
| BYPASS | Onboard 2 pairs bypass, others depend on NIM module |
| NIM SLOT | 4 (Max. 5 slots by project base) |
| DISPLAY | |
| GRAPHICS CONTROLLER | Intel® HD graphics integrated |
| CONNECTOR | VGA cable (Optional) |
| STORAGE | |
| HDD | Internal 3.5” SATA HDD x 1 or 2.5” SATA HDD x 2 (Optional)* *(mSATA/ CF/ CFast will be disabled if 2nd SATA HDD is used) |
| CF/CFAST/MSATA | CF socket x 1 (Optional BOM CFast™ socket or mSATA slot) |
| EXPANSION/INTERNAL INTERFACE | |
| PCIE SLOT | PCIe [x4] signal use [x8] slot (3rd NIM slot will be disabled if PCIe Riser supported) |
| MINI-CARD | — |
| IPMI | — |
| KB MOUSE | Pin-header |
| USB | USB 3.2 Gen 1 x 2, Box Header (2.0mm) |
| MISCELLANEOUS | |
| RTC | Internal RTC |
| WATCHDOG TIMER | 1~255 steps by software programmable, 1 sec per step |
| SOFTWARE BUTTON | GPIO Programmable push button x 1 |
| TPM | TPM2.0 9665 (TPM v1.2 9660 optional) |
| GPIO | 8 bits, BIOS default 4 bits input, 4 bits output. |
| FAN | 2 |
| MTBF (HOURS) | 71852 |
| COLOR | Black |
| PHYSICAL & ENVIRONMENTAL SPEC | |
| POWER REQUIREMENT | 250W ATX PSU |
| OPERATING TEMPERATURE | 32°F ~ 104°F (0°C ~ 40°C) |
| STORAGE TEMPERATURE | -4°F ~ 140°F (-20°C ~ 60°C) |
| OPERATING HUMIDITY | 10 ~ 80% relative humidity, non-condensing |
| STORAGE HUMIDITY | 10 ~ 80% @ 40°C, non-condensing |
| VIBRATION | 0.5 Grms/ 5 ~ 500Hz/ operation (3.5” H.D.D) 1.5 Grms/ 5 ~ 500Hz/ no operation |
| SHOCK | 10G peak acceleration (11 m sec. duration), operation 20G peak acceleration (11 m sec. duration), non-operation |
| DIMENSION (W X D X H) | 16.93” x 18.7” x 1.73” (430mm x 475mm x 44mm) |
| I/O INTERFACE | |

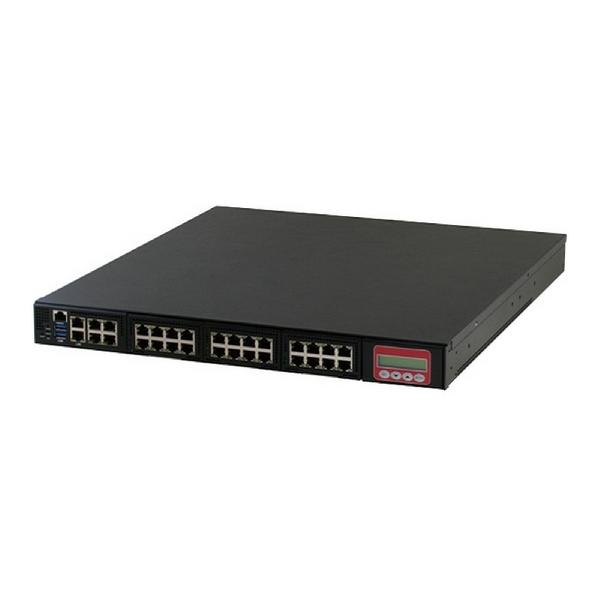

| FRONT PANEL | Power LED x 1 Status LED x 1 HDD Active LED x 1 USB 3.2 Gen 1 Ports x 2 RJ-45 Console x 1 Parallel LCM display and 4 keypad x 1 (Optional w/ NIM slot) Software Programmable Switch x 1 Bypass LED x 2 |

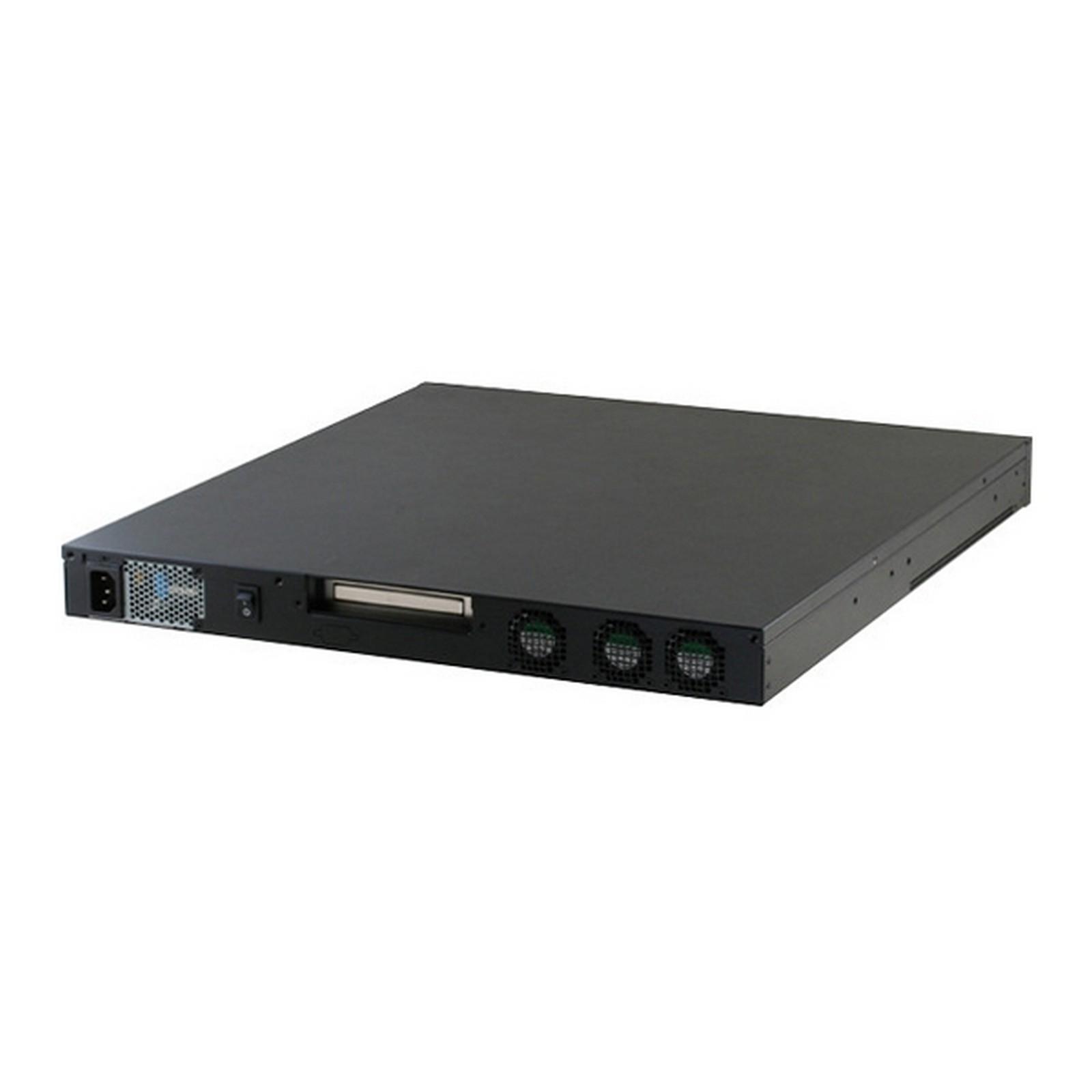

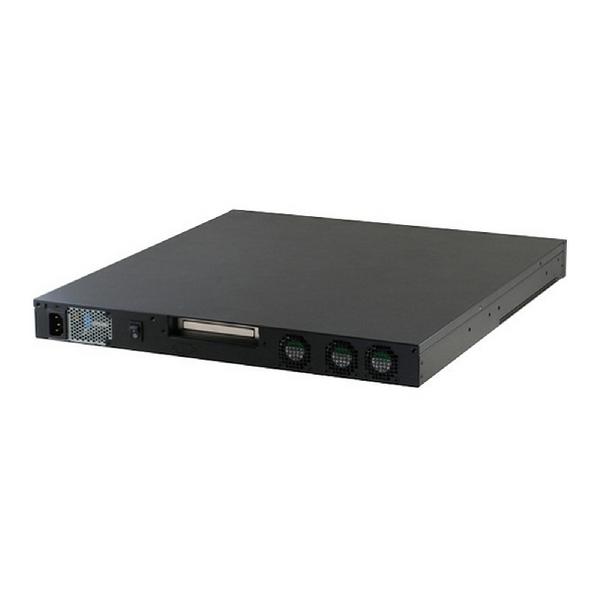

| REAR PANEL | AC Power Input x 1 Power Switch x 1 VGA port (Optional) Rear Expansion Slot x 1 (Optional PCIe [x4] signal use [x8] slot, 3rd NIM slot will be disabled if PCIe Riser supported) |
| Name | Type | Version | Release Date | |
| FWS-7820, datasheet | Datasheet | V1.0 | 03 September 2015 |
