FWB-2250

Home  >   AAEON  >   Network Appliance and Video Surveillance  >
Networking Motherboard

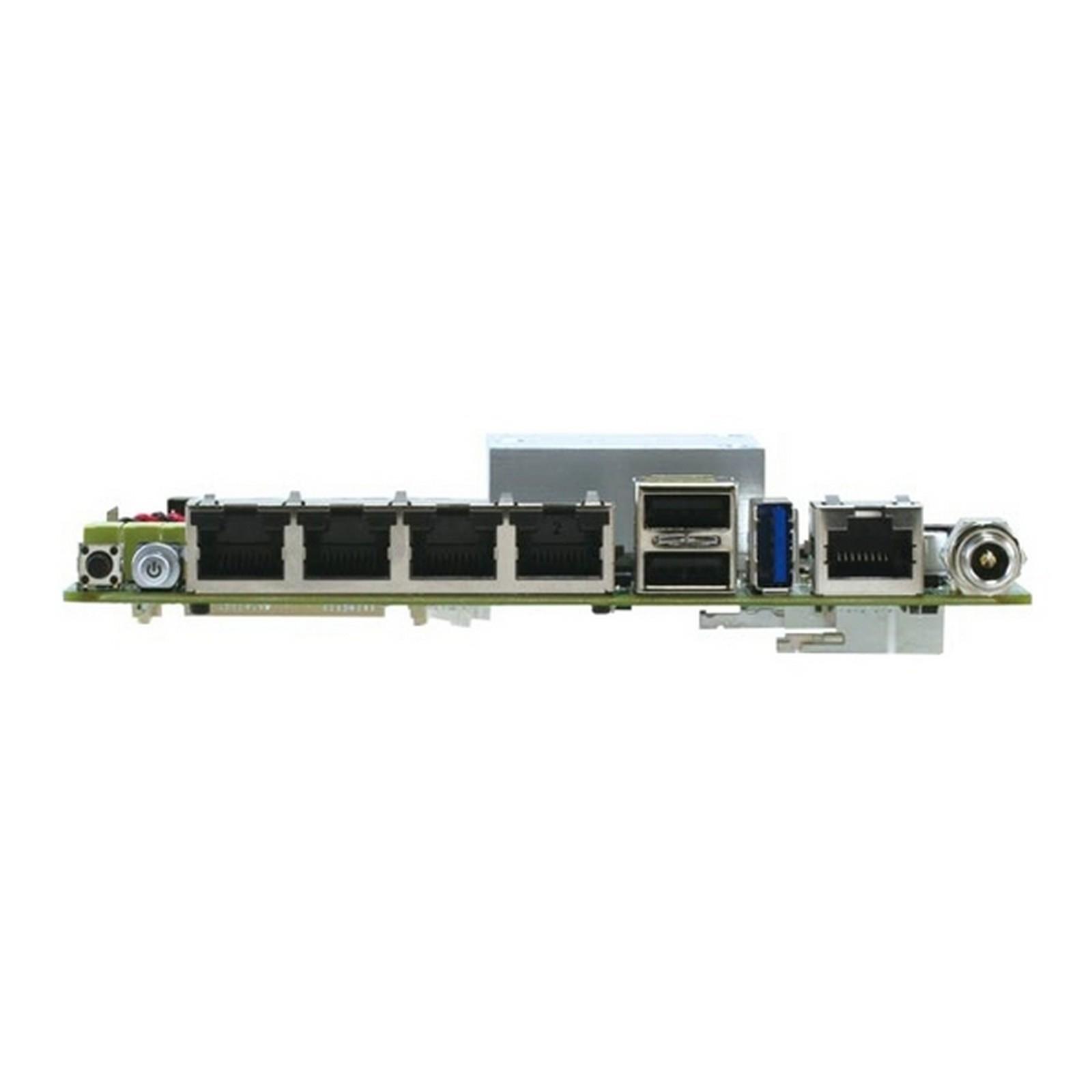

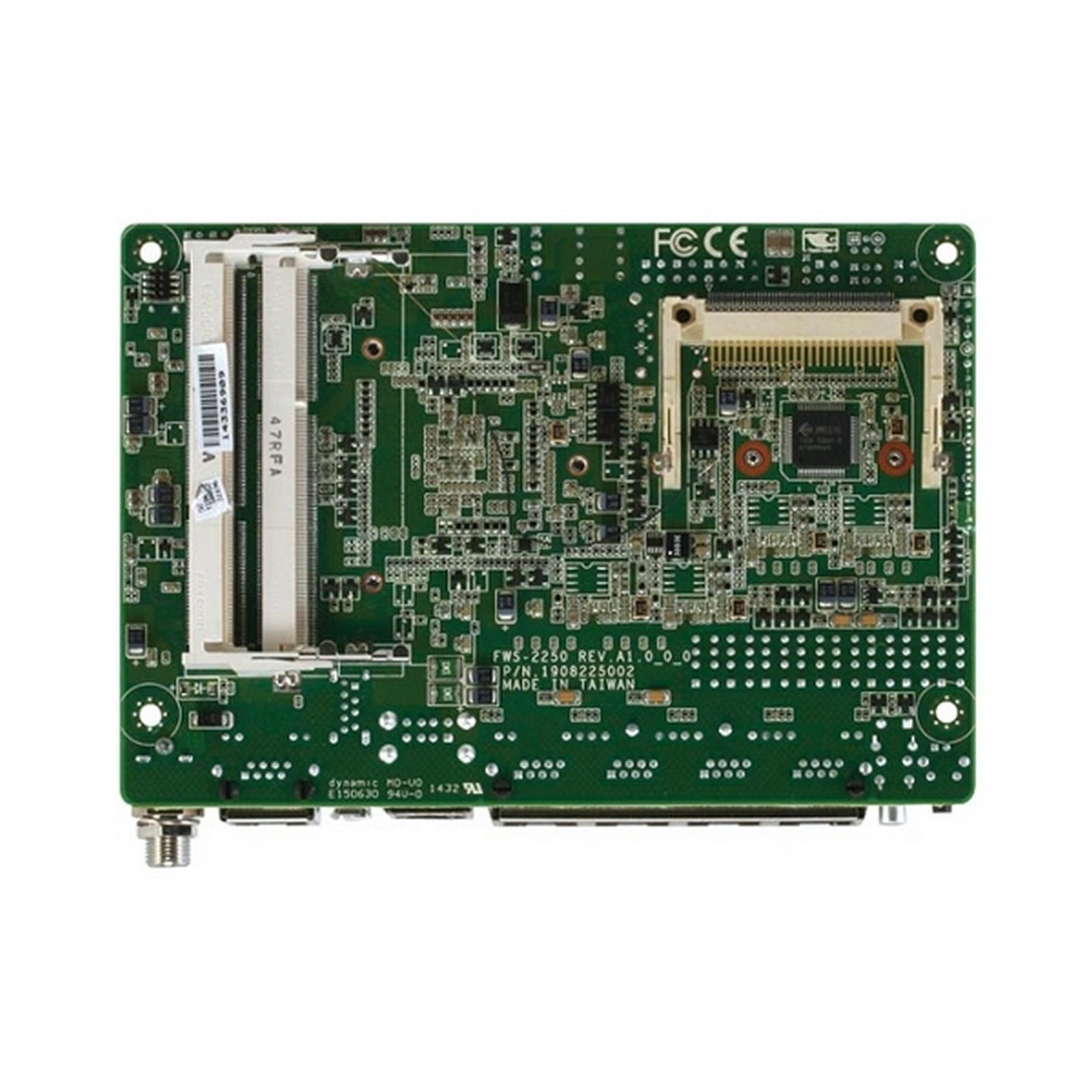

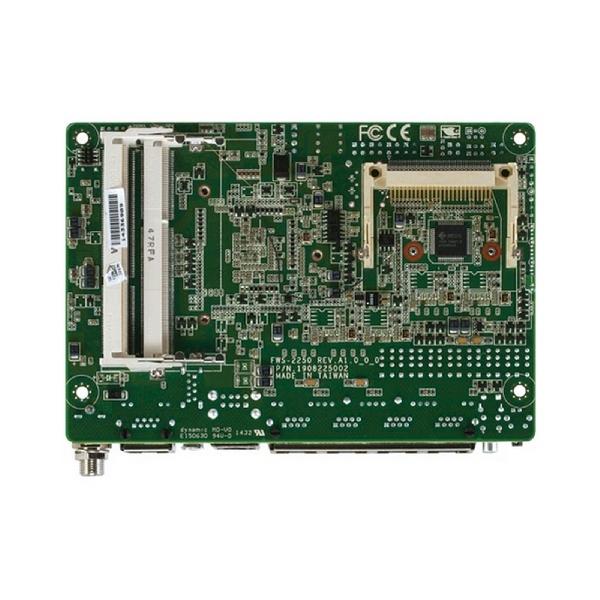

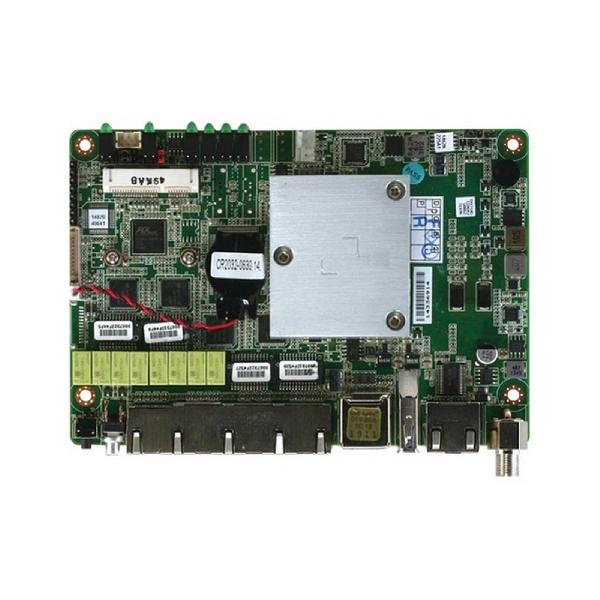

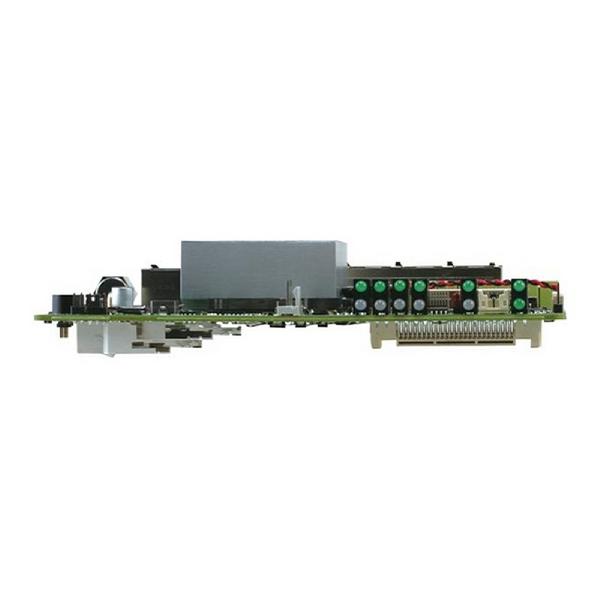

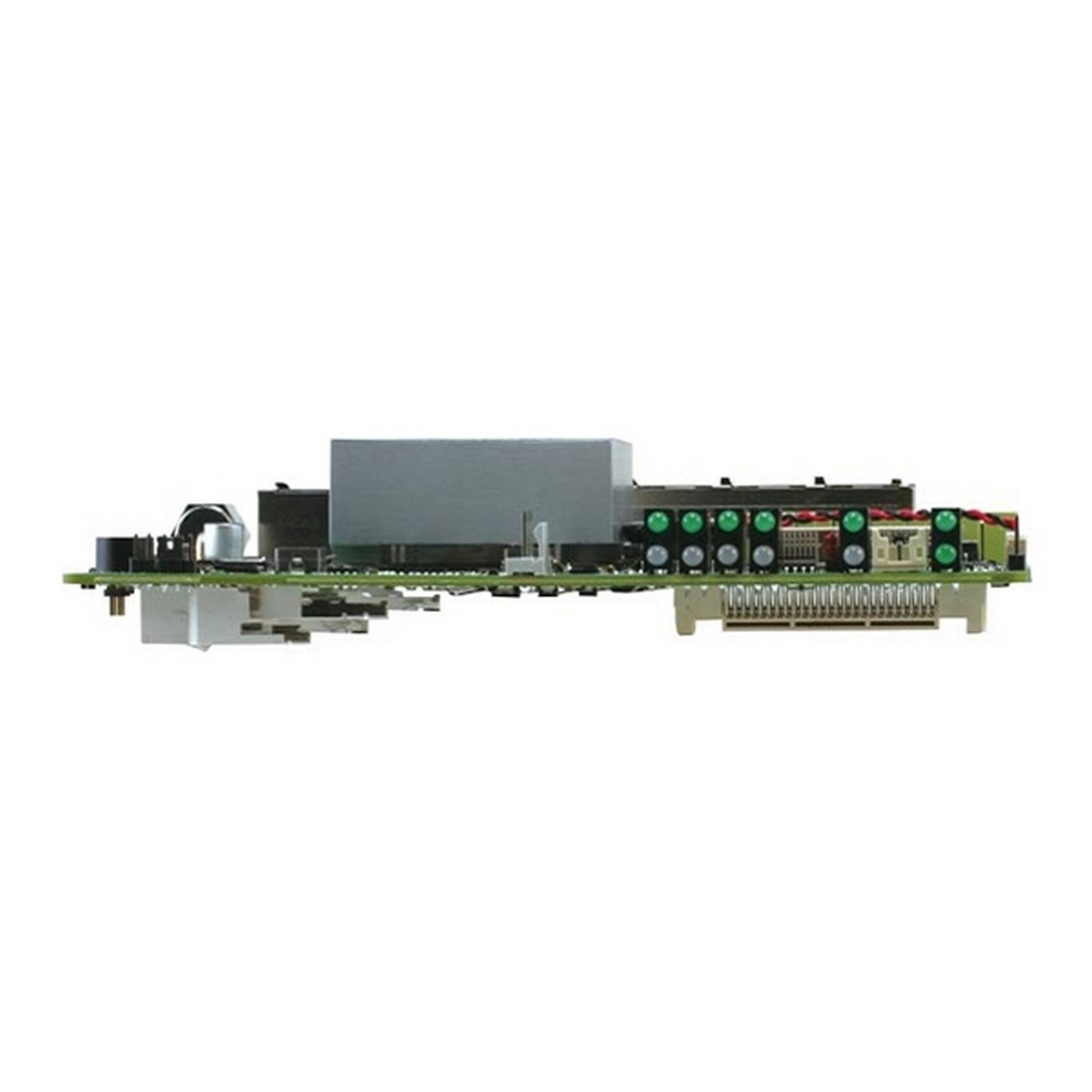

4 LAN Ports Networking Motherboard with Intel® Atom™ E3815 Processor SoC

Product Feature

  • Intel® Atom™ E3815 Processor SoC
  • 204-pin Signle-channel DDR3L 1066/1333MHz SODIMM x 1, Up to 8 GB
  • 10/100/1000Base-TX Ethernet Port x 4
  • SATA 3.0 Gb/s x 1
  • CompactFlash™ Socket x 1
  • Mini-Card Slot x 1
  • RJ-45 Console x 1, USB 3.2 Gen 1 x 1, USB 2.0 x 2

FWB-2250 adopts the Intel® Atom™ E3815/E3827/Celeron® J1900 processor SoC. The system memory features two 204-pin single channel DDR3L 1066/1333 SODIMM up to 8GB. It deploys four Gigabit Ethernet LAN ports with optional one pair with LAN bypass function.

In addition, it offers flexible expansion with network products and features one optional MiniCard socket, two USB 2.0 ports and one USB 3.2 Gen 1 port, and one RJ-45 console port. The console port deploys console re-direction that increases the network security via remote control. All of these designs provide for a more user-friendly solution.


Applications

  • Firewall
  • IDP/IPS
  • Bandwidth Manager
  • Load Balancing
  • Network Access Control
  • Web Filter
  • Anti-Spam/Virus
SYSTEM
FORM FACTORNetworking Motherboard
PROCESSORIntel® Atom™ E3815 processor SoC
SYSTEM MEMORY204-pin DDR3L 1066/1333 MHz SODIMM x 2, up to 8 GB
CHIPSETIntel® Atom™ E3815
ETHERNETIntel® Ethernet Controller I211-AT, Gigabit Ethernet x 4
BYPASS FUNCTION1 Pair (Optional)
BIOSAMI BIOS
SERIAL ATASATA 3.0 Gb/s Connector x 1 (CompactFlash™ Socket x 1)
EXPANSION INTERFACEMini-Card Socket x 1(Optional)
POWER REQUIREMENT40W, 12V DC-in power connector
POWER CONSUMPTIONIntel® Celeron® J1900 2.0 GHz, DDR3L 1333 2GB 0.39A@ 100VAC, 1.21A@12V
BOARD SIZE5.67” x 3.94” (114 mm x 100 mm)
WATCHDOG TIMER1~255 steps by software programming
MTBF (HOURS)90630
OS SUPPORTWindows® 7 or above, Linux
DISPLAY
CHIPSETIntel® Atom™ E3815
GRAPHICS ENGINEIntel® HD
RESOLUTION2560 x 1600
OUTPUT INTERFACEReserved VGA Internal box header
I/O
LAN PORTRJ-45 Port x 4
SERIAL PORTRJ-45 Console x 1
USBUSB 2.0 x 2, USB 3.2 Gen 1 x 1
LEDPower LED x 1, HDD Active x 1, LAN LED x 8 (Optional Status LED x 1, Bypass LED x 1)
OTHERSPower Button x 1, Software Programmable Reset Button x 1
ENVIRONMENTAL
OPERATING TEMPERATURE32°F ~ 140°F (0°C ~ 60°C)
STORAGE TEMPERATURE-40°F ~ 185°F (-40°C ~ 85°C)
OPERATING HUMIDITY0% ~ 90% relative humidity, non-condensing
Name Type Version Release Date
FWB-2250, datasheet Datasheet V1.0 02 October 2015
