PER-C41L

Home  >   AAEON  >   Network Appliance and Video Surveillance  >
Network Interface Module

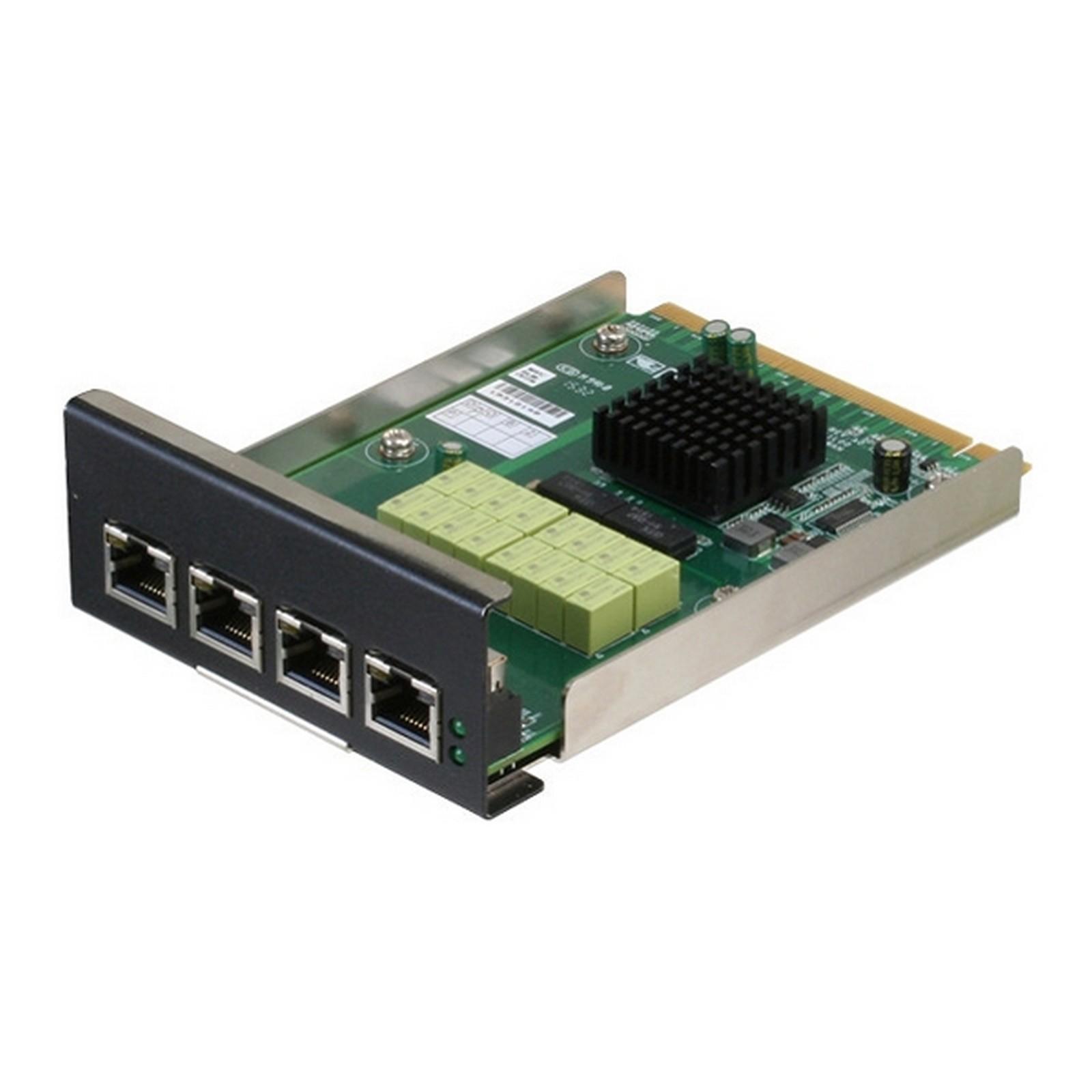

Intel® 82580EB PCI-Express 1G Copper Ethernet 4 Ports Module

Product Feature

  • PCI-Express Host Interface

Intel® 82580EB PCI-Express 1G Copper Ethernet 4 Ports Module

MAIN SPECIFICATION
FORM FACTOR1G LAN Module
MAIN CHIPSETIntel® 82580EB Ethernet Controller x 1
BYPASS2
HOST INTERFACEPCI-Express [x4]
LAN PORT1GbE Connector x 4
INDICATORLED x 4 for Active/Link
QUALIFICATIONCE/FCC Class A
OPERATING TEMPERATURE32°F ~ 104°F (0°C ~ 40°C)
DIMENSION5.43" x 3.46" (137.8mm x 88mm)
Name Type Version Release Date
PER-C41L datasheet Datasheet V1.0 06 January 2021
