SCA-C01

Home  >   AAEON  >   IoT Gateway Solutions  >
Gateway Boards

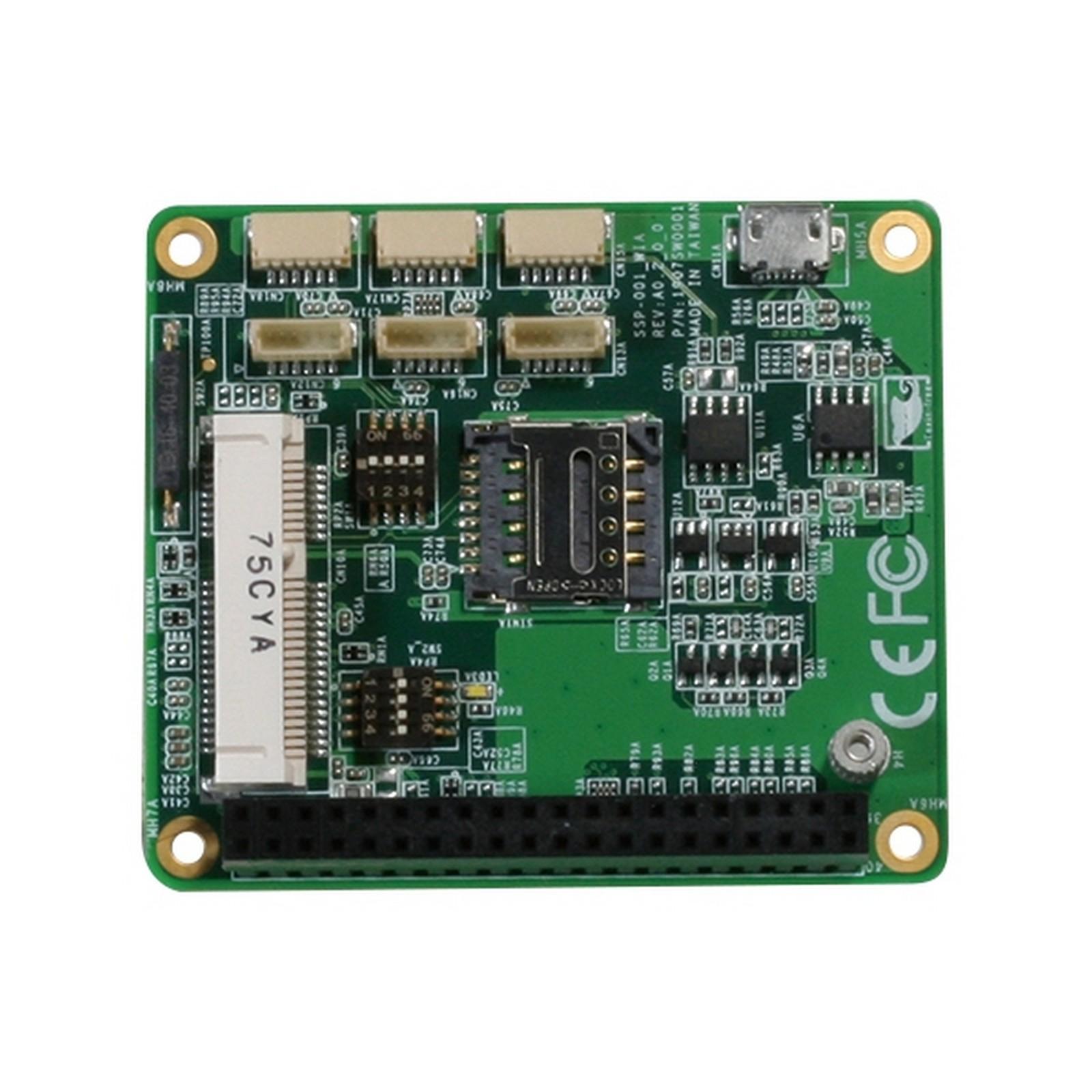

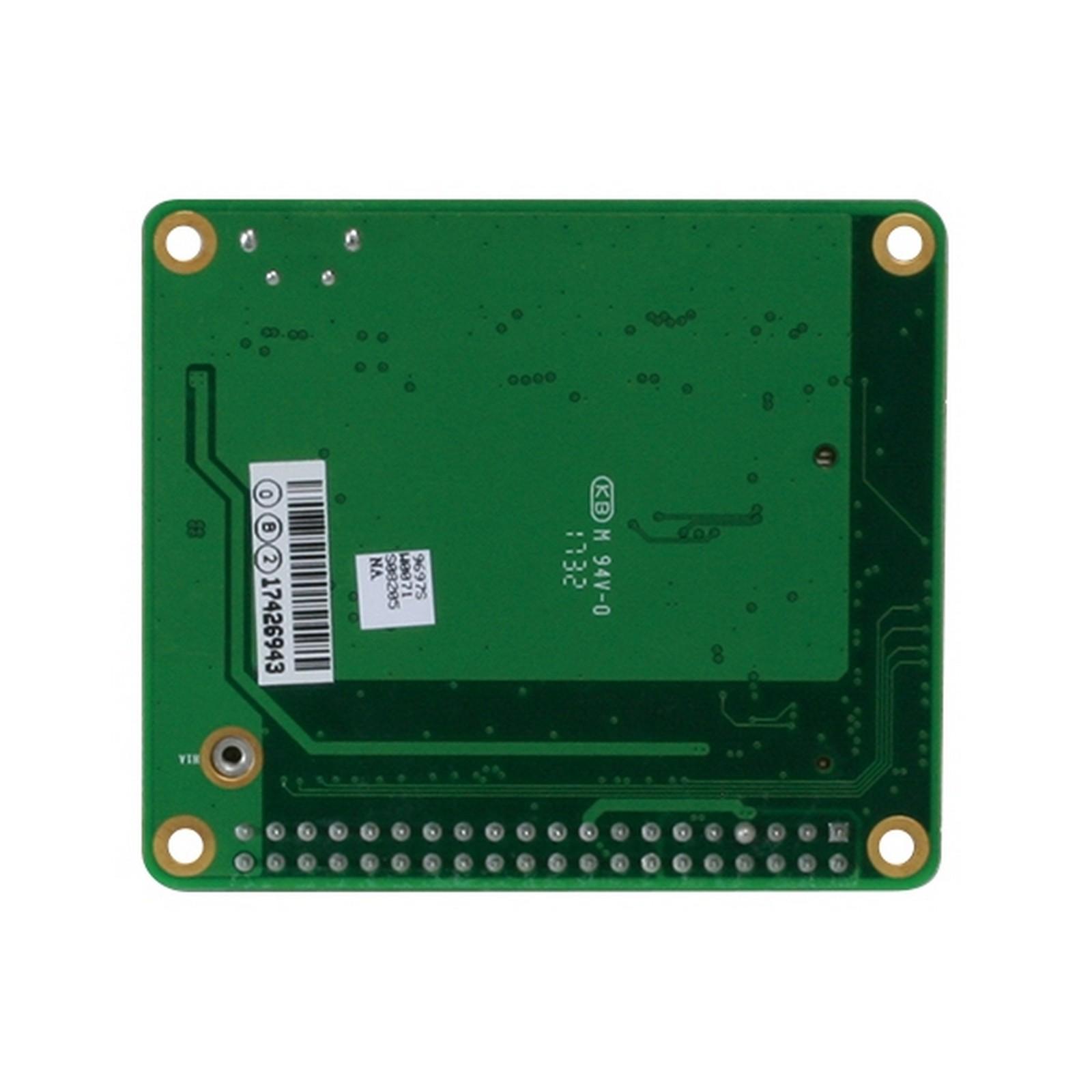

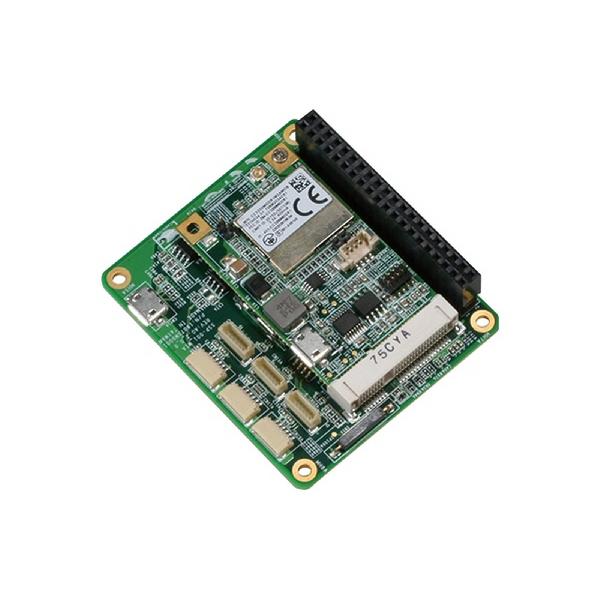

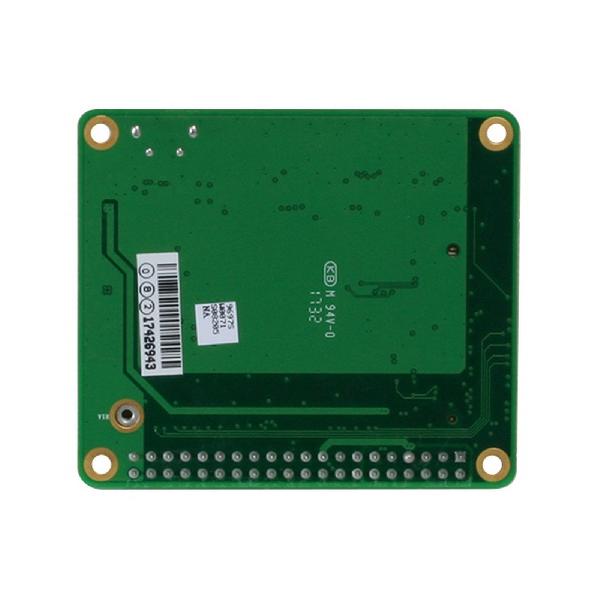

Carrier Board for AAEON IoT Wireless Modules

Product Feature

  • Mini-PCI Slot for AAEON's Wireless MCU Modules
  • Rich I/O Port with I2C/GPIO/UART/SPI
  • 40-pin Header Compliant with Raspberry-Pi & UP Board
  • RS-232/RS-485 Function Selecable

Carrier Board for AAEON IoT Wireless Modules

SYSTEM
INTERNAL I/O COMPONENTSSPI x 2
UART x 2
I2C x 1
GPIO x 3
ANALOG x 3
40-pin Header
RS-232/485 Jumper Selectable
Note: The actual I/O ports will base on wireless modules used.
OTHERSMicro SIM x 1
MECHANICAL
DIMENSION2.56" x 2.2" x 0.6" (65.1mm x 56mm x 15.2mm)
ENVIRONMENTAL
OPERATING TEMPERATURE-4°F ~ 158°F (-20°C ~ 70°C)
STORAGE TEMPERATURE-40°F ~ 185°F (-40°C ~ 85°C)
STORAGE HUMIDITY10% ~ 95%RH @ 40°C, non-condensing
POWER SUPPLY
DC INPUT5V (Micro USB)
OPTIONAL CONNECTIVITY
SUPPORT CONNECTIVITYWIFI (IEEE 802.11)
Sub-1GHz (IEEE® 802.15.4g PHY, 315-, 433-, 470-, 500-, 779-, 868-, 915-,
920-MHz)
LoRaWAN™
Name Type Version Release Date
SCA-C01, datasheet Datasheet V1.0 14 Febuary 2018
