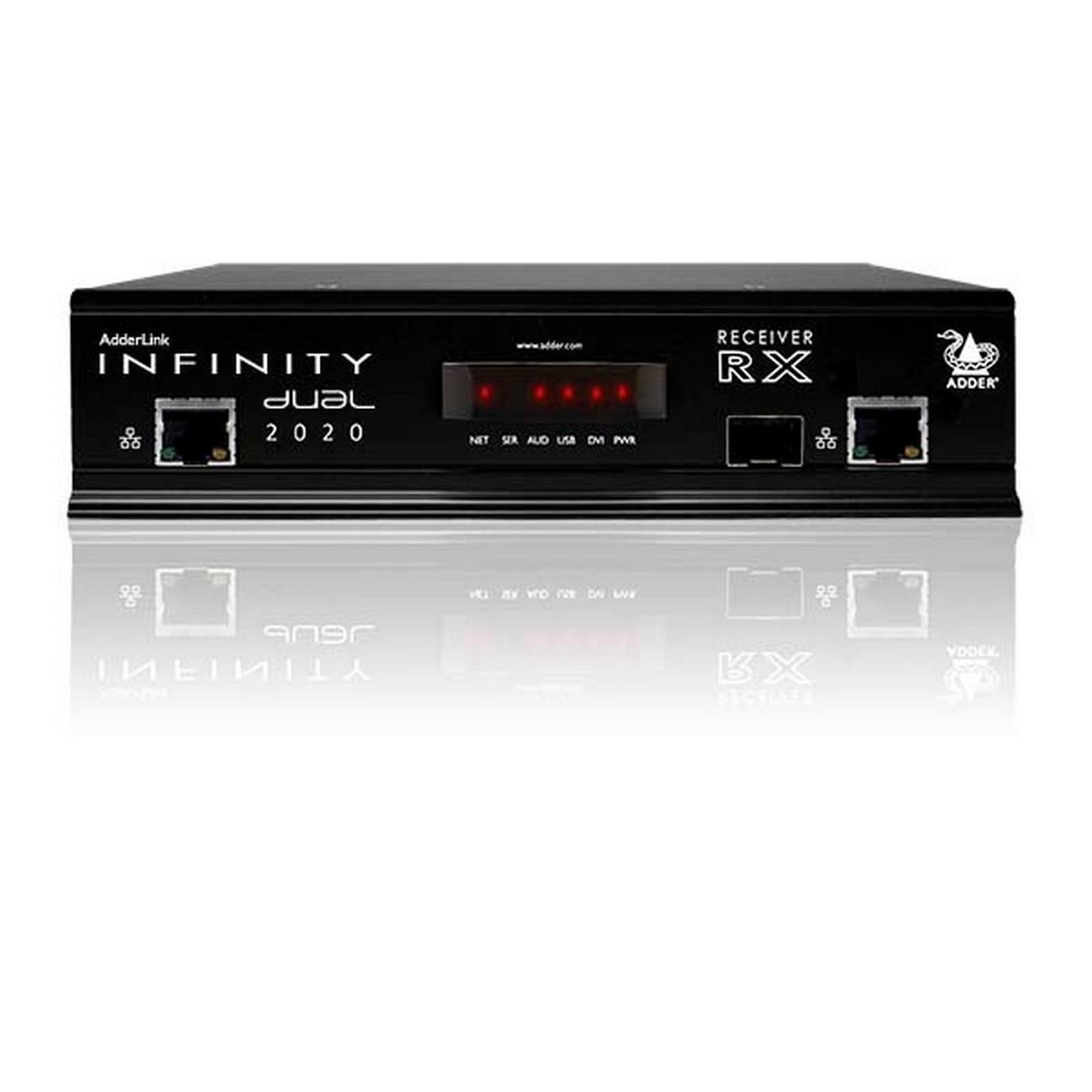

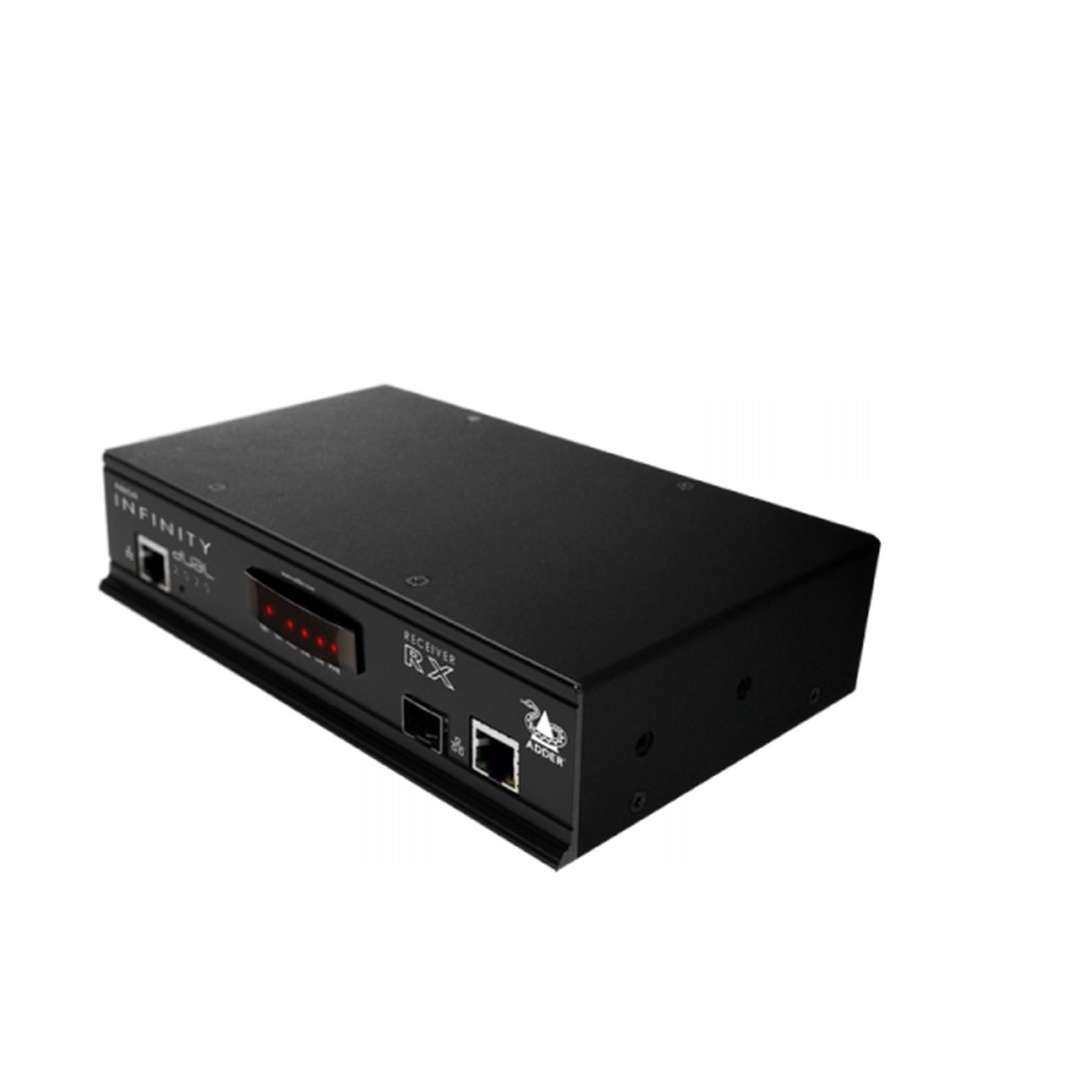

ADDERLink™ INFINITY Dual 2020

Home  >   Adder  >   Matrix  >
Enterprise IP-based Matrix

A single link, dual head digital video and USB fanless KVM extender that runs over a single cable on your standard IP network

Product Feature

  • Perfect digital video: uncompressed video extension and pixel perfect digital video up to 24 bits per color at a maximum of 1920x1200 over 60Hz with real time control
  • Digital Stereo Audio: digitally delivered crystal clear audio across the network
  • Distribution: DVI, USB, audio and bidirectional RS232 across up to 10km
  • Power redundancy: the units can detect whether the network is in operation and will utilize the second network port is failure detected
  • EDID management: Extended Display Identification Data (EDID) enables the remote system to exactly mirror the date coming from the source monitor
  • Plug and Play: the ADDERLink INFINITY range is delivered in a zero config state so they work as soon as they are connected, without the need for drivers or software
  • Robust yet lightweight: small form factor, rack mountable device
  • USB True Emulation: USB 2.0 enables connection to any USB human interface device from mice and keyboards through to graphics tablets, jog shuttles, joysticks and 3D explorers

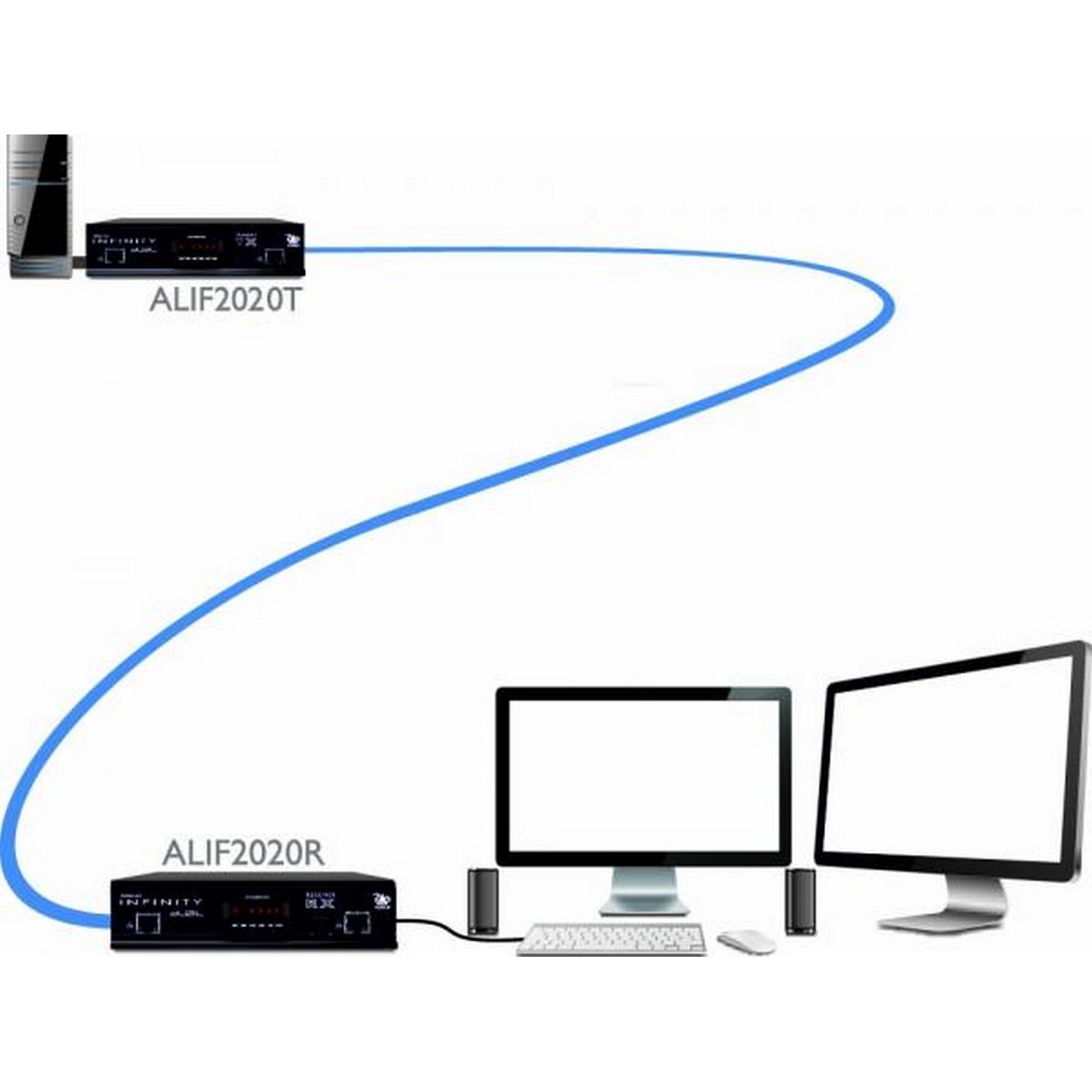

Part of the ADDERLink™ INFINITY range, the ADDERLink™ INFINITY Dual 2020 is a high performance KVM solution that enables you to isolate critical computing hardware in a secure and temperature controlled environment. Configurable as a single link or dual head, this extender provides an ‘at-the-PC’ experience across up to 10km: the digital video you receive is the same as the digital video leaving the remote computer, with no loss of compression and minimal lag. The Dual 2020 comes with a choice of single mode or multimode fiber modules to suit your specific application. This KVM extender can be used as a point to point extender or can be integrated into a wider matrix system when combined with the ADDERLink INFINITY Manager (A.I.M.).

  • ‘At-the-PC’ experience: single link and dual head, 24 bits per color on a maximum resolution of 1920x1200 @ 60Hz with minimal lag
  • Adaptable to suit your needs: delivers uncompressed digital video with audio, and option to compress video to minimize bandwidth usage over copper or fiber
  • IP-based: standard IP protocols, ensuring maximum compatibility with your existing IT infrastructure and staff skillset
  • Flexible solution: from point-to-point extender to an infinitely extensible matrix
  • In-built security measures: compliant with universal enterprise grade security standards (AES 256 bit encryption and RSA 2048 bit public key authentication)
broadcast beat award for innovation



Queens award for innovation 2014



ADDERLink INFINITY dual 2020





Video Resolutions

Single Link DVI-D resolutions to a maximum of 1920 x 1200 @ 60Hz

Approvals / Compliance

  • CE
  • FCC

Standards

Supports USB2.0 devices (low, full and high speed). Security feature allows the blocking of non HID devices. Isochronous devices are not supported (e.g. USB audio or video devices)

Cable Requirements

Copper (CATx up to 100m/330ft) or fiber (requirements dependent)

Environmental

0 to 40 deg C / 32 to 104 deg F

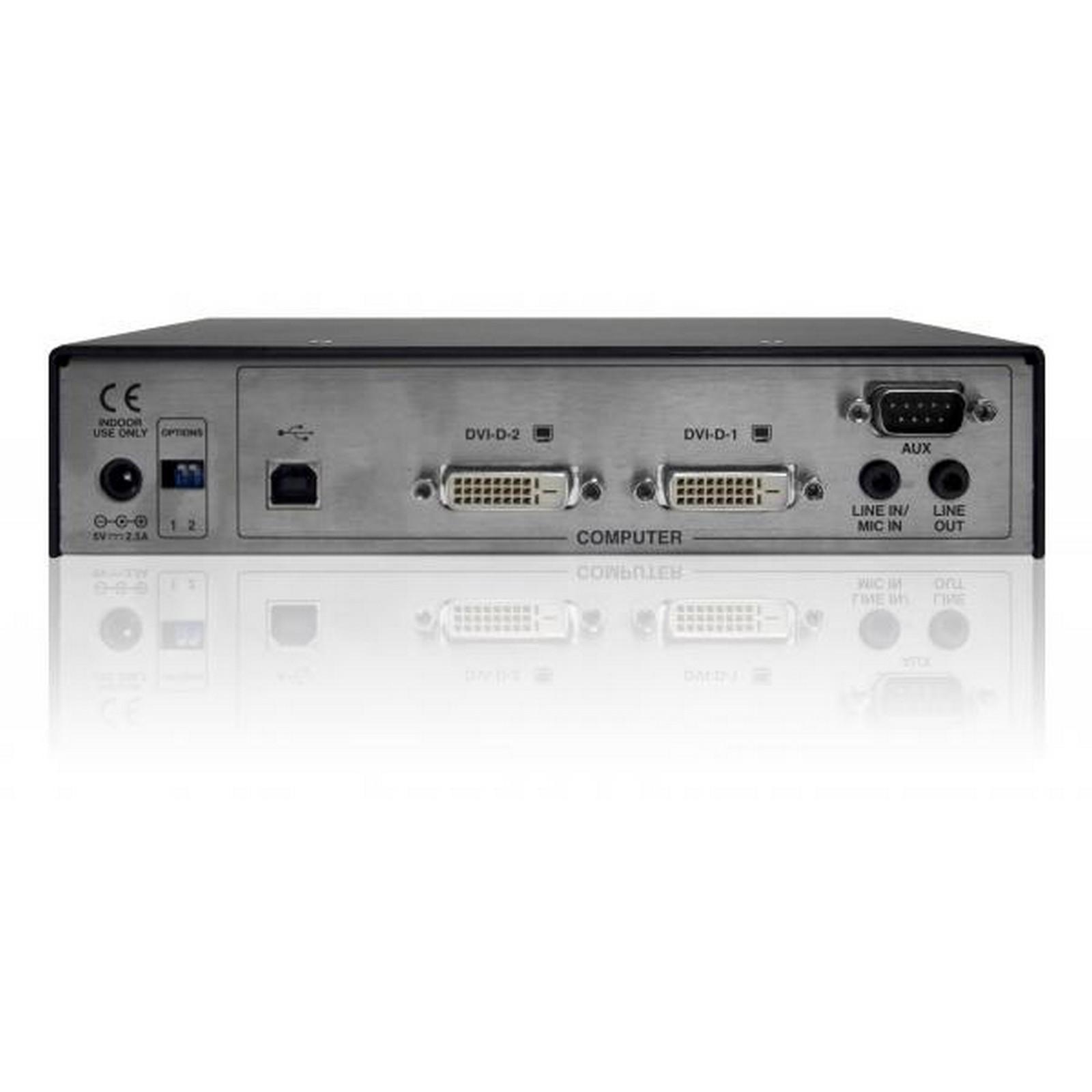

Connectors – Local Unit

DVI-D x 2, Audio 3.5mm in, Audio 3.5mm out, USB type B, RS232 9 pin D-Type, SFP slot

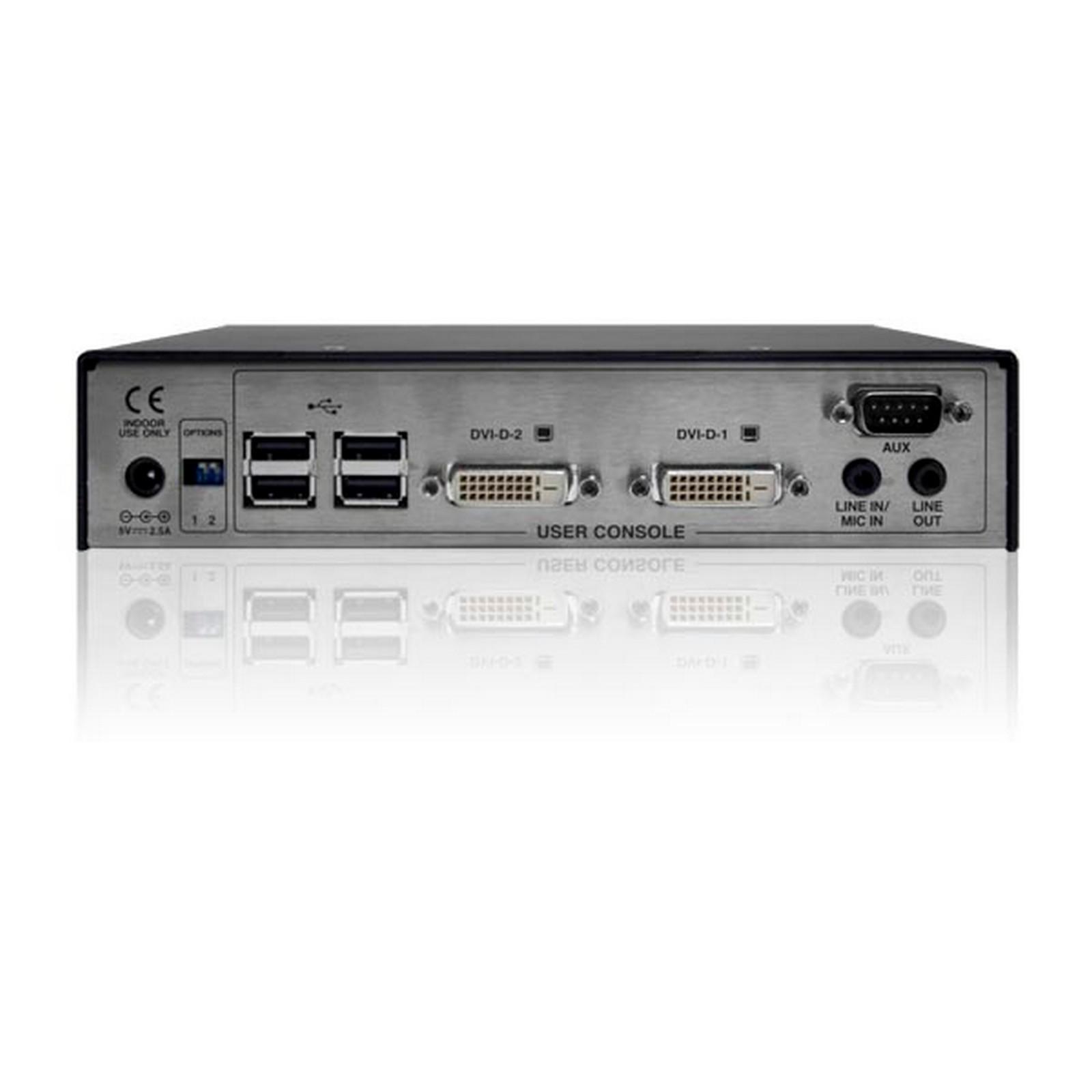

Connectors – Remote Unit

Video: DVI-D x 2, Audio 3.5mm in, Audio 3.5mm out, USB type A x 4, RS232 9 pin D-Type, SFP slot

Mechanical

1U compact case, robust metal construction. 198mm/7.92” (w), 44mm/1.76” (h), 150mm/6” (d), 1.1kg/2.7lbs

Power

2.5mm DC jack (power adapter included),100-240VAC 50/60Hz, 0.4A, input to power adapter, 5VDC 12.5W output from power adapter

Software

All known operating systems

Name Type Version Release Date
ADDERLink™ INFINITY Dual 2020 Datasheet 1.0 12 January 2021
ADDERLink™ INFINITY Dual 2020 Manual 1.0 12 January 2021
