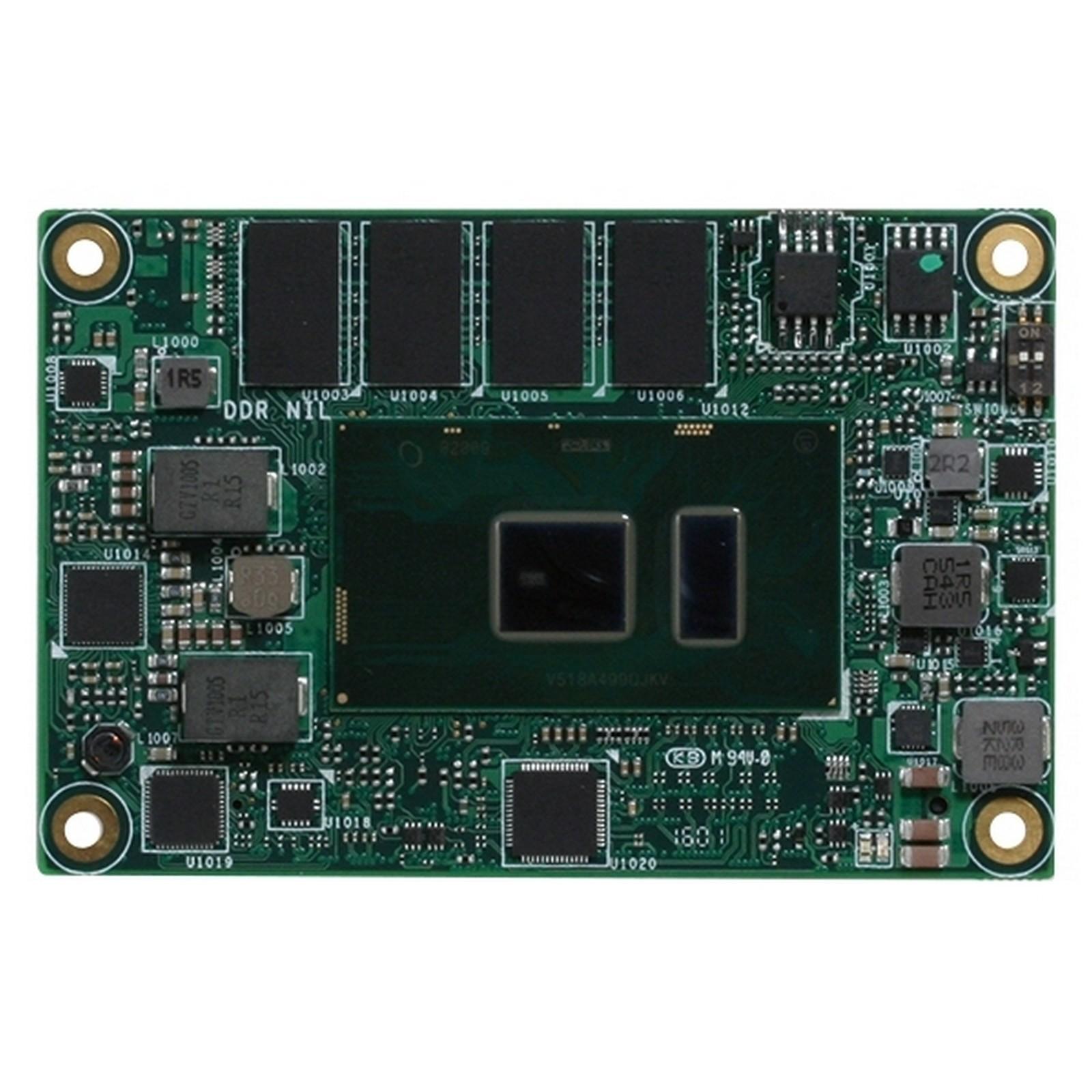

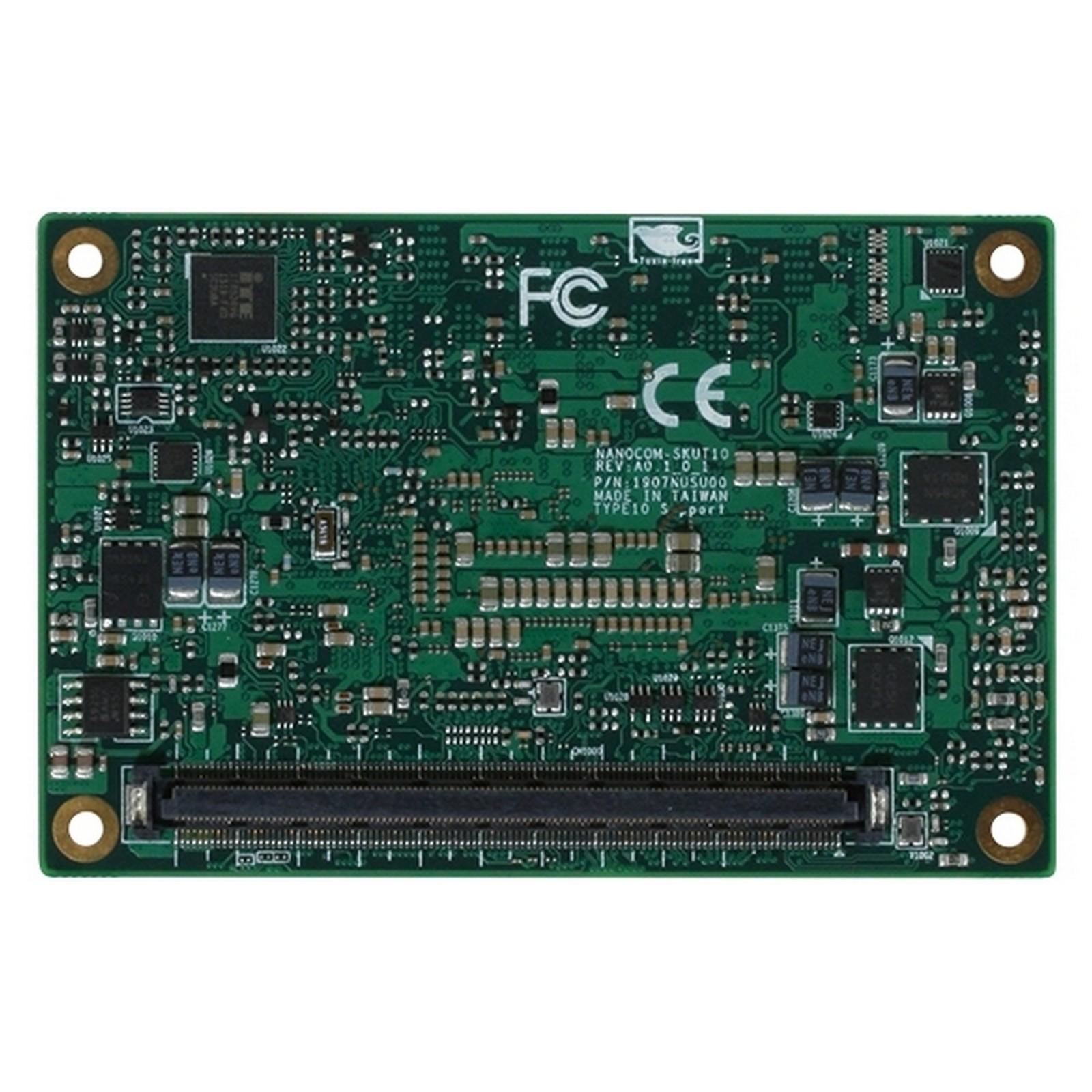

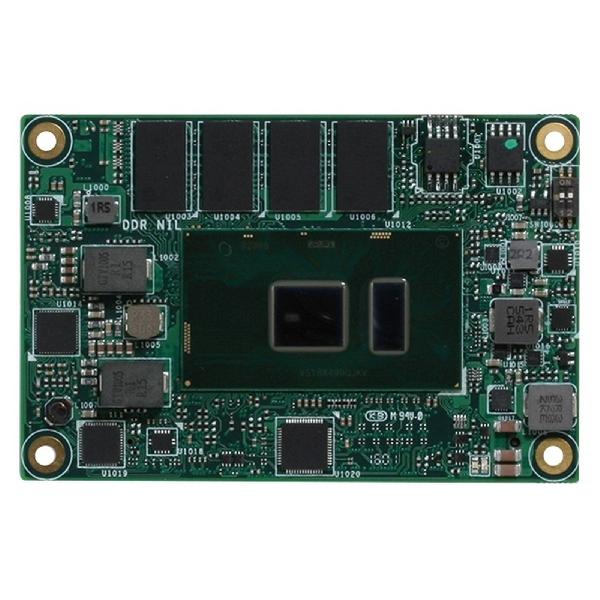

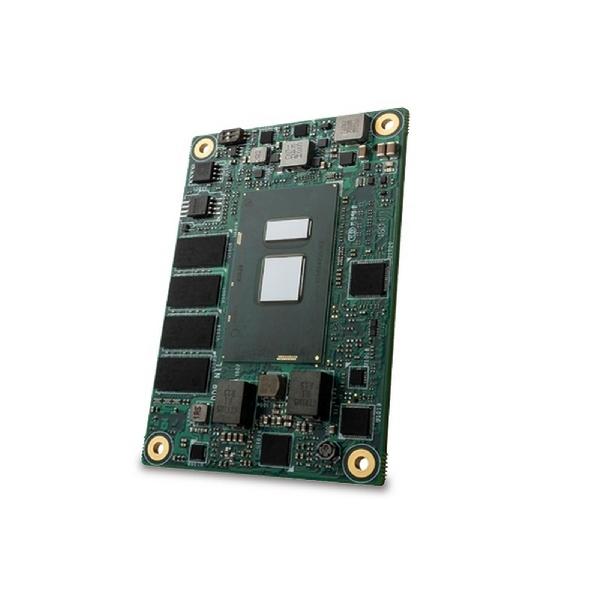

COM Express Type 10 with 7th Generation Intel® Core™ ULT Series Processor

Product Feature

  • 7th Generation Intel® Core™ ULT Series Processor
  • Onboard 4GB DDR4 2133 Memory
  • Gigabit Ethernet x 1
  • 18/24-bit Single-Channel LVDS LCDs/eDP, DDI x 1
  • High Definition Audio Interface
  • SATA x 2
  • USB 3.0 x 2, USB 2.0 x 8
  • PCI-Express〔x1〕x 4
  • GPIO x 8, SMbus, I2C, LPC
  • COM Express Type 10
  • Mini Size, 84mm x 55mm
  • Supports Industrial Grade Temperature

AAEON’s NanoCOM-KBU is the only COM Express Type 10 module on the market to be powered by a 7th Gen Intel® Core™ i7 Processor. The business card-size board is highly extendable as it supports a 1GbE LAN port, eight USB2.0 and two USB3.0 ports, two SATA 2 interfaces, and four PCI-E expansion slots. As it can also be used in -40°C to 85°C temperatures, this module is as versatile as it is powerful.

By fitting the NanoCOM-KBU with an Intel Core processor, AAEON has not only demonstrated its unmatched technical expertise; it’s also made it possible to have onboard 4GB DDR4 memory and the advanced Intel® HD Graphics 620 engine on a COM Express Type 10 board. As a result, customers will be able to enjoy accelerated processing speeds and 4K resolution.

The NanoCOM-KBU’s embedded controller structure features a real-time interrupt and also power and battery management systems. Additionally, because the board’s I2C bus is compatible with a range of IC formats, integrating it with your own custom-made carrier board is a straightforward operation.

To simplify the implementation process, AAEON provides customers with dedicated development engineers. To make sure everything continues to work properly, there are also local engineers for debugging issues and the AAEON Hi-Safe program for up-to-the-minute system information.

SYSTEM
FORM FACTORCOM Express Mini size, Type 10
CPU7th generation Intel® Core™ ULT Series Processor
CPU FREQUENCYup to i7-7600U 2c/4t, 2.8GHz
CHIPSETIntel® Core™/Celeron® Processor SoC
MEMORY TYPENon-EEC DDR4-2133
MAX. MEMORY CAPACITY4GB DDR4 Onboard
BIOSAMI BIOS, Legacy free
WAKE ON LANYes
WATCHDOG TIMER255 Levels
POWER REQUIREMENTNormal: +12V
POWER SUPPLY TYPEAT/ATX
POWER CONSUMPTION (TYPICAL)i7-7600U 12V@1.83A. Under 100% loading
DIMENSION (L X W)3.31” x 2.17” (84mm x 55mm)
OPERATING TEMPERATURE32 °F ~ 140 °F (0 °C ~ 60 °C)
-40 °F ~ 185 °F (-40 °C ~ 85 °C) Option for NANOCOM-SKU series
STORAGE TEMPERATURE-40°F ~ 176°F (-40°C ~ 80°C)
OPERATING HUMIDITY0% ~ 90% relative humidity, non-condensing
MTBF (HOURS)80000
CERTIFICATIONCE/FCC Class A
DISPLAY
VGA/LCD CONTROLLEROnboard 7th Gen. intel® Core™ U-Series Processor, HD610/620
VIDEO OUTPUTLVDS LCD/eDP, DDI x 1
I/O
ETHERNETIntel® I219 GbE
AUDIOHigh Definition Audio Interface
USB PORTUSB 2.0 x 8, USB 3.0 x 2
SERIAL PORTTX/RX x 2
HDD INTERFACESATAIII x 2
EXPANSION SLOTPCIe x1 supports 4 devices
LPC Bus
Smbus
I2C
GPIO8-bit
ONBOARD STORAGE
TPMfTPM Supported
Name Type Version Release Date
NANOCOM-KBU Datasheet Datasheet V1.0 05 March 2018
