COM-KBUC6

Home  >   AAEON  >   Embedded Boards  >
Computer-on-Modules  >   COM Express Modules

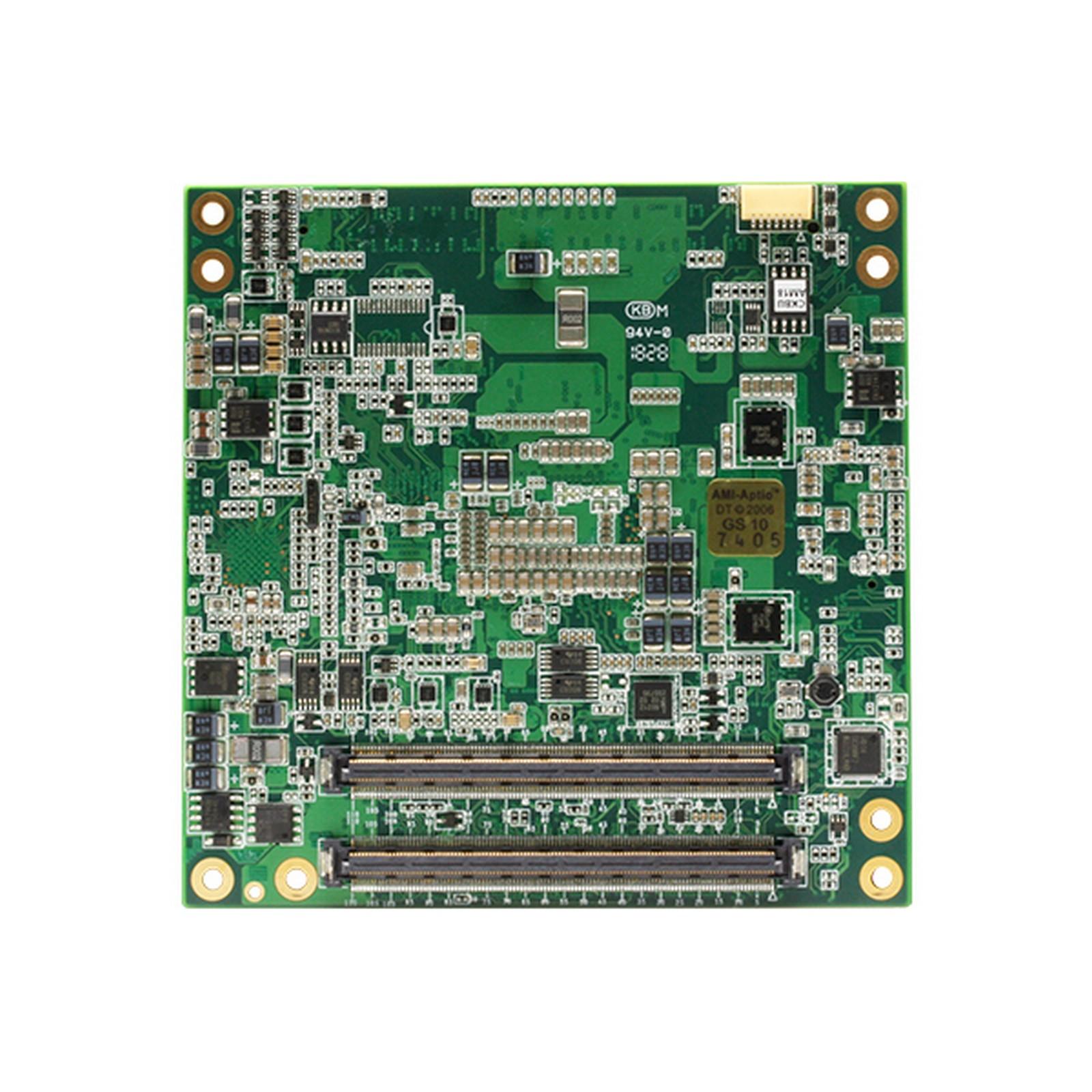

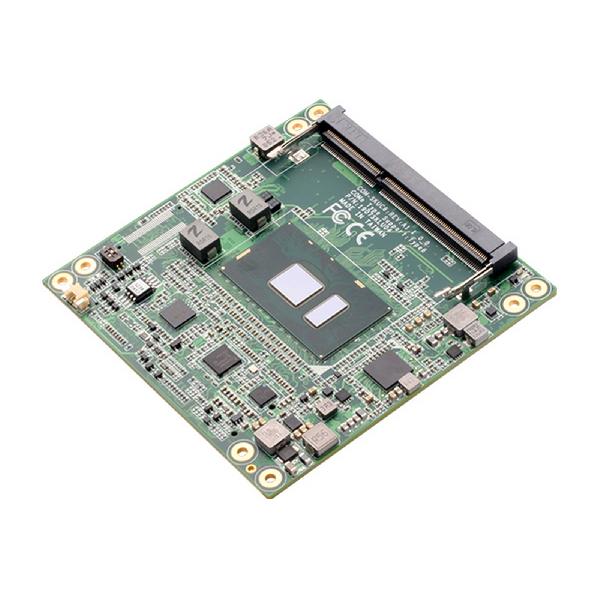

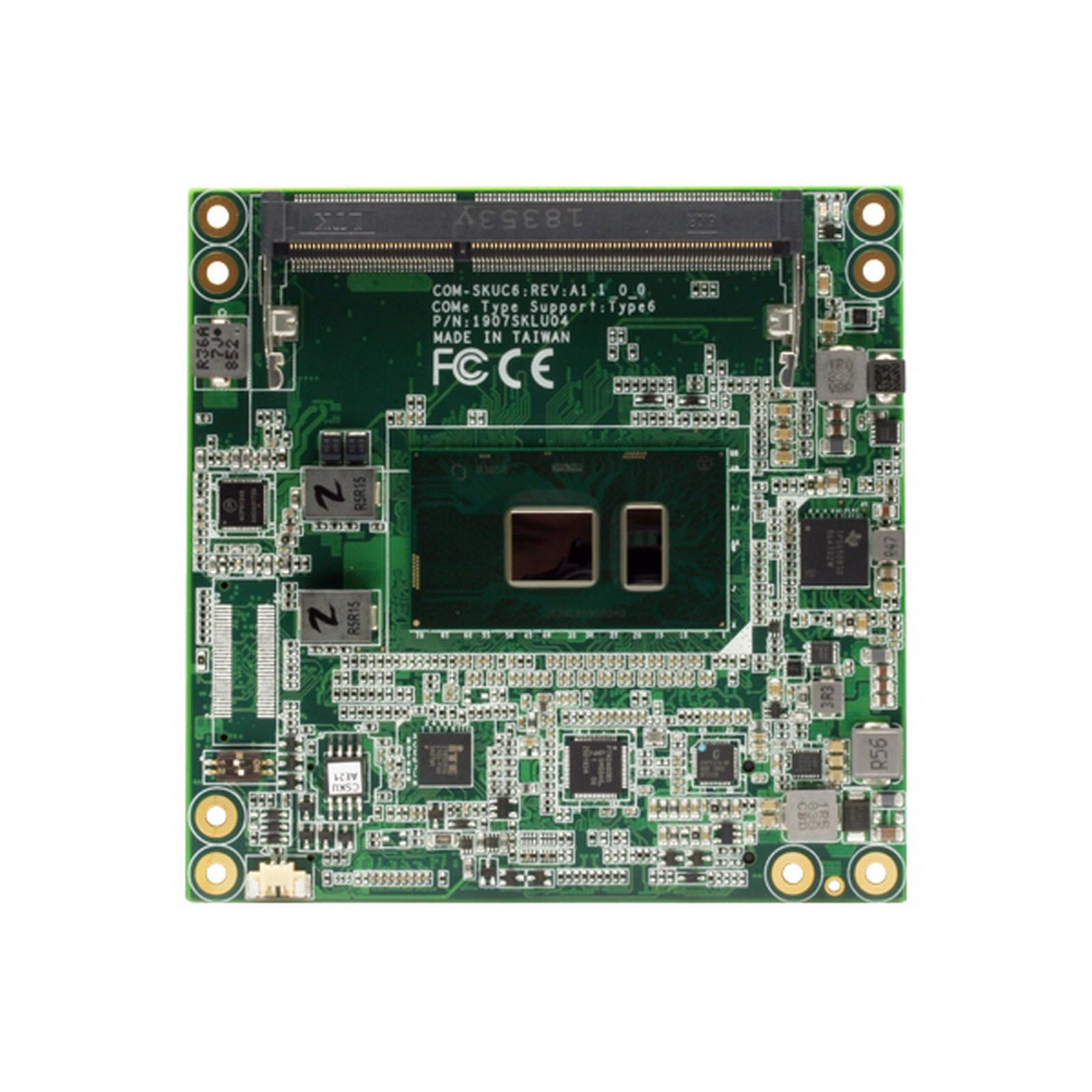

COM Express Type 6 Compact Size with 6th/7th Gen Core U-series Processor

Product Feature

  • Intel® Core™ i3/i5/i7 U-series SoC
  • DDR3L SODIMM x 1, up to 8 GB, non-ECC only
  • Gigabit Ethernet x 1
  • 18/24-bit Dual-Channel LVDS LCD / eDP, VGA , DDI up to 2, High Definition Audio Interface
  • SATA x 3 (SATA Port 3 for i5 i7 sku only)
  • USB 2.0 x 8, USB 3.2 Gen 1 x 4, GPIO 8-bit, PCI-Express Lanes x 8
  • COM Express Type 6 Compact Size 95mm x 95mm

COM Express Type 6 Compact Size with 7th Gen. Intel ® Core™ U Processors

SYSTEM
FORM FACTORCOM Express Compact Size, Typ6
CPUOnboard 6th/7th Generation Intel® Core™ U-series Processor, BGA type
CPU FREQUENCYUp to i7-7600U 2C/ 2.8 GHz
CHIPSETOnboard 6th/7th Generation Intel® Core™ U-series Processor
MEMORY TYPEDDR3L 1600, SODIMM x 1
MAX. MEMORY CAPACITY8 GB
BIOSAMI BIOS, Legacy Free
WAKE ON LANYes
WATCHDOG TIMER255 levels
POWER REQUIREMENTStandard: +12V
POWER SUPPLY TYPEAT/ATX Selection
POWER CONSUMPTION (TYPICAL)i7-7600U, 8GB DDR3L, full loading 1.32A@12V during 100% loading burn in test
DIMENSION (L X W)3.75" x 3.75" (95mm x 95mm)
OPERATING TEMPERATURE32˚F ~ 140˚F (0˚C ~ 60˚C)
STORAGE TEMPERATURE-40°F ~ 185°F (-40°C ~ 85°C)
OPERATING HUMIDITY10% ~90% relative humidity, non-condensing
MTBF (HOURS)182306
CERTIFICATIONCE/FCC Class A
DISPLAY
VGA/LCD CONTROLLEROnboard 6th Gen Intel® Core U-Series Processor, GT2-520/510
Onboard 7th Gen Intel® Core U-Series Processor, GT2-620/610
VIDEO OUTPUTVGA, LVDS/eDP, DDI x 1 (up to 2)
I/O
ETHERNETIntel® PHY i219LM Giga LAN (support Intel® AMT 12.0) x 1
AUDIOHD Audio
USB PORTUSB 2.0 x 8, USB 3.2 Gen 1 x 4
SERIAL PORT2-Wire UART (Tx/Rx) x 2
HDD INTERFACESATA3 x 2 ; i5 & i7 up to 3
EXPANSION SLOTPCIe [x1] x 8 、LPC x1、SMBUS x 1、I2C、2-wire UART x2
GPIOGPIO 8-bit
ONBOARD STORAGE
TPMOptional
Name Type Version Release Date
COM-KBUC6 Datasheet Datasheet V1.0 25 March 2019
