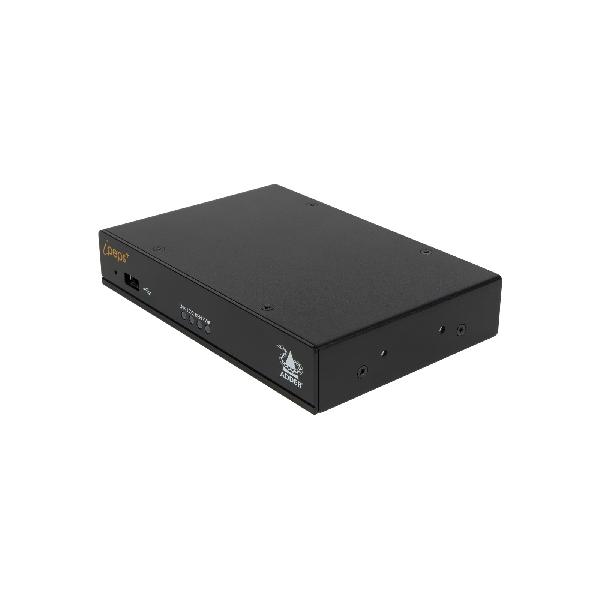

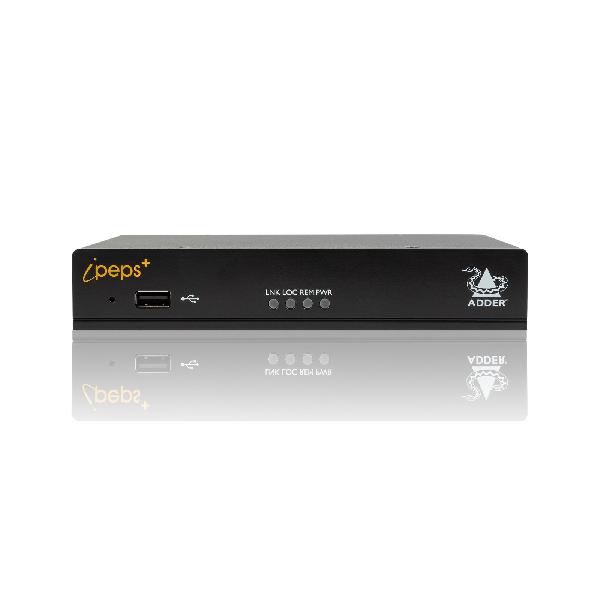

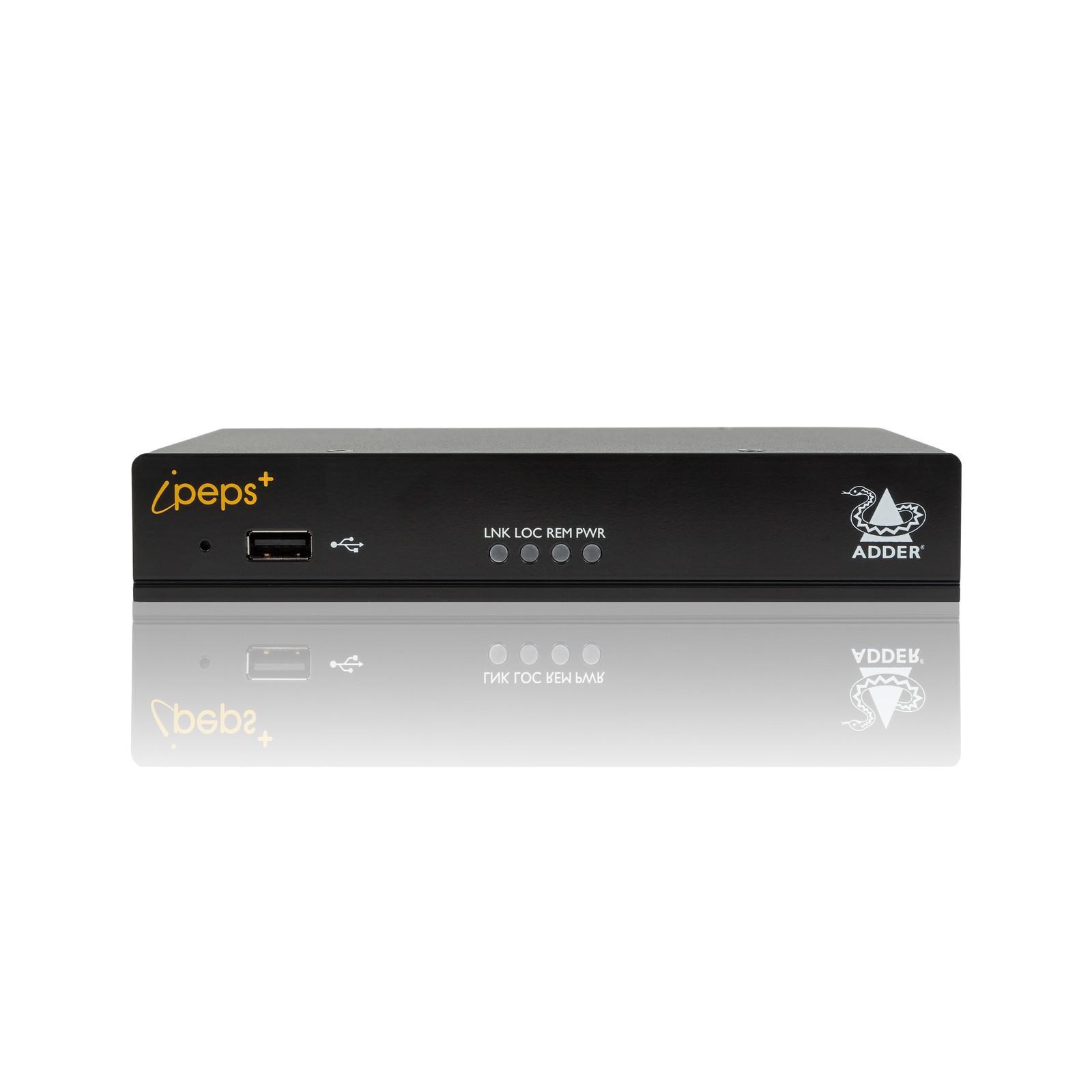

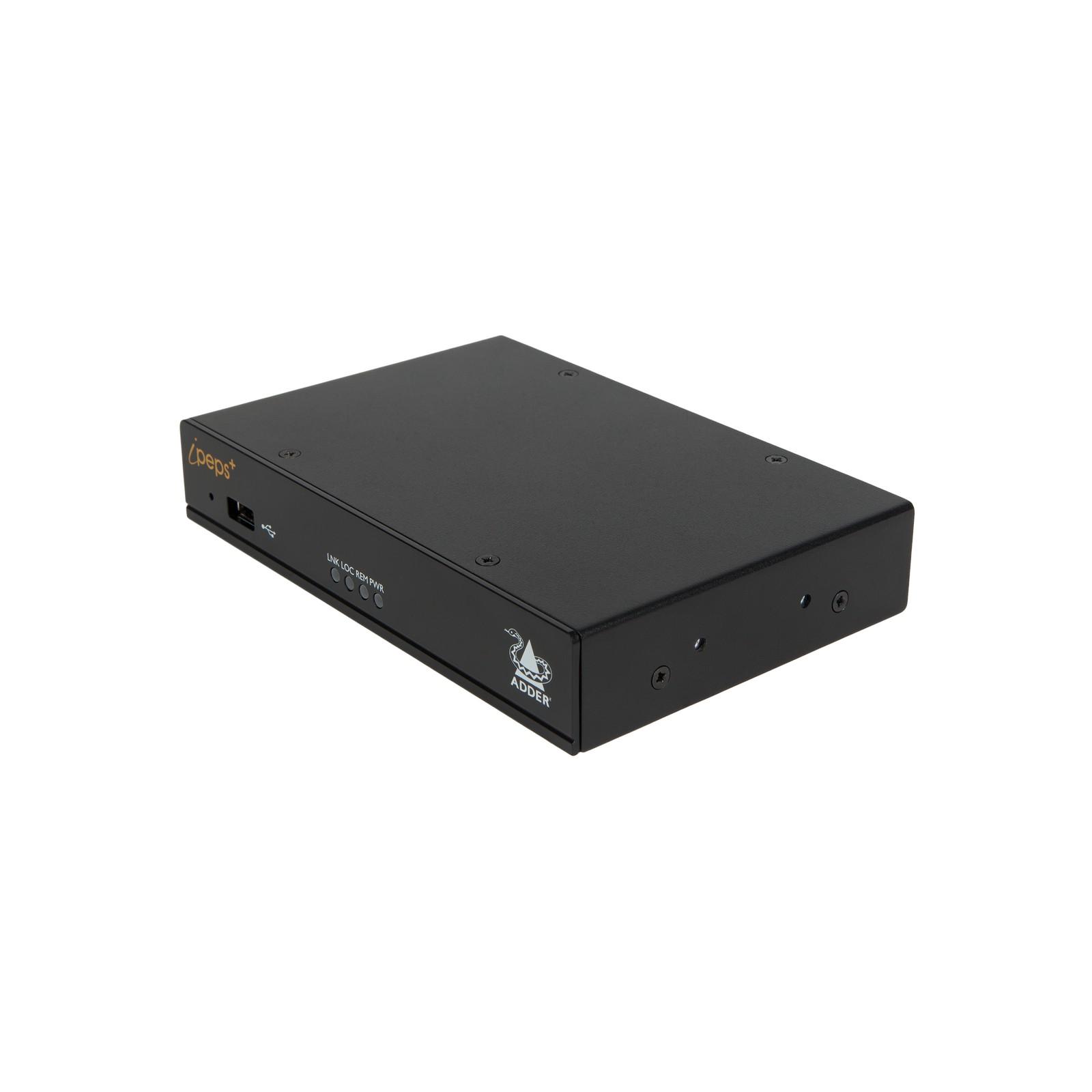

ADDERLink™ ipeps+

Home  >   Adder  >   Remote  >
Remote Access to Single Computer

New from Adder: an exciting evolution to the highly successful ipeps range of remote access products. The ADDERLink™ ipeps+ enables secure, real-time remote access to HD video from anywhere in the world

Product Feature

Flexible and scalable: Each XDIP unit can be configured as a simple extender, distributed KVM switch or for AV distribution. Each receiver can see up to 16 sources and each transmitter can connect to up to 256 receivers.

Configurable units: The XDIP user and computer units are identical and can be configured as a transmitter or receiver. This means the solution can be built to suit the application, and should the application change, units can be re-configured to suit.

High quality video: The XDIP supports video resolutions of up to 1920 x 1200 @ 60Hz.

Power over Ethernet (PoE): Compatible with most PoE switches, the XDIP can be easily installed without the need for additional power. Many PoE switches offer redundant power options which the XDIP can leverage for enhanced reliability.

Remote control: Users can remotely control their XDIP network via a RESTful API or HTTPS web browser. By managing the receiver end points through an API, users can control the matrix. The XDIP is designed to work with any third party controller via HTTPS.

Extension distance: Extension distance is linked to the IP standard of 100m with a 40% overhead for safety. Longer distances can be achieved by routing through IP infrastructure.

Audio capability: XDIP delivers bi-directional analog audio  (16-bit sampling at 48kHz) passed between the local and remote units. Headphones are also supported (16 to 32 Ohms).

Plug and Play: The XDIP is delivered in a zero config. state so it works, without the need for drivers or software, as soon as it is connected. A simple setup wizard guides the user through set up when the device is connected.

Part of the ADDERLink™ ipeps range, the ipeps+ enables you to remotely access and control your critical computing hardware using your standard IP network. Using RealVNC client software, computers outside the network can be remotely and securely accessed.

  • Smooth motion video: stream HD video up to 1920 x 1200 at up to 30 frames per second with 24 bits per pixel colour depth
  • Precise mouse synchronisation
  • Multiple access: the unit can be accessed by one local user and remotely by up to 8 users at any one time, each with defined access rights
  • Highly secure: compliant with universal enterprise grade security standards (AES 256-bit encryption and RSA 2048-bit public key authentication) from RealVNC
  • Ergonomic and efficient: compact unit with silent, fan-less operation

For more information, read the full press release  or request a demo and be the first to see it in action at ISE.



Approvals / Compliance

  • CE
  • FCC

Standards

HDMI v1.4

USB1.1 and 2.0 HID devices (low and full speed)

Cable Requirements

CATx

Environmental

0ºC to 40ºC / 32ºF to 104ºF

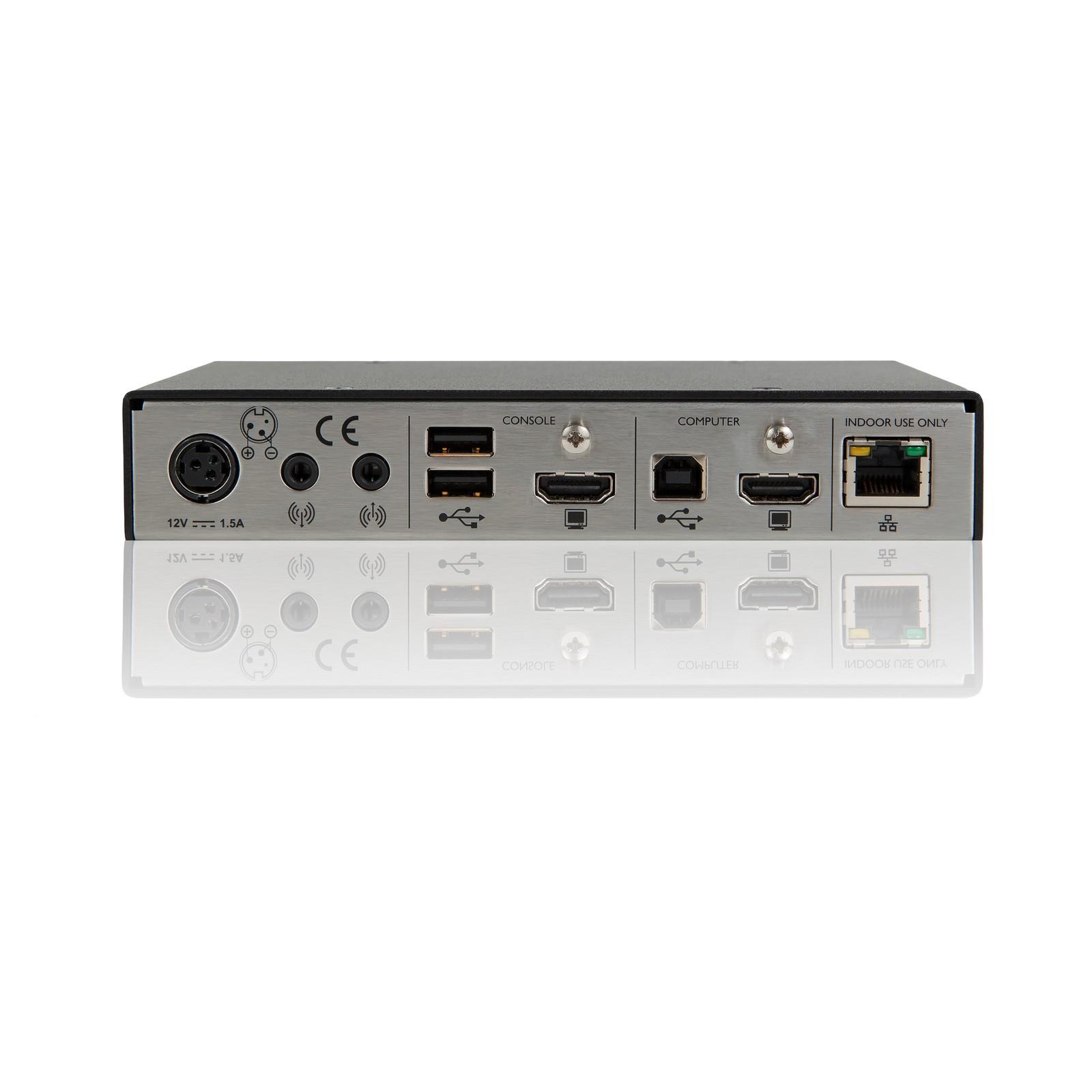

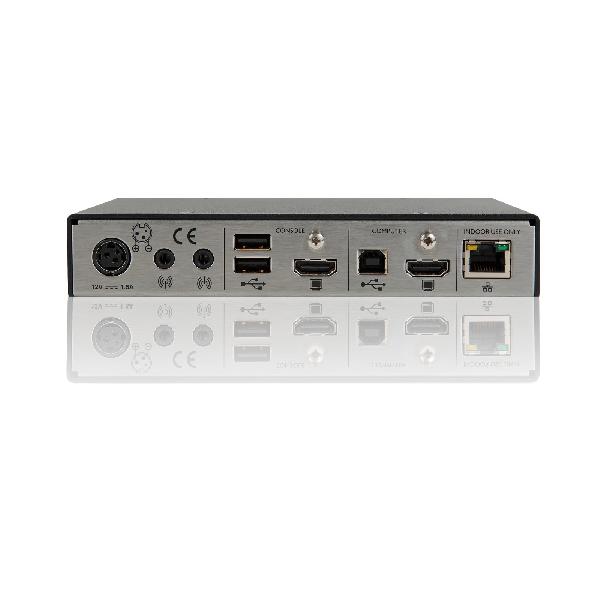

Connectors – Local Unit

HDMI, USB type A and B

RJ45 (8p8c) Ethernet port

Connectors – Remote Unit

NA

Power

100-240 VAC, 47/63Hz

12 VDC 18W output from power supply unit

Software

All known operating systems. No drivers required

Video

The system supports resolutions to a maximum of 1920 x 1200 @ 60Hz

Mechanical

169mm/6.65” (w), 31mm/1.22” (h), 120mm/4.8” (d), 0.6kg/1.3lbs.

Packaged size

262 x 236 x 143mm

Name Type Version Release Date
ADDERLink™ ipeps+ Datasheet 1.0 13 January 2021
ADDERLink™ ipeps+ Manual 1.0 13 January 2021
