COM-BYTC2

Home  >   AAEON  >   Embedded Boards  >
Computer-on-Modules  >   COM Express Modules

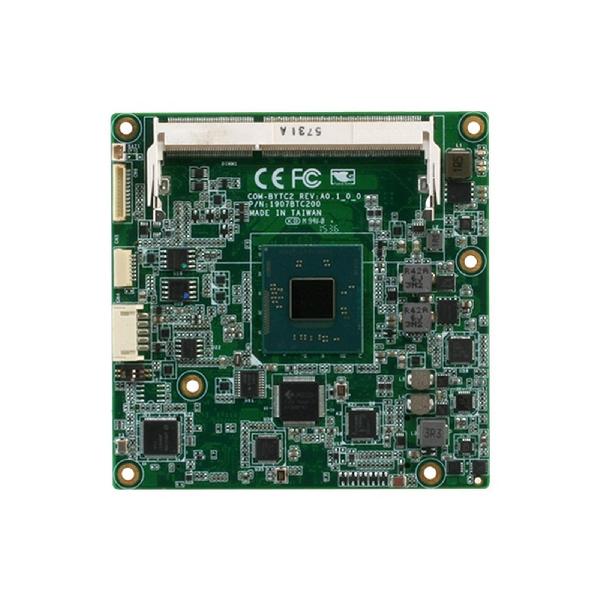

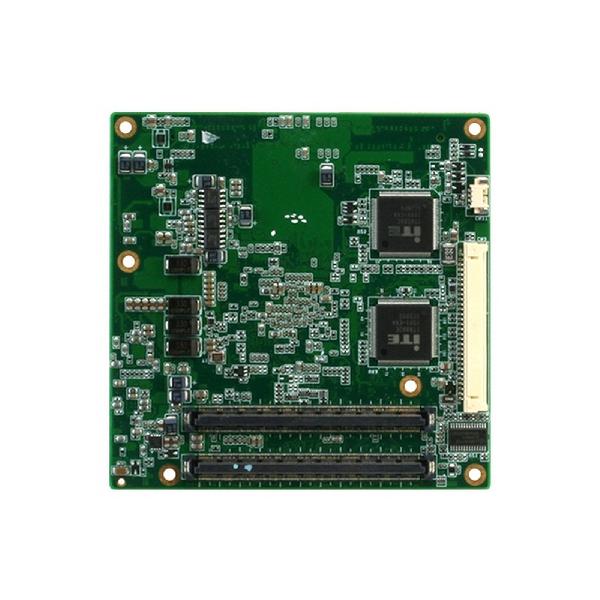

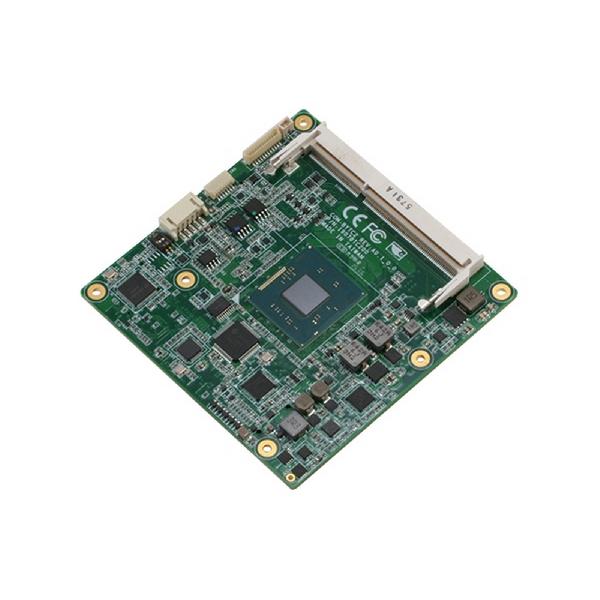

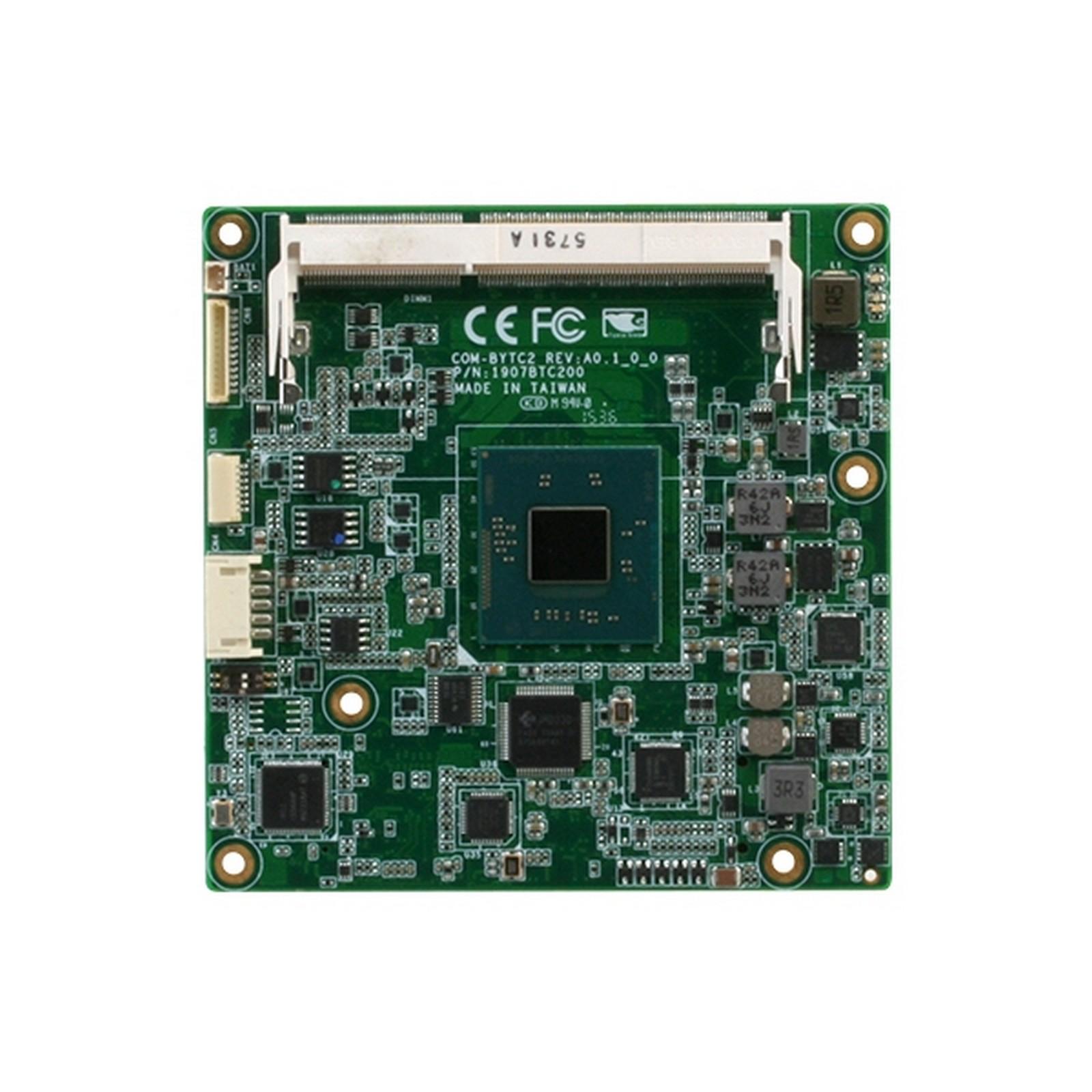

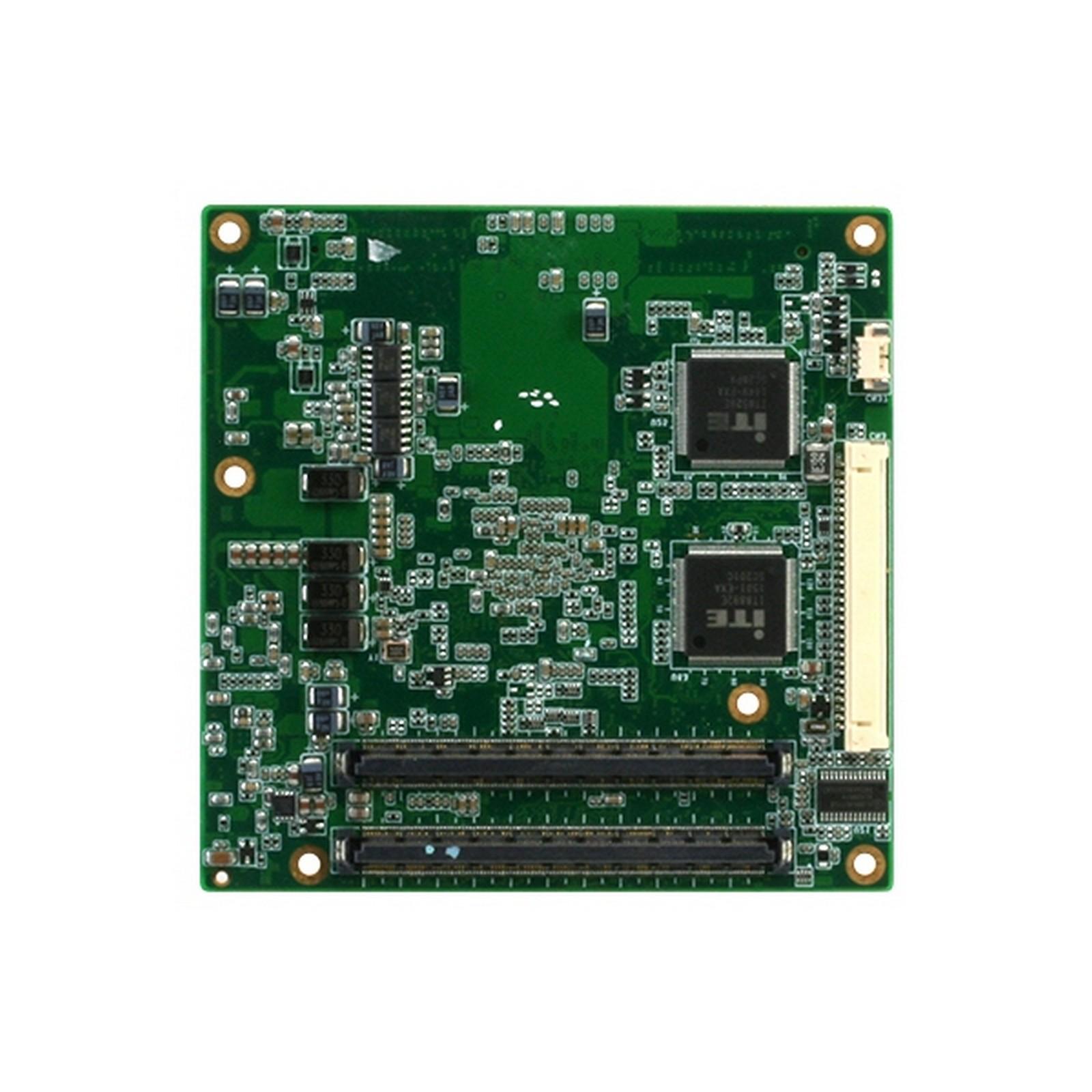

COM Express Type 2 Compact Size with Intel® Atom™/ Celeron® Processor

Product Feature

  • Intel® Atom™/ Celeron® Processor SoC
  • DDR3L SODIMM x 1, up to 8 GB, non-ECC Support
  • Gigabit Ethernet x 1
  • 18/24-bit Dual Channel LVDS LCD, VGA, eDP
  • High Definition Audio Interface
  • SATA x 1, PATA x 1 (1 Device)
  • USB 2.0 x 7, GPIO 8-bit, PCI-Express [x1] x 2 (Optional, up to 3), 32- bit PCI x 4
  • COM Express Type 2 Compact Size 95mm x 95mm

COM Express Type 2 CPU Module with Intel® Atom™/ Celeron™ Processor

SYSTEM
FORM FACTORCOM Express Compact Size
CPUOnboard Intel® Atom™ Processor SoC
CPU FREQUENCYUp to J1900 1.91 GHz, Quad core
CHIPSETIntel® Atom™ SoC
MEMORY TYPEDDR3L 1066/1333, SODIMM x 1
MAX. MEMORY CAPACITY8GB
BIOSAMI BIOS, Legacy Free
WAKE ON LANYes
WATCHDOG TIMER255 levels
POWER REQUIREMENTStandard: +12V
POWER SUPPLY TYPEAT/ATX Selection
POWER CONSUMPTION (TYPICAL)1A@ 12V with J1900, full load
DIMENSION (L X W)3.75" x 3.75" (95mm x 95mm)
OPERATING TEMPERATURE32˚F ~ 140˚F (0˚C ~ 60˚C)
STORAGE TEMPERATURE-4˚F ~ 158˚F (-20˚C ~ 70˚C)
OPERATING HUMIDITY10% ~90% relative humidity,
non-condensing
MTBF (HOURS)80000
CERTIFICATIONCE/FCC Class A
DISPLAY
VGA/LCD CONTROLLERIntel® Atom™ SoC
VIDEO OUTPUTVGA, LVDS, eDP
I/O
ETHERNETIntel® I210IT, Gigabit Ethernet
AUDIOHD Audio
USB PORTUSB 2.0 x 7
SERIAL PORT
HDD INTERFACESATA x 1, PATA x 1
EXPANSION SLOTPCIe[x1] x 2 (up to 2 devices)
PCI x 4
LPC
SMBus
I2C
GPIOGPIO 8-bit
ONBOARD STORAGE
TPMOptional
Name Type Version Release Date
COM-BYTC2 Datasheet Datasheet V1.0 13 July 2016
