ADDERView™ CATxIP 4000

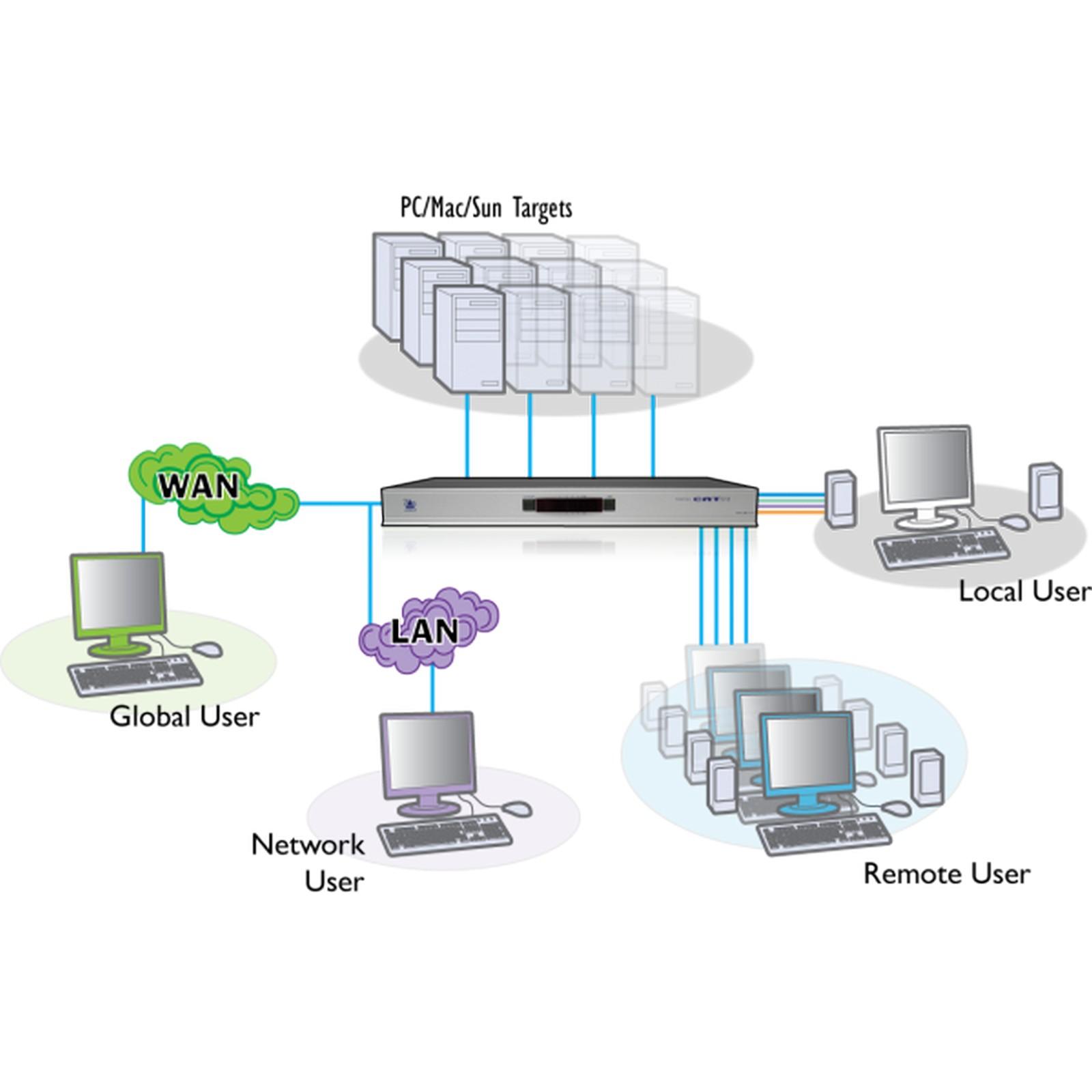

ADDERView CATxIP 4000 product is a high density, fully featured KVM over IP switch enabling up to 4 local, remote and global users to access and control up to 24 computers at BIOS level. A combination of USB console support, global IP access and a full KVM feature set ensure high-performance, flexible switching of USB, video and audio signals.  Any type of server can be connected to when combining the ADDERView CATxIP 4000 with the ADDER Computer Access Modules (CAM).  This product is part of the CATx range.


• Global control of up to 24 multi-platform servers: local and remote access via LAN or WAN
• Connection options: CATx cabling or IP
• High performance USB, video and audio
• Security: through authentication and encryption
• Flexible Plug and Play installation: easy set up complemented by multi-platform support and flexible expansion

Approvals / Compliance
⦁    CE
⦁    FCC

Standards
Hardware compatibility:
Video, mouse, keyboard and optional audio support for PC, Sun, Mac, RS/6000, Alpha and SGI computers using PS/2, USB or Sun Flash upgradable Computer Access Modules (CAMs)

OS compatibility:
Operates with all currently known software and operating systems including all Windows versions, DOS, Linux, Unix, BSD, all Sun OS, all Mac OS and NetWare

Video modes:
Support for standard PC, Sun and Mac video modes up to a resolution of 1920 x 1200 @ 60Hz.  DDC emulation supported via connected Computer Access Modules (CAMs)

Cable Guidelines
CAT5e or CAT6 cabling is recommended

Environmental
0 to 40ºC / 32 to 104ºF

Computer Connections at Switch
RJ45 (8p8c)

Peripheral Connections Receiver (RX)
Local console
⦁    Video: HDD15 socket
⦁    Keyboard/Mouse: USB type A sockets
⦁    Audio: 3.5mm stereo jack

Computer connections at Computer
Video: HDD15, Keyboard/Mouse: choice of USB, PS/2 and Sun MiniDin8
Audio (optional): 3.5mm stereo jack
Network port (ADDERView IP models only) RJ45 10/100Mb auto-sensing Ethernet port.  Other connectors DB9 female for flash upgrade, syncing boxes and other special functions. DB9 male for RS232 triggered power switches. DB9 Male (ADDERView IP only) for modem connection

Approvals / Compliance
⦁    CE
⦁    FCC

Standards
Hardware compatibility:
Video, mouse, keyboard and optional audio support for PC, Sun, Mac, RS/6000, Alpha and SGI computers using PS/2, USB or Sun Flash upgradable Computer Access Modules (CAMs)

OS compatibility:
Operates with all currently known software and operating systems including all Windows versions, DOS, Linux, Unix, BSD, all Sun OS, all Mac OS and NetWare

Video modes:
Support for standard PC, Sun and Mac video modes up to a resolution of 1920 x 1200 @ 60Hz.  DDC emulation supported via connected Computer Access Modules (CAMs)

Cable Guidelines
CAT5e or CAT6 cabling is recommended

Environmental
0 to 40ºC / 32 to 104ºF

Computer Connections at Switch
RJ45 (8p8c)

Peripheral Connections Receiver (RX)
Local console
⦁    Video: HDD15 socket
⦁    Keyboard/Mouse: USB type A sockets
⦁    Audio: 3.5mm stereo jack

Computer connections at Computer
Video: HDD15, Keyboard/Mouse: choice of USB, PS/2 and Sun MiniDin8
Audio (optional): 3.5mm stereo jack
Network port (ADDERView IP models only) RJ45 10/100Mb auto-sensing Ethernet port.  Other connectors DB9 female for flash upgrade, syncing boxes and other special functions. DB9 male for RS232 triggered power switches. DB9 Male (ADDERView IP only) for modem connection

Mechanical

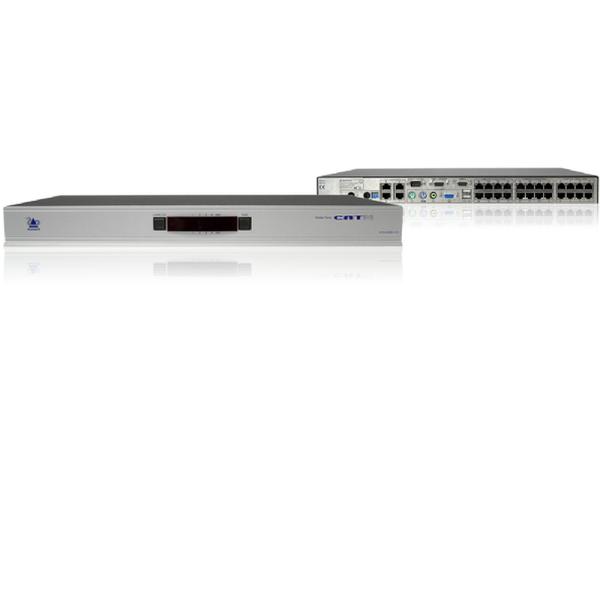

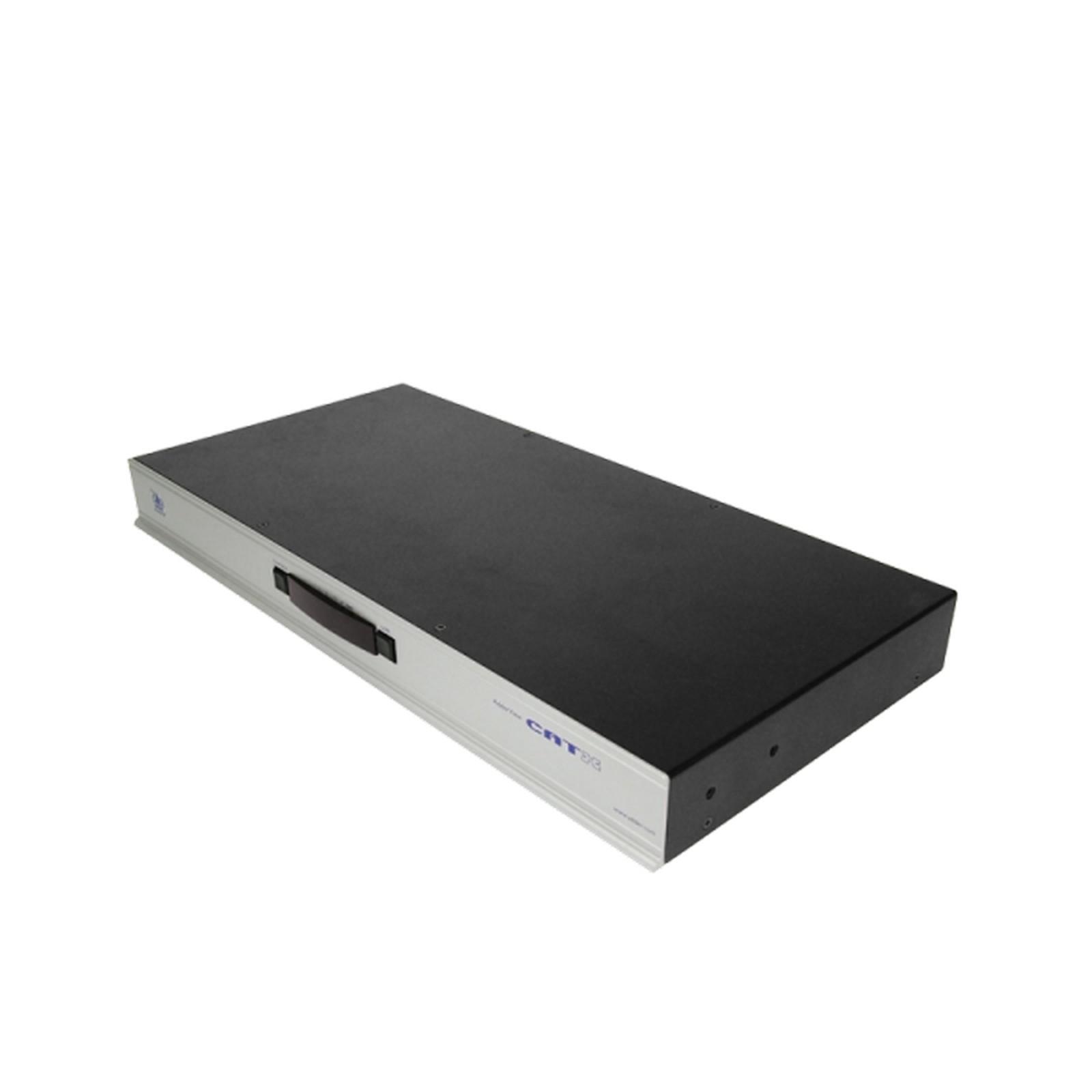

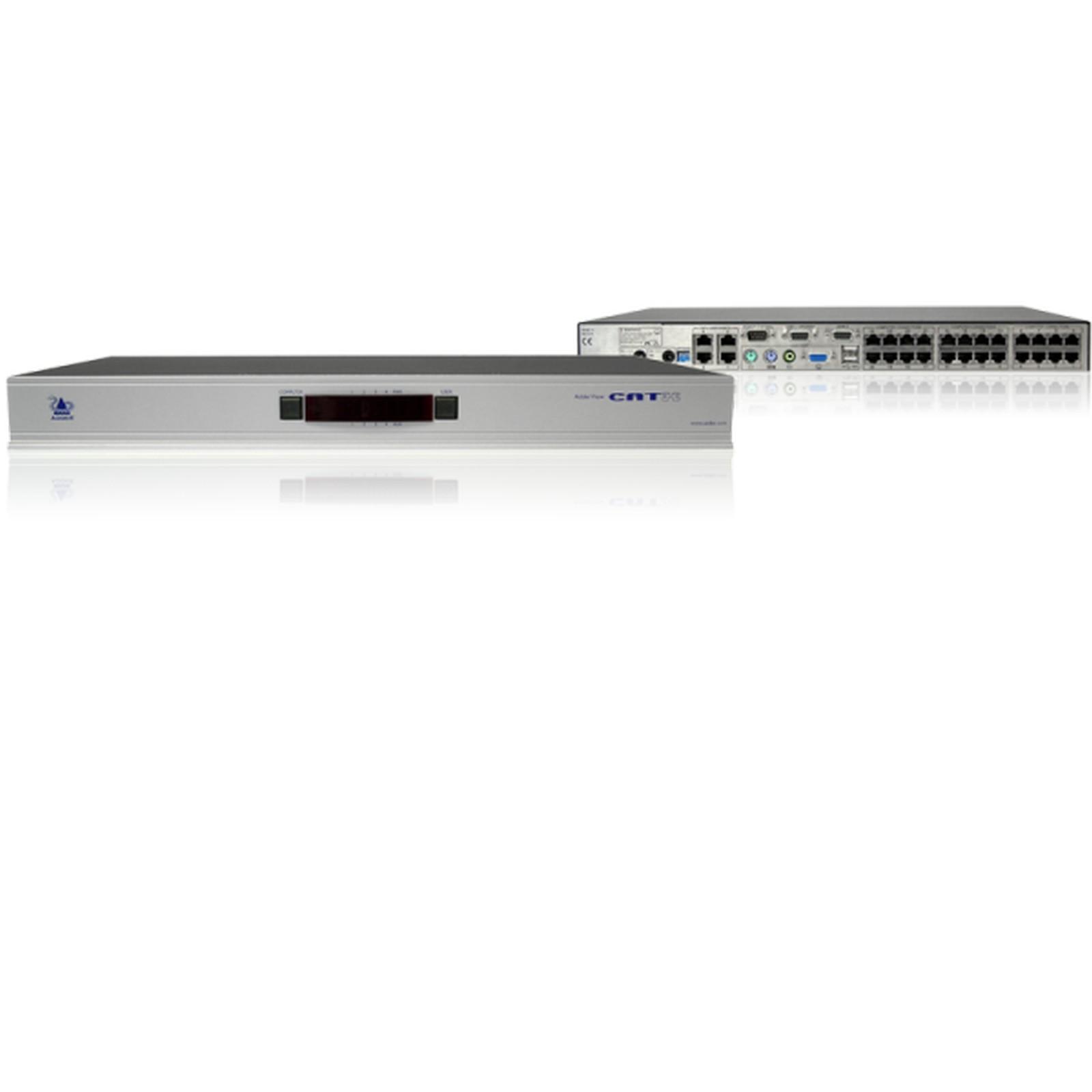

ADDERView CATxIP: 1U high metal case 482mm/19” (w), 280mm/8.5” (d), 45mm/1.8” (h) (rack mount kits included)

Power
IEC style power lead (100 – 240V AC, 50-60Hz)
Redundant via 2.5mm DC jack (5V DC, 4A)

ADDERView CATxIP 4000 is available with the following connectivity options:

DisplayPort CAM  CATX-DP-USBA: DisplayPort CAM with USB and Audio CATX-MDP-USBA: Mini DisplayPort CAM with USB and Audio

Serial CAM   CATX-CONSOLE: Serial connectivity to your target machines (only works from AVX5016IP)

PS/2 CAMs CATX-PS2 - PS/2 only  CATX-PS2-A - PS/2 plus audio

USB CAMs CATX-USB - USB only CATX-USB-A USB plus audio

Sun CAM CATX-SUNA - Sun plus audio
