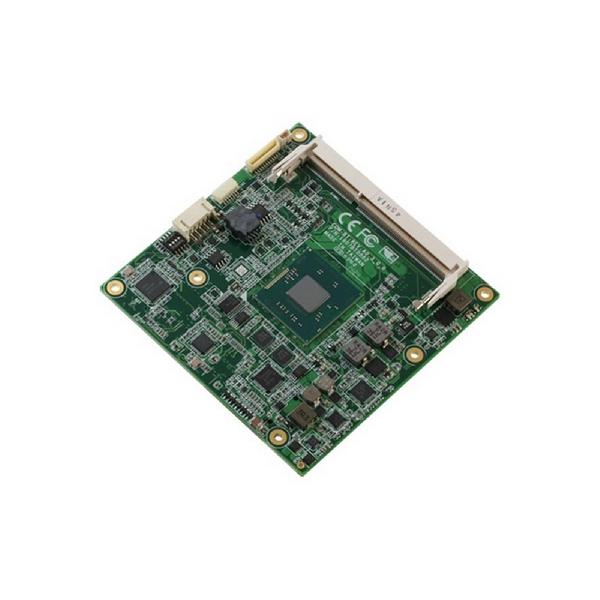

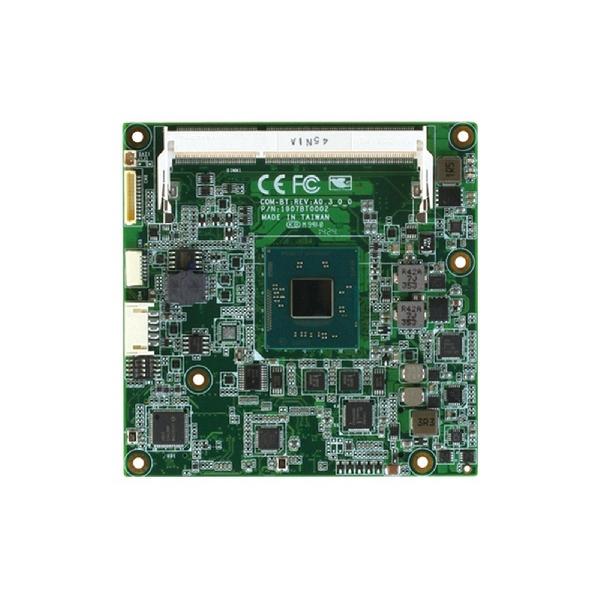

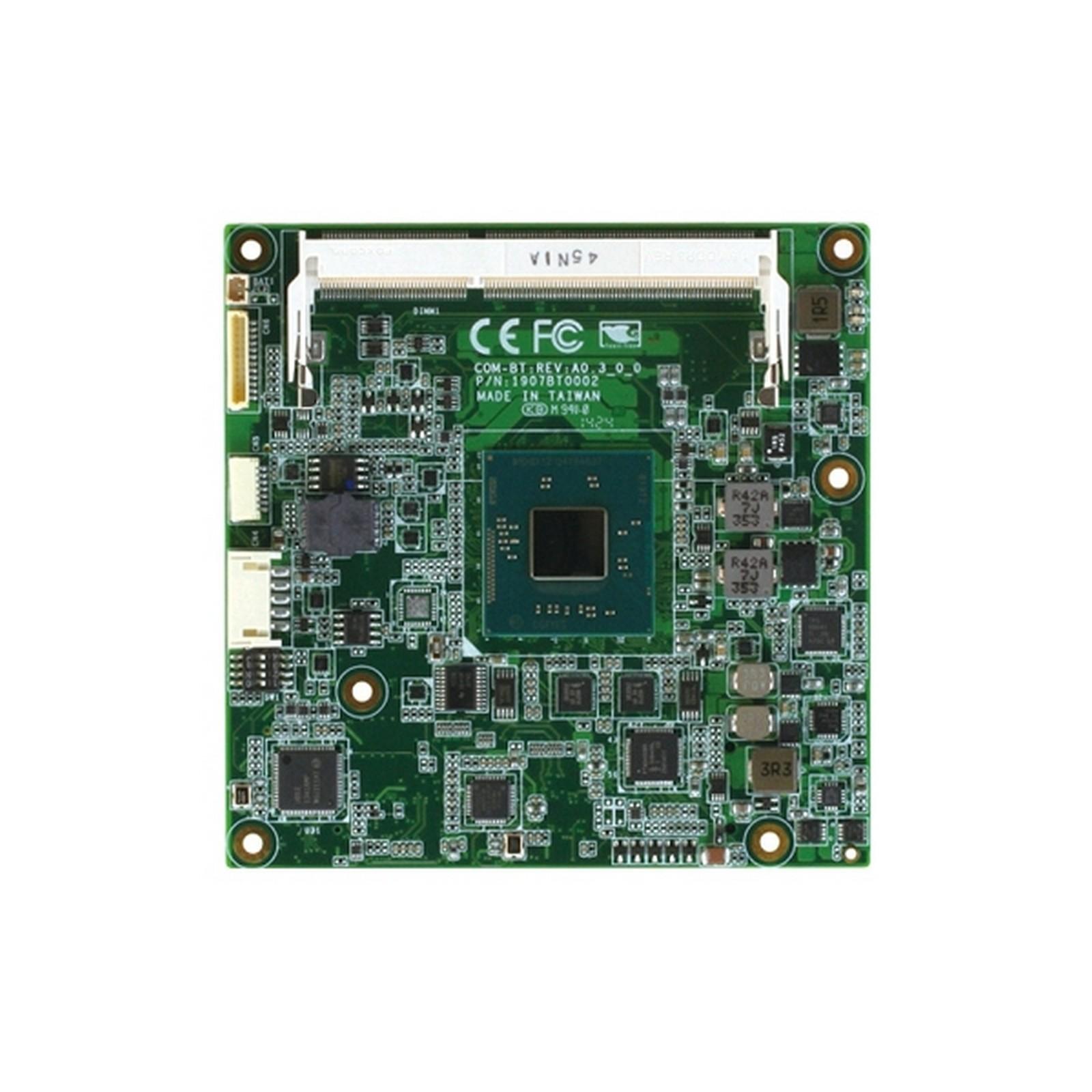

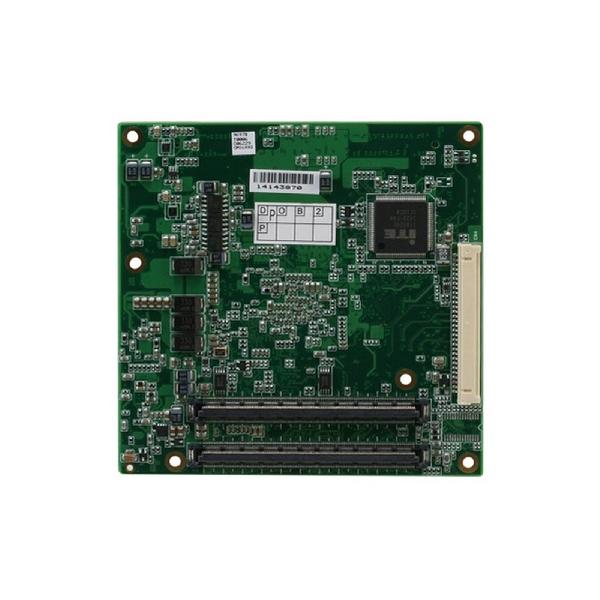

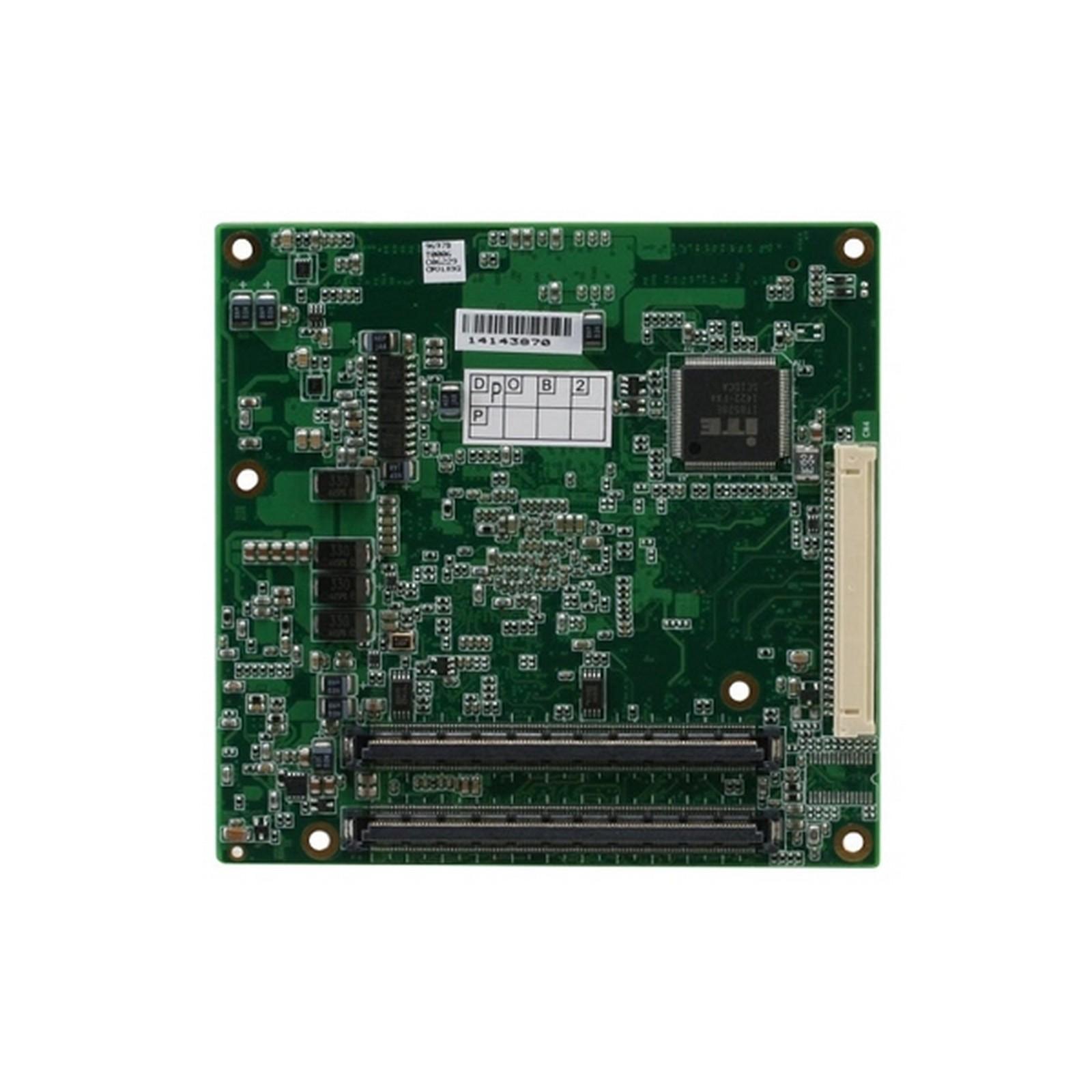

COM-BT CPU Board is a 6 COM Express module. It has an eDP interface allowing closed connection between the display device and the board ensuring that it is free from any external interference. COM-BT CPU Board is also capable of converting video signal through DDI0 and DDI1 going to DVI, DP, or HDMI gadgets or devices.
COM-BT adopts the latest Intel® Celeron® J1900, N2930, N2807 and Atom™ E3800 Series product family. The system memory deploys with one DDR3L 1066/1333 MHz SODIMM up to 8 GB (4GB max for E3815/E3825/N2807). In addition, Intel® I211 supports Gigabit Ethernet that allows faster network connections. This model applies four PCI-Express〔x1〕 (one shared with Gigabit LAN). Moreover, two SATA 3.0Gb/s are configured on the COM-BT. COM-BT also equips USB2.0 x6, USB 3.2 Gen 1 x1 (combine USB2.0 x1) for flexible I/O expansions.
The display of COM-BT supports up to two independent displays simultaneously. This brand new COM Express Module is developed to cater to the requirements of Automation, Medical, ticket machine, transportation, gaming, KIOSK, and POS/POI applications.
| SYSTEM | |
| FORM FACTOR | COM Express, Compact, Pin-out Type 6 |
| CPU | Onboard Intel® Atom™ SoC |
| CPU FREQUENCY | Intel® Atom™N2930 (1.83 GHz), N2807 (1.58 GHz), E3845 (1.91 GHz), E3827 (1.75 GHz), E3825 (1.33 GHz), J1900 (2.0 GHz) |
| CHIPSET | Intel® Atom™ SoC |
| MEMORY TYPE | DDR3L 1066/1333 MHz SODIMM x 1 |
| MAX. MEMORY CAPACITY | 8 GB |
| BIOS | AMI BIOS |
| WAKE ON LAN | Yes |
| WATCHDOG TIMER | 255 Levels |
| POWER REQUIREMENT | Standard: +12V |
| POWER SUPPLY TYPE | AT/ ATX |
| POWER CONSUMPTION (TYPICAL) | 0.92A@12V, full load, J1900 0.48A@12V, full load, N2807 |
| DIMENSION (L X W) | 3.74" x 3.74" (95mm x 95mm) |
| OPERATING TEMPERATURE | 32°F ~ 140°F (0°C ~ 60°C) -40°F ~ 185°F (-40°C ~ 85°C) optional |
| STORAGE TEMPERATURE | -40°F ~ 176°F (-40°C ~ 80°C) |
| OPERATING HUMIDITY | 0% ~ 90% relative humidity, non-condensing |
| MTBF (HOURS) | 80000 |
| CERTIFICATION | CE/FCC |
| DISPLAY | |
| VGA/LCD CONTROLLER | Intel® Atom™ SoC |
| VIDEO OUTPUT | CRT, LVDS LCD, DDI |
| I/O | |
| ETHERNET | Intel® I211, Gigabit Ethernet |
| AUDIO | High Definition Audio Interface |
| USB PORT | USB 2.0 x 7, USB 3.2 Gen 1 x 1 |
| SERIAL PORT | Tx/Rx x 2 |
| HDD INTERFACE | SATA x 2 |
| EXPANSION SLOT | PCIe [x1] x 3 (up to 3 devices) LPC SMbus I2C |
| GPIO | GPIO 8-bit |
| ONBOARD STORAGE | — |
| TPM | — |
| Name | Type | Version | Release Date | |
| COM-BT, datasheet | Datasheet | V1.0 | 30 September 2014 |
