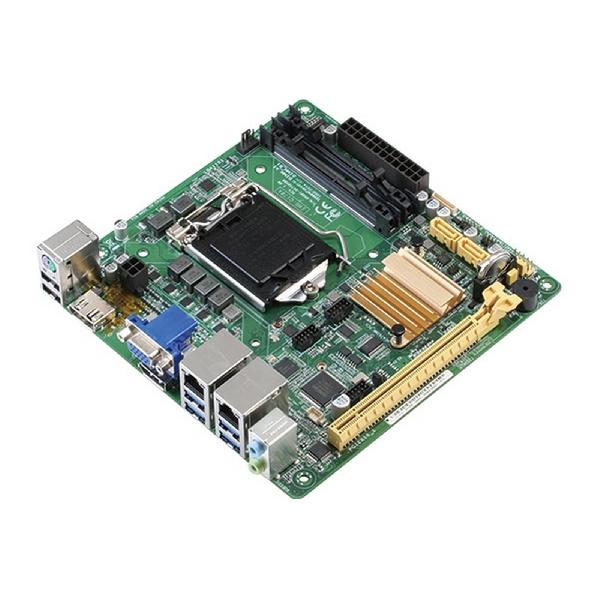

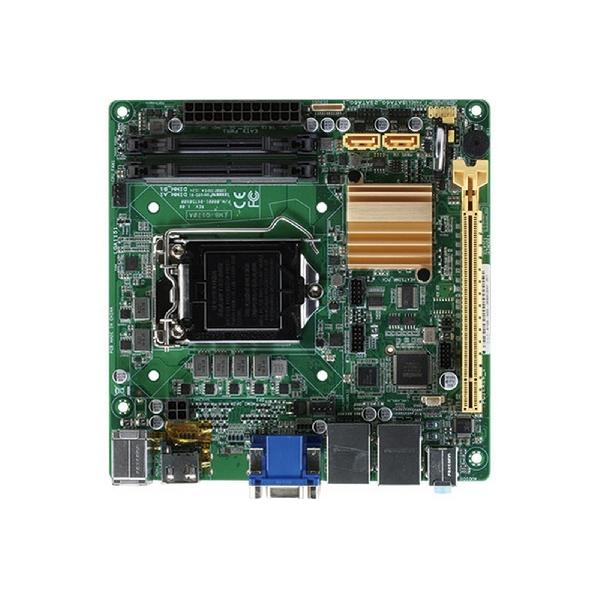

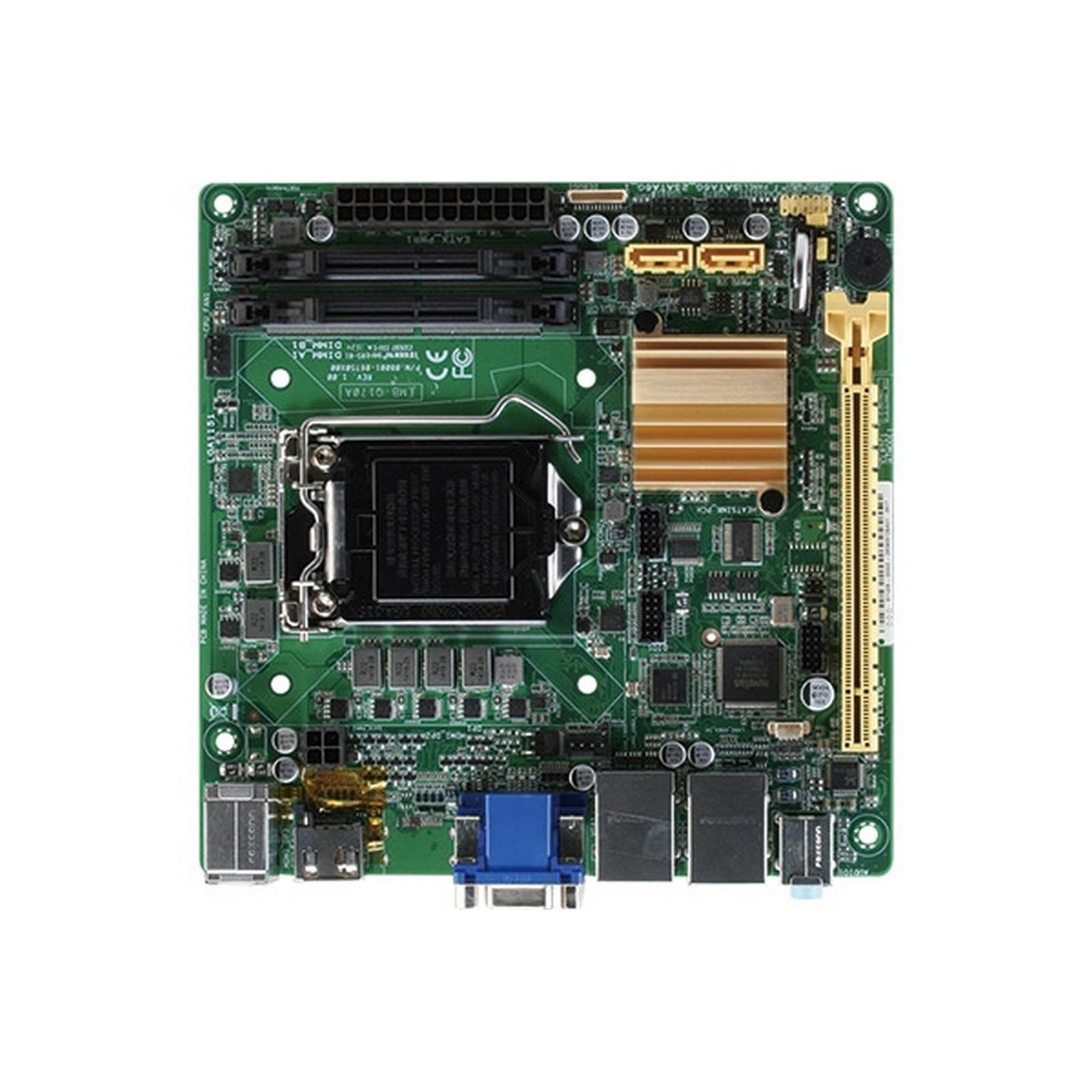

Sporting the 6th Generation Intel® Core™ processor, the EMB-Q170A delivers enhanced performance over its preceding models in the series with the Intel® Q170 chipset, and maximum memory support of up of 32 GB. Some of the most popular expansion interface and I/Os, such as USB 3.0s and M.2 slots, are also featured in the device, making it ideally suited for any industrial or embedded computing applications.

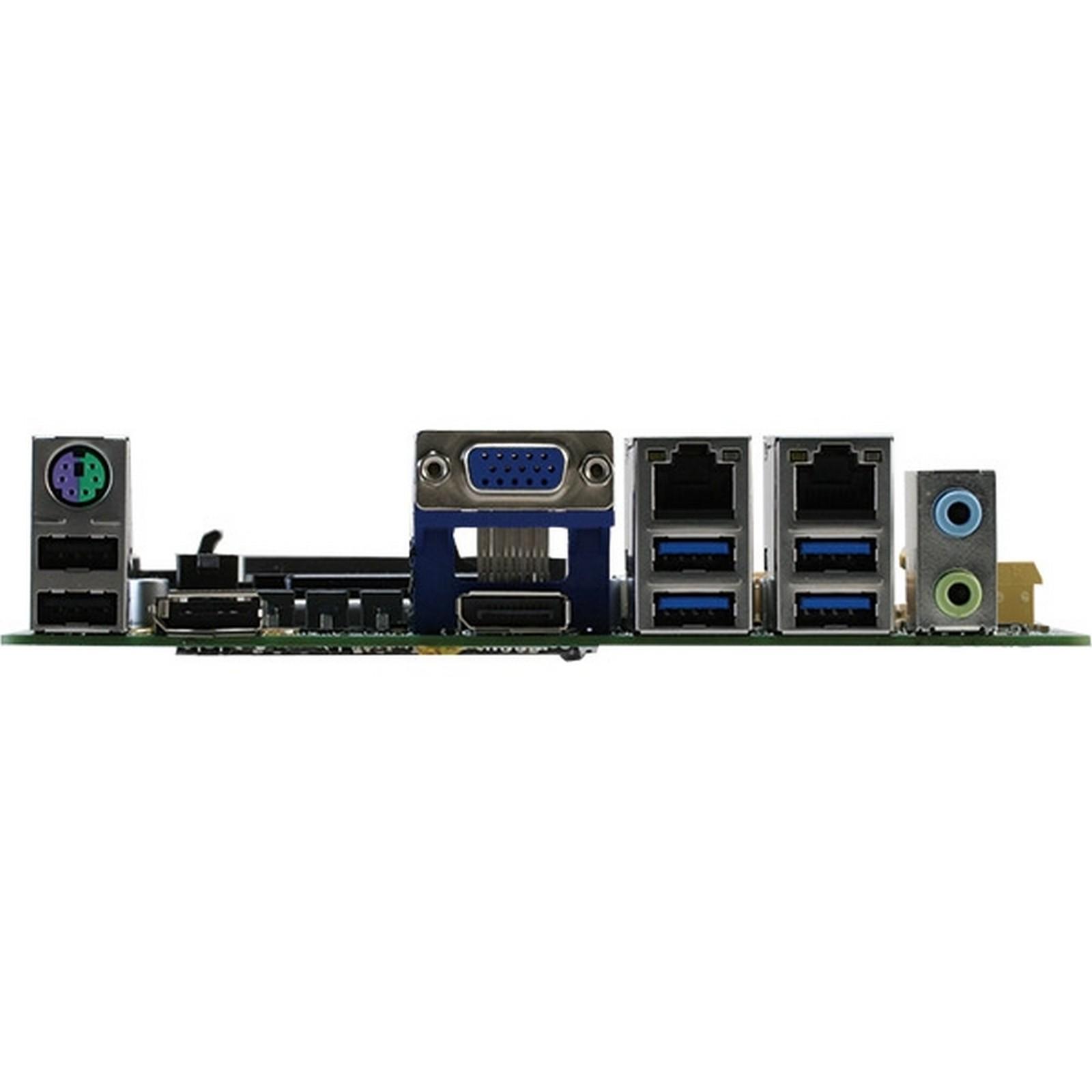

| SYSTEM | |
| PROCESSOR | 6th/7th Generation Intel® Core™ i7/i5/i3, LGA1151 Socket Processor, Max. 65W TDPs |
| CHIPSET | Intel® Q170 |
| MEMORY | DDR4 2133/1867 MHz SODIMM x 2, Up to 32GB, Non-ECC, Un-buffered Memory, Dual channel memory architecture |
| I/O CHIPSET | NCT6791D |
| ETHERNET | Intel® PCIe Gb LAN 219LM x 1, Intel® PCIe Gb LAN i211AT x 1 |
| AUDIO | Realtek® ALC887 |
| TPM | Infineon SLB96XX TT 1.2/2.0 (default: No) |
| EXPANSION SLOT | PCIe3.0 [x16] x 1, M.2 M-key(22x80mm) at bottom side x 1 |
| BIOS | 128M bit Flash ROM, AMI BIOS |
| H/W MONITOR | Temperature Monitor on CPU/Chassis, Voltage Monitor on Vcore/5V/12V, Fan Monitor on CPU/Chassis |
| WATCHDOG TIMER | 1~255 steps by software program |
| SMART FAN CONTROL | CPU Fan/ Chassis Fan |
| WAKE ON LAN/ PXE | Yes (WOL/PXE) |
| POWER STATE | S3, S4, S5 |
| GRAPHICS | |
| GRAPHICS CHIPSET | Intel® HD Graphics |
| GRAPHICS MULTI DISPLAY | DP+DP, DP+VGA, DP+DP+VGA, DP+DP+DP |
| VGA | Up to 1920 x 1200 @60 Hz |
| DVI | — |
| HDMI | — |
| DISPLAYPORT | Up to 4096 x 2160 @24 Hz / 3840 x 2160 @60 Hz, with Digital Audio |
| LVDS | — |
| EDP | — |
| BACKLIGHT CONTROL | — |
| ENVIRONMENTAL & POWER & ME | |
| BATTERY | Lithium battery |
| POWER REQUIREMENT | ATX |
| OPERATING TEMPERATURE | 32°F ~140°F (0°C ~ 60°C) |
| STORAGE TEMPERATURE | -40°F ~185°F (-40°C ~85°C) |
| OPERATING HUMIDITY | 0% ~ 90% R/H, non-condensing |
| CERTIFICATION | CE & FCC |
| FORM FACTOR | Mini-ITX: 6.7” x 6.7” (170mm x 170mm) |
| WEIGHT | 1.1 lb (0.5 Kg) |
| MTBF (HOURS) | 221,850 |
| REAR I/O PORTS | |
| USB | USB 3.2 Gen 1 (5 Gbps) x 4, USB 2.0 x 2 |
| DISPLAY I/O | VGA x 1, DP x 3 |
| AUDIO I/O | Mic-in x 1, Line-out x 1 |
| LAN I/O | LAN (RJ-45) port x 2 |
| SERIAL PORT | — |
| PS/2 PORT | PS/2 for KB/MS x 1 |
| OTHERS | — |
| INTERNAL I/O CONNECTORS | |
| STORAGE | SATA3.0 (6.0Gb/s) x 2, M.2 M-key (22 x 80mm) at bottom side x 1 |
| USB | USB 2.0 (2 x 5-pin, 2.00mm) x 2 ports support additional 4 USB. |
| DISPLAY I/O | — |
| AUDIO I/O | Speaker x 1 |
| SERIAL PORT | Boxer header for COM (RS-232/422/485) x 1, Boxer header for COM (RS-232) x 1 |
| PS/2 PORT | — |
| PARALLEL PORT | — |
| DIO | Digital I/O box header x 1 |
| FAN | 4-pin CPU Fan connector x 1, 4-pin Chassis Fan connector x 1 |
| POWER | ATX Power Connector x 2, AT/ATX mode select jumper (optional) x 1 |
| OTHERS | Front Panel connector x 1, Chassis Intrusion x 1, Buzzer onboard x 1, CMOS jumper x 1 |
| OS | |
| OS SUPPORT | Windows® 7 32/64-bit Windows® 8.1 32/64-bit Windows® 10 64-bit Ubuntu16.04.02/Kernel4.8.0 |
