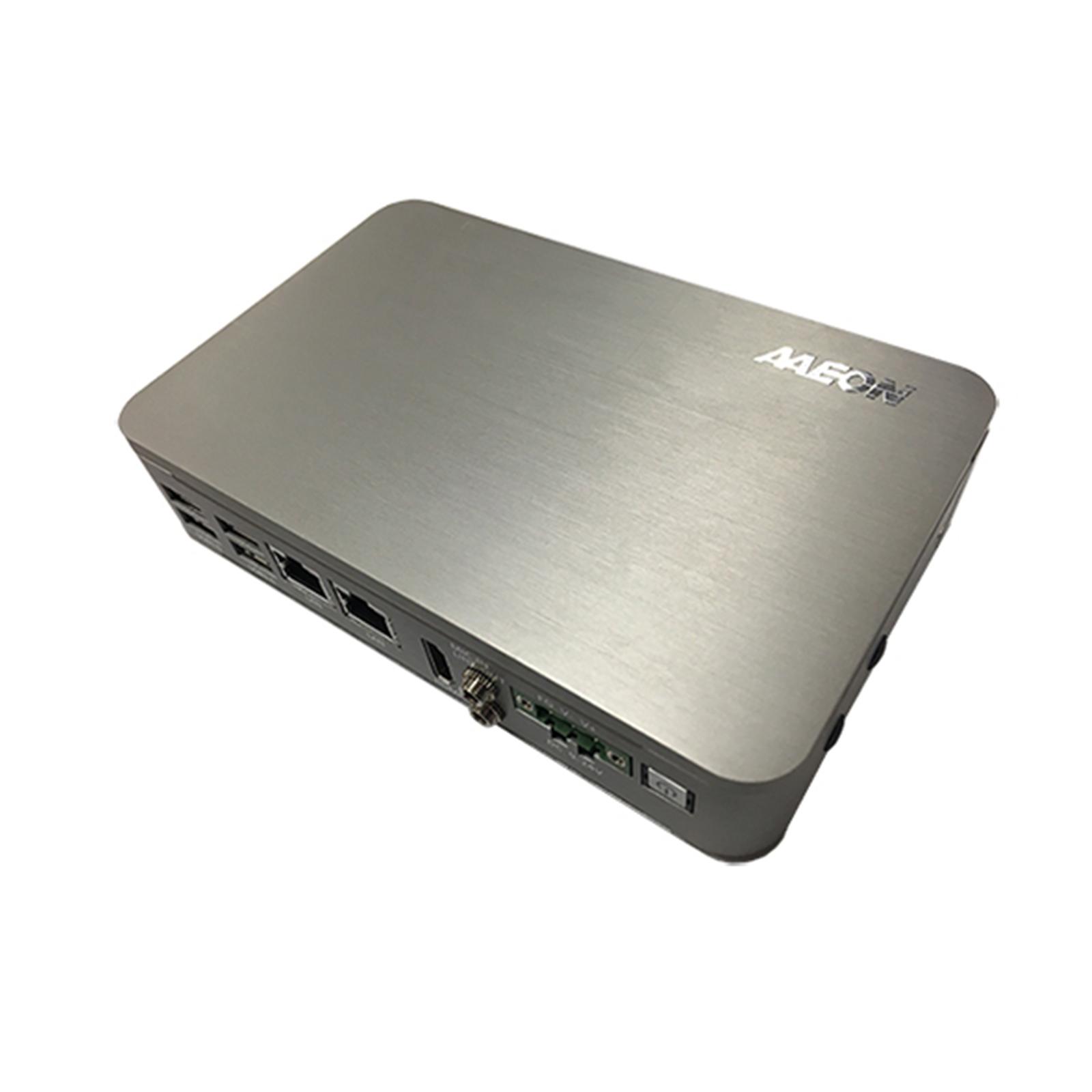

The BOXER-6405 is a rugged, ultra-compact edge AI computing solution for smart factory applications. Only 37mm thick, it can be deployed almost anywhere, and its -20°C to 60°C operating temperature range means it can handle harsh, factory environments.
The BOXER-6405 is a versatile system, powered by an Intel Celeron or Pentium processor and featuring a wide array of I/O ports. The BOXER-6405 has a full-sized and half-sized mini-PCIe expansion slot, which supports the AI Core X mPCIe module. The AI Core X is powered by Intel Movidius Myriad X, perfect for AI edge computing applications such as AIOT platform or machine vision system. The BOXER-6405U also supports Wi-Fi and 4G LTE cards, perfect for use as and IoT or Industrial IoT (IIoT) gateway.
system | |
| CPU | Intel® Celeron/Pentium™ processor |
| Chipset | Intel® System on Chip |
| System Memory | DDR3L SO-DIMM slot x 1 Supports 1867 MHz and up to 8GB |
| Display Interface | HDMI (max. 1920 x 1080) |
| Storage Device | mSATA |
| Ethernet | Intel® i211-AT x 2 |

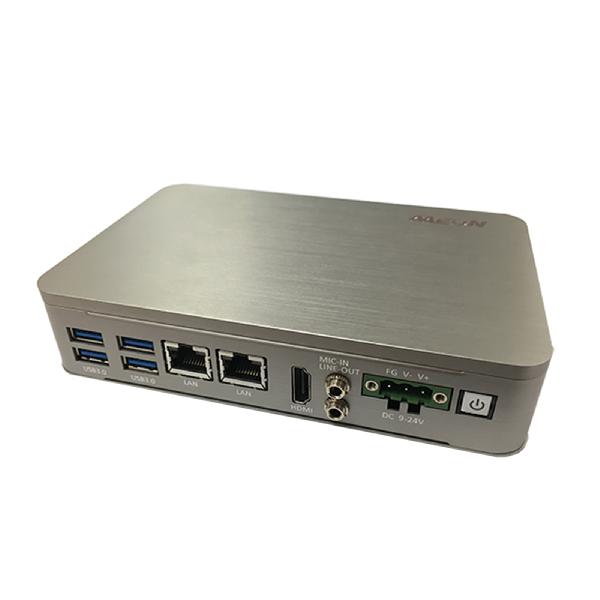

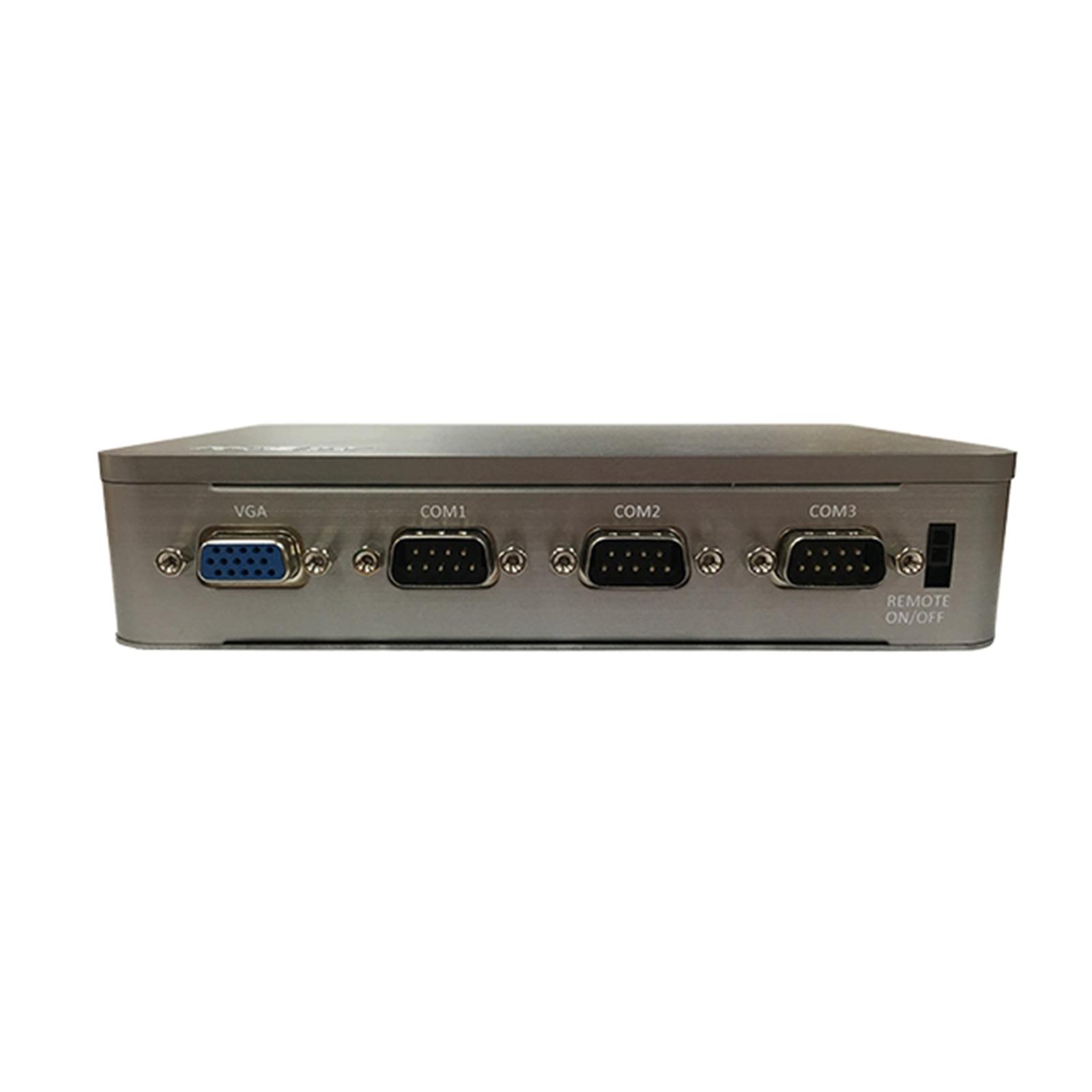

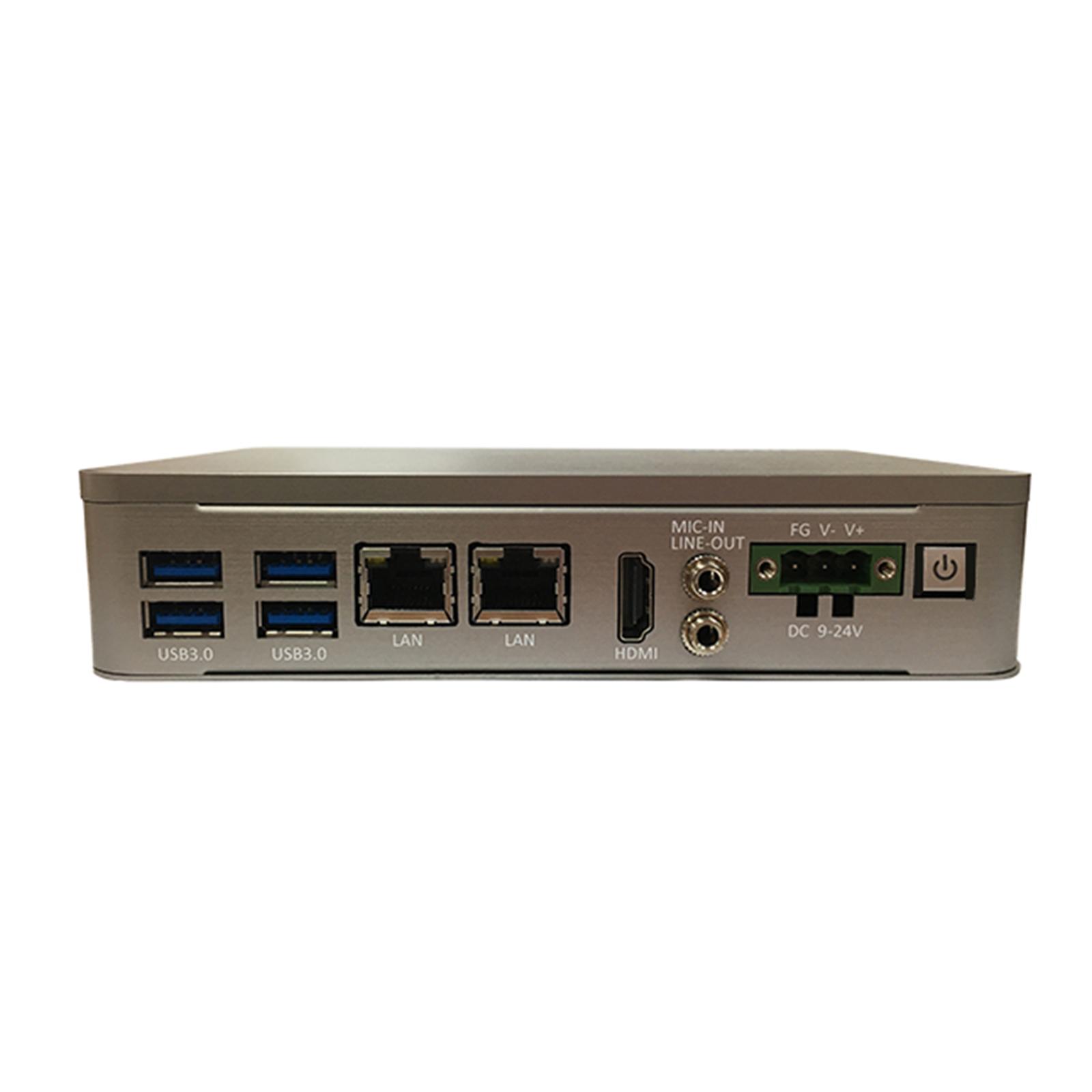

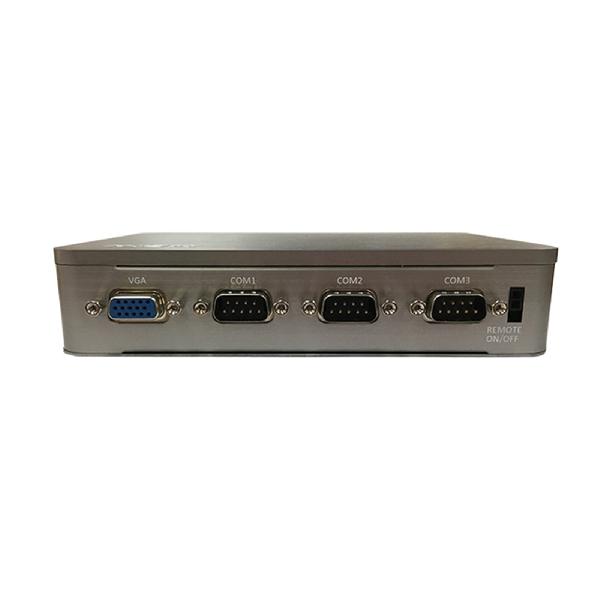

| I/O | Power Button x 1 USB Type A x 4 for USB 3.2 Gen 1 HDMI type A x 1 for HDMI v1.4b RJ-45 x 2 for GbE LAN with LED indicator ( i211-AT x 2) Power input x 1 3-pin terminal block in default (+, - , GND) Co-layout 3-pin terminal block & lockable DC-in jack,) Co-layout internal DC Mic-in x 1, Line-out x 1 RS-232/422/485 x 3 with automatic flow control (switch by BIOS) VGA x 1 Remote On/Off Antenna opening x 2 DC-in 3-pin terminal block(9~24V) x 1 |
| Expansion | Full-size Mini PCIe slot x 1 (PCIe/USB/SIM slot), one screw Half-size Minicard slot x 1 (mSATA only) |
| Indicator | Power LED x1, HDD active LED x1 |
| OS support | Windows® 10, Windows® 10 IoT, Linux |
power supply | |
| Power Requirement | 9-24V with 3-pin terminal block |
mechanical | |
| Mounting | Wallmount |
| Dimensions (W x H x D) | 6.54" x 4.2" x 1.45" (166mm x 106.6mm x 37mm) |
| Gross Weight | 3.6 lb (1.6kg) |
| Net Weight | 1.76 lb (0.8 kg) |
environmental | |
| Operating Temperature | -22°F ~ 140°F (-30°C ~ 60°C) with W.T. mSATA (according to IEC68-2-14 with 0.5 m/s AirFlow; with industrial decives) |
| Storage Temperature | -22°F ~ 140°F (-30°C ~ 60°C) |
| Storage Humidity | 95% @ 40°C, non-condensing |
| Anti-Vibration | 3 Grms/ 5 ~ 500Hz/ operation – mSATA 1 Grms /5 ~ 500Hz/ operation - HDD |
| Certification | CE/FCC class A |
