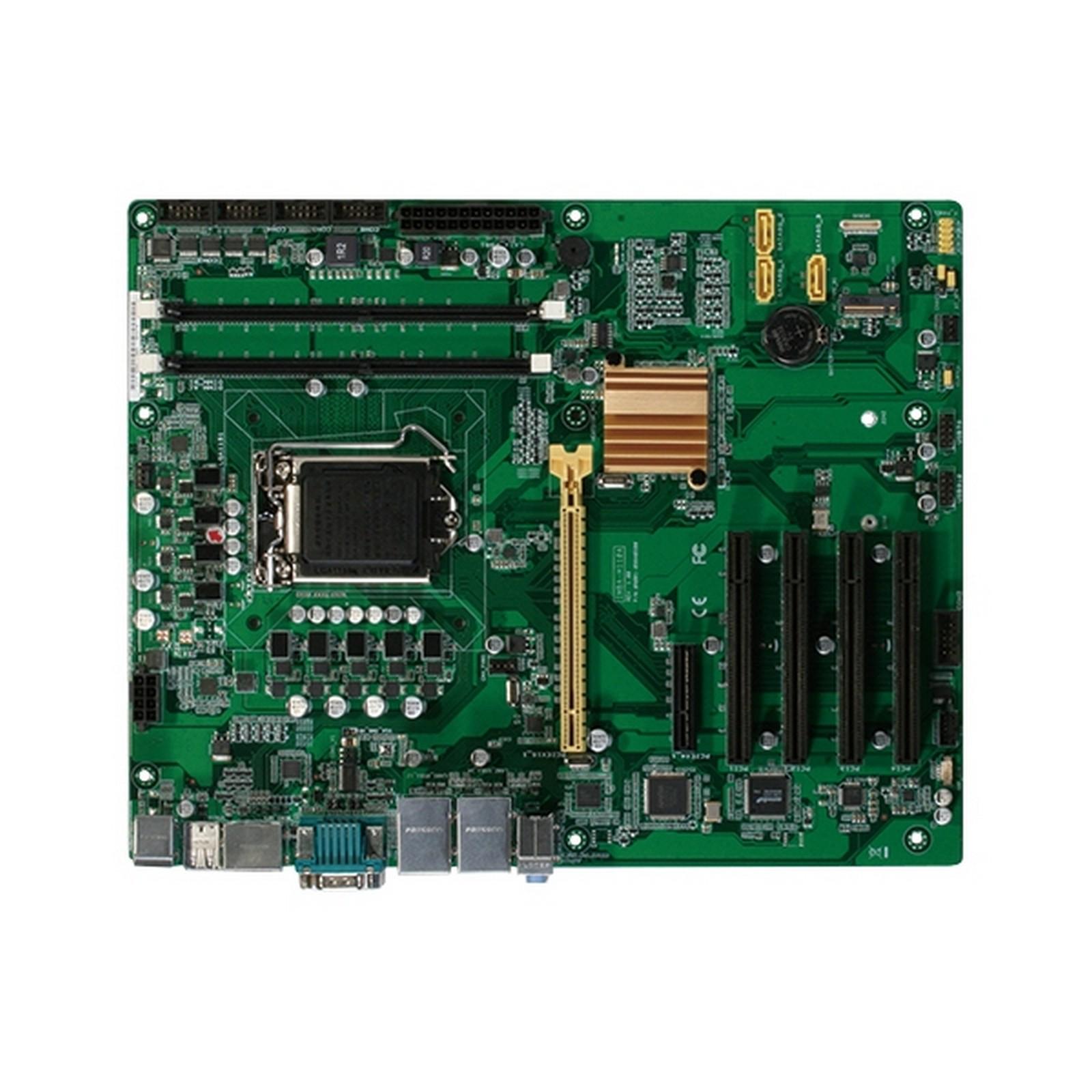

IMBA-H110A

Home  >   AAEON  >   Embedded Boards  >
Industrial Motherboards  >   ATX Motherboards

ATX with 7th/6th Generation Intel® Core™ Processor, DDR4 Max. 32GB, M.2 x 1, USB x 10

Product Feature

  • 7th/6th Generation Intel® Core™ LGA1151 Processor
  • DDR4 DRAM Support, 2400 MHz, Max. 32GB
  • Two Independent Display: HDMI x 1, DP x 1, VGA x 1
  • Dual Intel® Gigabit Ethernet
  • M.2 Slot (M key) x 1
  • USB 3.2 Gen 1 Port x 4, USB 2.0 Port x 6

ATX with Intel® 7th/6th Generation Core™ Processor, DDR4 Max. 32GB, M.2 x 1, USB x 10

SYSTEM
PROCESSOR7th/6th Generation Intel® Core™ i7/i5/i3/Pentium®/ Celeron® 14nm LGA1151 Socket Processor
CHIPSETIntel® H110
MEMORY288-pin DIMM x 2, max. 32GB, DDR4 2400/2133/1867, Dual-channel
I/O CHIPSETNCT6791D, F81216HD
ETHERNETLAN1: Intel® PHY I219V Gb LAN, LAN2: Intel® I211AT Gb LAN
AUDIORealtek® ALC887 (Colay with ALC886)
TPMNuvoton NPCT650ABBYX TPM2.0 (default : No)
EXPANSION SLOTPCIe [x16] x 1, PCIe [x4] (open edge) x 1, PCI x 4, M.2 M key (22 x 80mm) x 1
BIOS128M bit Flash ROM x 1, AMI BIOS
H/W MONITORTemperature Monitor on CPU/Chassis, Voltage Monitor on Vcore/5V/3.3V/12V, Fan Monitor on CPU/Chassis
WATCHDOG TIMER1~255 steps by software program
SMART FAN CONTROLCPU Fan x 1, Chassis Fan x 2
WAKE ON LAN/ PXEYes (WOL/PXE)
POWER STATES3, S4, S5
GRAPHICS
GRAPHICS CHIPSETIntel® HD Graphics
GRAPHICS MULTI DISPLAYVGA+HDMI, VGA+DP, HDMI+DP
VGAUp to 1920 x 1200 @60Hz
DVI
HDMIHDMI 1.4 up to 4096 x 2304 @24 Hz
DISPLAYPORTDP 1.2, up to 4096 x 2304 @60 Hz
LVDS
BACKLIGHT CONTROL
ENVIRONMENTAL & POWER & ME
BATTERYLithium battery
POWER REQUIREMENT24-pin ATX connector x 1, 8-pin ATX 12V Power connector x 1
OPERATING TEMPERATURE32°F ~ 140°F (0°C ~ 60°C)
STORAGE TEMPERATURE-40°F ~ 185°F (-40°C ~ 85°C)
OPERATING HUMIDITY0% ~ 90% RH, non-condensing
CERTIFICATIONCE & FCC Class A
FORM FACTORATX, 12" x 9.6" (305 mm x 244 mm)
WEIGHT1.76 lb (0.8 Kg)
MTBF (HOURS)244580

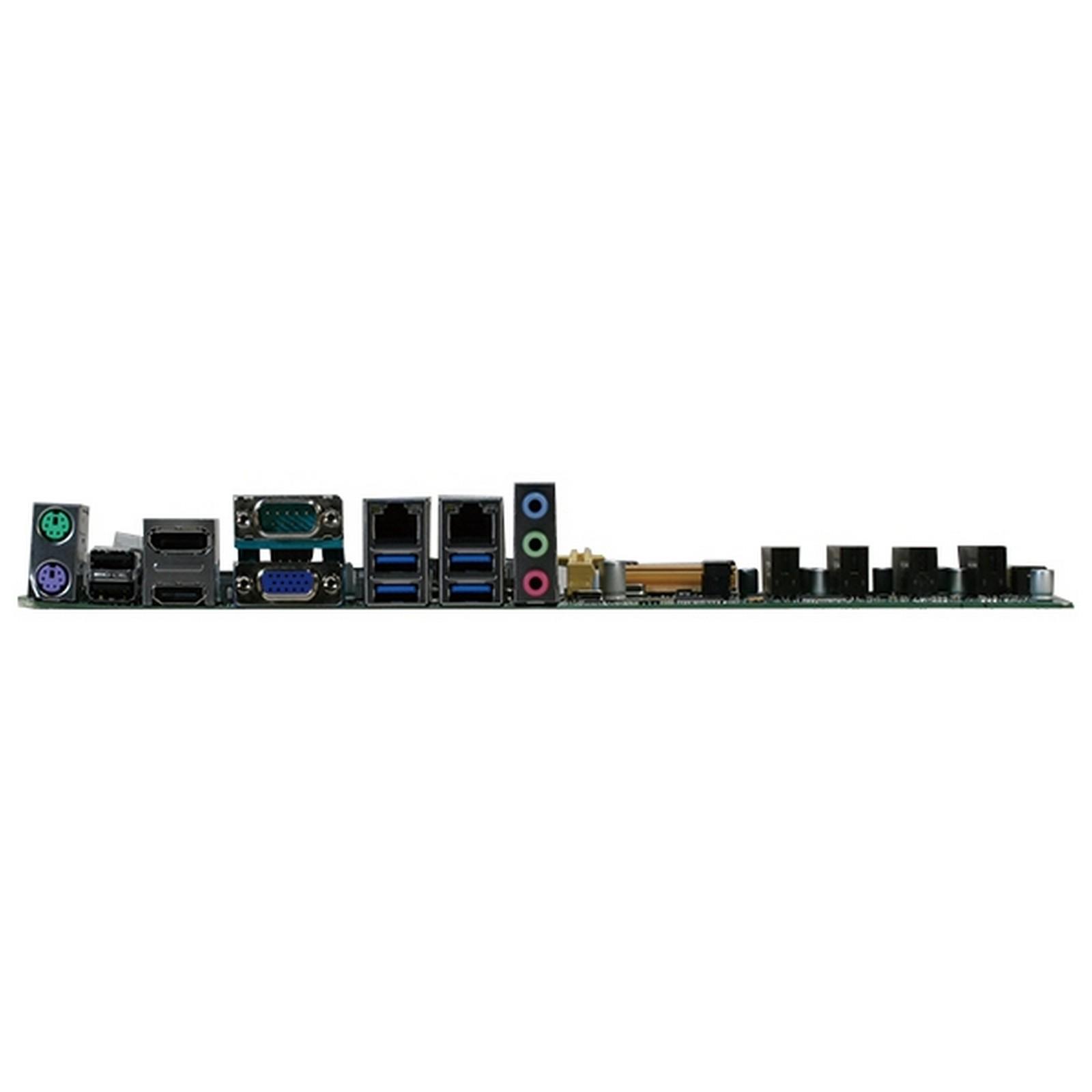

REAR PANEL I/O PORTS
USBUSB 3.2 Gen 1 x 4, USB 2.0 x 2
DISPLAY I/OHDMI x 1, DP x 1, VGA x 1
AUDIO I/OLine-in, Mic-in, Line-out
LAN I/ORJ-45 x 2
SERIAL PORTDB-9 COM x 1 (supports RS-232/422/485)
PS/2 PORTStack Port (Keyboard & Mouse) x 1
INTERNAL I/O CONNECTORS
STORAGESATA 6.0Gb/s x 3
M.2 M key (22 x 80mm) x 1
USBUSB 2.0 x 4
DISPLAY I/O
SERIAL PORTRS-232 header x 5
PARALLEL PORT
DIO8-bit x 1 (In/Out programmable)
FAN4-pin CPU Fan x 1, 4-pin Chassis Fan x 2
POWER
OTHERSFront panel header x 1, Clear CMOS jumper x 1, BIOS flash header (2[x4]P p=1.27mm) x 1, Chassis Intrusion x 1, AT/ATX mode select jumper x 1
OS
OS SUPPORTWindows® 7 32/64-bit (not supported when a Kaby Lake processor is used)
Windows® 8.1 64-bit (not supported when a Kaby Lake processor is used)
Windows® 10 64-bit
Linux Fedora 64bit
Name Type Version Release Date
IMBA-H110A Datasheet Datasheet V1.0 08 August 2017
