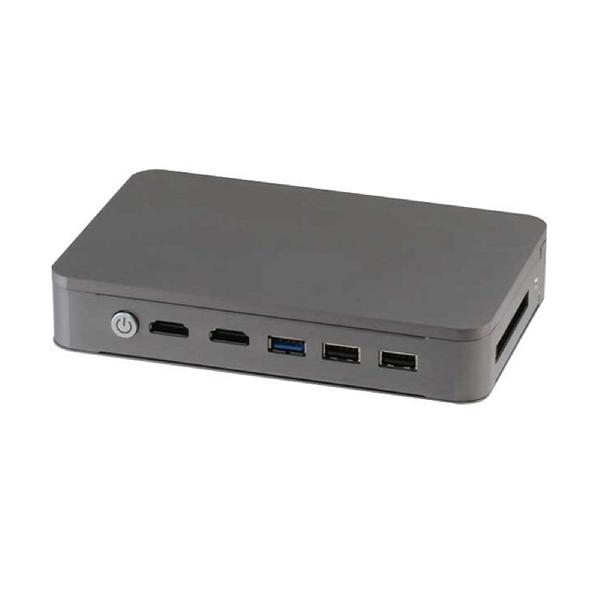

The BOXER-6404 is one of the smallest, most compact embedded PCs on the market, measuring 166 x 106.6 x 30 mm. Within its humbly-designed enclosure packs a quad core CPU, the Intel® Celeron® J1900, providing adequate computing power capabilities, such as dual display via the system’s two HDMI ports, a simple network appliance through the system’s 4 LAN ports with both dual host and LAN redundancies. An additional SKU with the dual core Intel® Celeron® N2807 is also available for less demanding applications.
In addition, the enclosure is made entirely out of aluminum. This design, combining the low power consuming CPU, not only allows a fanless configuration, but effectively extends its operating temperature to -30°C ~ 65°C, a range wider than most other contemporaries on the market.
system | |
CPU | Intel® Celeron™ J1900, 2.0 GHz Intel® Celeron™ N2807, 1.58 GHz |
Chipset | Intel® System on Chip |
System Memory | DDR3L 1333 SODIMM slot x 1, up to 8 GB (J1900) or 4 GB (N2807) |
Display Interface | HDMI (max. 1920 x 1080) |
Storage Device | CFast™ |
Ethernet | Intel® I211, 10/100/1000Base-TX x 4 |

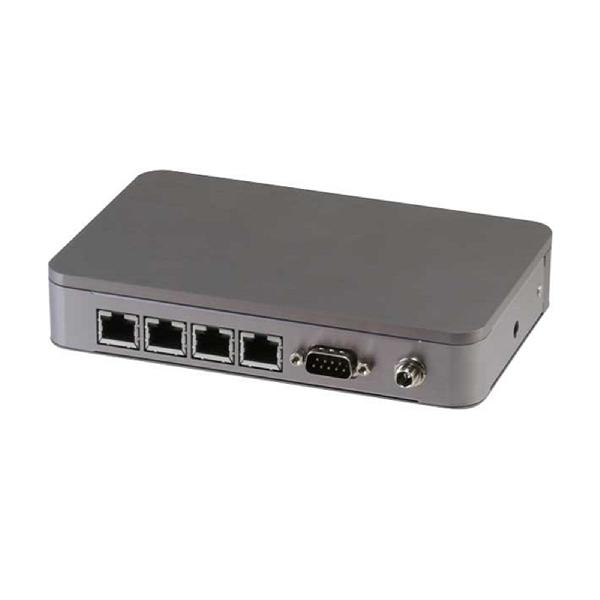

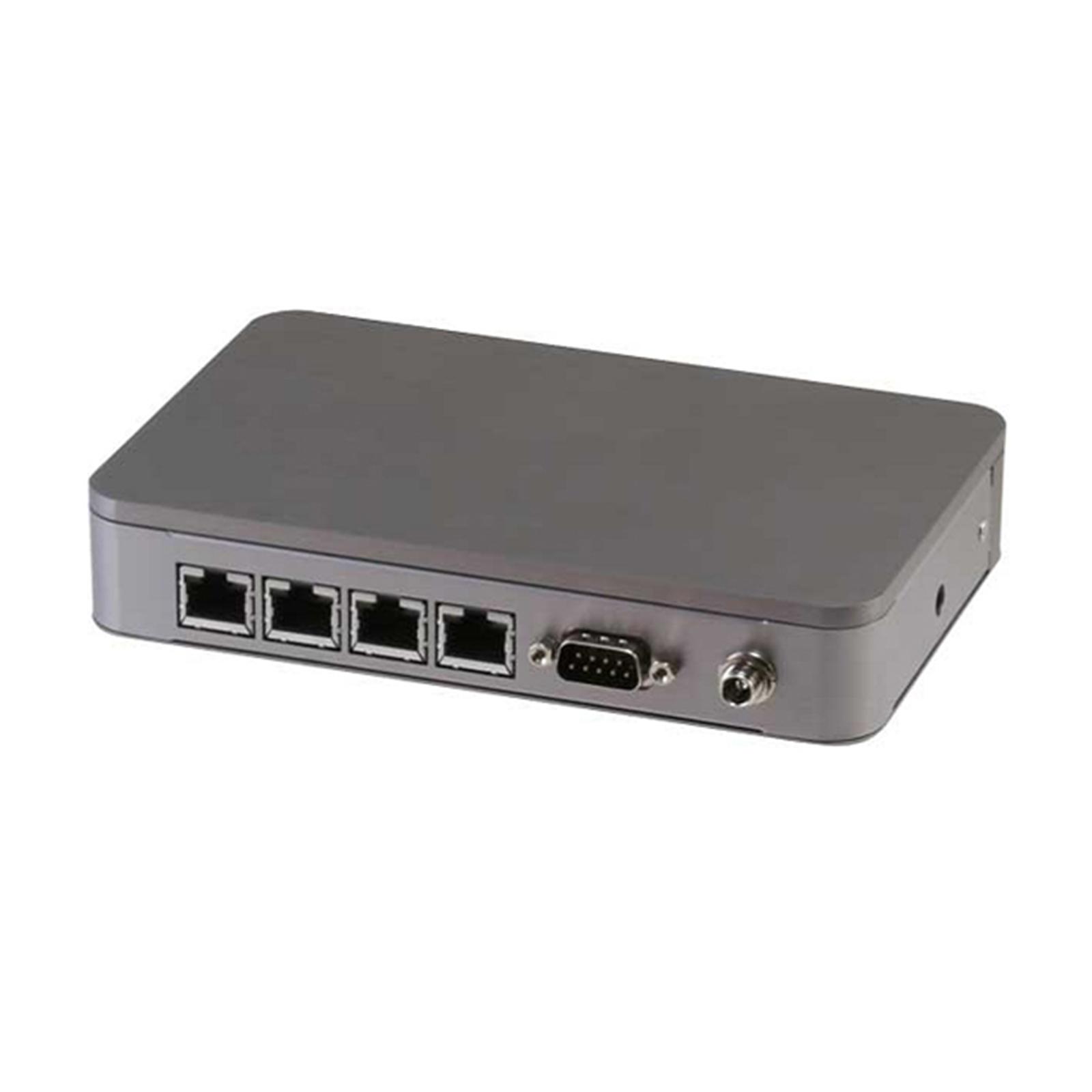

I/O | RS-232 x 1 USB 2.0 x 2 USB 3.2 Gen 1 x 1 HDMI x 2 LAN x 4 CFast slot x 1 Antenna holes x 1 Power button Power input |
Expansion | Full-size Mini-Card (USB interface only) x 1 |
Indicator | Power LED on power button |
OS support | Windows® 10, Windows® 8.1, Windows® 7, Windows® Embedded 8, Windows® Embedded 7, Linux Fedora |
power supply | |
Power Requirement | 12V - 24V with lockable DC jack |
mechanical | |
Mounting | VESA (Mounting kit is optional) DIN rail (Mounting kit is optional) |
Dimensions (W x H x D) | 6.53" x 4.20" x 1.18" (166 mm x 106.6 mm x 30 mm) |
Gross Weight | 2.9 lb (1.3 kg) |
Net Weight | 1.9 lb (0.86 kg) |
environmental | |
Operating Temperature | -22°F ~ 149°F (-30°C ~ 65°C) with wide temperature CFast™ card (according to IEC68-2-14 with 0.5 m/s AirFlow; with industrial devices) |
Storage Temperature | -22°F ~ 176°F (-30°C ~ 80°C) |
Storage Humidity | 95% @ 40°C, non-condensing |
Anti-Vibration | 5 Grms/ 5 ~ 500Hz/ operation –CFast™ card |
Certification | CE/FCC class A |
