OMNI Modules- Display BOX Kit

Home  >   AAEON  >   Computing Systems  >
Panel PC  >   Modular HMI Panel PC/ Display

OMNI Modules- Display BOX Kit

Product Feature

  • Compatible with OMNI Series Modules- Panels: to bulid your own OMNI Display
  • No Firmware changes needed to combine with 7 sizes OMNI Panel Modules
  • DC 12~30V with Over Voltage/Current, Under Voltage Protection
  • Optional Built-in Speakers

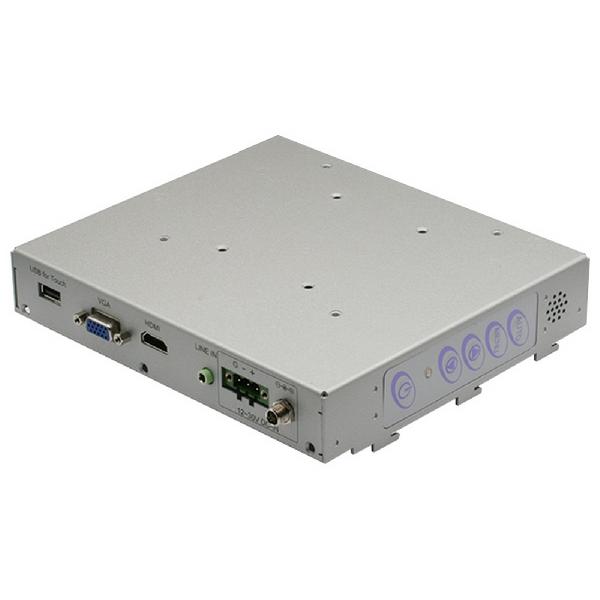

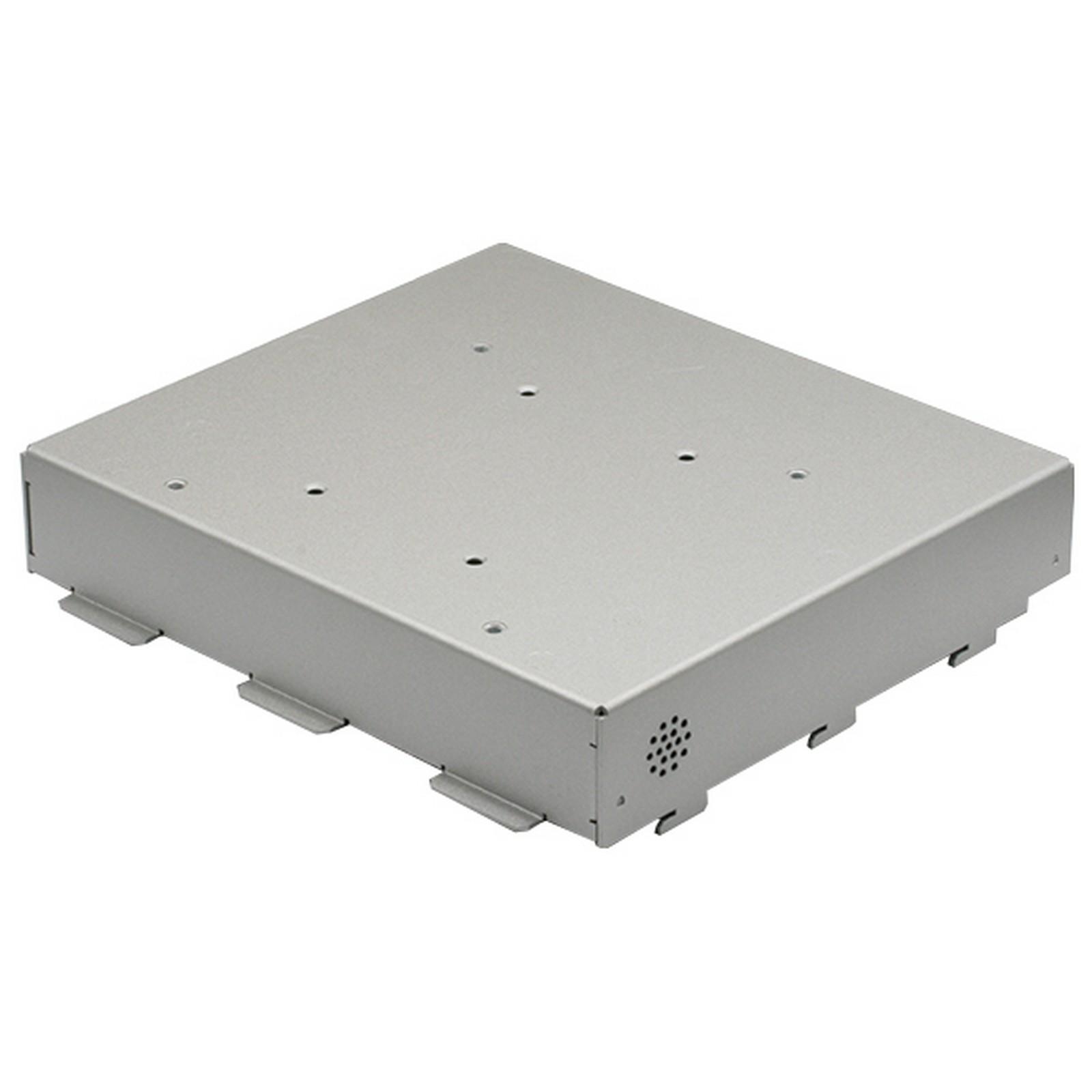

The OMNI Display Box Kit can be used with existing Panel Kits to create a digital display. The module is easy to install – requiring just three screws for attachment to an OMNI panel – and it gives users access to both VGA and HDMI video interfaces. A USB port enables connection to a PC, and built in speakers are available as an option.

Customers who would prefer to take delivery of a pre-assembled Display Box and Panel can buy complete Display Units. (10.4", 12.1", 15", 17", 19", 15.6", 21.5")

SYSTEM
INPUT SIGNALVGA / HDMI
ON SCREEN DISPLAY CONTROL5 keys OSD keypad (Up, Down, Menu, Auto, Power)
I/O PORTDB-15 x 1 for VGA
HDMI x 1
USB Type A x 1 (For Enable T/S Function)
Line in x 1 (For optional internal Speaker)
Power Input x 1(Default Terminal Block 3pin)
OS SUPPORTWindows® 7 32/64-bit, Windows® 8 32/64-bit, Windows® 10-64 bit, Linux Ubuntu 16.04
MECHANICAL
CONSTRUCTIONMetal chassis
MOUNTINGMust be assembled with OMNI-Series Modules-Panels
DIMENSION5.1" x 6.4" x 1.2" (128.6mm x 161.5mm x 30.7mm)
CARTON DIMENSION12.3" x 10.1" x 7.6" (312mm x 257mm x 194mm)
GROSS WEIGHT5.5 lbs (2.5 kg)
NET WEIGHT2.6 lbs (1.2 kg)
ENVIRONMENTAL
OPERATING TEMPERATURE14°F ~ 131°F (-10°C ~ 55°C) With 0.5m/s Airflow
STORAGE TEMPERATURE-4°F ~ 140°F (-20°C ~ 60°C)
STORAGE HUMIDITY10%~90% @104°F (40°C); non-condensing
VIBRATION1 Grms / 5~500Hz/random Operation
SHOCK-
EMCCE/FCC, Class A
POWER SUPPLY
DC INPUTDC 12~30V Power Input with 3 Pin Terminal Block
LCD
DISPLAY TYPE(Depends on your OMNI Panel Modules)
MAX. RESOLUTION(Depends on your OMNI Panel Modules)
MAX. COLORS(Depends on your OMNI Panel Modules)
LUMINANCE(Depends on your OMNI Panel Modules)
VIEWING ANGLE(Depends on your OMNI Panel Modules)
BACK LIGHT(Depends on your OMNI Panel Modules)
BACK LIGHT MTBF (HOURS)(Depends on your OMNI Panel Modules)
TOUCHSCREEN
TYPE(Depends on your OMNI Panel Modules)
LIGHT TRANSMISSION(Depends on your OMNI Panel Modules)
LIFE TIME(Depends on your OMNI Panel Modules)
Name Type Version Release Date
OMNI Display BOX Kit, datasheet Datasheet V1.0 20 September 2018
