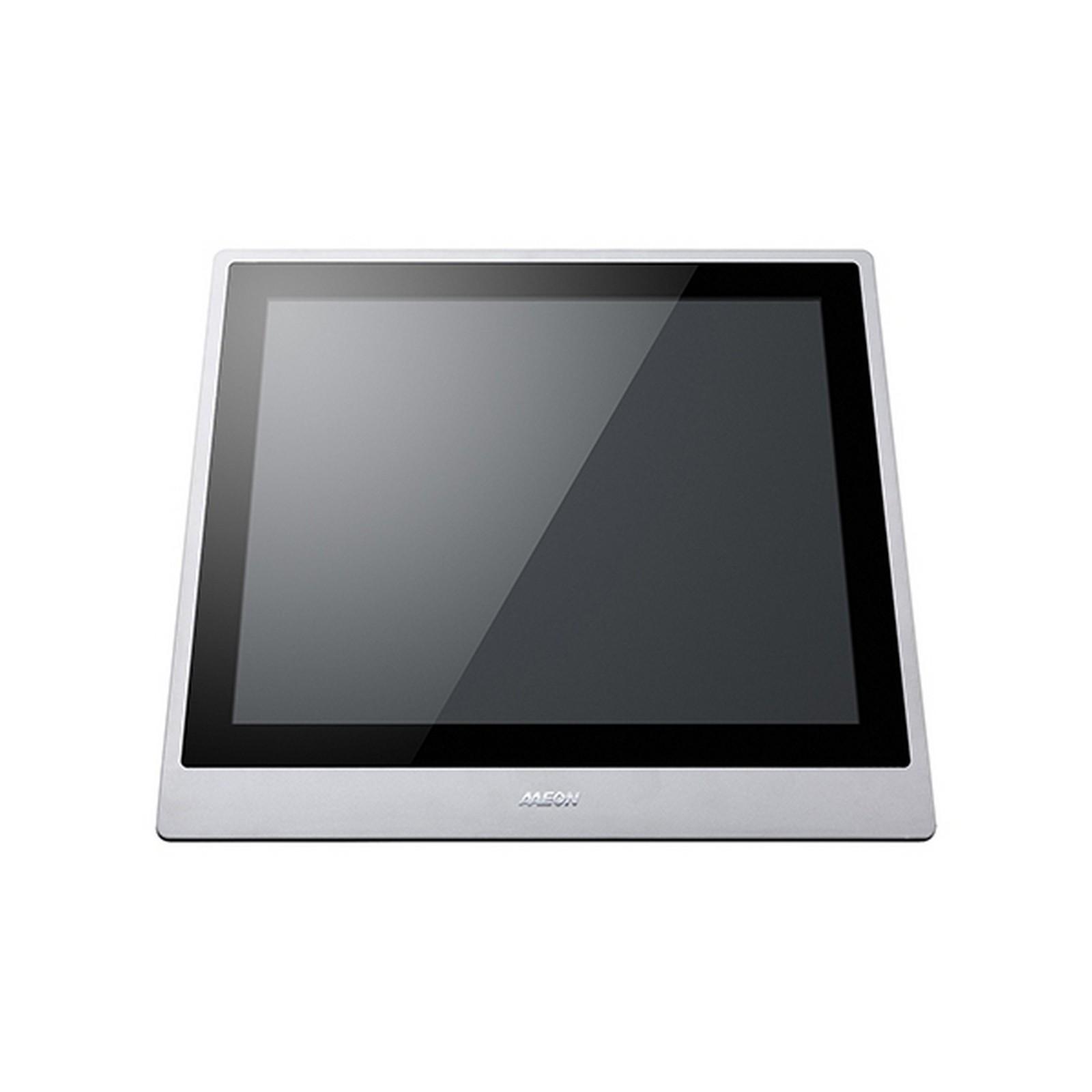

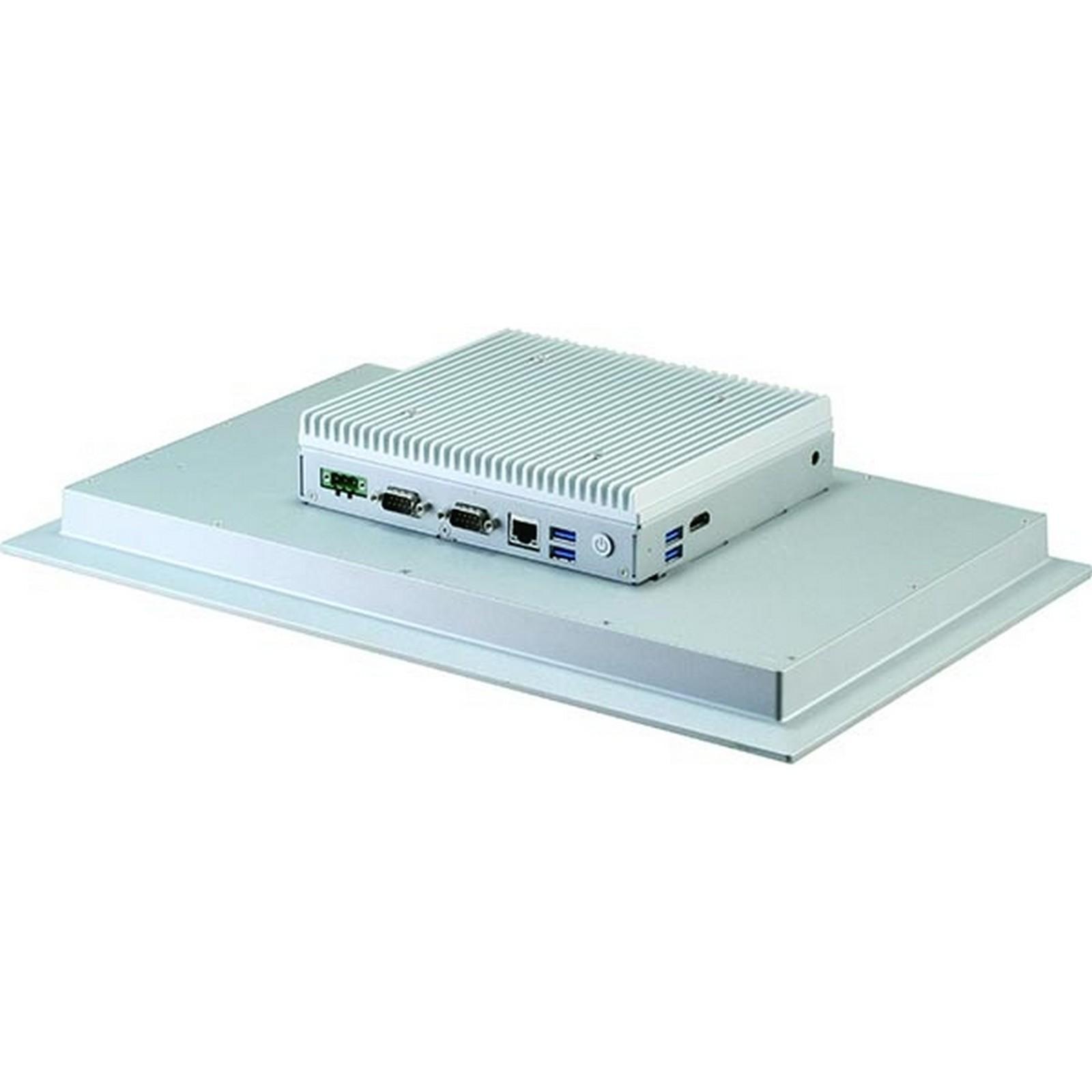

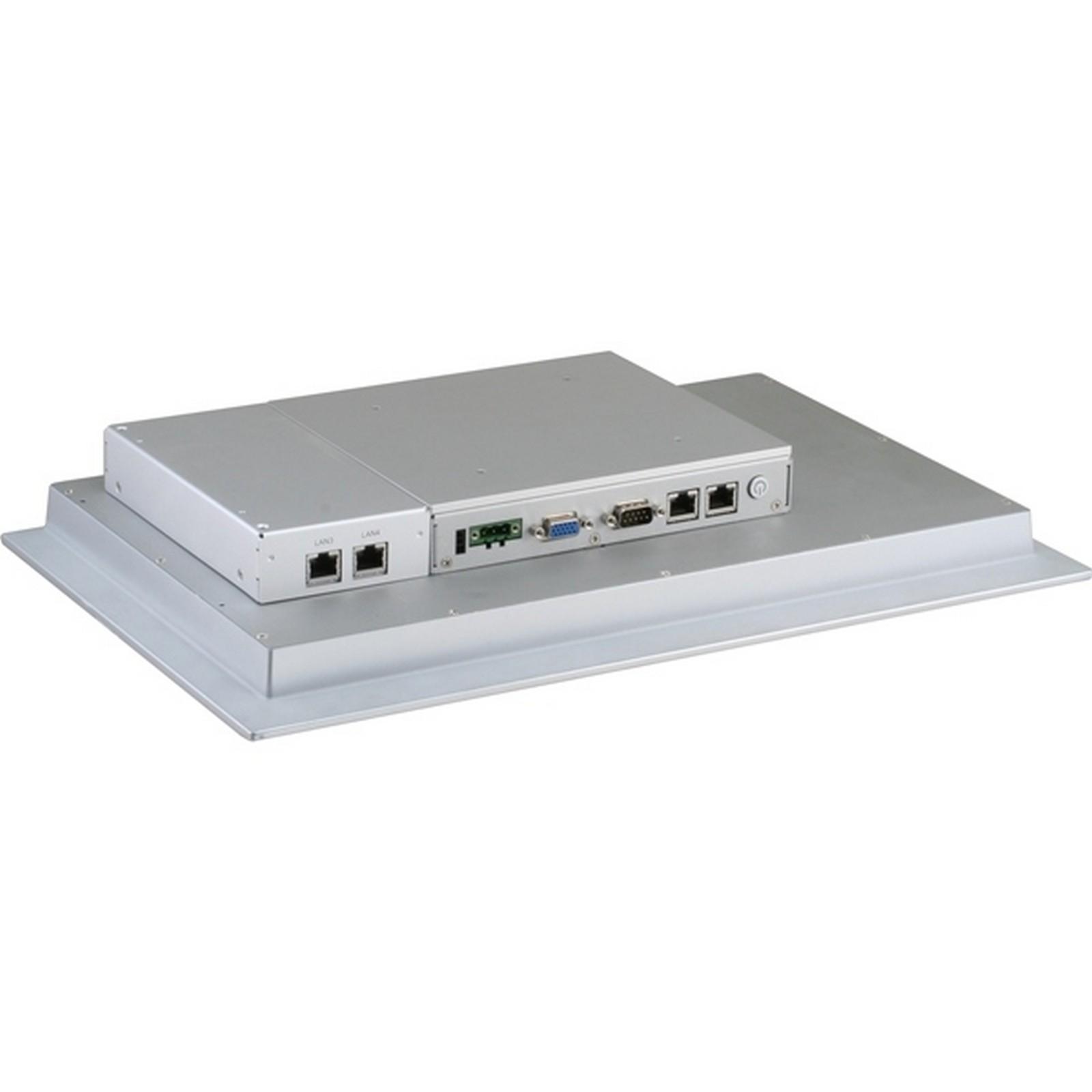

17” Modular HMI Panel PC with Intel® 6th Generation i5-6300U/C-3955U Processor
| SYSTEM | |
| PROCESSOR | Intel® i5-6300U processor, 2.4 GHz Intel® Celeron® 3955U processor, 2.0 GHz |
| SYSTEM MEMORY | 260-pin DDR4 SODIMM x 1, up to 16 GB |
| LCD/CRT CONTROLLER | Integrated in processor |
| ETHERNET | Intel® I211, 10/100/1000Base-TX x 1 |
| I/O PORT | USB 3.2 Gen 1 Type A x 4 SMA Antenna hole x 1 HDMI x 1 DB-9 Type RS-232/422/485 x 2 RJ-45 Type 10/100/1000 Base-TX x 1 3-pin terminal block x1 for 9~30 Vdc power input LED Power on/off switch x1 (Power on = Orange, Power off =N/A) |
| STORAGE DISK DRIVE | 2.5" SATA HDD bay x 1 |
| EXPANSION SLOT | Full Size Mini card x 1 SIM card x 1 OMNI I/O connector x 1 |
| OS SUPPORT | Windows® 8.1, Windows® 10 (64 bit), Linux kernel 2.6.x or higher |
| MECHANICAL | |
| CONSTRUCTION | Aluminum design (IP65 Front Frame) |

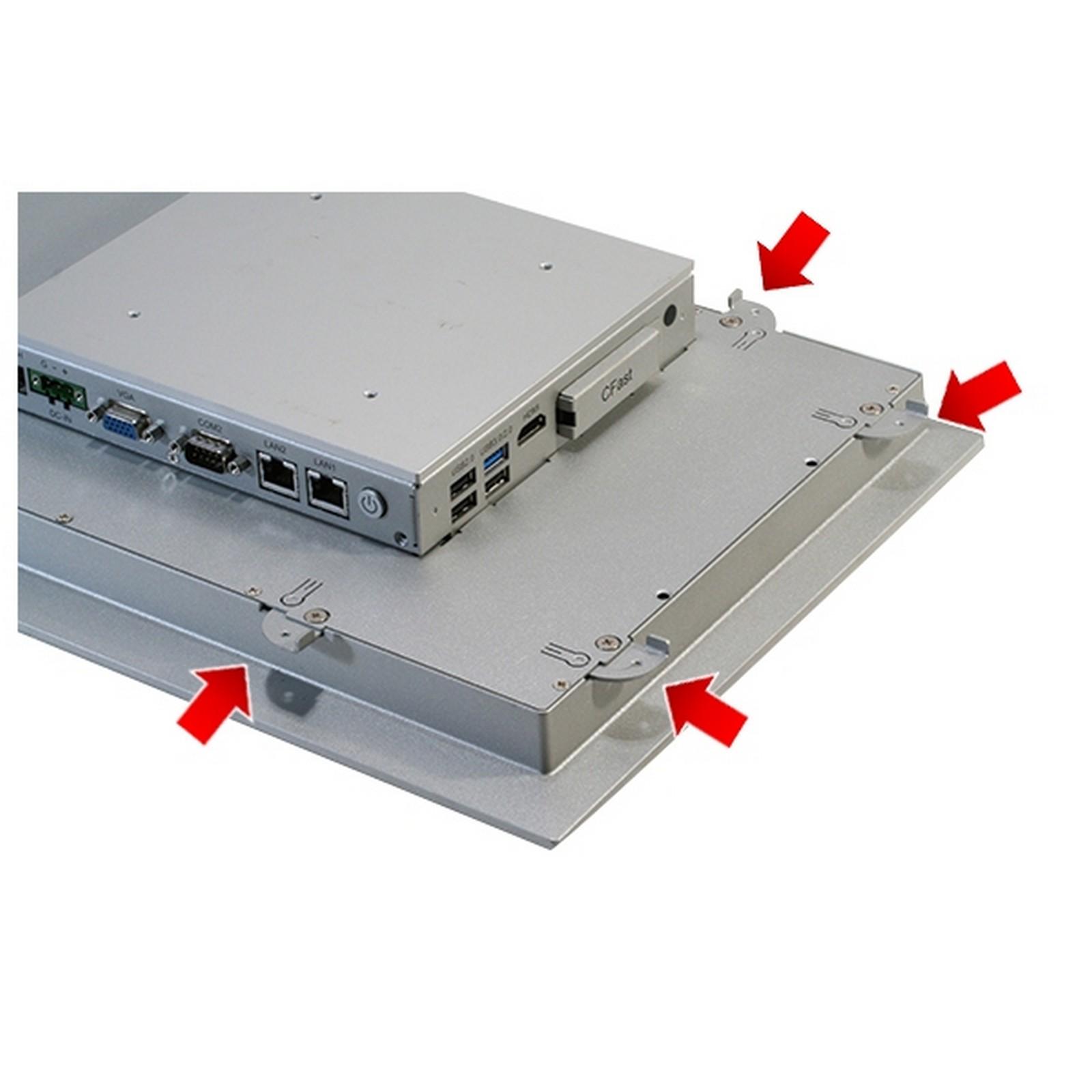

| MOUNTING | VESA 100 / Panel Mount |
| DIMENSION | 16.14” x 14.57” x 2.32” (410mm x 370mm) x 59mm) |
| GROSS WEIGHT | 16.28 lb (7.4 kg) |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | -4°F ~ 131°F (-20°C ~ 55°C) with 0.5 m/s airflow (Industrial Grade HDD) |
| STORAGE TEMPERATURE | -4°F ~ 158°F (-20°C ~ 70°C) |
| STORAGE HUMIDITY | 90% @40°C; non-condensing |
| ANTI-VIBRATION | 1 Grms/ 5~ 500Hz/ operation – with HDD |
| ANTI-SHOCK | 15 G peak acceleration (11 msec. duration) – with HDD |
| CERTIFICATION | CE/FCC class A |
| POWER SUPPLY | |
| DC INPUT | DC 9 (min.) ~ 30 (max.) V w/3-pin terminal block, ATX Power function |
| LCD | |
| DISPLAY TYPE | 17" TFT-LCD, LED |
| MAX. RESOLUTION | 1280(H) x 1024( V) |
| MAX. COLORS | 16.7M colors (RGB 6-bits + Hi-FRC data) |
| LUMINANCE | 350 cd/m² |
| VIEWING ANGLE | 170 (H), 160 ( V) |
| BACK LIGHT | LED |
| BACK LIGHT MTBF (HOURS) | 50000 |
| TOUCHSCREEN | |
| TYPE | P-CAP/ 5-wire resistive |
| LIGHT TRANSMISSION | P-CAP (90% ± 3%), 5-wire Resistive (80% ± 3%) |
| Name | Type | Version | Release Date | |
| OMNI-3175-SKU, datasheet | Datasheet | V2.0 | 07 January 2019 |
