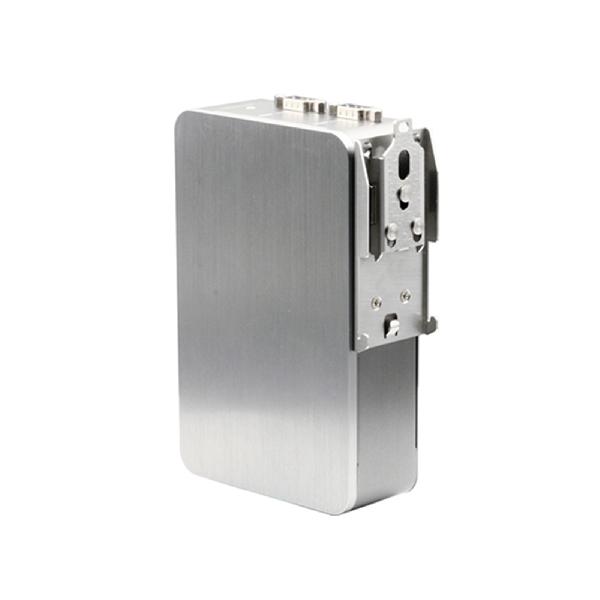

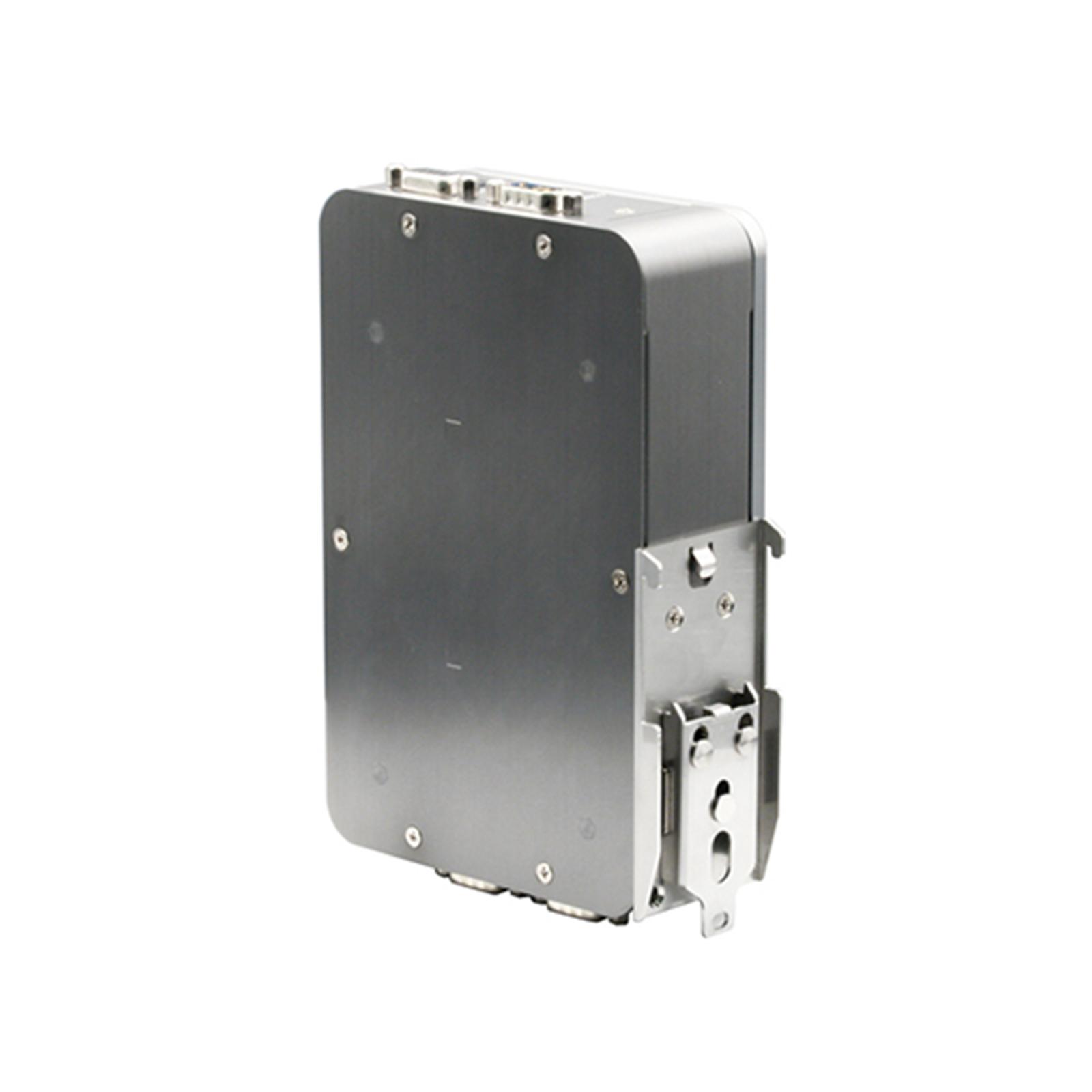

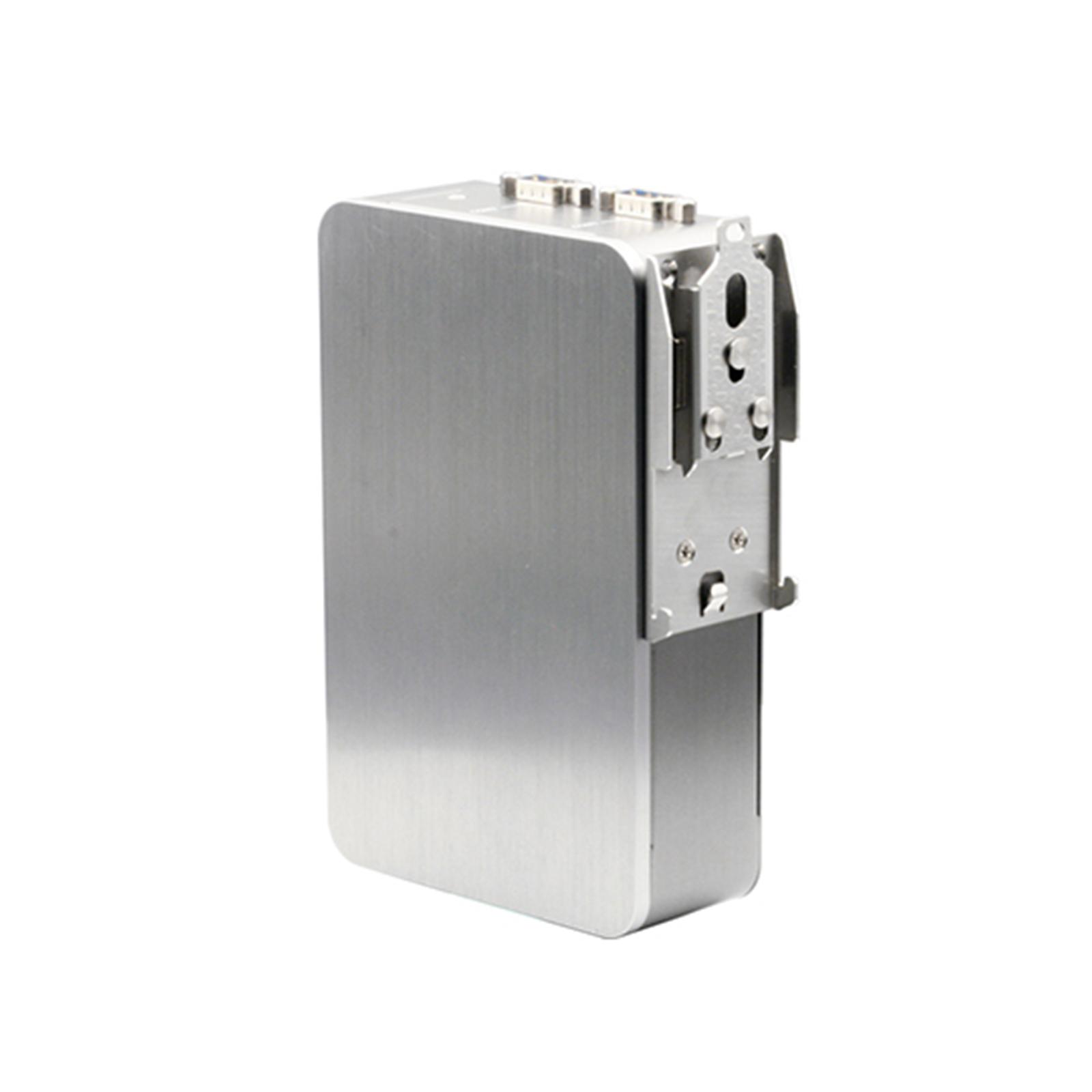

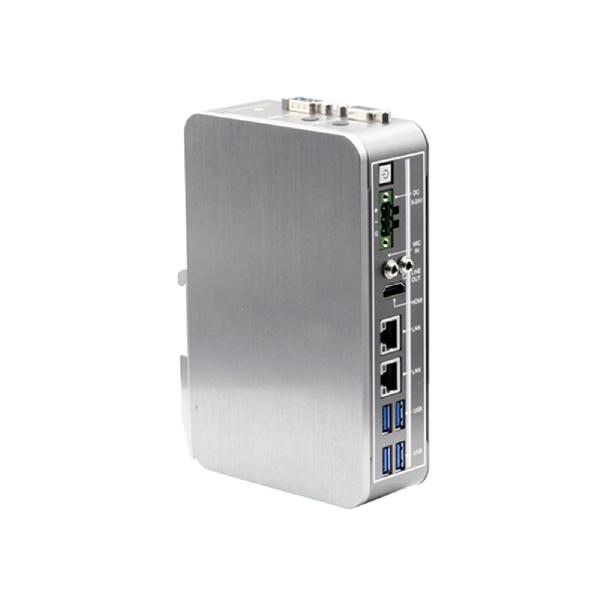

The BOXER-6710 is a compact, Din Rail mounted embedded computer. Powered by the Intel Celeron N3350 or Pentium N4200, it is built rugged and powerful for industrial applications. It features a wide array of I/O ports, all located for ease of access and maintenance. The BOXER-6710 also features a full-sized and half-sized mini-Card slot, supporting expansion options like the mPCIe WiFi or LTE modules.
System | |
| CPU | Intel® Pentium® processor N4200 Intel® Celeron® processor N3350 |
| Chipset | Intel® System on Chip |
| System Memory | DDR3L 1866 SODIMM slot x 1, up to 8GB |
| Display Interface | HDMI, VGA |
| Storage Device | HDD/SSD, optional mSATA |
| Ethernet | Intel® i211-AT x 1 Intel® i219-LM x 1 |

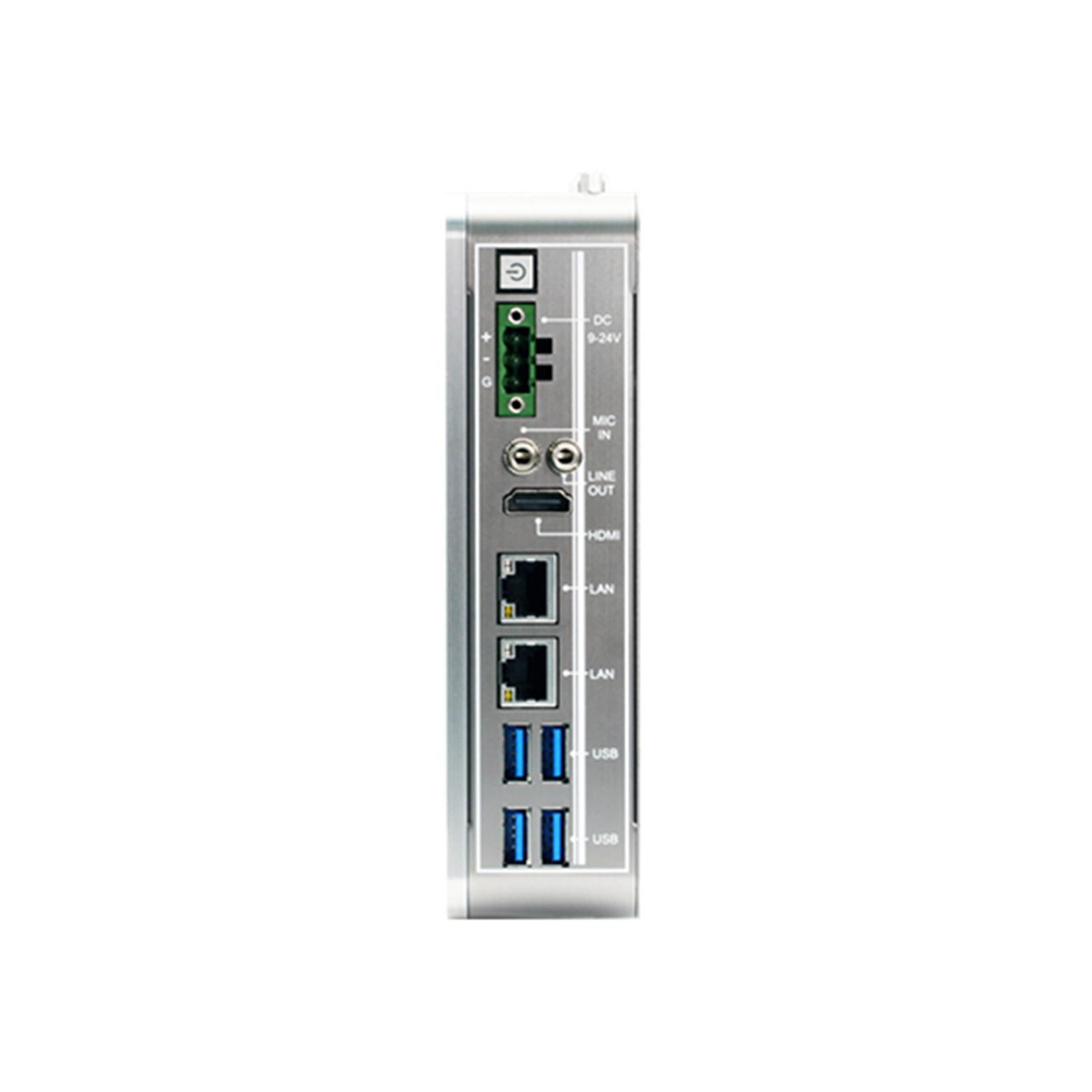

| I/O | VGA x 1 HDMI x 1 RJ-45 x 2 for GbE LAN USB Type A x 4 for USB 3.2 Gen 1 Mic-in x 1 Line-out x 1 RS-232/422/485 x 3 with automatic flow control Power On/Off Button x 1 DC-in 3-pin terminal block (9~24V) x 1 |
| Expansion | Full-size Minicard x 1 w/ SIM Slot Half-size Minicard x 1 (optional for mSATA) |
| Indicator | Power LED on power button |
| OS support | Windows® 10 (64-bit) Windows® 10 IoT (64-bit) Linux Ubuntu 16.04.4 |
Power Supply | |
| Power Requirement | 9 - 24V with 3-pin terminal block |
Mechanical | |
| Mounting | DIN Rail Mount |
| Dimensions (W x H x D) | 1.73" x 6.54" x 4.17" (44mm x 166mm x 106mm) |
| Gross Weight | 3.08lb (1.4kg) |
| Net Weight | 1.32lb (0.6kg) |
Environmental | |
| Operating Temperature | -22°F ~ 140°F (-30°C ~ 60°C) with W.T. SSD/HDD/mSATA (according to IEC68-2-14 with 0.5 m/s AirFlow ; with industrial devices) |
| Storage Temperature | -49°F ~ 176°F (-45°C ~ 80°C) |
| Storage Humidity | 95% @ 40°C, non-condensing |
| Anti-Vibration | 3 Grms/ 5 ~ 500Hz/ operation – mSATA/SSD 1 Grms/ 5~ 500Hz/ operation – HDD |
| Certification | CE/FCC class A |
