AMC-280B

Home  >   AAEON  >   Computing Systems  >
Industrial Chassis  >   Wallmount Chassis

8-Slot Wallmount Chassis, Full-Size/ Half-Size CPU Cards Support

Product Feature

  • 8-Slot Wallmount Chassis
  • 8-Slot ISA/PICMG Bus Passive Backplanes
  • Standard PS2 AT/ATX Power Supply
  • 3.5" external Drive Bay x 1
  • 5.25" external Drive Bay x 2
  • 3.5" internal Drive Bay x 1
  • USB Port x 2 And Keyboard Connector x 1 on Front Panel

The 8-slot AMC-280B wallmount chassis sports one 3.5" and two 5.25" external drive bays, one 3.5" internal drive bay, and an 8-slot ISA/PICMG Bus Passive Backplane. Both full-size and half-size CPU cards are supported.



Applications

  • Industrial Automation
  • Factory Automation
  • Transportation
  • Banking machine
  • Control Box
  • ITS
  • HMI
  • Workstation
SYSTEM
CONSTRUCTIONHeavy-duty Steel

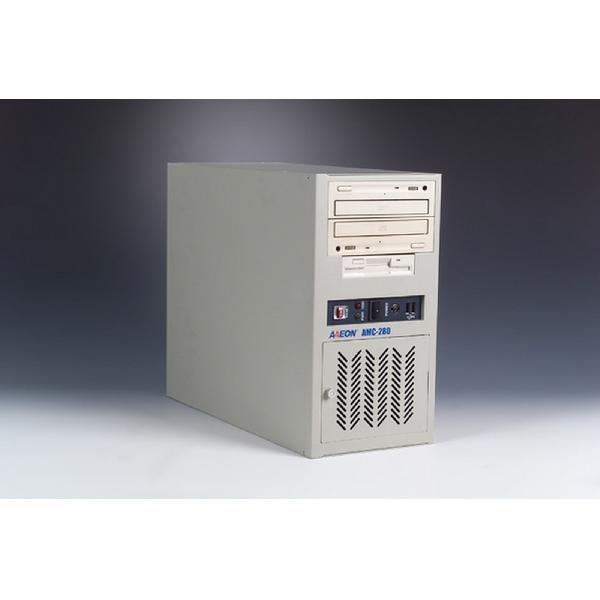

FRONT PANELPower ON/OFF Switch x 1 Reset Button x 1
Power ON LED x 1
Hard Disk Drive Active LED x 1 PS/2 Keyboard Connector x 1 USB x 2

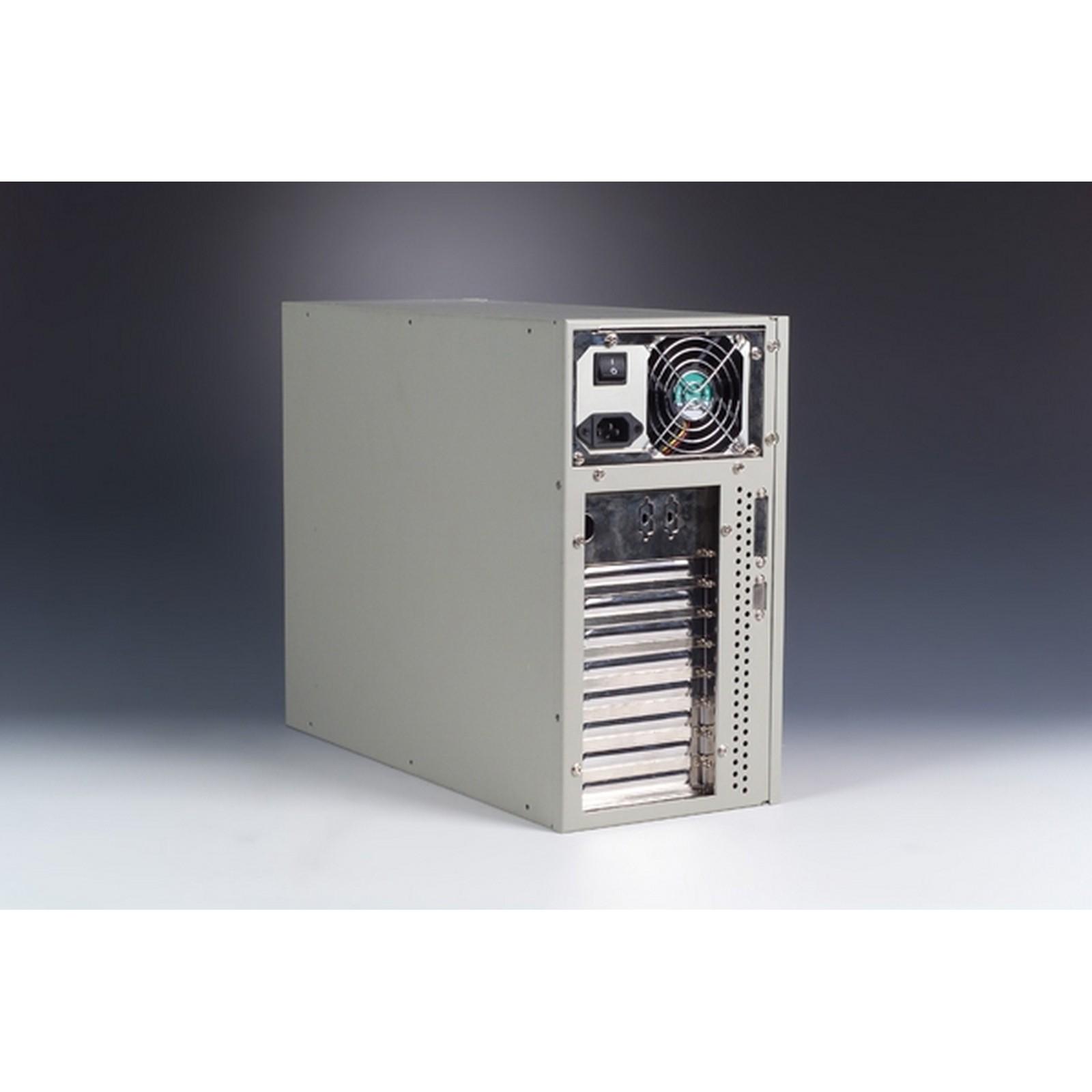

REAR PANELReserved Cut-out for DB-25 Connector x 1, DB-9 Connector x 3
8 slots (including system slot), supports max. 339 mm (length) for expansion card
COLORWhite
DIMENSION (W X D X H)13” (W) x 16.1” (D) x 6.9” (H) (330mm x 408mm x 175mm)
CARTON DIMENSION18” (W) x 20.3” (D) x 11.1” (H) (457mm x 515mm x 281mm)
NET WEIGHT19.8 lb (9 kg)
GROSS WEIGHT22 lb (10 kg)
STORAGEExternal: 3.5” Drive Bay x 1
5.25” Drive Bay x 2
Internal: 3.5” Drive Bay x 1
SYSTEM FAN12 cm Ball Bearing Fan with Removable Filter x 1
ENVIRONMENTAL
OPERATING TEMPERATURE32°F ~ 122°F (0°C ~ 50°C)
STORAGE TEMPERATURE-4°F ~ 176°F (-20°C ~ 80°C)
STORAGE HUMIDITY10 ~ 90% @ 40°C, non-condensing
VIBRATION0.5 Grms/ 5 ~ 500Hz/ operation (2.5” Hard Disk Drive)
1.5 Grms/ 5 ~ 500Hz/ non operation
SHOCK15 G peak acceleration (11 m sec. duration), operation
30 G peak acceleration (11 m sec. duration), non operation
EMCCE/FCC Class A
Name Type Version Release Date
AMC-280B, datasheet Datasheet V1.0 12 Febuary 2015
