AEC-206

Home  >   AAEON  >   Computing Systems  >
Industrial Chassis  >   Wallmount Chassis

6-Slot Wallmount Chassis, Full-Size/ Half-Size CPU Cards Support

Product Feature

  • High Performance Full-Size CPU Cards And 6-Slot PICMG Bus Passive Backplanes
  • Wallmount Or Desktop Applications
  • External 3.5” Drive Bay x 1
  • External 5.25” Drive Bay x 1
  • Internal 3.5” Drive Bay x 2
  • Easy-To-Replace Ball Bearing Cooling Fan with Filter x 1 For Card Area
  • Card Hold-Down Bar x 1

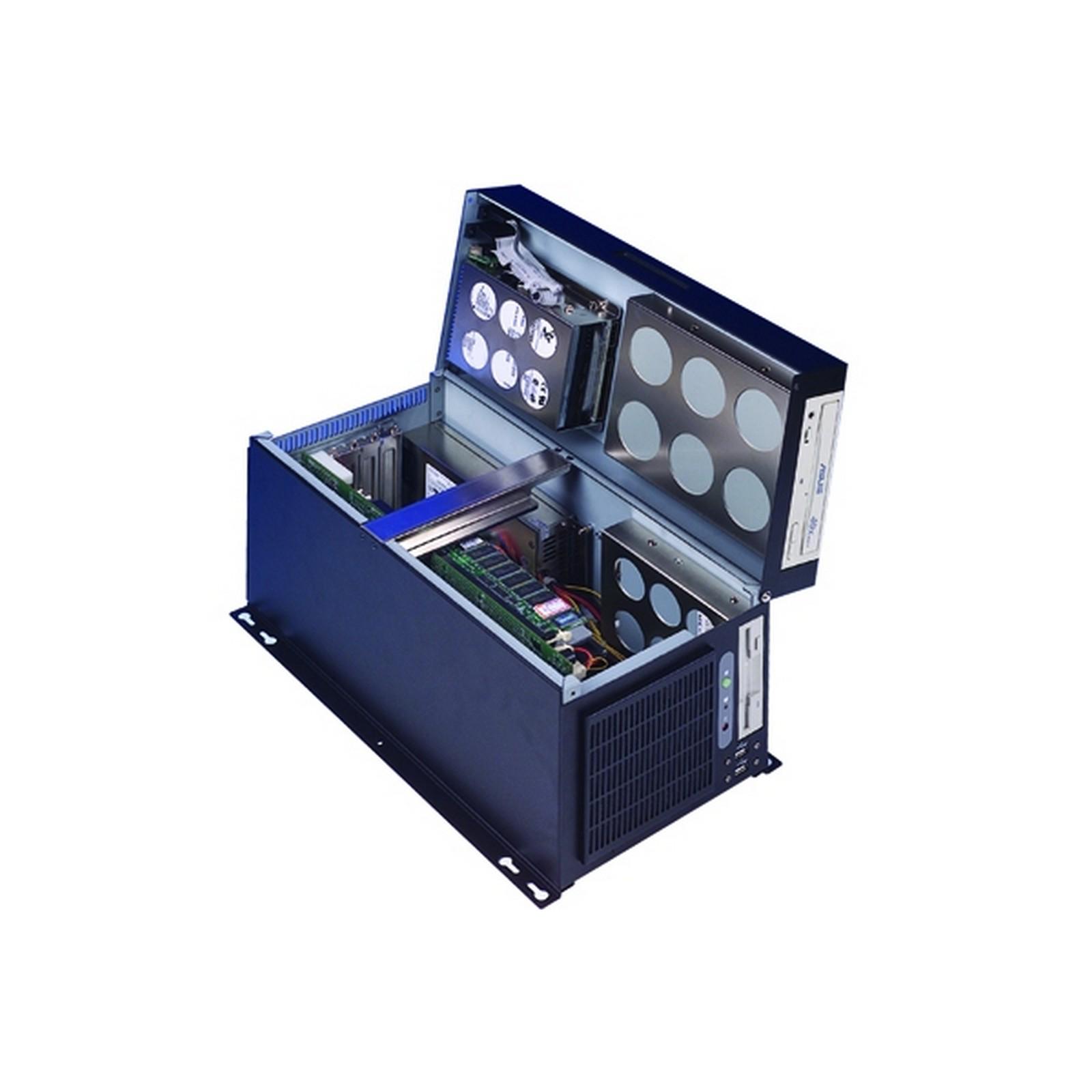

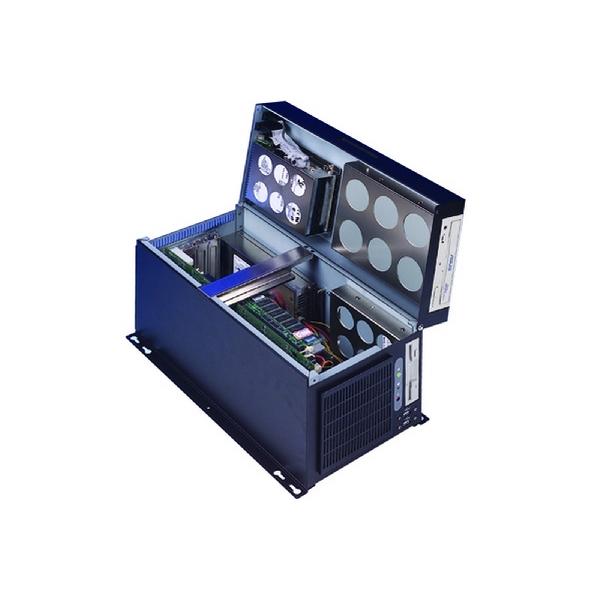

The 6-slot AEC-206 wallmount chassis sports one 5.25" and one 3.5" external drive bays, two 3.5" internal drive bays, and full-size CPU cards.



Applications

  • Automation
  • Industrial Automation
  • Factory Automation
  • Control Box
  • Banking machine
  • Transportation ITS
  • HMI
  • Workstation
SYSTEM
CONSTRUCTIONHeavy-duty Steel

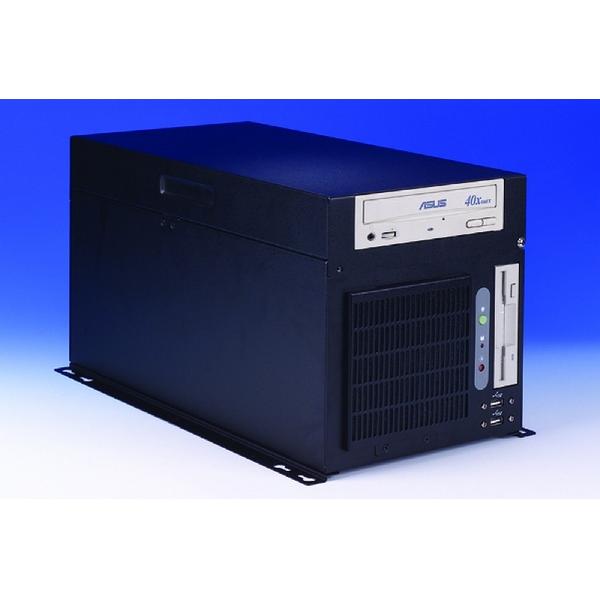

FRONT PANELPower On/ Off Switch with LED x 1 Reset Button x 1
Hard Disk Drive Active LED x 1 USB x 2

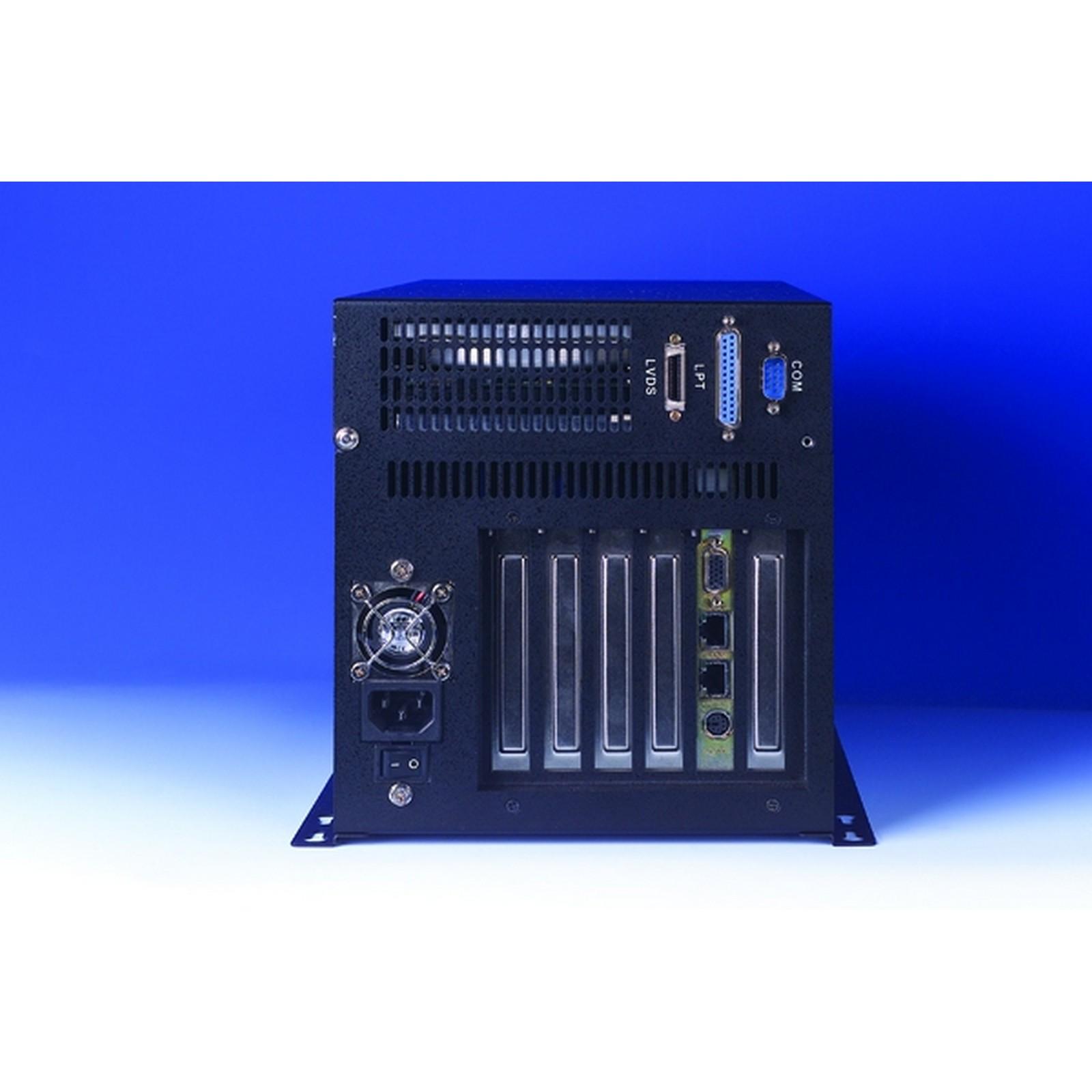

REAR PANELCOM x 1
Parallel x 1
Reserved Cut-out for LVDS Connector x 1
6 slots (including system slot), supports max. 339 mm (length) for expansion card
COLORBlack
DIMENSION (W X D X H)7.7” (W) x 15.55” (D) x 8.5” (H) (196mm x 395mm x 216mm)
CARTON DIMENSION12.2” (W) x 13.2” (D) x 20” (H) (310mm x 335mm x 510mm)
NET WEIGHT17 lb (7.8 kg)
GROSS WEIGHT20 lb (9.2 kg)
STORAGEExternal: 5.25” Drive Bay x 1 (Front Accessible) 3.5" Drive Bay x 1 (Front Accessible)
Internal: 3.5" Drive Bay x 2
SYSTEM FAN12cm Ball Bearing Fan with Removable Filter (Flow-in) x 1
ENVIRONMENTAL
OPERATING TEMPERATURE32°F ~ 122°F (0°C ~ 50°C)
STORAGE TEMPERATURE32°F ~ 167°F (0°C ~ 75°C)
STORAGE HUMIDITY5 ~ 95%@40°C, non-condensing
VIBRATION1 Grms/ 5 ~ 500Hz/ random operation
SHOCK15 G peak acceleration (11 msec. duration)
EMCCE/FCC class A
Name Type Version Release Date
AEC-206, datasheet Datasheet V1.0 13 Febuary 2015
