AEC-204

Home  >   AAEON  >   Computing Systems  >
Industrial Chassis  >   Wallmount Chassis

4-Slot Wallmount Chassis, Half-Size CPU Cards Support

Product Feature

  • High Performance Half-size CPU Cards
  • 4-slot PCISA/ ISA Bus Passive Backplanes
  • Wallmount or Desktop Applications
  • External 3.5” Drive Bay x 1 (Optional Slim Optical Drive)
  • Internal 2.5”/ 3.5” Drive Bay x 1
  • Easy-to-replace Ball Bearing Cooling Fan and Filter x 1 for Card Area

The 4-slot AEC-204 wallmount chassis sports one 3.5" external drive bay and one 3.5"/5.25" internal drive bays. Half-size CPU cards are supported.



Applications

  • Automation
  • Industry Automation
  • Control Box
  • Factory Automation
  • Transportation
  • Banking machine
  • ITS
  • HMI
  • Workstation
SYSTEM
CONSTRUCTIONHeavy-duty Steel

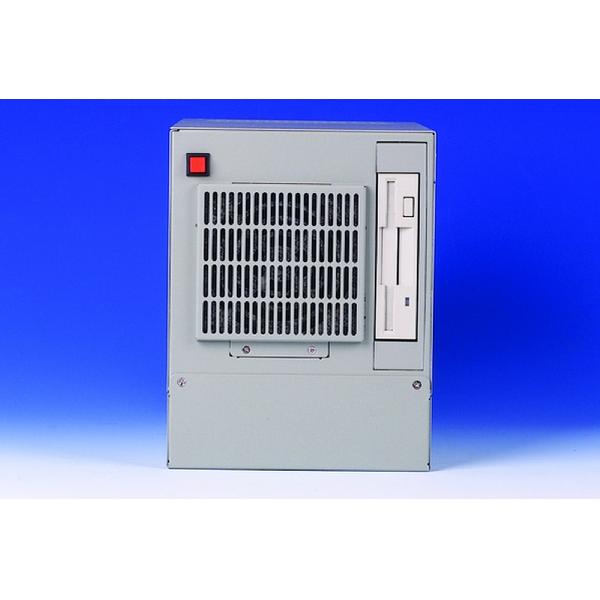

FRONT PANEL

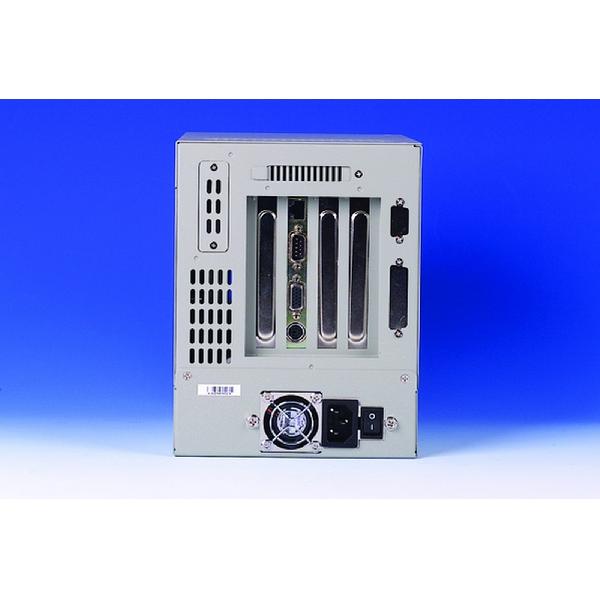

REAR PANELCOM x 1
Parallel x 1
Reserved Cut-out for LVDS Connector x 1
4 slots (including system slot), supports max. 185 mm (length) for expansion card
COLORWhite
DIMENSION (W X D X H)6.3” (W) x 8.1” (H) x 9.7” (D) (161mm x 207mm x 247mm)
CARTON DIMENSION13.39” (W) x 10.63” (H) x 13.19” (D) (340mm x 270mm x 335mm)
NET WEIGHT12.1 lb (5.5 kg)
GROSS WEIGHT13.9 lb (6.3 kg)
STORAGEExternal: Slim CD-ROM & Disk Drive x 1 or 3.5” Disk Drive x 1 (front accessible) Internal: 3.5” Hard Disk Drive Bay or 2.5” Hard Disk Drive Bay x 1
SYSTEM FAN9 cm ball Bearing Fan with removable filter (flow-in) x 1
ENVIRONMENTAL
OPERATING TEMPERATURE32ºF ~ 113ºF (0ºC ~ 45ºC)
STORAGE TEMPERATURE32ºF ~ 167ºF (0ºC~ 75ºC)
STORAGE HUMIDITY10 ~ 80% @40ºC, non-condensing
VIBRATION1 Grms/ 5 ~ 500Hz/ random operation
SHOCK15 G peak acceleration (11 msec. duration)
EMCCE/FCC class A
Name Type Version Release Date
AEC-204, datasheet Datasheet V1.0 13 Febuary 2015
