AEC-204B

Home  >   AAEON  >   Computing Systems  >
Industrial Chassis  >   Wallmount Chassis

4-slot Industrial Wallmount IPC System Half-size CPU Cards Support

Product Feature

  • High Performance Half-size CPU Cards and 4-slot PISA/ISA Bus Passive Backplanes
  • Anti-vibration 3.5" Hard Disk Drive Bay x 1 and Front Access 3.5" Floppy Disk Drive x 1 (or Slim CD-ROM/Floppy Disk Drive)
  • 12cm Ball Bearing Cooling Fan and Replaceable Filter x 1
  • Supports Standard 1U Power Supply
  • Anti-Vibration Design for CPU Card

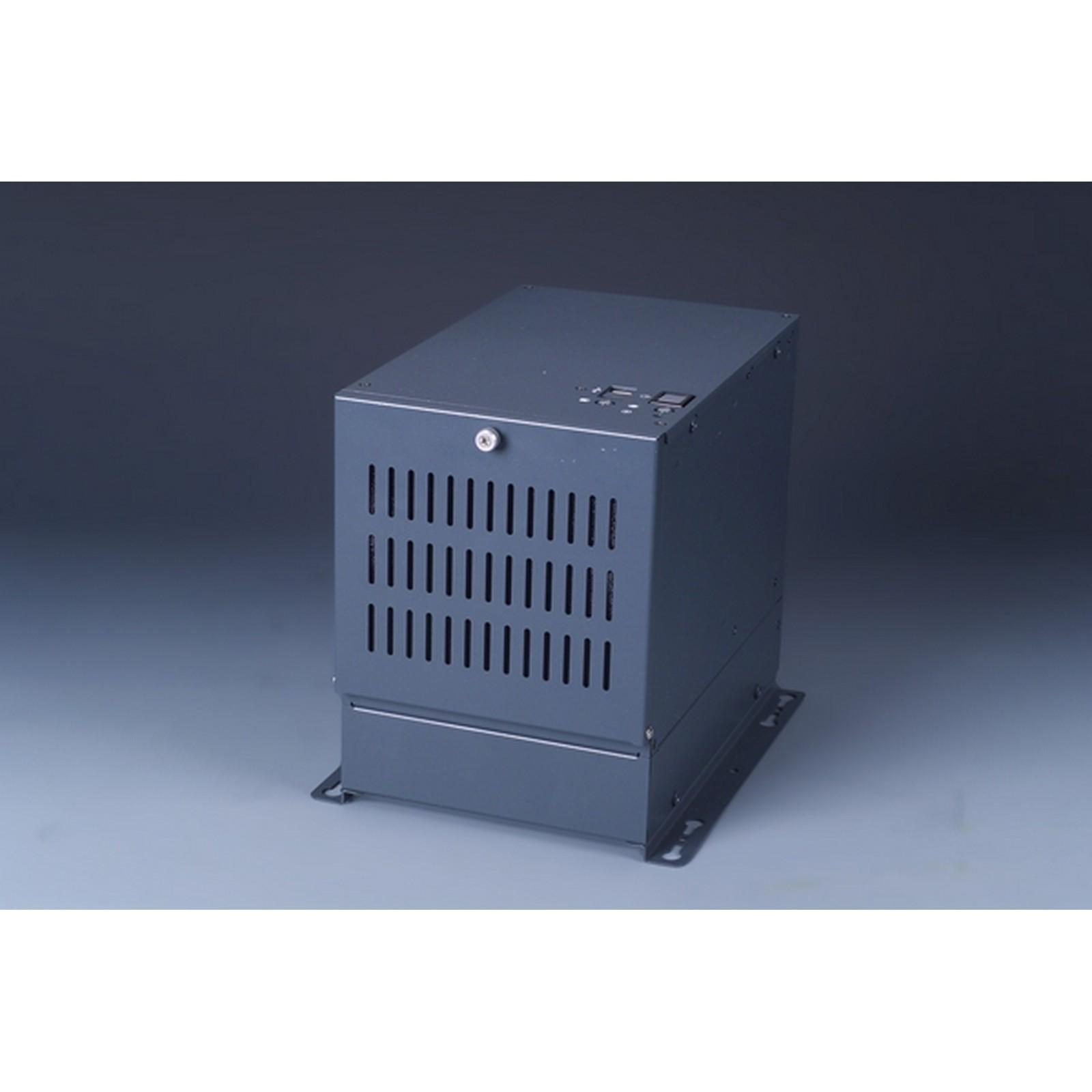

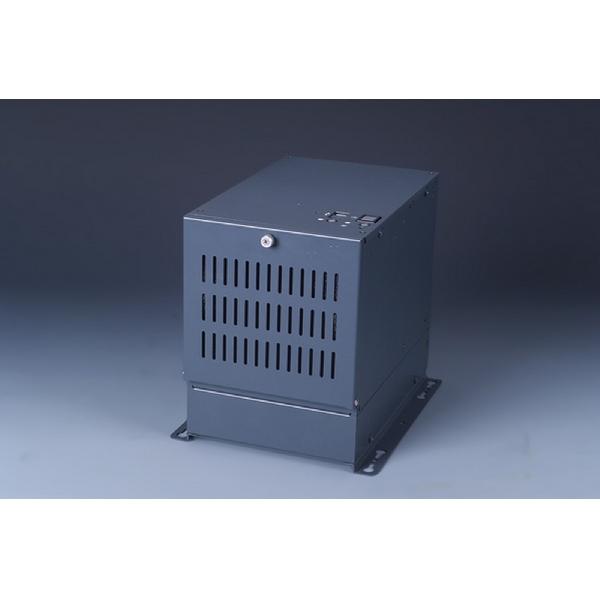

The AEC-204B is a 4-slot industrial wallmount chassis designed to provide an environmentally secure housing for embedded control system and other space critical applications. It supports PCI, PCISA and ISA passive backplane and can accept most half-size ISA/ PCISA bus CPU cards. AEC-204B reserves two RS-232 ports and one parallel port and has room for both a 3.5" internal hard-drive and an external 3.5" from a floppy-drive (or one slim FDD, slim CD-ROM). It is also equipped with both DC and AC 150-watt power supply. Its rugged, sturdy, fully-sealed steel chassis and well-ventilated design can withstand shock and constant vibration associated with harsh environments.



Applications

  • Automation
  • Transportation
  • Banking Machine
System
ConstructionHeavy-duty Steel
StorageExternal: Slim CD-ROM & Floppy Disk Drive x 1 or
3.5” Floppy Disk Drive x 1 (Front Accessible)
Internal: 3.5” Hard Disk Drive Bay

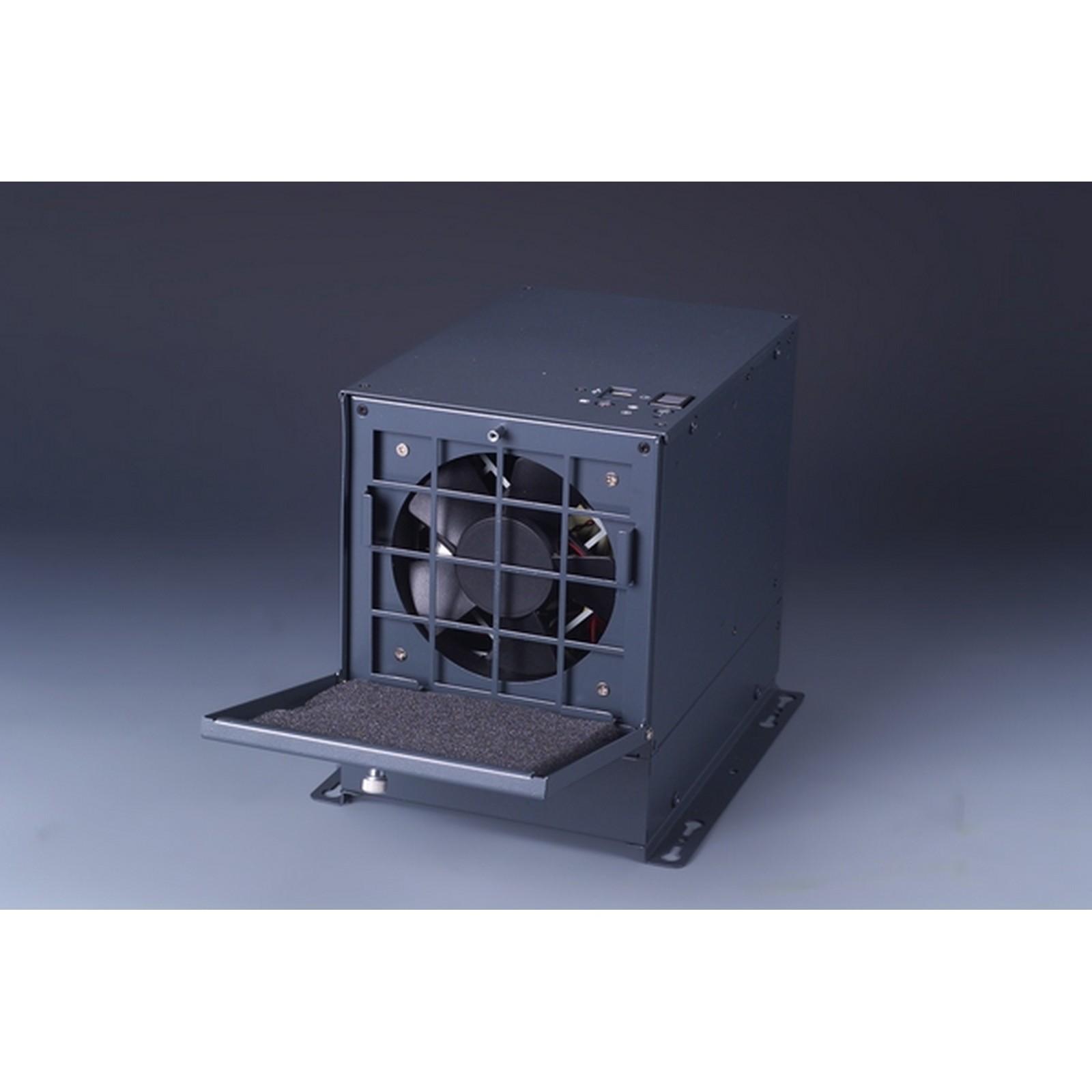

System Fan12 cm Ball Bearing Fan with Removable Filter x 1 (Flow-in)

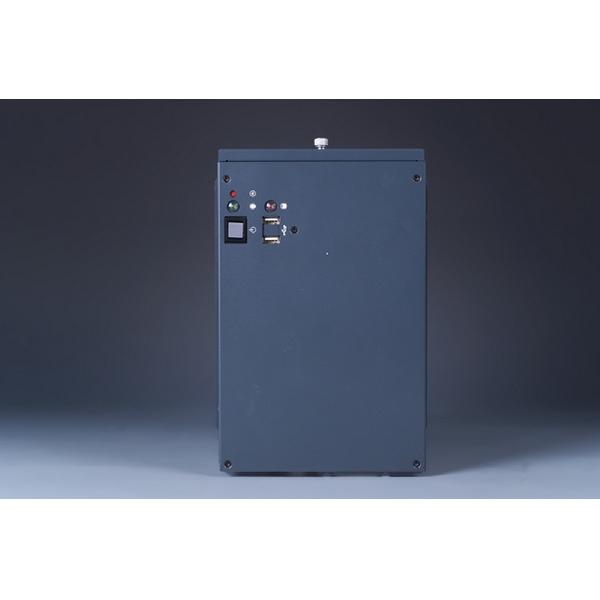

Front PanelPower On/ Off Switch x 1, Reset x 1
 1 Power LED x 1, IDE LED x 1

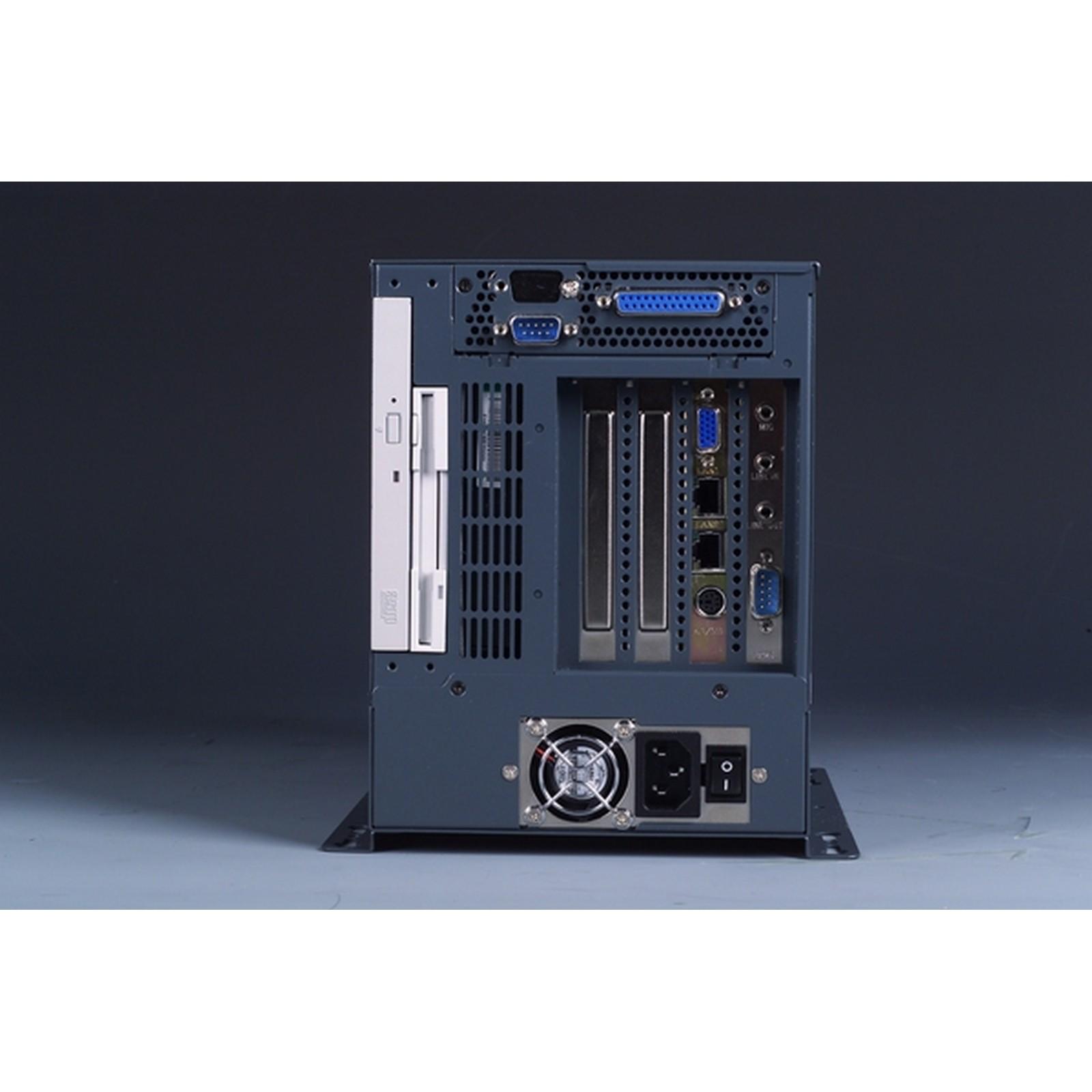

Rear PanelUSB x 2
COM x 2
Parallel x 1
ColorGray
Dimension6.4”(W) x 8.2”(H) x 10.0”(D)
(162.5mm x 207.5mm x 253.5mm)
Carton Size15.04” (W) x 10.75” (H) x 14.37” (D)
(382mm x 273mm x 365mm)
Net Weight12.8 lb (5.8kg)
Gross Weight15.6 lb (7.1kg)
Environmental
Operating Temperature32ºF ~ 122ºF (0ºC ~ 50ºC)
Storage Temperature-4ºF ~ 140ºF (-20ºC~ 60ºC)
Operating Humidity5 ~ 95%
Storage Humidity5 ~ 95%@40ºC, non-condensing
Vibration1G / 5 ~ 500Hz / random operation
Shock15G peak acceleration (11 msec. duration)
Name Type Version Release Date
AEC-204B, datasheet Datasheet V1.0 26 August 2013
