BOXER-8521AI

Home  >   AAEON  >   AI Solutions  >
AI@Edge Solutions

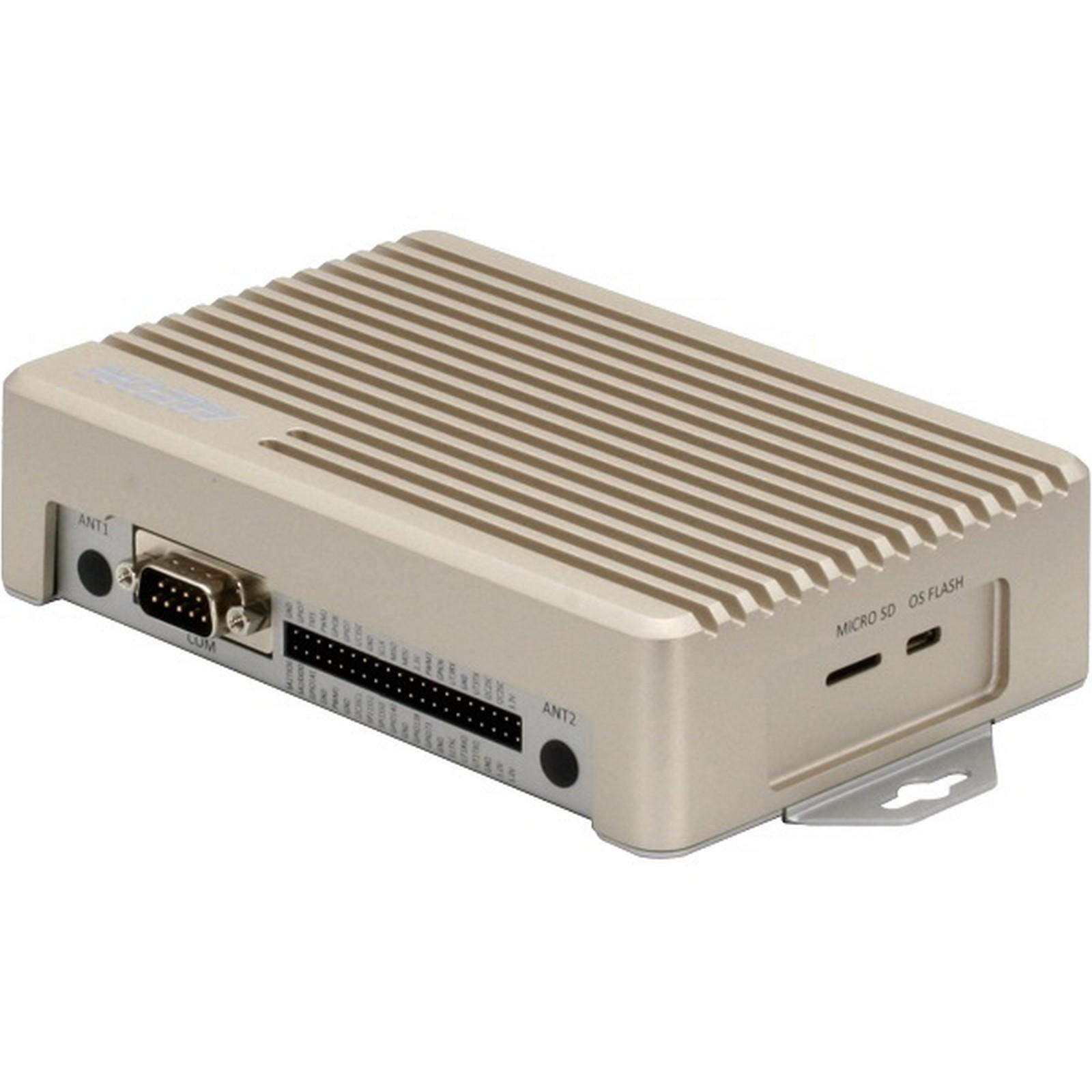

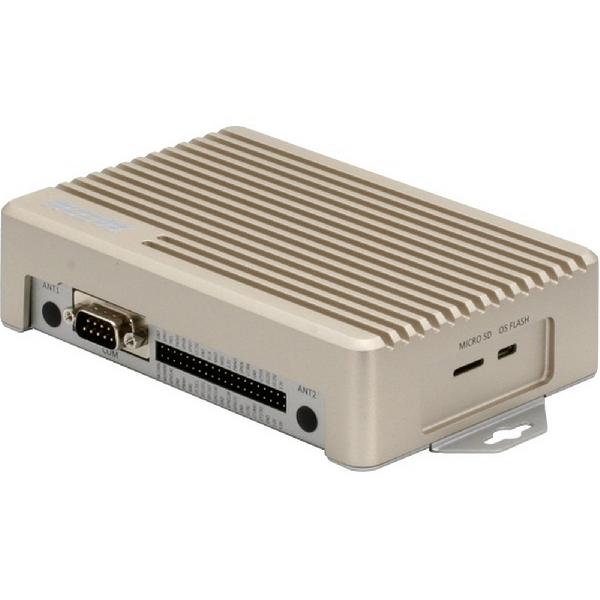

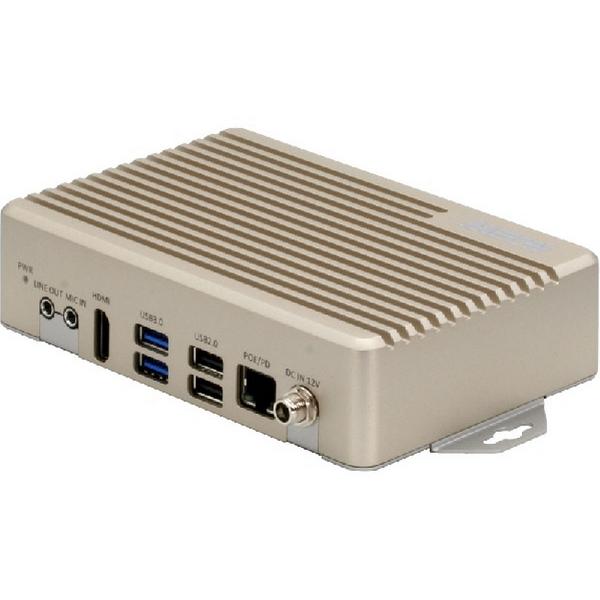

AI@Edge Compact Fanless Embedded BOX PC with Google Edge TPU

Product Feature

  • GbE PoE/PD x 1
  • USB3.2 Gen 1 x 2 & USB2.0 x 2
  • Mic-in & Line-out
  • Support MEMS x 2 (Optional)
  • Built-in WiFi 2x2 MIMO (802.11b/g/n/ac 2.4/5GHz) & Bluetooth 4.1

The BOXER-8521AI system is recognized as an innovative Artificial Intelligence AIOT Edge Gateway System. Powered by the Google® Edge TPU™, it features a PoE PD (Powered Device) 802.3at port, supplying 25.6W, allowing the BOXER-8521AI to operate without a dedicated power supply, reducing installation complexity. In addition, the BOXER-8521AI is equipped with a 40-pin I/O (GPIO/I2C/I2S/SPI), allowing users to connect a greater range of sensors to collect data. The BOXER-8521AI can also control devices thanks to its COM RS-232/485 port. Altogether, the BOXER-8521 is the best solution for AI + Control + Communication Gateway.

SYSTEM
AI ACCELERATORGoogle Edge TPU ML accelerator coprocessor
CPUNXP i.MX 8M SoC (Quad-core Cortex-A53, plus Cortex-M4F)
SYSTEM MEMORY1GB LPDDR4x
STORAGE DEVICE8GB eMMC
DISPLAY INTERFACEHDMI 2.0 x 1
ETHERNET10/100/1000Base-TX x 1
I/OHDMI 2.0a x 1
USB Type A x 2 for USB3.2 Gen 1
USB Type A x 2 for USB2.0
RJ-45 x 1 for GbE LAN & PoE/PD(802.3at)
12Vdc (DC Jack w/lockable)
Mic –in x 1
Line-out x 1
40-pin I/O x 1 (GPIO/I2C/SAI/SPI/UART/PWM)
DB-9 x 1 for RS-232/485
OS Flash port x 1 (Micro USB)
Micro-SD slot x 1
EXPANSION
INDICATORPower LED x 1
OS SUPPORTACLinux 4.0 (Compatible with Debian 10)
POWER SUPPLY
POWER REQUIREMENTPoE/PD (802.3at)
12Vdc (DC Jack w/lockable)
MECHANICAL
MOUNTINGWallmount
DIMENSION6.92" x 3.94" x 1.54" (175 .8 mm x 100 .0 mm x 39 .0 mm)
GROSS WEIGHT2.31 lbs. (1.05 kg)
NET WEIGHT1.28 lbs. (0.58 kg)
ENVIRONMENTAL
OPERATING TEMPERATURE23°F ~ 122°F (-5°C ~ 50°C, according to IEC60068-2 with 0.5 m/s airflow)
STORAGE TEMPERATURE-40°F ~ 185°F (-40°C ~ 85°C)
STORAGE HUMIDITY95% @ 40°C, non-condensing
ANTI-VIBRATIONRandom, 3.5Grm, 5~500Hz
CERTIFICATIONCE/FCC class A
Name Type Version Release Date
Datasheet, BOXER-8521AI Datasheet V1.0 12 January 2021
