With the latest SoC from NVIDIA built for AI, the BOXER-8220AI offers stable, reliable performance at a price which is competitive and budget friendly.
The BOXER-8220AI is powered by the NVIDIA Jetson Nano, the latest in edge computing technology from NVIDIA. The Jetson Nano SoC combines the quad-core ARM® Cortex®-A57 MPCore processor with NVIDIA Maxwell™ GPU architecture featuring 128 NVIDIA CUDA® cores. This innovative design allows processing speeds up to 472 GFLOPs and is capable of operating multiple neural networks or processing several high-resolution images at the same time. The NVIDIA Jetson Nano also provides the BOXER-8220AI with 4GB RAM and 16 GB eMMC storage.

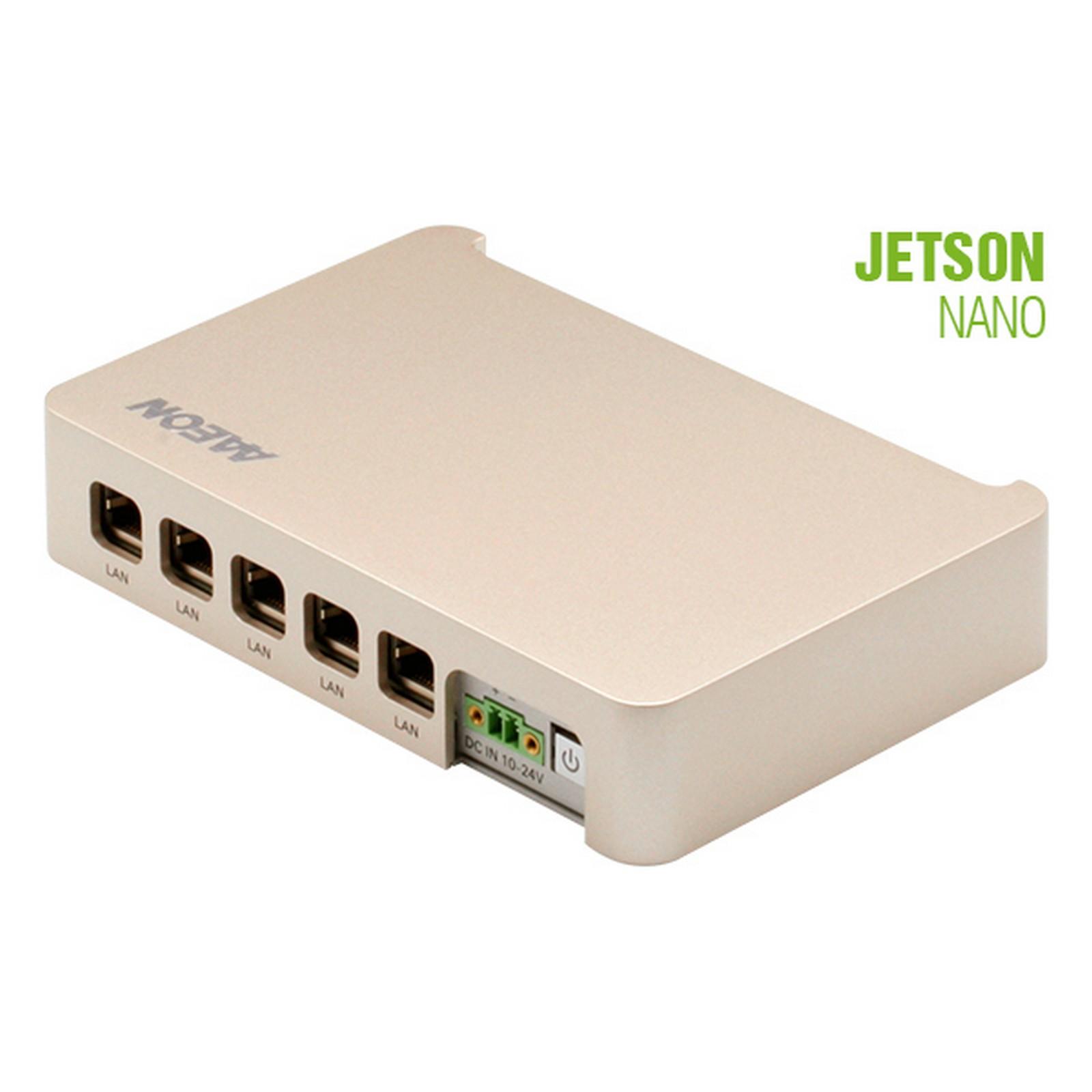

With the NVIDIA Jetson Nano, the BOXER-8220AI is able to provide both performance and price suitable for entry to mid-level deployment of AI and edge computing applications. With five Gigabit Ethernet ports, the BOXER-8220AI supports up to five input cameras or sensors, and four USB 3.2 Gen 1 ports allow even greater flexibility to integrate with projects.
The BOXER-8220AI is designed with AAEON’s dedication to providing rugged embedded PCs for industrial use. Its fanless design ensures long reliable operation, preventing dust or other contaminants from interfering with components. The BOXER-8220AI thermal design also allows the system to operate in temperatures from -20°C up to 60°C without a loss in performance, perfect for stable operation in almost every work environment.
As with all AAEON solutions, the BOXER-8220AI is backed by AAEON support, including AAEON OEM/ODM and Manufacturer services. Whether it’s configuring the OS, software support, or providing customized configurations, AAEON provide end-to-end support to help bring customer projects to life.
| SYSTEM | |
| AI ACCELERATOR | Nvidia Jetson Nano |
| CPU | Quad Core ARM® Cortex®-A57 MPCore Proccessor |
| SYSTEM MEMORY | 4GB LPDDR4 |
| STORAGE DEVICE | 16GB Micro-SD or eMMC |
| DISPLAY INTERFACE | HDMI 2.0 |
| ETHERNET | 10/100/1000Base-TX x 5 |

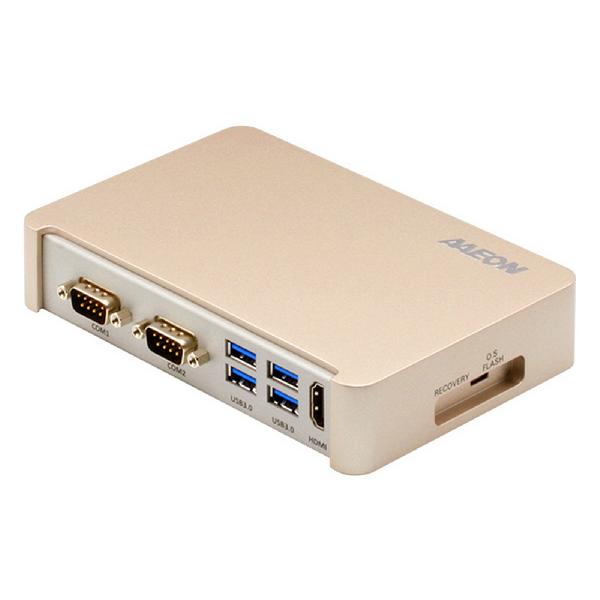

| I/O | USB 3.2 Gen 1 x 4 LAN x 5 RS-232 x 2 HDMI x 1 Micro-USB for Flash OS x 1 DC Power Input x 1 Power Button x 1 Recovery Button x 1 |
| EXPANSION | — |
| INDICATOR | Power LED x 1 |
| OS SUPPORT | ACLinux 4.9 or above (Compatible with Ubuntu 18.04) |
| POWER SUPPLY | |
| POWER REQUIREMENT | 10 ~ 24V DC with 2-pin terminal block |
| MECHANICAL | |
| MOUNTING | Wallmount |
| DIMENSION | 6.06" x 3.98" x 1.18" (154 mm x 101 mm x 30 mm) |
| GROSS WEIGHT | 4.40 lbs (2 Kg) |
| NET WEIGHT | 2.20 lbs (1 Kg) |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | -4°F ~ 140°F (-20°C ~ 60°C, according to IEC60068-2 with 0.5 m/s AirFlow) |
| STORAGE TEMPERATURE | -49°F ~176°F (-45°C ~ 80°C) |
| STORAGE HUMIDITY | 95% @ 40°C, non-condensing |
| ANTI-VIBRATION | 3 Grms/ 5 ~ 500Hz/ operation – MicroSD or eMMC |
| CERTIFICATION | CE/FCC class A |
| Name | Type | Version | Release Date | |
| BOXER-8220AI | Datasheet | V2.0 | 26 August 2020 |
