BOXER-8170AI

Home  >   AAEON  >   AI Solutions  >
AI@Edge Solutions

AI@Edge Fanless Embedded Box PC with NVIDIA Jetson TX2, 4 PoE LAN

Product Feature

  • Designed for Enbedded AI vehicle Controller
  • Gigabit Ethernet x 1 and 802.3af PoE x 4 for survillance
  • Nvidia TX2 Module
  • HMP Dual Denver 2 + Quad ARM A57
  • 8GB LPDDR4
  • 32GB eMMC 5.1
  • HDMI 2.0 x2
  • USB 3.2 Gen 1 x 4
  • COM x2
  • DC 12~24V

The BOXER-8170AI is an embedded AI@Edge box PC powered by the NVIDIA Jetson TX2. The unique design of this SoC provides support for up to 256 CUDA cores and performance to power a wide range of AI@Edge applications. The BOXER-8170AI comes with 8GB LPDDR4 memory and 32GB eMMC storage onboard. The BOXER-8170AI supports AI frameworks such as TensorFlow, Caffe, and can support AI inference software from developers and customers.

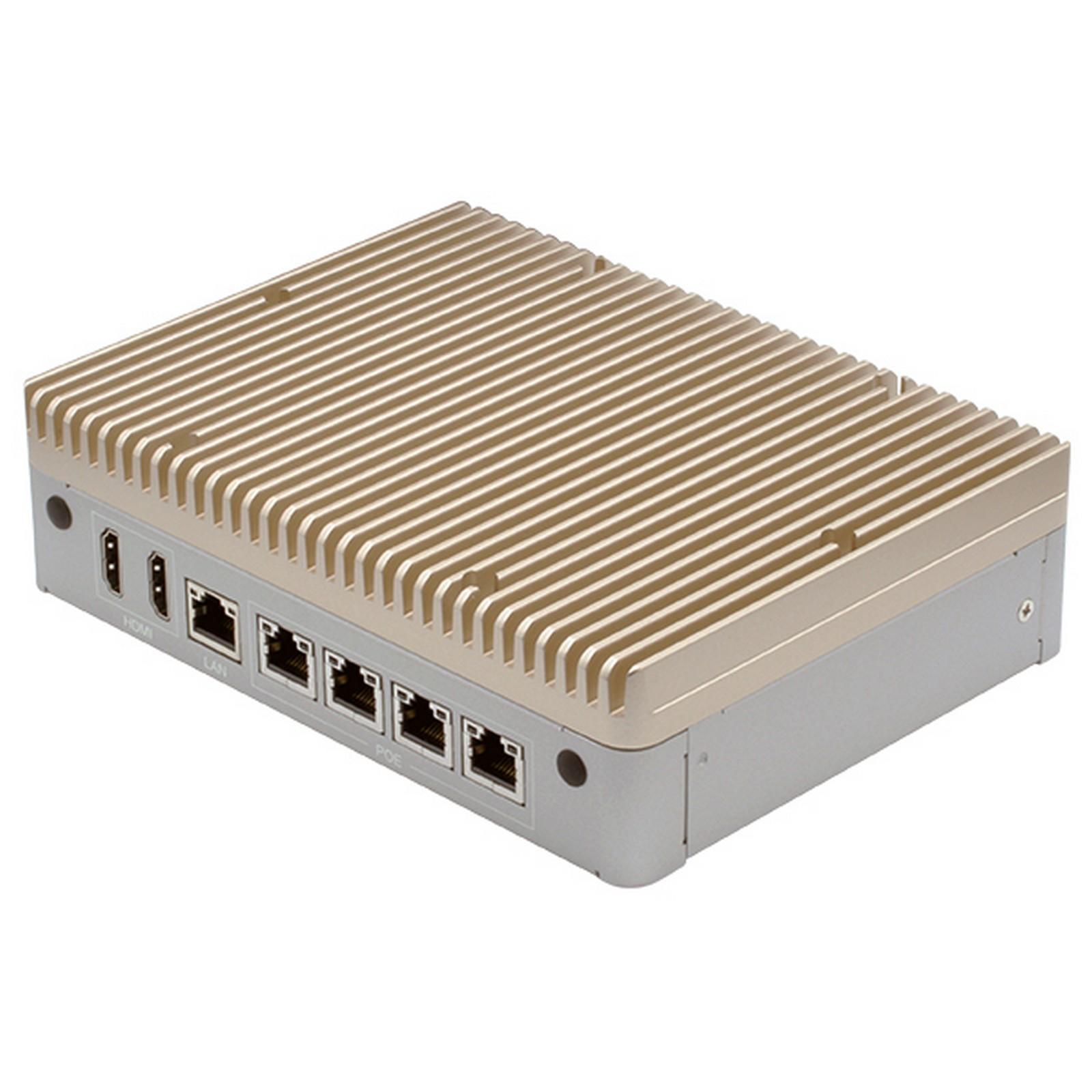

The BOXER-8170AI is designed to bring flexibility and stability to AI Edge networks. It features four PoE LAN ports, each with their own dedicated chip, allowing for greater bandwidth and stability for connected cameras or devices. The BOXER-8170AI also features four USB 3.2 Gen 1 ports, two COM ports, two HDMI ports, and remote ON/OFF. The BOXER-8170AI also features a Gigabit LAN port and two antenna ports to allow easy integration into existing networks, or for deployment as an AIOT gateway.

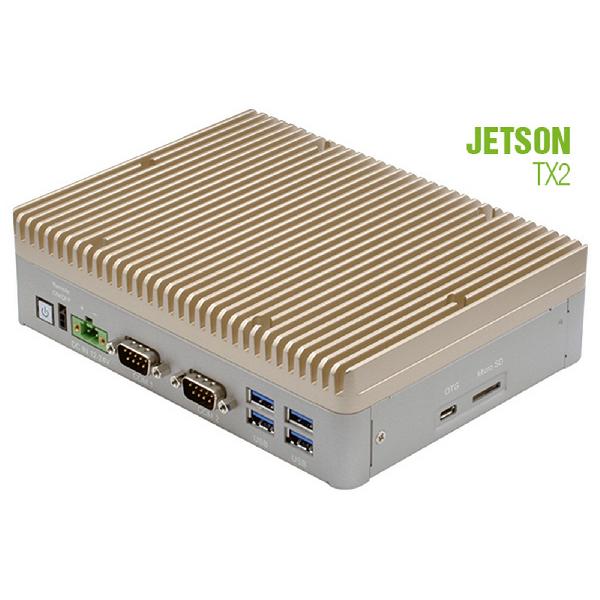

With USB OTG and an SD Card slot, system maintenance is easy for the BOXER-8170AI. Its chassis is built for industry, with a fanless design and all aluminum chasis. The BOXER-8170AI is capable of operating in temperatures from -20°C to 50°C and features a wide input voltage range of 12 to 24 VDC.

SYSTEM
AI ACCELERATORNvidia Jetson TX2
CPUHMP Dual Denver 2 + Quad ARM A57
SYSTEM MEMORY8GB LPDDR4
STORAGE DEVICE32GB eMMC 5.1
Micro-SD
DISPLAY INTERFACEHDMI 2.0
ETHERNET10/100/1000 Base-TX x 1
IEEE 802.3 af PoE LAN x 4
I/ORJ-45 x 1 for GbE LAN
IEEE 802.3af PoE x 4 (60W total power budget)
HDMI Type A x2 for HDMI 2.0
USB Type A x 4 for USB 3.2 Gen 1
DB-9 RS-232/422/485 x 2
Power On/Off Button x 1
DC-In 2-pin terminal block x 1
USB OTG x 1
12~24V DC-in Power Input x 1
SMA Antenna Holes x 2
EXPANSIONSATA x 1 (optional)
USB 2 x 1 (optional)
2 Channel CANBUS x 1 (optional)
INDICATORPower LED
OS SUPPORTAAEON ACLinux 4.9, Compliance with Ubantu 18.04
POWER SUPPLY
POWER REQUIREMENT12~24V with 2-pin terminal block
MECHANICAL
MOUNTINGWallmount
DIMENSION7.09" x 1.89" x 5.35" (180mm x 48mm x 136mm)
GROSS WEIGHT6.39 lb (2.9 Kg)
NET WEIGHT4.73 lb (2.15 Kg)
ENVIRONMENTAL
OPERATING TEMPERATURE-20°C ~ 50°C (according to IEC68-2-14 with 0.5 m/s AirFlow ; with industrial devices)
STORAGE TEMPERATURE-40°F ~176 °F (-40°C ~ 80°C)
STORAGE HUMIDITY5~95% @ 40°C, non-condensing
ANTI-VIBRATION3 Grms/ 5 ~ 500Hz/ operation
CERTIFICATIONCE/FCC class A
Name Type Version Release Date
BOXER-8170AI, Datasheet Datasheet V3.0 13 January 2021
