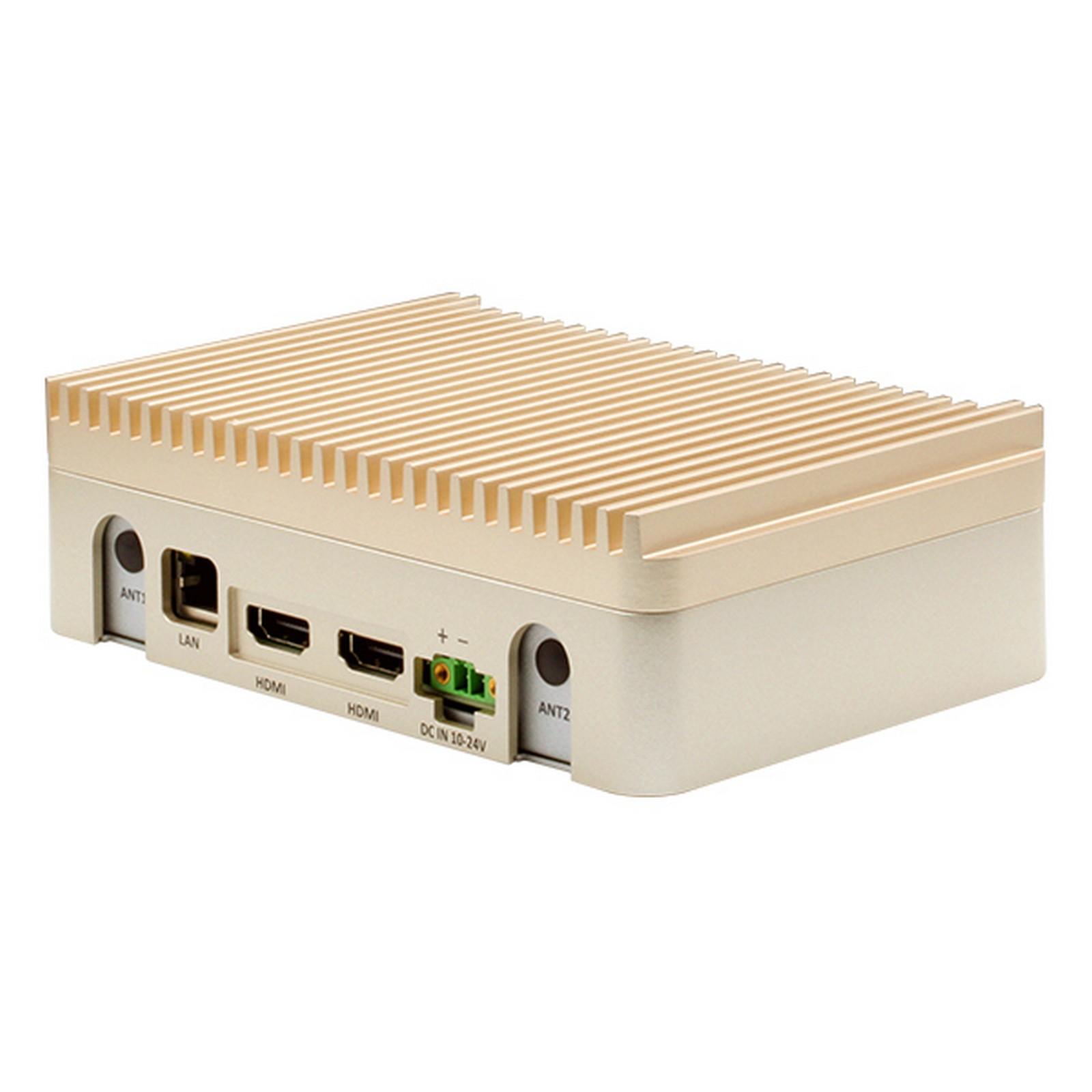

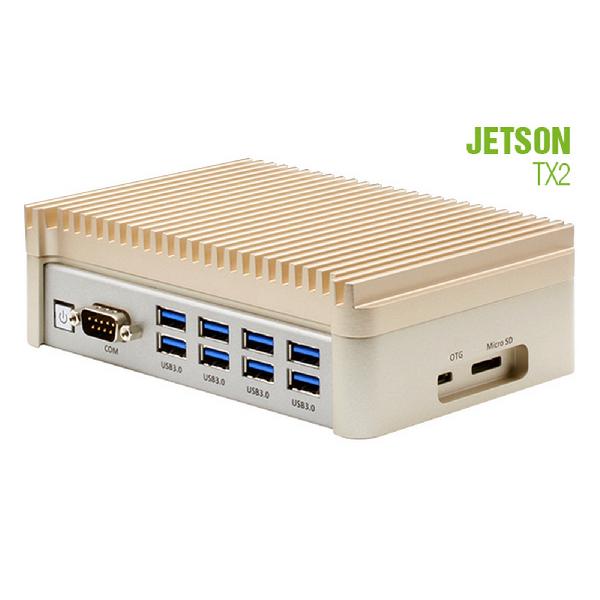

BOXER-8150AI

Home  >   AAEON  >   AI Solutions  >
AI@Edge Solutions

AI@Edge Fanless Embedded Box PC with NVIDIA Jetson TX2, 8 USB 3.2 Gen 1

Product Feature

  • Nvidia TX2 Module
  • HMP Dual Denver 2 + Quad ARM A57
  • 8GB LPDDR4
  • 32GB eMMC 5.1
  • HDMI 2.0
  • USB 3.2 Gen 1 x 8
  • GbE LAN x 1, COM x 1
  • Compact Size chassis

AI@Edge Fanless Embedded Box PC with NVIDIA Jetson TX2, 8 USB 3.2 Gen 1

SYSTEM
AI ACCELERATORNvidia Jetson TX2
CPUHMP Dual Denver 2 + Quad ARM® A57
SYSTEM MEMORY8GB LPDDR4
STORAGE DEVICE32GB eMMC 5.1
MicroSD
DISPLAY INTERFACEHDMI 2.0 x 2
ETHERNET10/100/1000 Base-TX x 1
I/OUSB Type A x 8 for USB 3.2 Gen 1
DB-9 x1 for RS-232
HDMI 2.0 x 2
Power Switch
2-pin 10~24V DC-in Connector
RJ-45 x1 for GbE LAN Ethernet
Antenna Holes x 2
MicroSD x 1
OTG x 1
EXPANSIONSATA x1 (optional)
DB-9 RS-232 x1 (optional)
2 channel CANBUS x1 (optional)
INDICATORPower LED
OS SUPPORTAAEON ACLinux 4.9, Compliance with Ubantu 18.04
POWER SUPPLY
POWER REQUIREMENT10~24V with 2-pin terminal block
MECHANICAL
MOUNTINGWallmount
DIMENSION6.02" x 1.77" x 3.98" (153mm x 45mm x 101mm)
GROSS WEIGHT4.40 lb (2 Kg)
NET WEIGHT2.2 lb (1 Kg)
ENVIRONMENTAL
OPERATING TEMPERATURE-4°F ~122°F (-20°C ~ 50°C, according to IEC60068-2 with 0.5 m/s AirFlow; with Industrial Device)
STORAGE TEMPERATURE-13°F ~176 °F (-25°C ~ 80°C)
STORAGE HUMIDITY95% @ 40°C, non-condensing
ANTI-VIBRATIONRandom, 3 Grms, 5~500Hz
CERTIFICATIONCE/FCC class A
Name Type Version Release Date
BOXER-8150AI, datasheet Datasheet V3.0 26 August 2020
