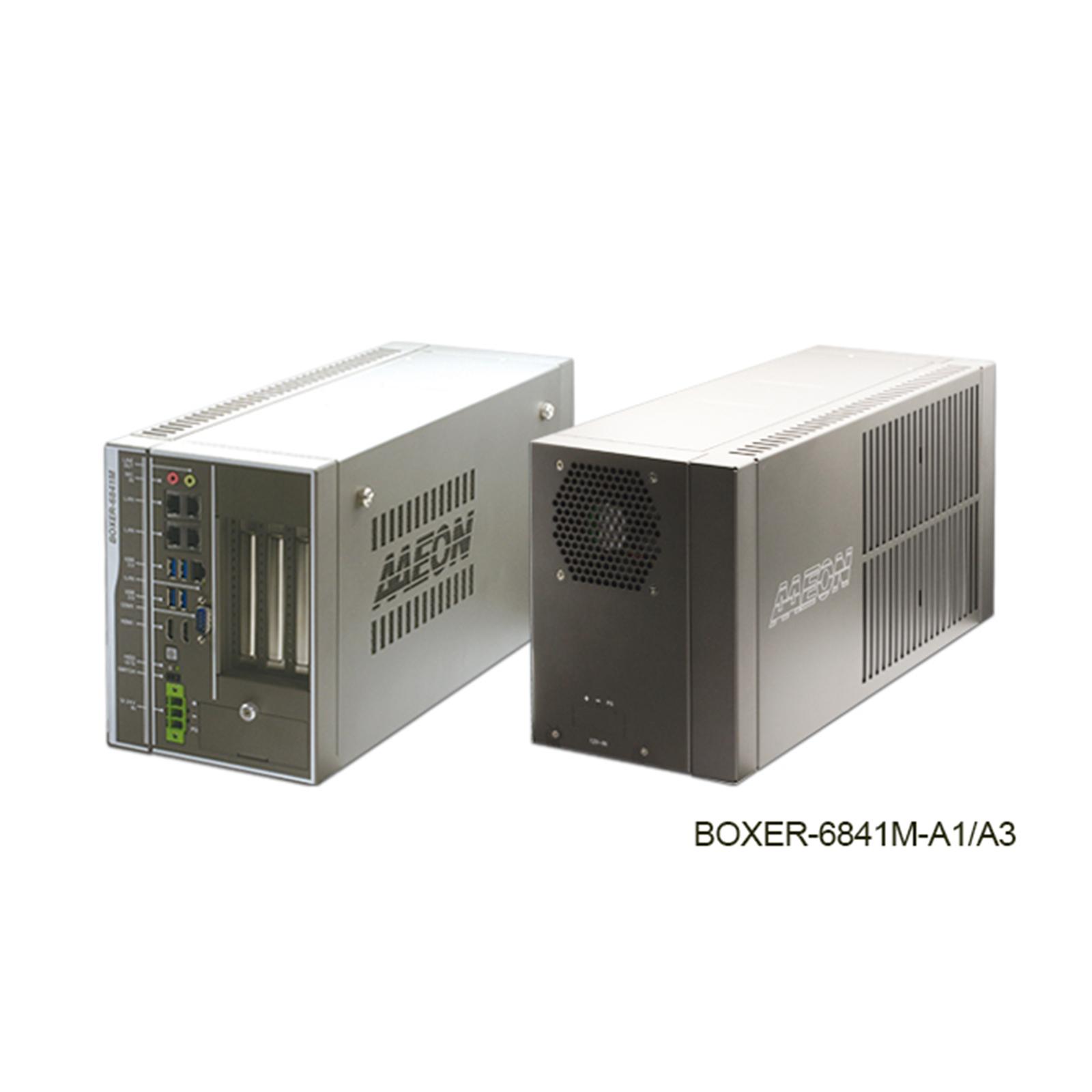

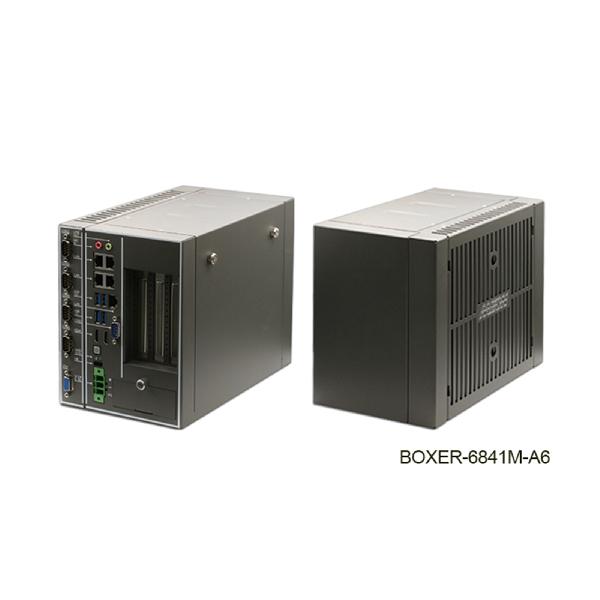

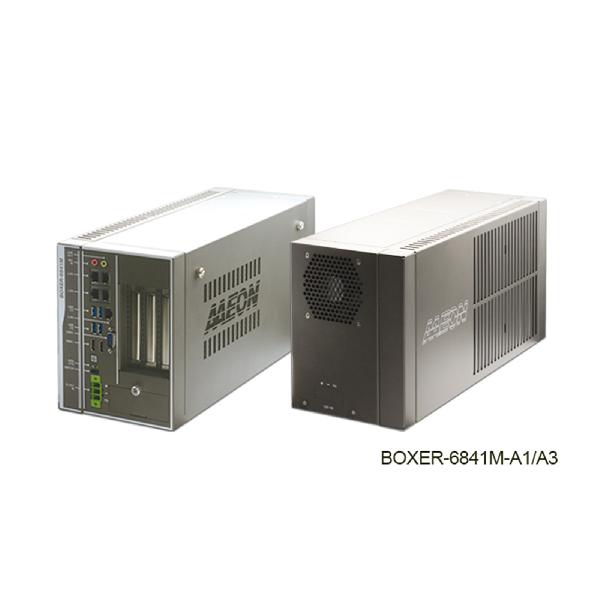

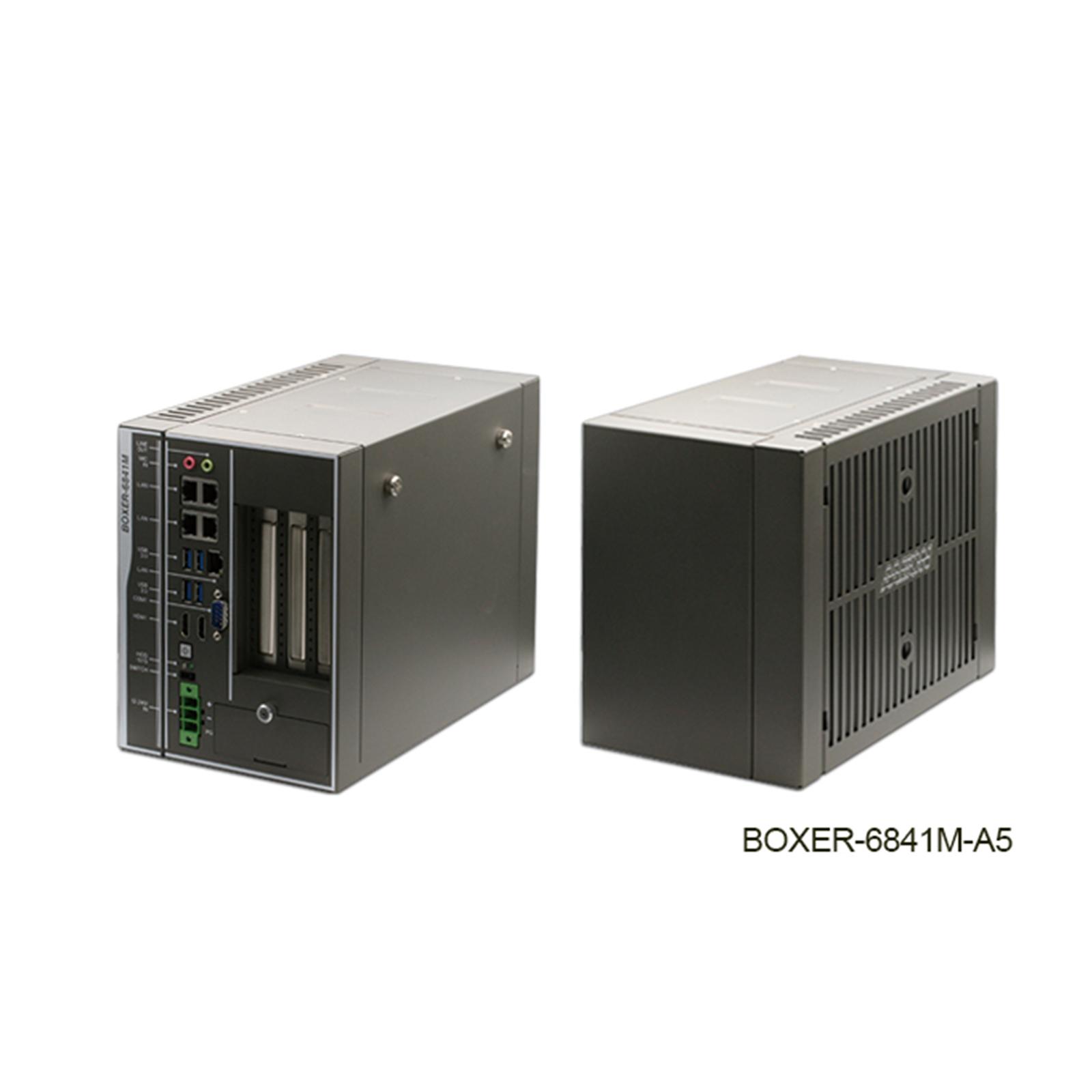

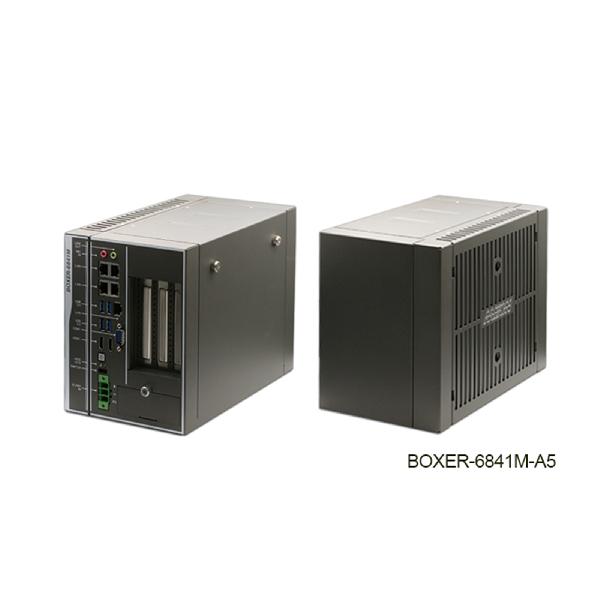

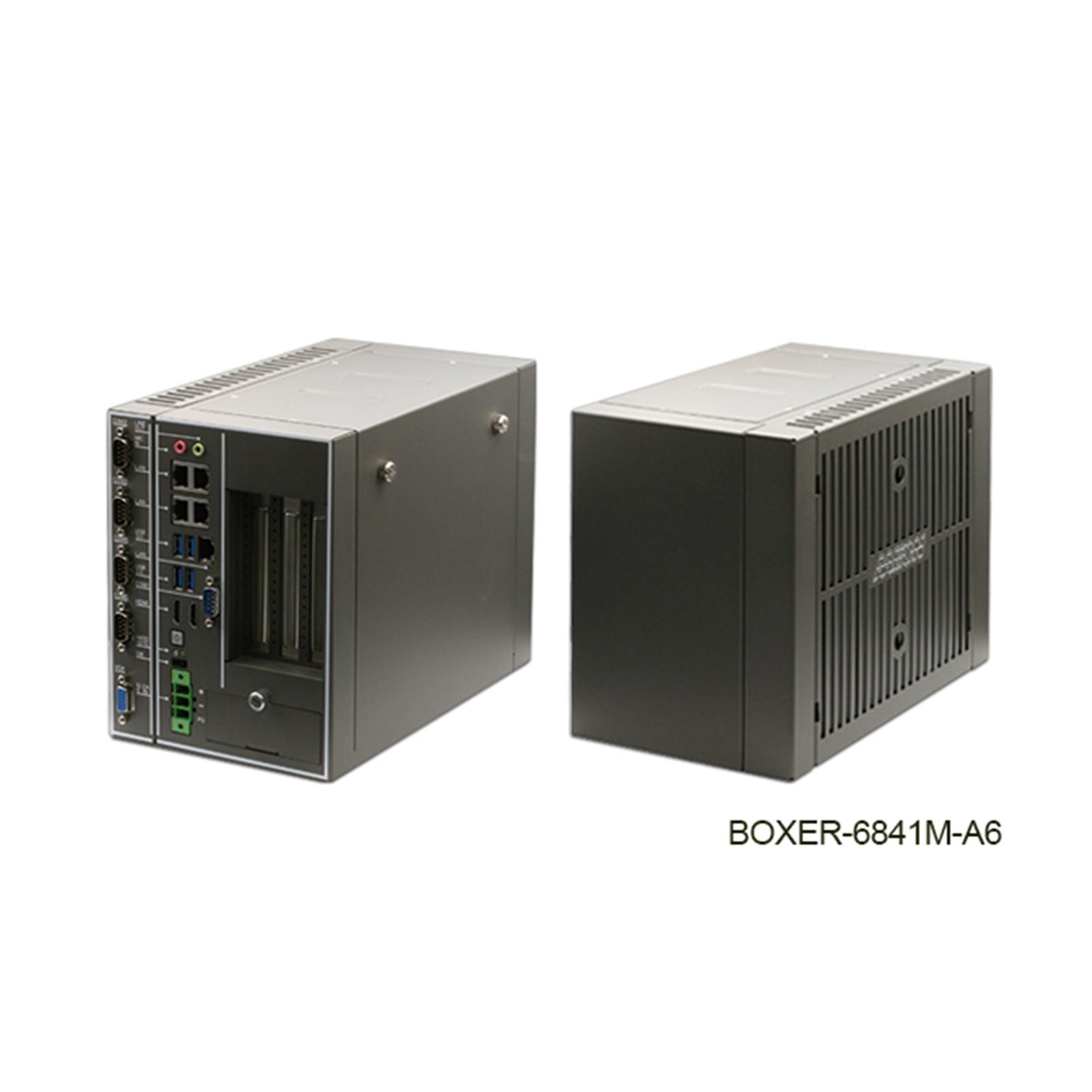

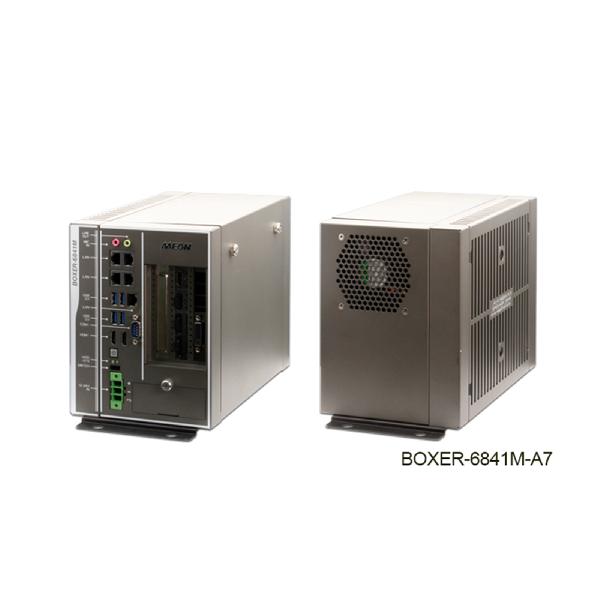

BOXER-6841M

Home  >   AAEON  >   Computing Systems  >
Machine Vision Systems

Vision System Embedded Box PC with 6th / 7th Generation Intel® Core™ Desktop / Xeon® Server Grade Processor and PCIe(x16)/PCIe(x8) + PCIe (x1)

Product Feature

  • Support 6th / 7th Core-i desktop processor, Max 65W
  • Support Xeon® server-grade processor, Max 73W
  • Intel® H110 PCH, C236 PCH
  • Easy Installation design for expand slot
  • Support PCIe [x16] x1, PCIe [x8]x2, PCIe [x1] x1
  • Support up to max 250W Graphic Card
  • Fanless System or System Fan with PWM function

The BOXER-6841M is designed for AI@Edge and machine vision applications.

Different models feature either PCIe(x16) slots for NVIDIA GPUs – perfect for AI@Edge applications – or PCIe(x8) slots for frame grabber cards. Users can also choose between Intel® Celeron or high-performance Xeon CPUs.

To fulfill the power requirements of high-level GPUs, the BOXER-6841M incorporates a smart design feature: Two 12Vdc power inputs. This feature lowers costs and makes the system more stable by reducing the level of wasted heat.

The BOXER-6841M also boasts a number of AI@Edge features, including five Intel® LAN chips, dual removable HDD, and dual mSATA slots.

Learn more about AAEON's AI@Edge Solutions.



6 SKUs Available- Learn more about the differences

SYSTEM

CPU6th / 7th Generation Intel® Core™-i desktop Processor
-Intel® Core™ i7-6700TE, 2.4 GHz
-Intel® Core™ i5-6500TE, 2.3 GHz
-Intel® Core™ i3-6100TE, 2.7 GHz
-Intel® Core™ i7-7700, 3.6 GHz
-Intel® Core™ i7-7700T, 2.9 GHz
-Intel® Core™ i3-7101TE, 3.4 GHz
-Intel® Xeon® E3-1268L v5, 2.40 GHz
-Intel® Xeon® E3-1275 v6, 3.80 GHz
CHIPSETIntel® H110 PCH / C236 PCH
SYSTEM MEMORYDDR4 ECC or Non-ECC SODIMM, up to 32GB
DISPLAY INTERFACEHDMI type A x 2 for HDMI v1.4b
VGA x1 for A6
STORAGE DEVICE2.5" Drive Bay x 2
ETHERNETRJ-45 x 5 for GbE (Intel i211AT x 4, i219LM x 1)
I/O2 pin Remote Power on/off connector
Power ON/OFF Switch x 1
HDMI 1.4b x 2
Audio x 2 (MIC-in, Line-out)
USB 3.2 Gen 1 x 4
DB-9 x 1 for RS-232/422/485
3 pin DC Power input x 1 (+, - , GND)
EXPANSIONA1/A3:
-Full-size Mini card x 2 (USB, w/ 1 SIM slot)
-PCIe[x1] x 1
-PCIe[x16] x 1
.Power Consumption of GPU card max. 180W
.Max. size of GPU card 312 x 113 x 40 mm
-(Option) Max. size of GPU card 312 x 113 x 60 mm (Riser Card: 9697T50300)

A2/A4:
-Full-size Mini card x 2 (USB, w/ 1 SIM slot)
-PCIe[x1] x 1
-PCIe[x16] x 1
.Power Consumption of GPU card max. 250W
.Max. size of GPU card 312 x 113 x 40 mm
-(Option) Max. size of GPU card 312 x 113 x 60 mm (Riser Card: 9697T50300)

A5/A6:
-Full-size Mini card x 2 (USB, w/ 1 SIM slot)
-PCIe [x8] x 2
.Extension card size limit: 114.55mm(H) x 192mm (L)
-PCIe [x1] x 1

A7
-Full-size Mini card x 2 (USB, w/ 1 SIM slot)
-PCIe[x1] x 1
-PCIe[x16] x 1
.Power Consumption of GPU card max. 180W
.Max. size of GPU card 190 x 113 x 40 mm
-(Option) Max. size of GPU card 190 x 113 x 60 mm (Riser Card: 9697T50300)
INDICATORPower LED x 1, HDD active LED x 1
OS SUPPORTSkylake S
Windows® 10, Windows® 10 IoT, Windows® 8 .1, Windows® Embedded Standard 8, Windows® 7, Windows® Embedded Standard 7, Ubuntu 16.04.2

Kabylake
Windows® 10, Windows® 10 IoT, Ubuntu 16.04.2

POWER SUPPLY

POWER REQUIREMENTA1/A3
DC-In 12~24V
(H110 PCH)
- CPU < 65W, No Graphic Card: 120W Adater
- CPU ≤ 65W, 180W Graphic Card: 330W Adapter
(C236 PCH)
- CPU < 73W, No Graphic Card: 120W Adater
- CPU ≤ 73W, 180W Graphic Card: 330W Adapter

A2/A4
DC-In 12~24V
(H110 PCH)
- CPU < 65W, No Graphic Card: 120W Adapter
- CPU ≤ 65W, 180W < Graphic Card < 250W: 240W Adapter x 2
(C236 PCH)
- CPU < 73W, No Graphic Card: 120W Adapter
- CPU ≤ 73W, 180W < Graphic Card < 250W: 240W Adapter x 2

A5~A6
DC-In 12~24V
- CPU = 35W: 120W Adapter
- 35W < CPU ≤ 73W: 240W Adapter

A7
DC-In 12~24V
- CPU < 73W, No Graphic Card: 120W Adapter
- CPU ≤ 73W, 180W Graphic Card: 330W Adapter

MECHANICAL

MOUNTINGWallmount
DIMENSIONS (W X H X D)A1~A4 : 6.10” x 7.87” x 15.75” (155mm x 200mm x 400mm)
A5~A7 : 6.10” x 7.87” x 10.24” (155mm x 200mm x 260mm)
GROSS WEIGHTA1~A4: 18.29 lb ( 8.3 Kg)
A5~A7: 12.75 lb (5.8 kg)
NET WEIGHTA1~A4: 14.53 lb ( 7 Kg)
A5~A7: 9.9 lb (4.5 Kg)

ENVIRONMENTAL

OPERATING TEMPERATUREA1/A2:
-4°F ~ 131°F (-20°C ~ 55°C) according to IEC60068-2 with 0.5m/s airflow (TDP 35W Processor)

A3/A4/A5/A6/A7:
-4°F ~131°F (-20°C ~ 55°C) according to IEC60068-2 with 0.5m/s airflow (TDP 35W Processor)
-4°F ~113°F (-20°C ~ 45°C) according to IEC60068-2 with 0.5m/s airflow (TDP 73W Processor)
STORAGE TEMPERATURE-4°F ~ 176°F (-40°C ~ 80°C)
STORAGE HUMIDITY5 ~ 95% @ 40C, non-condensing
ANTI-VIBRATIONRandom, 1Grms, 5~500Hz, Anti-vibration design
CERTIFICATIONCE/FCC class A
