LM-7000H Module Series

Home > MOXA > Industrial Network Infrastructure >
Ethernet Switches > PoE Switches

Ethernet and PoE+ modules for the PT-G7728/G7828 Series and MDS-G4012/20/28 Series

Product Feature

-40 to 85°C wide operating temperature
IEC 61850-3 and IEEE 1613 compliant

Introduction

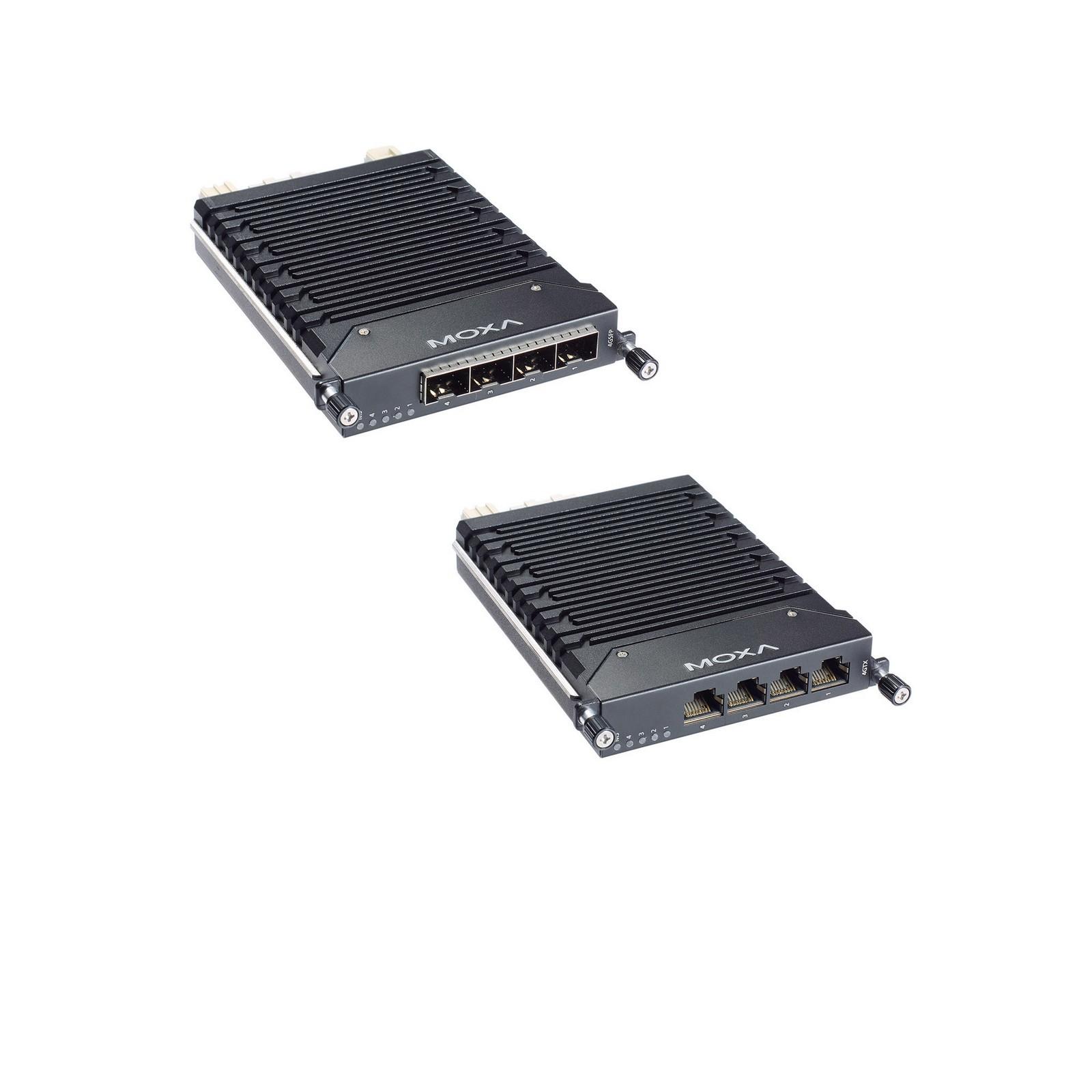

The LM-7000H Module Serieshot-swappableline modules are designed for PT-G7728/G7828 Series and MDS-G4012/20/28 Series IEC 61850-3 Ethernet switches. The LM-7000H line modules allow greater flexibility by letting you add 4 Gigabit Ethernet ports or PoE ports per module.

Notice: Undefined variable: rs5 in /opt/lampp/htdocs/english/productview.php on line 609

Notice: Trying to get property 'tab_ap' of non-object in /opt/lampp/htdocs/english/productview.php on line 609

Notice: Undefined variable: title_ap in /opt/lampp/htdocs/english/productview.php on line 614

Notice: Undefined variable: detail_ap in /opt/lampp/htdocs/english/productview.php on line 615

PT AUTOMATION (THAILAND) CO.,LTD.

9 Pakin Building 9 Floor, Room 901, Ratchadaphisek Road, Din Daeng, Din Daeng, Bangkok 10400
TEL. & FAX : +66(0)-2020-3000
Email : product@pt-automations.com
Facebook : facebook.com/ptautomations

Monday - Friday : office hours 9.00 AM – 6.00 PM

Ethernet Interface
10/100/1000BaseT(X) Ports (RJ45 connector)	LM-7000H-4GTX: 4

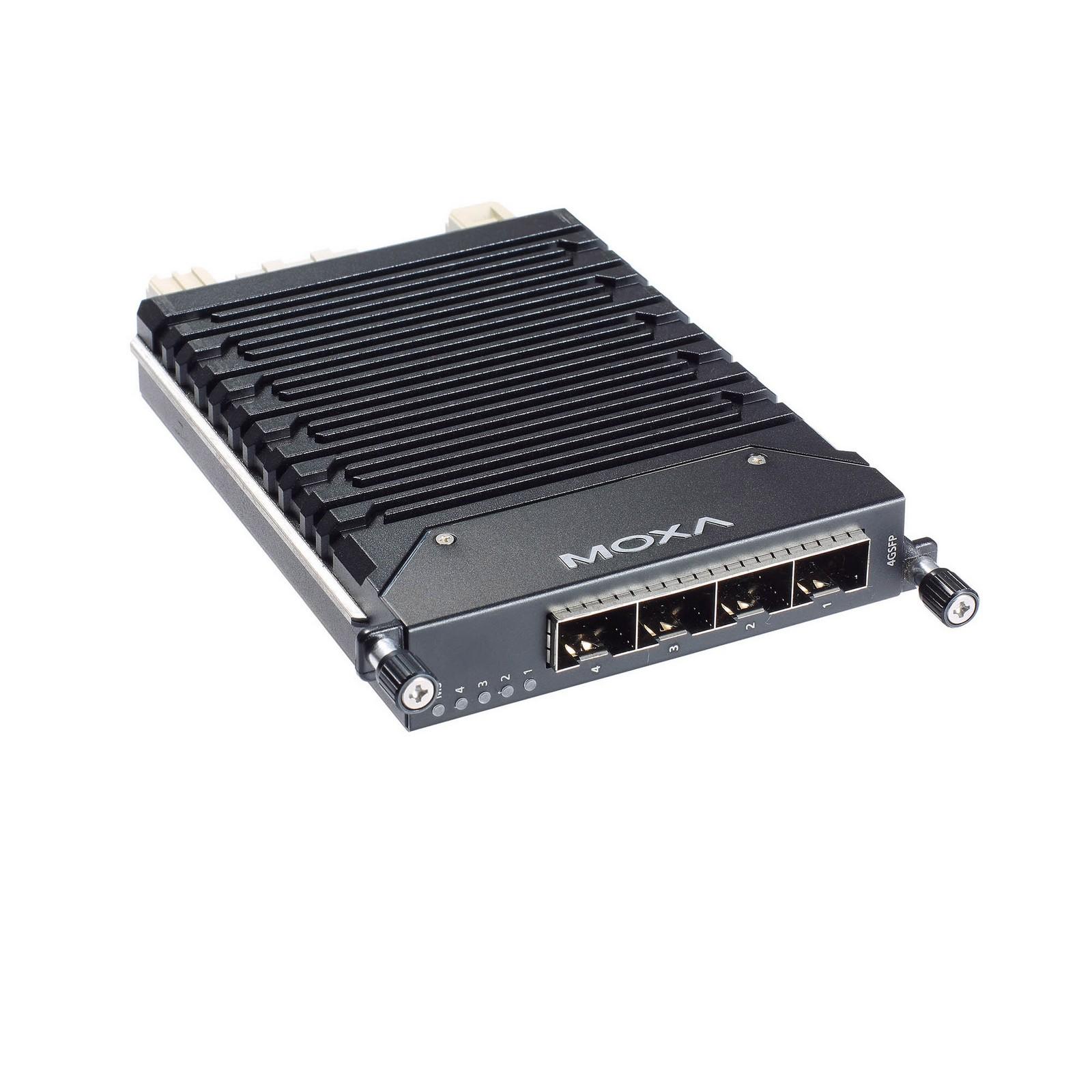

100/1000BaseSFP Slots	LM-7000H-4GSFP: 4

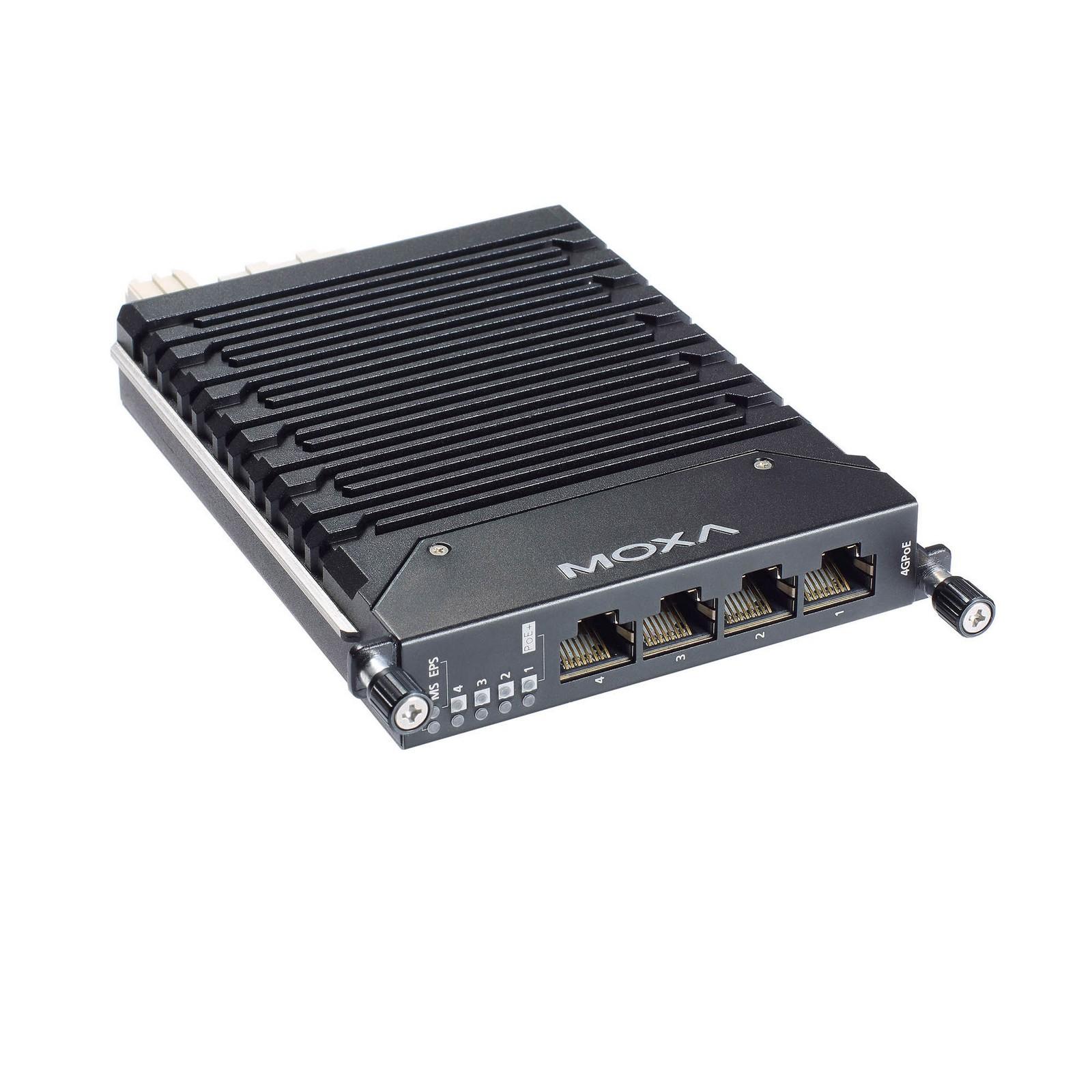

PoE Ports (100/1000BaseT(X), RJ45 connector)	LM-7000H-4GPoE: 4
10/100BaseT(X) Ports (RJ45 connector)	LM-7000H-4TX: 4
PoE Ports (10/100BaseT(X), RJ45 connector)	LM-7000H-4PoE: 4
Power Parameters
Power Consumption	LM-7000H-4GTX: 3.63 W (max.) LM-7000H-4GPoE: 3.8 W (max.) LM-7000H-4GSFP: 4.8 W (max.) LM-7000H-4TX: 1.85 W (max.) LM-7000H-4PoE: 1.85 W (max.)
Physical Characteristics
Weight	LM-7000H-4GSFP: 0.3 kg (0.66 lb) LM-7000H-4GTX: 0.24 kg (0.53 lb) LM-7000H-4GPoE: 0.31 kg (0.69 lb) LM-7000H-4TX: 0.24 kg (0.53 lb) LM-7000H-4PoE: 0.31 kg (0.69 lb)
MTBF
Time	LM-7000H-4GPoE: 1,280,518 hrs LM-7000H-4GSFP: 2,475,903 hrs LM-7000H-4GTX: 2,641,729 hrs LM-7000H-4PoE: 1,280,220 hrs LM-7000H-4TX: 2,640,462 hrs
Standards	Telcordia (Bellcore), GB
Warranty
Warranty Period	5 years
Details	See www.moxa.com/warranty

Name		Type	Version	Release Date
Datasheet for LM-7000H Module Series		Datasheet	V1.1	07 April 2020
