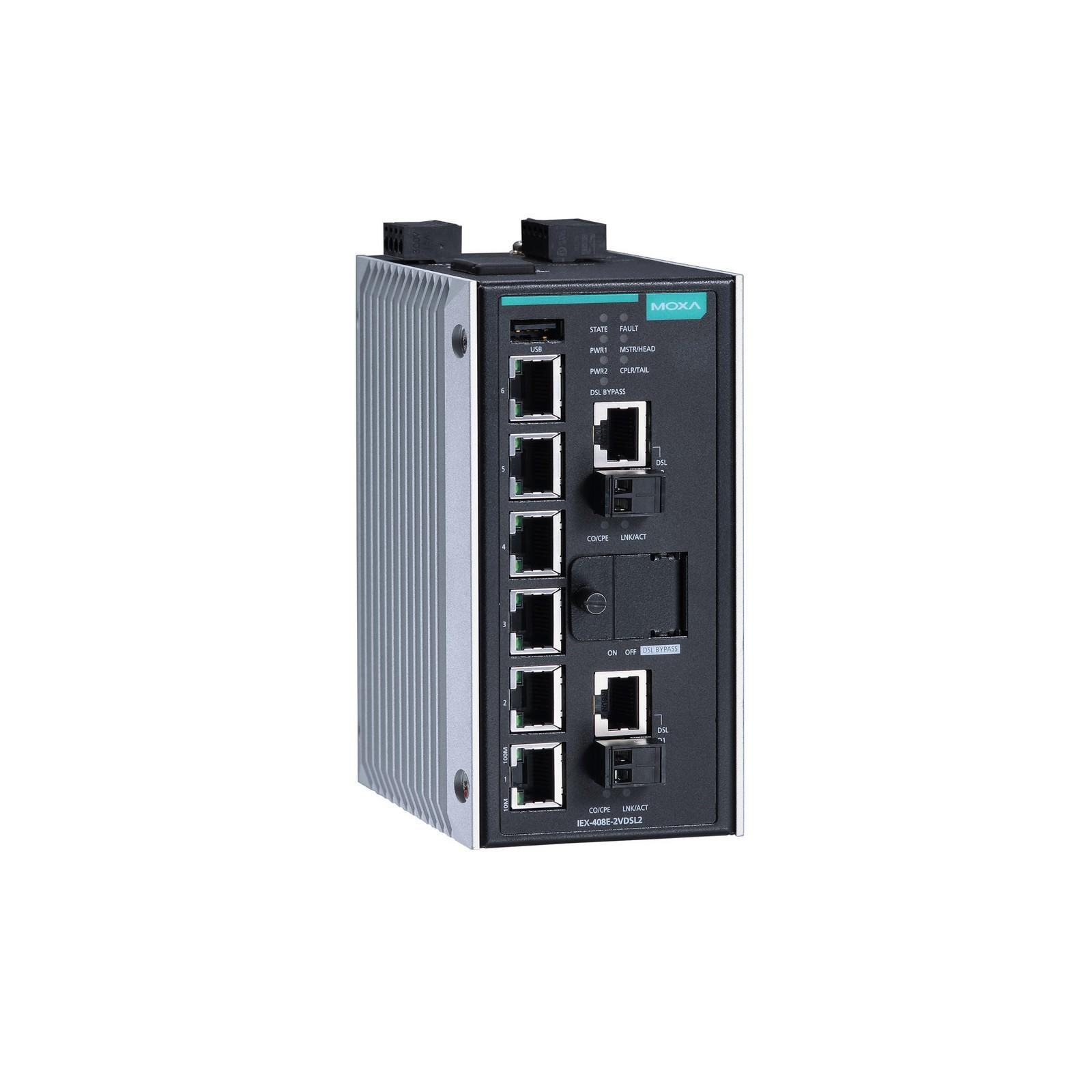

IEX-408E Series

Home  >   MOXA  >   Industrial Network Infrastructure  >
Ethernet Switches  >   Ethernet Extenders

Industrial managed 6 FE + 2 VDSL2 Ethernet extender switches

Product Feature

  • VDSL2 high-speed long-distance copper connections; up to 300 m at 100 Mbps and up to 3 km at 1 Mbps over twisted-pair copper wires
  • Automatic CO/CPE negotiation reduces configuration time
  • Turbo Ring and Turbo Chain on both Fast Ethernet and VDSL2 ports for fast recovery
  • Controllable bypass mode on VDSL2 ports gives higher availability in a daisy-chain topology
  • Flexible deployment with 2-pin or RJ11/45 connector on VDSL2 ports
  • Easy network management by web browser, Telnet/serial console, Windows utility, ABC-02, and MXview

Introduction

The IEX-408E-2VDSL2 is an industrial managed Ethernet extender switch for establishing long-distance Ethernet transmissions over twisted-pair copper wiring. IEX-408E-2VDSL2 units can easily be linked in series to form a long-distance multi-drop configuration, with one IEX-408E-2VDSL2 unit located at each drop-point. Adjacent drop points can be separated theoretically by up to 3 km, with a transmission speed of 1 Mbps achieved using a VDSL2 connection (with a connection distance of 300 m, a transmission speed of 100 Mbps can be theoretically achieved). Each IEX-408E-2VDSL2 unit provides six 10/100BaseT(X) and two DSL ports, giving users an incredible amount of flexibility for linking together a wide variety of devices separated by vast distances.

Ethernet redundancy is provided by Turbo Ring, Turbo Chain, RSTP/STP, and MSTP, and a controllable bypass solution on the DSL ports that increases system reliability and the availability of your network. The IEX-408E-2VDSL2 Series also supports advanced management and security features. It is the perfect solution for reducing the cost of deploying new network cable installations using existing twisted-pair copper wiring to extend copper cable networks beyond the conventional distance limitations imposed by the Ethernet protocol.

The wide operating temperature range (-40 to 75°C), and dual power inputs make it ideal for deployment in industrial applications such as ITS, rail wayside, oil and gas, mining, factory automation, and process automation applications. In addition, its compact design that includes a DIN-rail, makes it ideal for installation in places with space limitations such as a cabinet.

To simplify configuration, the IEX-408E-2VDSL2 uses CO/CPE automatic negotiation (the factory default setting). The device will automatically assign CPE status to one of each pair of IEX devices. In addition, advanced management and monitoring functionalities can be performed through a NMS, including a virtual panel, which can improve the user experience by enabling quick troubleshooting.

Input/Output Interface

Alarm Contact ChannelsResistive load: 1 A @ 24 VDC
Digital Inputs+13 to +30 V for state 1
-30 to +3 V for state 0
Max. input current: 8 mA
ButtonsReset button

Ethernet Interface

 10/100BaseT(X) Ports (RJ45
connector)
6
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection
 Combo Port, RJ-11 (RJ45
connector) or Detachable 2-
Contact Terminal Block
 2
StandardsIEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.1X for authentication
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1Q for VLAN Tagging
IEEE 802.1p for Class of Service
IEEE 802.3x for flow control
IEEE 802.3ad for Port Trunk with LACP
ITU G.993.2 for very high speed digital subscriber line transceivers 2

Ethernet Software Features

Filter802.1Q VLAN, Port-based VLAN, IGMP v1/v2, GVRP, GMRP
Industrial ProtocolsEtherNet/IP, Modbus TCP, PROFINET
 ManagementSNMPv1/v2c/v3, LLDP, Syslog, RMON, DHCP Server/Client, DHCP Option
66/67/82, Back Pressure Flow Control, BOOTP, Flow control, RARP, SMTP,
SNMP Inform, Telnet, TFTP
 MIBMIB-II, Bridge MIB, Ethernet-like MIB, P-BRIDGE MIB, Q-BRIDGE MIB,
RMON MIB Groups 1, 2, 3, 9, RSTP MIB
Redundancy ProtocolsSTP, MSTP, RSTP, Link Aggregation, Turbo Chain, Turbo Ring v1/v2
SecurityHTTPS/SSL, RADIUS, TACACS+, Port Lock, SSH, Broadcast storm
protection, Sticky MAC, NTP authentication
 Time ManagementNTP Server/Client, SNTP

Switch Properties

IGMP Groups256
 MAC Table Size 16 K
Max. No. of VLANs64
 Packet Buffer Size1 Mbits
1.5 Mbits for Fast Ethernet
8 kilobits for DSL
Priority Queues4
VLAN ID RangeVID 1 to 4094

USB Interface

Storage PortUSB Type A

LED Interface

 LED IndicatorsPWR1, PWR2, FAULT, STATE
LINK/ACT, CO/CPE, 10/100 (Fast Ethernet port)
MSTR/HEAD, CPLR/TAIL, DSL BYPASS

Serial Interface

 Console PortUSB-serial console (Type B connector)

DIP Switch Configuration

 Ethernet InterfaceTurbo Ring, Master, Coupler, Reserve

Power Parameters

ConnectionIEX-408E-2VDSL2-HV Series: 1 removable 4-contact and 1 removable 5-
contact terminal blocks
IEX-408E-2VDSL2-LV Series: 2 removable 4-contact terminal blocks
 Input VoltageIEX-408E-2VDSL2-HV Series: 110/220 VDC/VAC (redundant dual inputs)
IEX-408E-2VDSL2-LV Series: 12/24/48 VDC
 Input CurrentIEX-408E-2VDSL2-LV Series: 1 A @ 12 VDC, 0.48 A @ 24 VDC, 0.26 A @
48 VDC
IEX-408E-2VDSL2-HV Series: 0.097/0.05 A @ 110/220 VDC, 0.23/0.149 A
@ 110/220 VAC
Operating VoltageIEX-408E-2VDSL2-LV Series: 9.6 to 60 VDC
IEX-408E-2VDSL2-HV Series: 88 to 300 VDC, 85 to 264 VAC
 Overload Current Protection Supported
 Reverse Polarity Protection Supported

Physical Characteristics

 Housing Metal
 IP Rating IP30
 Dimensions74 x 111 x 135 mm (2.91 x 4.37 x 5.32 in)
 WeightIEX-408E-2VDSL2-HV Series: 1260 g (2.78 lb)
IEX-408E-2VDSL2-LV Series: 1230 g (2.71 lb)
 Installation DIN-rail mounting, Rack mounting (with optional kit)

Environmental Limits

 Altitude 2000 m
 Operating TemperatureStandard Models: -10 to 60°C (14 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
 Storage Temperature (package
included)
 -40 to 85°C (-40 to 185°F)
 Ambient Relative Humidity 5 to 95% (non-condensing)
ShockIEC 60068-2-27

Standards and Certifications

 SafetyUL 61010-2-201, EN 60950-1 (LVD)
 EMC EN 55032/24
 EMI CISPR 32, FCC Part 15B Class A
 EMSIEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
Power SubstationIEC 61850-3, IEEE 1613
 Traffic ControlNEMA TS2
 RailwayEN 50121-4
Freefall IEC 60068-2-31
Vibration IEC 60068-2-6
Environmental TestingIEC 60068-2-1
IEC 60068-2-2
IEC 60068-2-14
Hazardous LocationsIEX-408E-2VDSL2-LV: ATEX, IEX-408E-2VDSL2-LV-T: ATEX, IEX-408E-
2VDSL2-LV: IECEx, IEX-408E-2VDSL2-LV-T: IECEx

MTBF

 Time782,910 hrs
StandardsTelcordia (Bellcore), GB

Warranty

 Warranty Period 5 years
 Details See www.moxa.com/warranty
Name Type Version Release Date
IEX-408E Series datasheet Datasheet V1.4 10 March 2021
