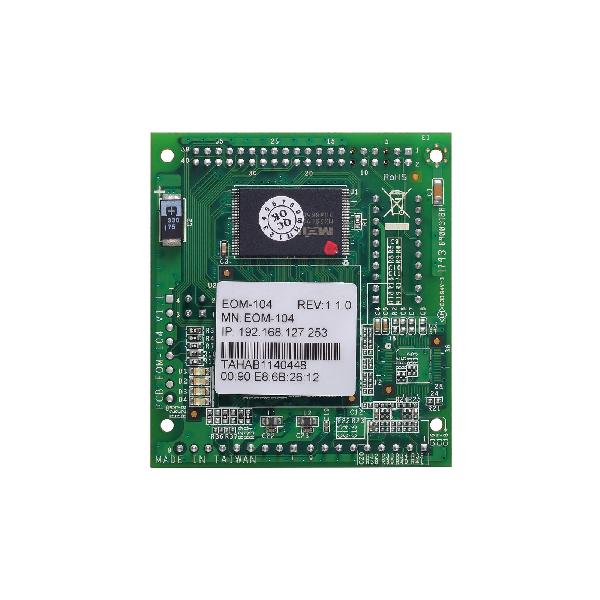

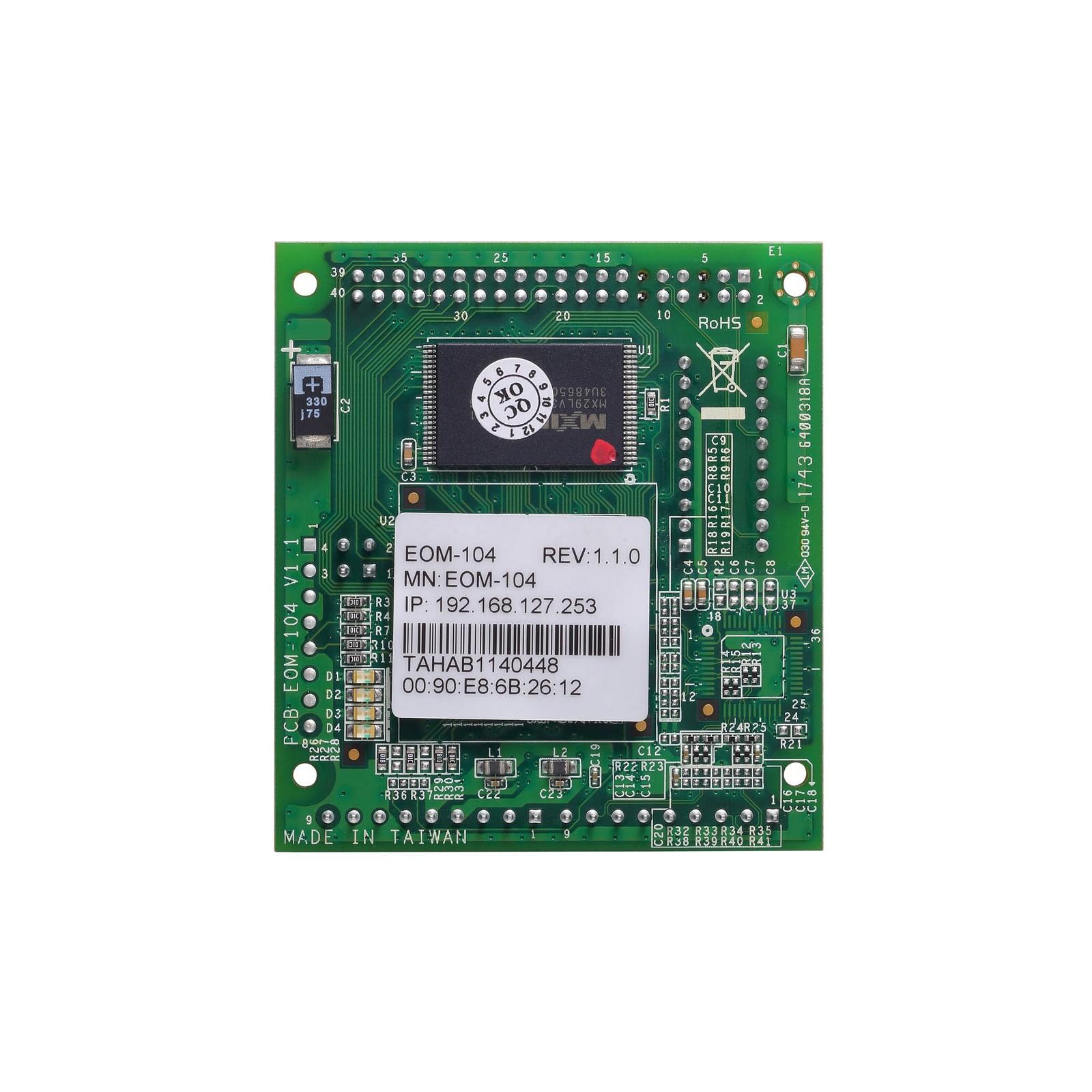

The EOM-104 Series is designed for device manufacturers who would like to embed Ethernet modules in their products to enhance performance and reliability. The EOM-104 Series provides an easy and cost-effective integrated solution for adding an Ethernet switch module to an existing product.
The modules support 10/100M Ethernet transmission and come with Turbo Ring’s fast recovery time of under 20 ms. The EOM-104 Series provides a rich set of peripherals, such as Turbo Ring Enable and GPIO programming pins, and is an ideal solution for embedded Ethernet applications.
Ethernet Interface | |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control IEEE 802.1p for Class of Service IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol |
| 10/100BaseT(X) Port | EOM-104: 4 EOM-104-FO: 2 |
| 100BaseFX Port | EOM-104-FO: 2 EOM-104-FO 20PCS: 2 EOM-104-FO Evaluation Kit: 2 |
| Connector | 1 connector with 2 x 20 pins, 2 connectors with 1 x 9 pins, and 1 connector with 2 x 2 pins |
| GPIO | 4 x Programmable I/O pins |
Ethernet Software Features | |
| Protocols | BOOTP, DHCP Client, HTTP, RARP, RMON, SMTP, SNMPv1/v2c/v3, Syslog, Telnet, TFTP |
| MIB | Bridge MIB, Ethernet-like MIB, MIB-II, P-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB |
Switch Properties | |
| MAC Table Size | 1 K |
| Packet Buffer Size | 512 kbits |
Serial Interface | |
| Console Port | RS-232 (TxD, RxD, DTR, DSR) |
Power Parameters | |
| Input Current | EOM-104: 0.48 A @ 3.3 VDC EOM-104-FO: 1.1 A @ 3.3 VDC |
Physical Characteristics | |
| Dimensions | 54 x 60 x 8.25 mm (2.13 x 2.36 x 0.32 in) |
| Weight | 21 g (0.046 lb) |
Environmental Limits | |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
Standards and Certifications | |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
Warranty | |
| Warranty Period | 5 years |
| Details | See www.moxa.com/warranty |
