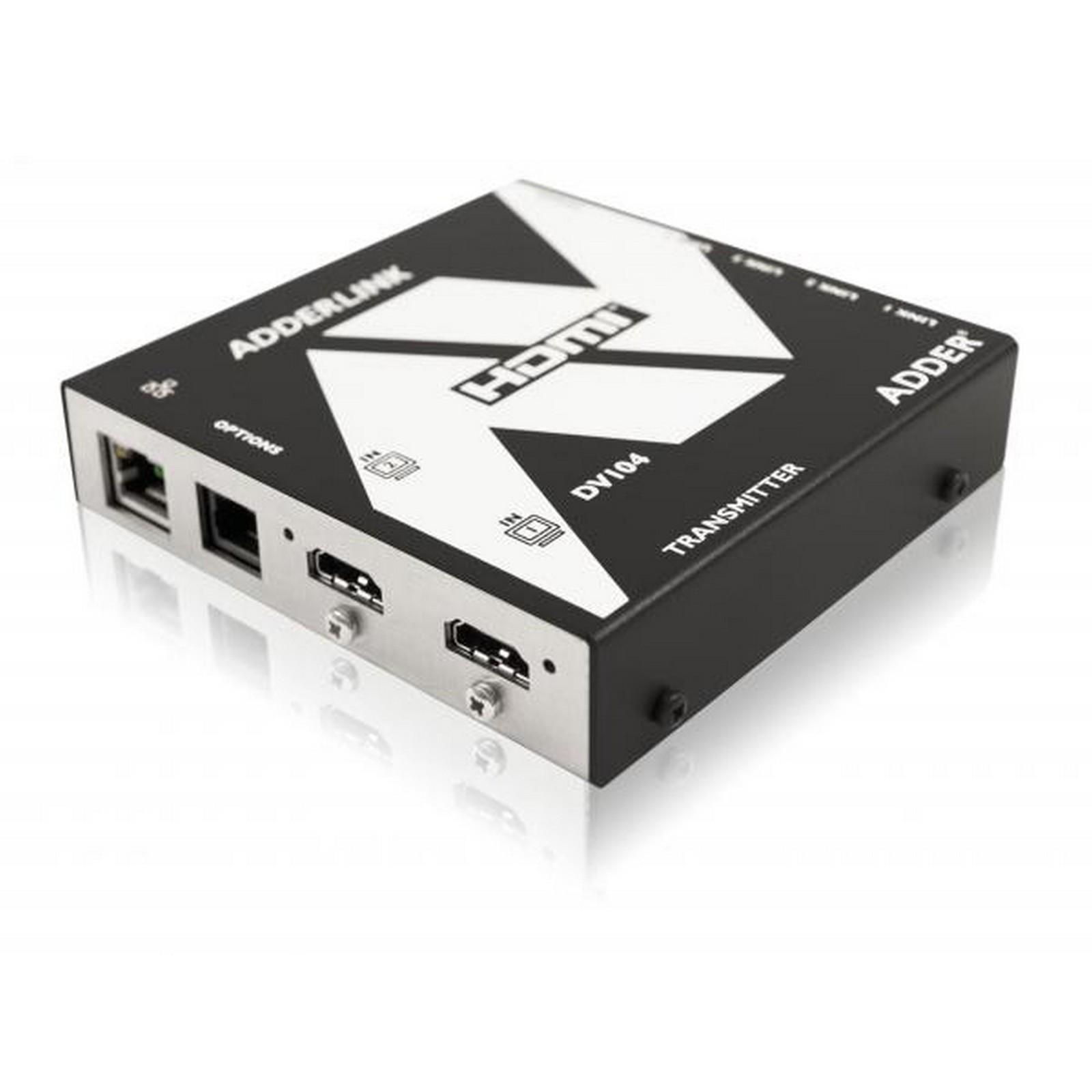

ADDERLink DV104T

Home  >   Adder  >   Extenders  >
AV Distribution

Digital video/audio switch and extender to drive up to four remote displays

Product Feature

ADDERLink DV104T is a high performance digital video extender and splitter that enables you
to locate your critical play out hardware in a secure and temperature controlled environment
away from the display point environment whilst maintaining the same user experience.

  • Proof of Display (P.O.D.)
  • 50 meter extension distance
  • Plug and Play
  • Two video inputs, four video outputs
  • 2x4 HD Digital matrix
  • Line powered receivers

ADDERLink DV104T is a high performance digital video extender and splitter that enables you to locate your critical play out hardware in a secure and temperature controlled environment away from the display point environment whilst maintaining the same user experience.

  • Proof of Display (P.O.D.)
  • 50 meter extension distance
  • Plug and Play
  • Two video input, four video output
  • 2x4 HD Digital matrix
  • Line powered receivers

Hardware compatibility

All computers with HDMI connections - requirement dependent

HDMI interface

The system supports resolutions such as 480p, 720p, 1080P or WUXGA (1920x1200) @60Hz and 24 bit color depth.
Does not support HDCP

Software compatibility

All known operating systems.

Audio

The system delivers eight channels of HDMI audio with sample sizes of 16, 20 or 24 bit at 32kHz, 44.1kHz, 48kHz,
88.2kHz, 96kHz, 176.4kHz, or 192kHz.

Connections

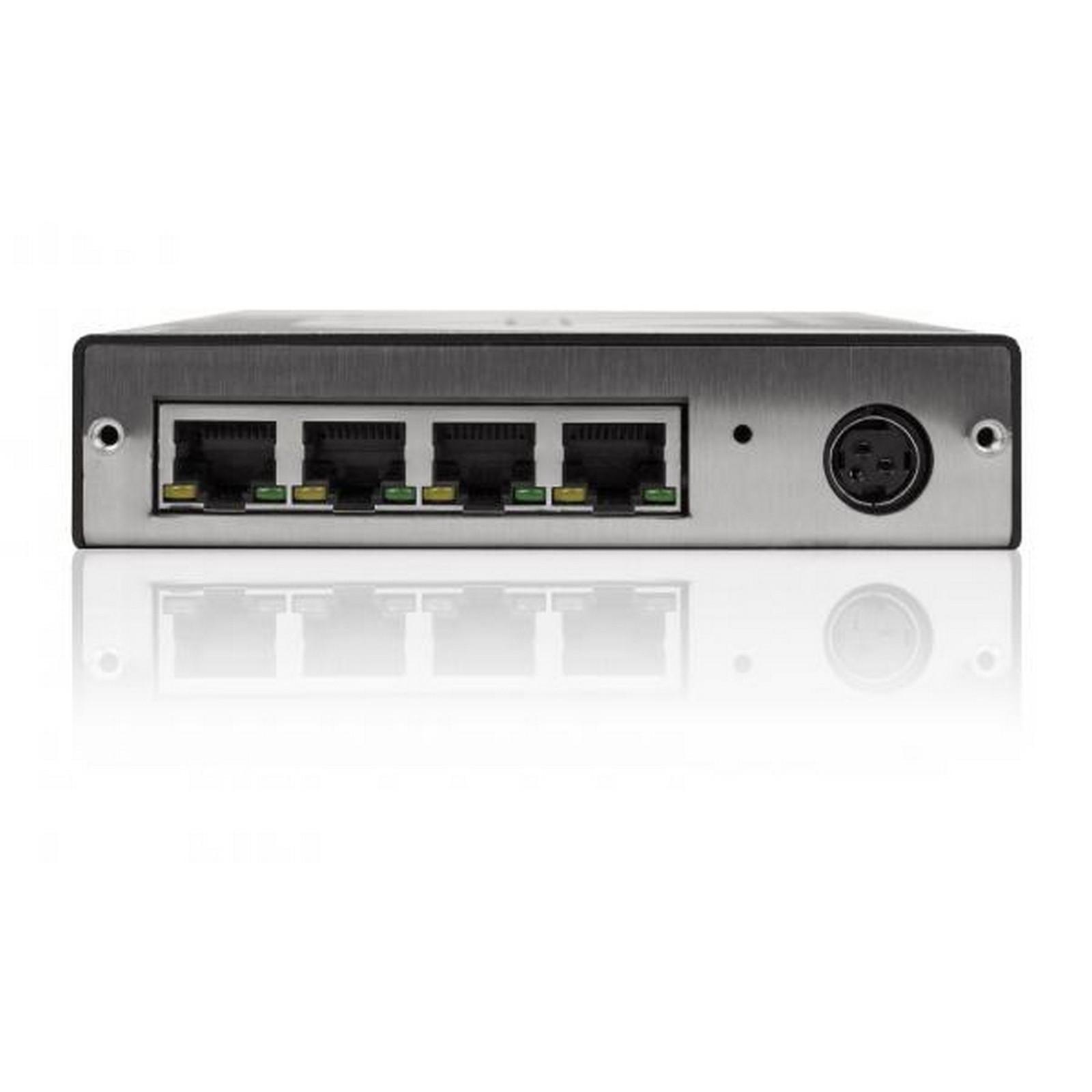

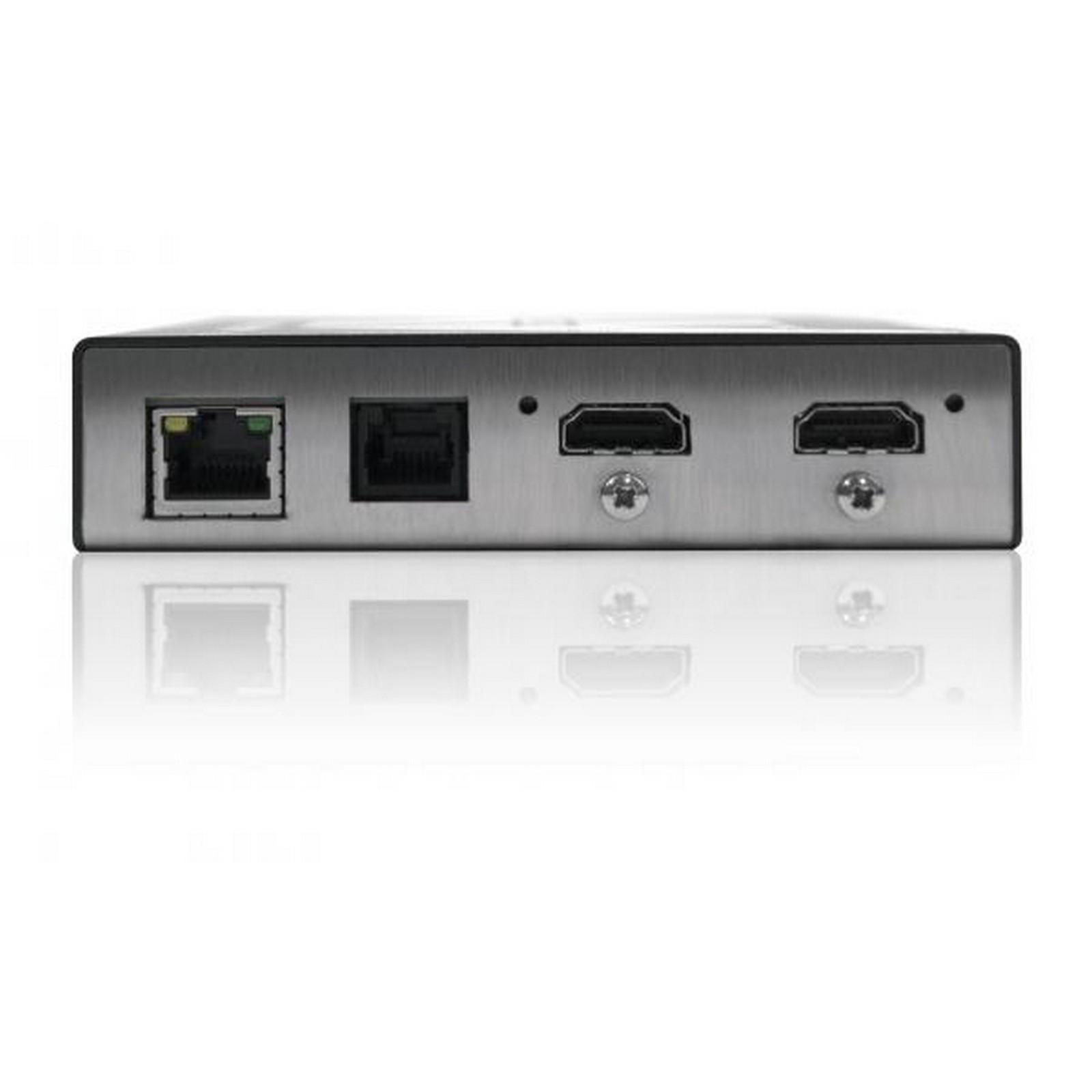

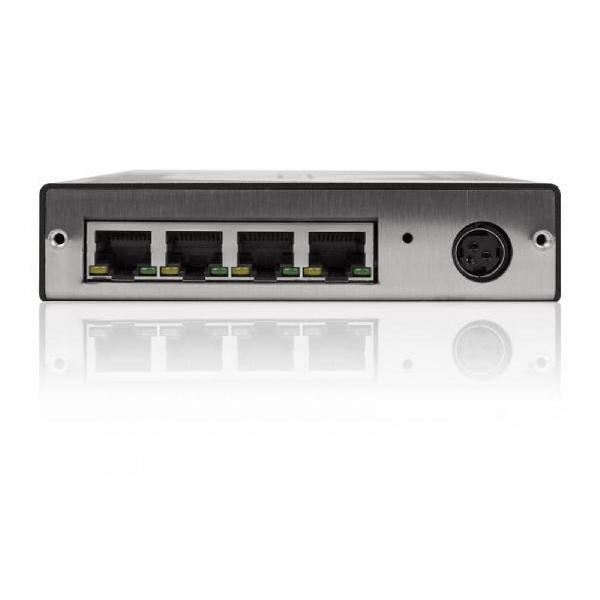

2 x HDMI type A male, 4 x CATx sockets for link outputs,1 x 10/100Base-TX network port (config),
1 x 9-way D-sub RS232C port, 2.5mm DC power jack

Operating temperature

0 to 40ºC / 32 to 104ºF

Physical design

3pin Toby jack (power adapter included),100-240VAC 50/60Hz, 0.8A, input to power adapter. 12VDC 18W output
from power adapter

Approvals

CE, FCC
ResolutionFrequencyPatch ConnectionsCable TypeDistance
1920x120060Hz0CAT7a50 meters
1920x120060Hz0CAT6a (shielded)50 meters
1920x120060Hz2CAT6a (shielded)40 meters
1920x120060Hz2CAT7a40 meters

Note: Distances are achieved using single lengths of trunk/bulk cable. For each break/patch connection reduce distance by 5 meters.
Preferably patch cables should be of type CAT7a and less than 2 meters. Patch cables over 2 meters must be CAT7a.

Name Type Version Release Date
ADDERLink DV104T Datasheet Datasheet V6.0 04 August 2020
