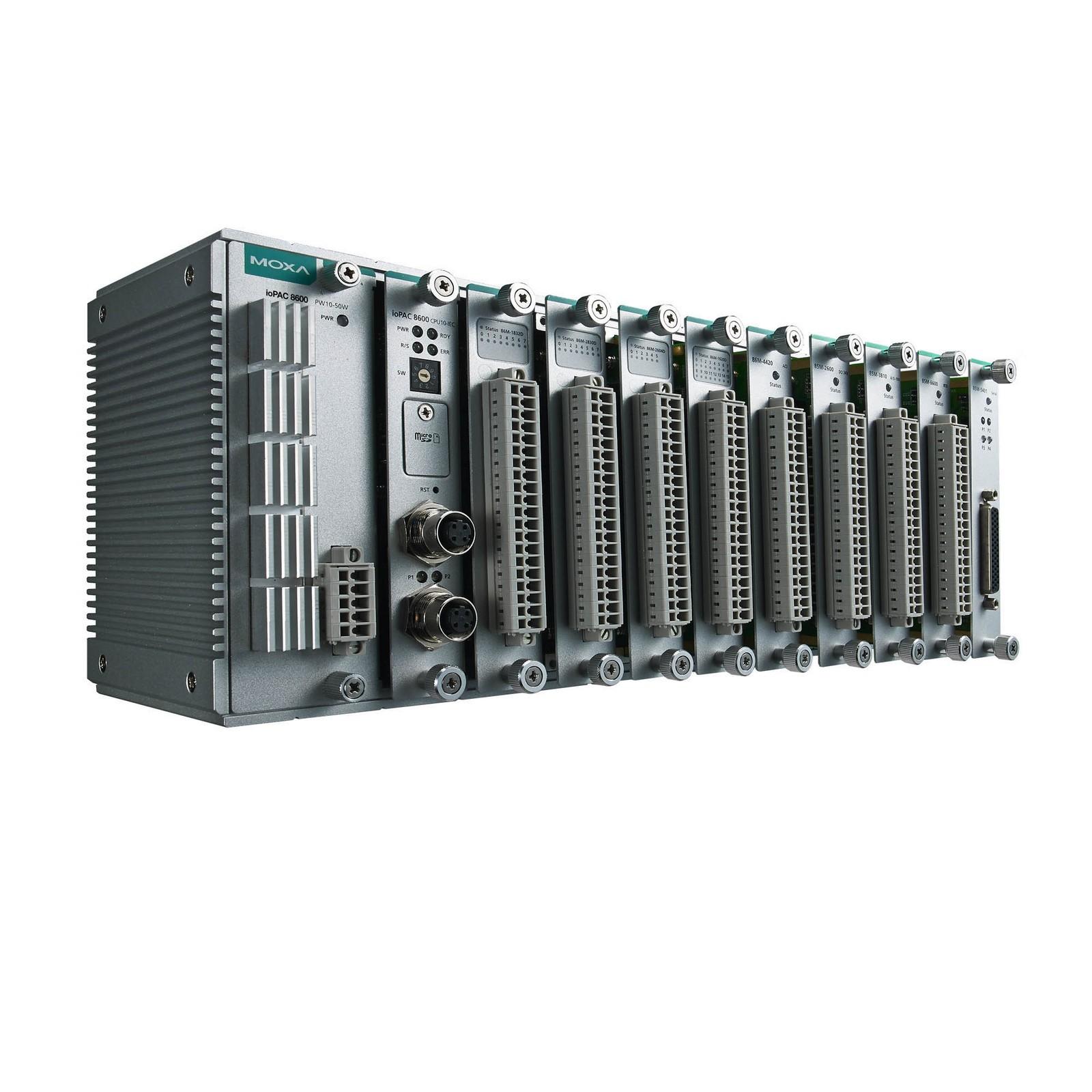

Rugged modules for the ioPAC 8600 Series

Product Feature

  • Complies with all EN 50155 mandatory test items
  • Complies with EN 50121-4
  • Rugged and compact design for harsh environments
  • Expand the I/O and communication capabilities of your ioPAC 8600 Series device
  • Wide operating temperature range: -40 to 75°C (-40 to 167°F)
  • Channel-to-channel isolated digital input and output
  • 24 to 110 V DI/O module and universal power input range module
  • Supports CAN bus for CAN 2.0 A/B communication

Introduction

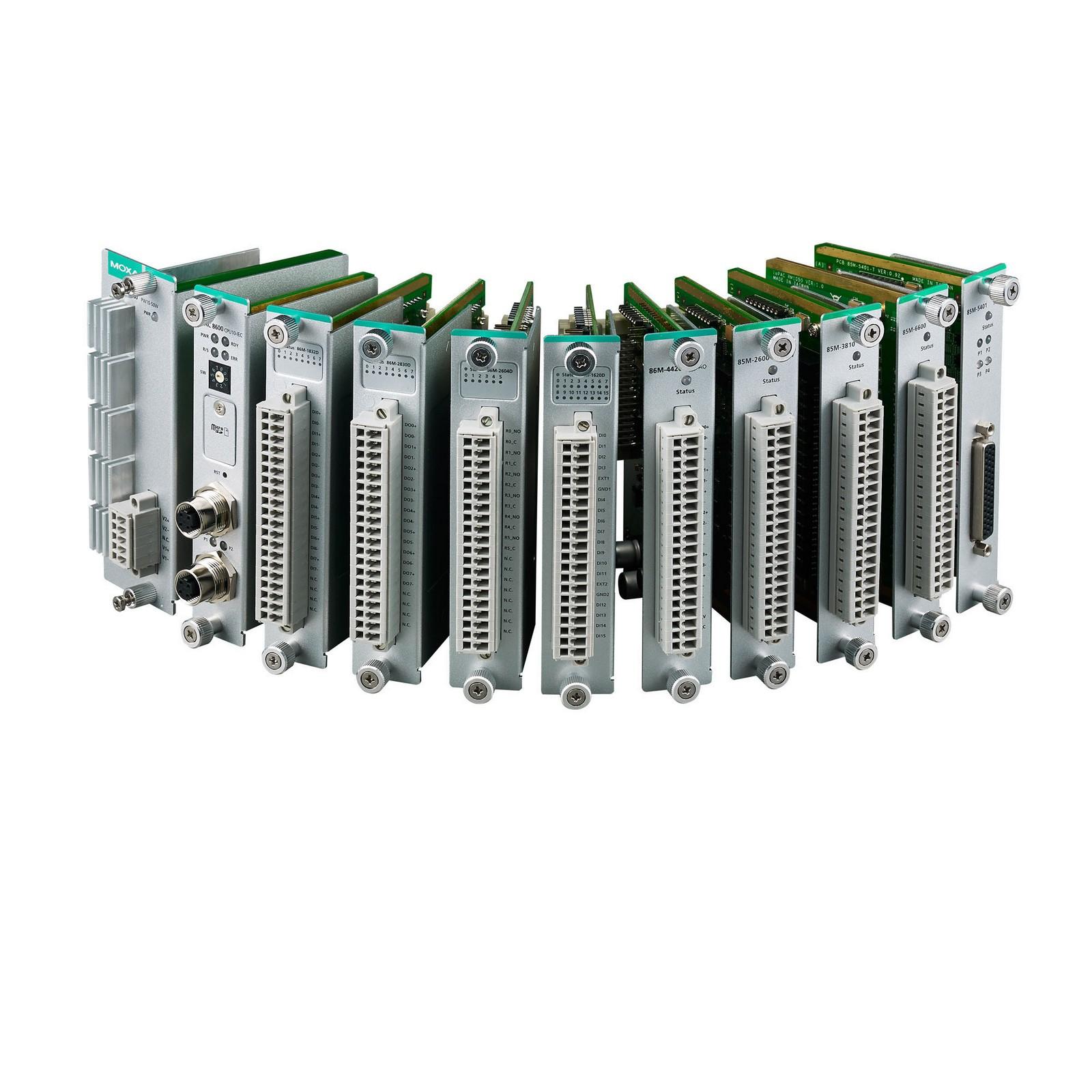

Moxa’s ioPAC 8600 Series 86M Modules include channel-to-channel isolated DIs, channel-to-channel isolated DOs, relays, and AOs to provide even more I/O options for ioPAC 8600 Series devices. Combined with the 85M modules, users have a wide variety of options to choose from, allowing them to select the I/O combination that best fits their target application. All 86M modules are designed for railway industry applications, and as such, are compliant with EN 50121-3-2, EN 50121-4, and all EN 50155 mandatory test items. In addition, these modules all support a wide operating temperature range of -40 to 75°C for reliable operation even in harsh environments.

Input/Output Interface

Digital Input Channels86M-1620D-T: 16
86M-1832D-T: 8
Digital Output Channels86M-2821D-T: 8
86M-2830D-T: 8
Relay Channels86M-2604D-T: 6
Analog Output Channels86M-4420-T: 4
2-Wire Ethernet Ports86M-5212U-T: 2
CAN Ports86M-5250-T: 2
Isolation3k VDC or 2k Vrms

Digital Inputs

ConnectorSpring-type Euroblock terminal
Voltage86M-1620D-T: 24 to 110 VDC
86M-1832D-T: 24 VDC
Channel-to-Channel Isolation86M-1832D-T: 1k VDC
Counter Frequency86M-1832D-T: 5k Hz
Debouncing Function86M-1620D-T: Software enable/disable
Debouncing Time86M-1620D-T: 1 to 15 ms (software-selectable)
Digital Filtering Time Interval86M-1832D-T: Software configurable
I/O Mode86M-1620D-T: DI
86M-1832D-T: DI, event counter, or frequency
Points per COM86M-1620D-T: 8 channels
Scan on Time86M-1620D-T: 0.5 ms
Scan Period86M-1620D-T: 8 ms (typical)
Sensor Type86M-1620D-T: PNP
86M-1832D-T: Wet Contact (NPN or PNP)
Wet Contact (DI to COM)86M-1832D-T: On: 10 to 30 VDC
86M-1832D-T: Off: 0 to 3 VDC
86M-1620D-T: On: > 0.3 times external power voltage
86M-1620D-T: Off: < 0.15 times external power voltage

Digital Outputs

ConnectorSpring-type Euroblock terminal
Voltage86M-2830D-T: 24 VDC
86M-2821D-T: 24 to 110 VDC
Current Rating86M-2821D-T: 1500 mA per channel
86M-2830D-T: 200 mA per channel
I/O ModeDO or PWM
I/O Type86M-2821D-T: Source
86M-2830D-T: Sink
Over-Voltage Protection86M-2821D-T: 160 VDC
86M-2830D-T: 41 VDC
Short-Circuit Protection86M-2821D-T: 2800 mA @ 25°C
86M-2830D-T: 750 mA @ 25°C
Pulse Output Frequency86M-2821D-T: 100 Hz
86M-2830D-T: 1 kHz

Relays

ConnectorSpring-type Euroblock terminal
I/O ModeRelay or PWM
Contact Current RatingResistive load: 5 A @ 30 VDC, 250 VAC
Contact Resistance100 milli-ohms (max.)
Electrical Endurance60,000 operations @ 5 A resistive load
Initial Insulation Resistance1,000 mega-ohms (min.) @ 500 VDC
Mechanical Endurance5,000,000 operations
Pulse Output Frequency0.33 Hz at rated load
TypeForm A (N.O.) power relay

Analog Outputs

ConnectorSpring-type Euroblock terminal
I/O ModeStatic or waveform mode
Accuracy±0.1% FSR @ 25°C
±0.3% FSR @ -40 to 75°C
Current Load ResistanceExternal 24 VDC power: 1000 ohms
Internal power: 400 ohms
Output Range0 to 10 VDC
0 to 20 mA
-10 to 10 V
4 to 20 mA
Resolution12-bit
Voltage Output10 mA (max.)
Waveform Frequency125 Hz
Waveform TypeSine, Square, Triangle

Ethernet Interface

ConnectorM12 D-coded 2-pin female connector
No. of Ports2
StandardsBroadR-Reach® for 10 Mbps and 100 Mbps
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX

CAN Interface

Industrial ProtocolsCAN 2.0A, CAN 2.0B, CANopen DS301, V4.02
Baudrate10/20/50/125/250/500/800/1000 kbps, user-defined
ConnectorDB9 male
Isolation3k VDC or 2k Vrms
No. of Ports2
TerminatorN/A, 120 ohms (by DIP)

Power Parameters

Power Consumption86M-1620D-T: 12.6 mA @ 24 VDC
86M-1832D-T: 12.6 mA @ 24 VDC
86M-2604D-T: 127 mA @ 24 VDC
86M-2830D-T: 76.7 mA @ 24 VDC
86M-2821D-T: 85.2 mA @ 24 VDC
86M-4420-T: 143.8 mA @ 24 VDC
86M-5212U-T: 79.2 mA @ 24 VDC
86M-5250-T: 60.0 mA @ 24 VDC

Physical Characteristics

Dimensions25 x 128.2 x 85.5 mm (0.98 x 5.05 x 3.37 in)
WeightUnder 80 g
WiringI/O cable, 16 to 28 AWG

Environmental Limits

Operating Temperature-40 to 75°C (-40 to 167°F)
Storage Temperature (package
included)
-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity5 to 95% (non-condensing)
Altitude2000 m

Standards and Certifications

EMCEN 55032/24, EN 61000-6-2/-6-4
EMICISPR 32, FCC Part 15B Class A
EMSIEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 5100 MHz to 6000 MHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
RailwayEN 50121-4, EN 50155
SafetyUL 508
ShockIEC 60068-2-27
VibrationIEC 60068-2-6

MTBF

Time86M-1620D-T: 1,115,244 hrs
86M-1832D-T: 1,149,108 hrs
86M-2604D-T: 4,173,843 hrs
86M-2821D-T: 696,245 hrs
86M-2830D-T: 1,766,037 hrs
86M-4420-T: 2,409,345 hrs
86M-5212U-T: 2,498,942 hrs
86M-5250-T: 3,306,609 hrs
StandardsTelcordia SR332

Warranty

Warranty Period5 years
DetailsSee www.moxa.com/warranty
