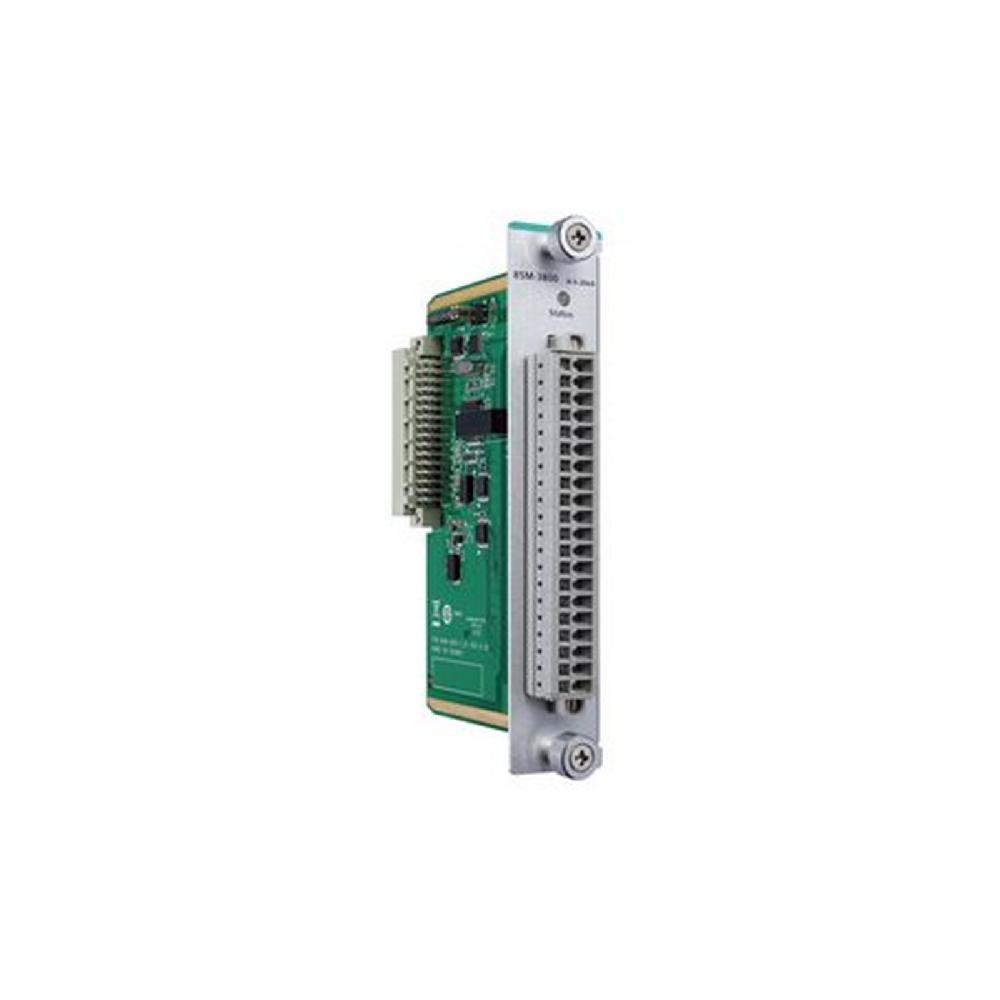

Moxa’s ioPAC 8600 Series 86M Modules include channel-to-channel isolated DIs, channel-to-channel isolated DOs, relays, and AOs to provide even more I/O options for ioPAC 8600 Series devices. Combined with the 85M modules, users have a wide variety of options to choose from, allowing them to select the I/O combination that best fits their target application. All 86M modules are designed for railway industry applications, and as such, are compliant with EN 50121-3-2, EN 50121-4, and all EN 50155 mandatory test items. In addition, these modules all support a wide operating temperature range of -40 to 75°C for reliable operation even in harsh environments.
Input/Output Interface | |
| Digital Input Channels | 86M-1620D-T: 16 86M-1832D-T: 8 |
| Digital Output Channels | 86M-2821D-T: 8 86M-2830D-T: 8 |
| Relay Channels | 86M-2604D-T: 6 |
| Analog Output Channels | 86M-4420-T: 4 |
| 2-Wire Ethernet Ports | 86M-5212U-T: 2 |
| CAN Ports | 86M-5250-T: 2 |
| Isolation | 3k VDC or 2k Vrms |
Digital Inputs | |
| Connector | Spring-type Euroblock terminal |
| Voltage | 86M-1620D-T: 24 to 110 VDC 86M-1832D-T: 24 VDC |
| Channel-to-Channel Isolation | 86M-1832D-T: 1k VDC |
| Counter Frequency | 86M-1832D-T: 5k Hz |
| Debouncing Function | 86M-1620D-T: Software enable/disable |
| Debouncing Time | 86M-1620D-T: 1 to 15 ms (software-selectable) |
| Digital Filtering Time Interval | 86M-1832D-T: Software configurable |
| I/O Mode | 86M-1620D-T: DI 86M-1832D-T: DI, event counter, or frequency |
| Points per COM | 86M-1620D-T: 8 channels |
| Scan on Time | 86M-1620D-T: 0.5 ms |
| Scan Period | 86M-1620D-T: 8 ms (typical) |
| Sensor Type | 86M-1620D-T: PNP 86M-1832D-T: Wet Contact (NPN or PNP) |
| Wet Contact (DI to COM) | 86M-1832D-T: On: 10 to 30 VDC 86M-1832D-T: Off: 0 to 3 VDC 86M-1620D-T: On: > 0.3 times external power voltage 86M-1620D-T: Off: < 0.15 times external power voltage |
Digital Outputs | |
| Connector | Spring-type Euroblock terminal |
| Voltage | 86M-2830D-T: 24 VDC 86M-2821D-T: 24 to 110 VDC |
| Current Rating | 86M-2821D-T: 1500 mA per channel 86M-2830D-T: 200 mA per channel |
| I/O Mode | DO or PWM |
| I/O Type | 86M-2821D-T: Source 86M-2830D-T: Sink |
| Over-Voltage Protection | 86M-2821D-T: 160 VDC 86M-2830D-T: 41 VDC |
| Short-Circuit Protection | 86M-2821D-T: 2800 mA @ 25°C 86M-2830D-T: 750 mA @ 25°C |
| Pulse Output Frequency | 86M-2821D-T: 100 Hz 86M-2830D-T: 1 kHz |
Relays | |
| Connector | Spring-type Euroblock terminal |
| I/O Mode | Relay or PWM |
| Contact Current Rating | Resistive load: 5 A @ 30 VDC, 250 VAC |
| Contact Resistance | 100 milli-ohms (max.) |
| Electrical Endurance | 60,000 operations @ 5 A resistive load |
| Initial Insulation Resistance | 1,000 mega-ohms (min.) @ 500 VDC |
| Mechanical Endurance | 5,000,000 operations |
| Pulse Output Frequency | 0.33 Hz at rated load |
| Type | Form A (N.O.) power relay |
Analog Outputs | |
| Connector | Spring-type Euroblock terminal |
| I/O Mode | Static or waveform mode |
| Accuracy | ±0.1% FSR @ 25°C ±0.3% FSR @ -40 to 75°C |
| Current Load Resistance | External 24 VDC power: 1000 ohms Internal power: 400 ohms |
| Output Range | 0 to 10 VDC 0 to 20 mA -10 to 10 V 4 to 20 mA |
| Resolution | 12-bit |
| Voltage Output | 10 mA (max.) |
| Waveform Frequency | 125 Hz |
| Waveform Type | Sine, Square, Triangle |
Ethernet Interface | |
| Connector | M12 D-coded 2-pin female connector |
| No. of Ports | 2 |
| Standards | BroadR-Reach® for 10 Mbps and 100 Mbps IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX |
CAN Interface | |
| Industrial Protocols | CAN 2.0A, CAN 2.0B, CANopen DS301, V4.02 |
| Baudrate | 10/20/50/125/250/500/800/1000 kbps, user-defined |
| Connector | DB9 male |
| Isolation | 3k VDC or 2k Vrms |
| No. of Ports | 2 |
| Terminator | N/A, 120 ohms (by DIP) |
Power Parameters | |
| Power Consumption | 86M-1620D-T: 12.6 mA @ 24 VDC 86M-1832D-T: 12.6 mA @ 24 VDC 86M-2604D-T: 127 mA @ 24 VDC 86M-2830D-T: 76.7 mA @ 24 VDC 86M-2821D-T: 85.2 mA @ 24 VDC 86M-4420-T: 143.8 mA @ 24 VDC 86M-5212U-T: 79.2 mA @ 24 VDC 86M-5250-T: 60.0 mA @ 24 VDC |
Physical Characteristics | |
| Dimensions | 25 x 128.2 x 85.5 mm (0.98 x 5.05 x 3.37 in) |
| Weight | Under 80 g |
| Wiring | I/O cable, 16 to 28 AWG |
Environmental Limits | |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Altitude | 2000 m |
Standards and Certifications | |
| EMC | EN 55032/24, EN 61000-6-2/-6-4 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 5100 MHz to 6000 MHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF |
| Railway | EN 50121-4, EN 50155 |
| Safety | UL 508 |
| Shock | IEC 60068-2-27 |
| Vibration | IEC 60068-2-6 |
MTBF | |
| Time | 86M-1620D-T: 1,115,244 hrs 86M-1832D-T: 1,149,108 hrs 86M-2604D-T: 4,173,843 hrs 86M-2821D-T: 696,245 hrs 86M-2830D-T: 1,766,037 hrs 86M-4420-T: 2,409,345 hrs 86M-5212U-T: 2,498,942 hrs 86M-5250-T: 3,306,609 hrs |
| Standards | Telcordia SR332 |
Warranty | |
| Warranty Period | 5 years |
| Details | See www.moxa.com/warranty |
| Name | Type | Version | Release Date | |
| Datasheet for ioPAC 8600 Series (86M) Modules | Datasheet | V1.1 | 31 July 2019 |
| Input/Output Interface | 16 x DI |
| Input/Output Mode | 24-110 VDC |
| Type | Sink |
| Channel LED | ✓ |
| Input/Output Interface | 8 x DI |
| Input/Output Mode | 24 VDC ch-to-ch isolation |
| Type | Sink/source |
| Channel LED | ✓ |
| Input/Output Interface | 6 x Relay |
| Input/Output Mode | Form A (N.O.) |
| Type | - |
| Channel LED | ✓ |
| Input/Output Interface | 8 x DO |
| Input/Output Mode | 24 VDC ch-to-ch isolation |
| Type | Sink |
| Channel LED | ✓ |
| Input/Output Interface | 4 x AO |
| Input/Output Mode | ±10 V 0-10 V 0-20 mA 4-20 mA |
| Type | - |
| Channel LED | - |
| Input/Output Interface | 2 x 2-wire Ethernet |
| Input/Output Mode | 100BASE-TX IEEE 802.3u 10BASE-T IEEE 802.3 100 Mbps BroadR-Reach 10 Mbps BroadR-Reach |
| Type | - |
| Channel LED | ✓ |
| Input/Output Interface | 2 x CAN |
| Input/Output Mode | CAN 2.0A CAN 2.0B CANopen DS301, V4.02 |
| Type | - |
| Channel LED | ✓ |
| Input/Output Interface | 8 x DO |
| Input/Output Mode | 24-110 VDC |
| Type | Source |
| Channel LED | ✓ |
