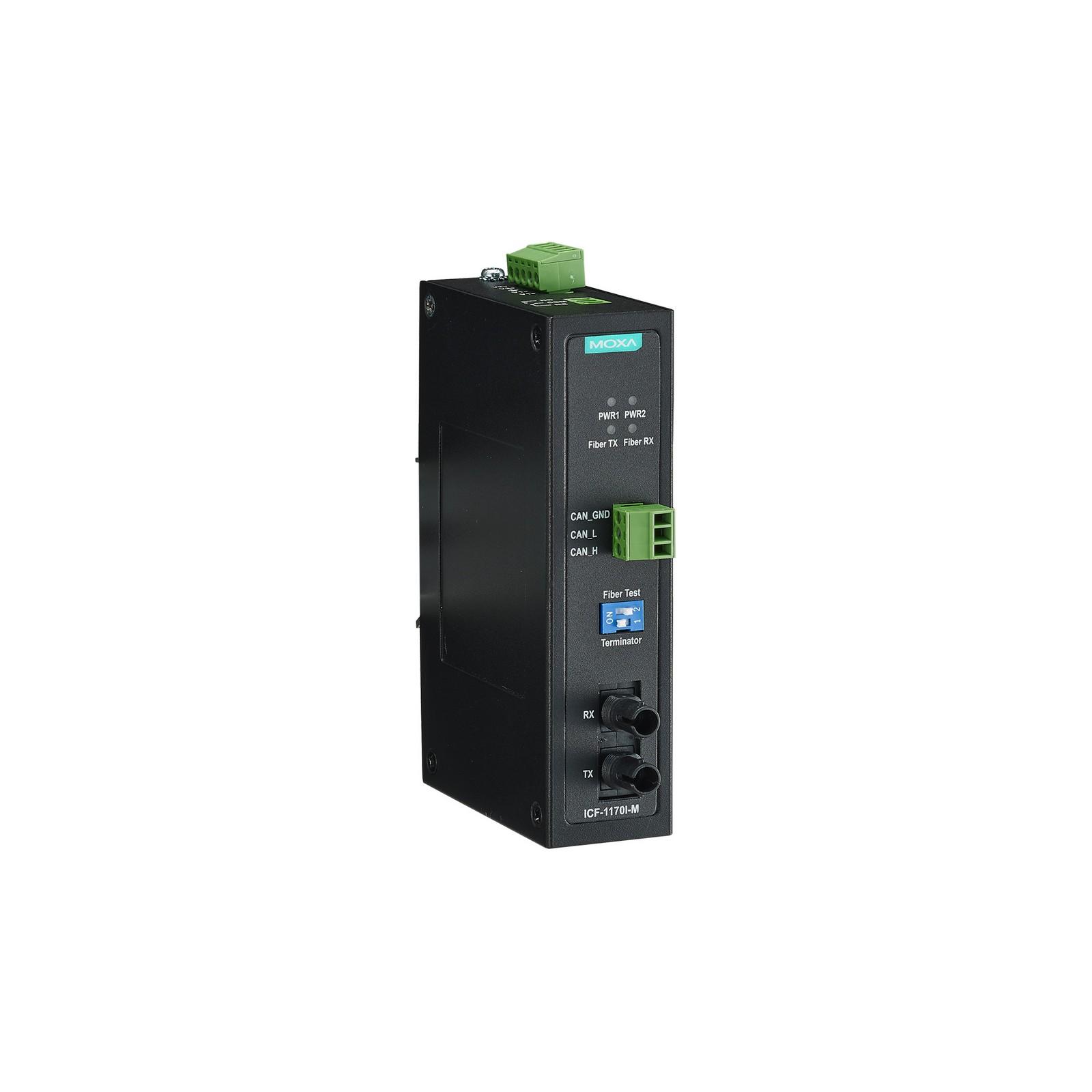

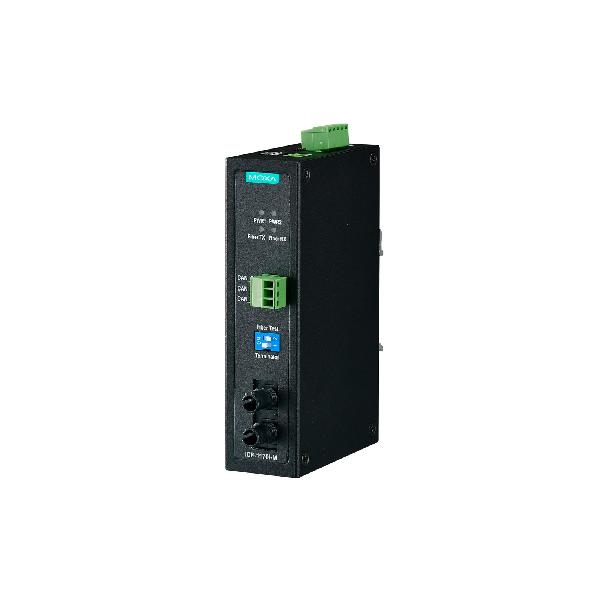

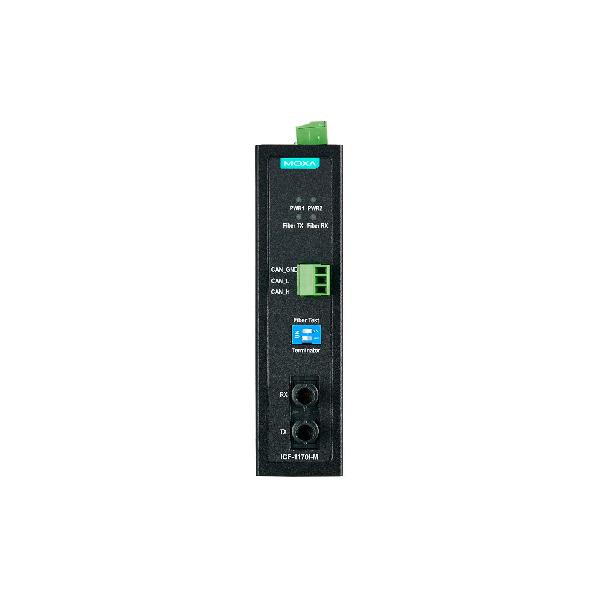

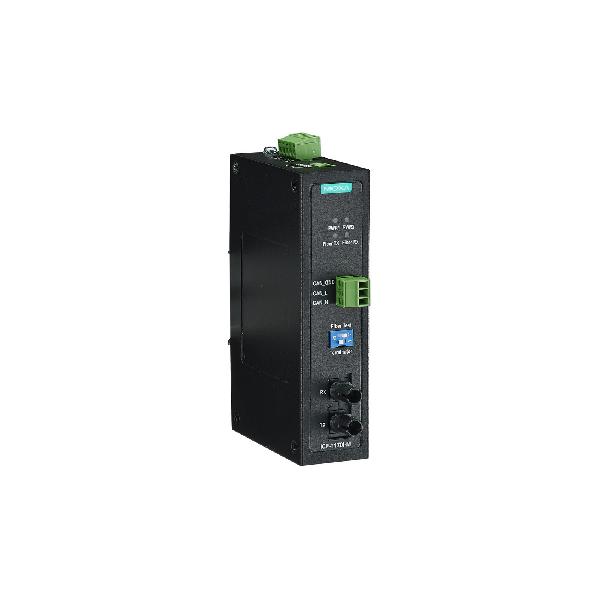

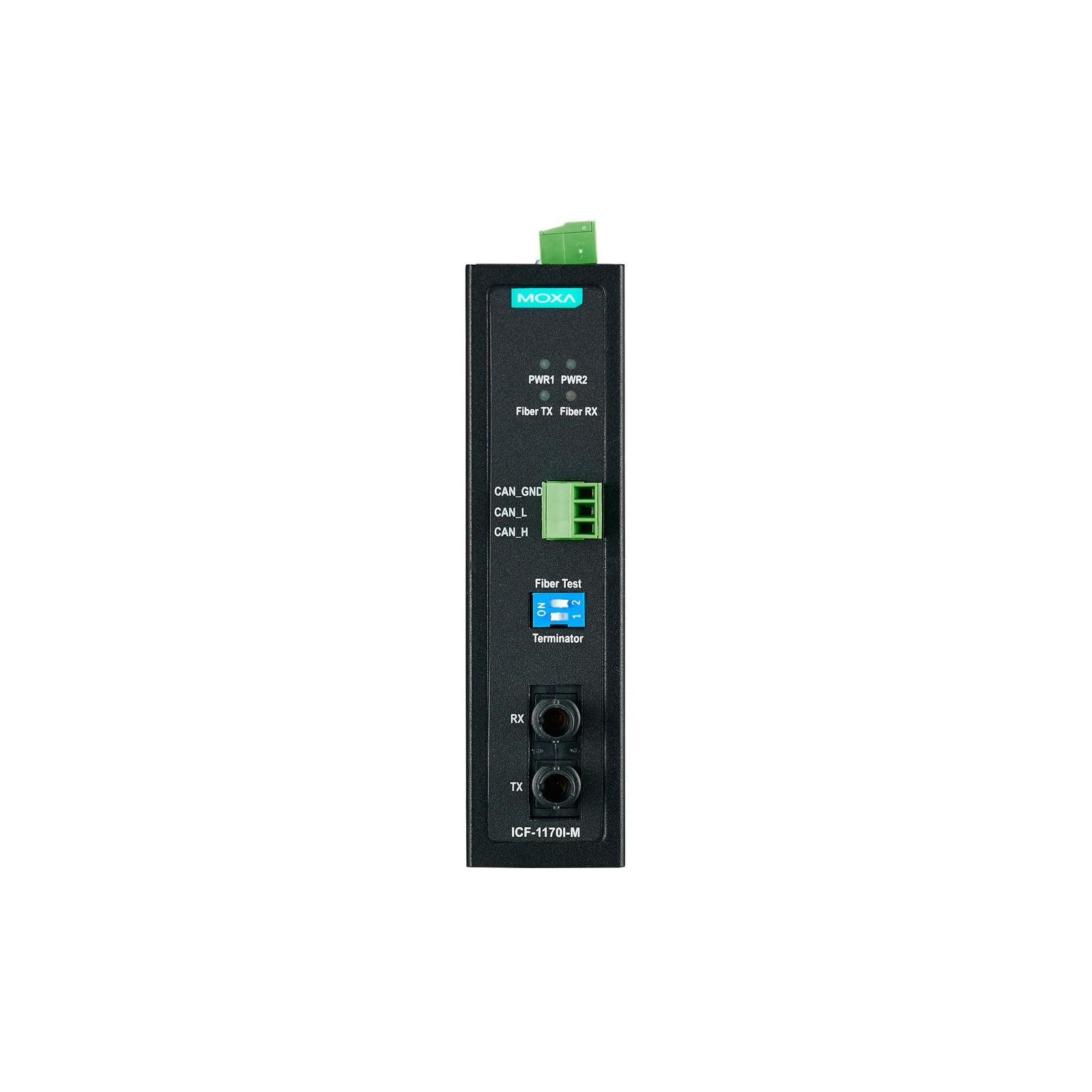

ICF-1170I Series

Home  >   MOXA  >   Industrial Edge Connectivity  >
Serial Converters  >   Fieldbus-to-Fiber Converters

Industrial CAN-to-fiber converters

Product Feature

  • Transmits data up to 2 km over optical fiber
  • Converts CAN signals to fiber and fiber to CAN signals
  • Baudrate up to 1 Mbps
  • Dual power inputs for redundancy
  • DIP switch for 120 ohm terminal resistance
  • DIP switch for fiber test mode
  • LEDs for Fiber Tx, Fiber Rx, Power 1, Power 2
  • Wide-temperature model available for -40 to 85°C environments
  • Fully compatible with the ISO 11898 standard

Introduction

The ICF-1170I Series CAN-to-fiber converters are used to convert CAN signals from copper to optical fiber. The converters come with 2 kV optical isolation for the CAN bus system and dual power inputs with alarm contact relay to ensure that your CAN bus system will remain online.



Fiber Test Mode

Fiber Test Mode can be used to test the fiber cable between two ICF-1170I units, and it provides a simple way to determine if the fiber cable is transmitting data correctly. When in Fiber Test Mode, the fiber transceiver (Tx) will continuously send out a data signal and the Fiber Tx LED will light up. On the other side of the connection, when the ICF-1170I fiber transceiver (Rx) receives the data signal from the Tx side, the Fiber Rx LED will light up.

Serial Interface

Optical FiberICF-1170I-M-ST: 100BaseFX ports (multi-mode ST connector)
Optical FiberRead more

CAN Interface

Isolation2 kV (built-in)
No. of Ports1
SignalsCAN_L, CAN_H, CAN Signal GND
TerminatorN/A, 120 ohms (by DIP)

Power Parameters

Input Current221 mA @ 12 to 48 VDC
Power Consumption221 mA @ 12 to 48 VDC
Input Voltage12 to 48 VDC
No. of Power Inputs2
Overload Current ProtectionSupported
Power ConnectorTerminal block (for DC models)

Physical Characteristics

HousingMetal
IP RatingIP30
Dimensions30.3 x 70 x 115 mm (1.19 x 2.76 x 4.53 in)
Weight178 g (0.39 lb)
InstallationDIN-rail mounting

Environmental Limits

Operating TemperatureICF-1170I-M-ST: 0 to 60°C (32 to 140°F)
ICF-1170I-M-ST-T: -40 to 85°C (-40 to 185°F)
Storage Temperature (package
included)
-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity5 to 95% (non-condensing)

Standards and Certifications

EMCEN 55032/24
EMICISPR 32, FCC Part 15B Class A
EMSIEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 1 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
IEC 61000-4-8 PFMF
Environmental TestingIEC 60068-2-1
IEC 60068-2-2
IEC 60068-2-3
SafetyEN 60950-1, IEC 60950-1
VibrationIEC 60068-2-6

MTBF

Time792,085 hrs
StandardsTelcordia (Bellcore), GB

Warranty

Warranty Period5 years
DetailsSee www.moxa.com/warranty
Name Type Version Release Date
Datasheet for ICF-1170I Series Datasheet V1.1 08 May 2020
