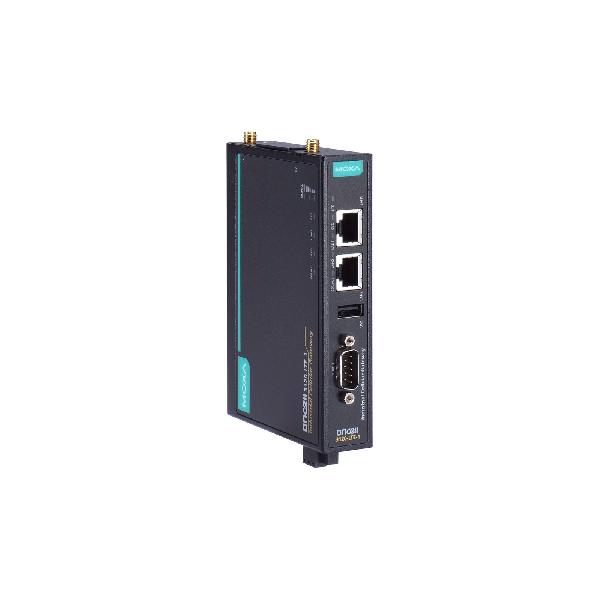

OnCell 3120-LTE-1 Series

Home  >   MOXA  >   Industrial Network Infrastructure  >
Cellular Gateways/Routers/Modems  >   Cellular Gateways

Industrial LTE Cat 1 cellular gateways

Product Feature

  • Low power consumption (40 mW in standby)
  • GuaranLink for reliable cellular connectivity
  • Dual cellular operator backup with dual-SIM
  • Rugged hardware design well suited for hazardous locations (ATEX Zone 2/IECEx)
  • VPN secure connection capability with IPsec, GRE, and OpenVPN protocols

Introduction

The OnCell 3120-LTE-1 Series is a set of reliable, secure, low power consumption LTE gateways with state-of-the-art global LTE Cat 1 coverage. These LTE cellular gateways provide reliable connections from remote serial and Ethernet devices to a cellular network so that your applications can be easily implemented for IIoT remote-access scenarios. With its efficient power saving features, the OnCell 3120-LTE-1 Series lowers power consumption to less than 40 mW when in standby mode which can be managed using schedules. To enhance industrial reliability, the OnCell 3120-LTE-1 features GuaranLink to ensure robust cellular connectivity.



Remote Access Gateway with VPN and Network Security

  • Managed by centralized IP management software, OnCell Central Manager
  • Secure and reliable VPN support with NAT/OpenVPN/GRE/IPsec functionality
  • Cybersecurity features based on IEC 62443-4-2



Industrial-grade Reliability

  • Rugged hardware design well suited for hazardous locations (ATEX, C1D2, IECEx)
  • GuaranLink for reliable cellular connectivity
  • -30 to 70°C wide operating temperature
  • Low power consumption: Less than 40 mW in standby mode

Cellular Interface

Cellular StandardsLTE CAT-1, HSPA, UMTS, EDGE, GPRS, GSM
LTE Data Rate10 MHz bandwidth: 10.2 Mbps DL, 5.2 Mbps UL
HSPA Data Rates7.2 Mbps DL, 5.76 Mbps UL
Band Options (EU)LTE Band 1 (2100 MHz) / LTE Band 3 (1800 MHz) / LTE Band 8 (900 MHz) /
LTE Band 20 (800 MHz) / LTE Band 28 (700 MHz)
UMTS/HSPA 2100 MHz / 900 MHz
GSM 900 MHz / 1800 MHz
Band Options (AU)LTE Band 3 (1800 MHz) / LTE Band 5 (850 MHz) / LTE Band 8 (900 MHz) /
LTE Band 28 (700 MHz)
UMTS/HSPA 2100 MHz / 850 MHz / 900 MHz
No. of SIMs2
Cellular Antenna Connectors2 SMA female

Ethernet Interface

10/100BaseT(X) Ports (RJ45
connector)
2

USB Interface

No. of USB Ports1
USB ConnectorUSB Type A
USB StandardsUSB 2.0

Serial Interface

No. of Ports1
ConnectorDB9 male
Serial StandardsRS-232/422/485
Data Bits5, 6, 7, 8
Stop Bits1, 1.5, 2
ParityNone, Even, Odd, Space, Mark
Baudrate75 bps to 921.6 kbps
Console PortRS-232 (TxD, RxD, GND), 4-pin header output (115200, n, 8, 1)

Serial Signals

RS-232TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422Tx+, Tx-, Rx+, Rx-, GND
RS-485-2wData+, Data-, GND
RS-485-4wTx+, Tx-, Rx+, Rx-, GND

Ethernet Software Features

ManagementOnCell Central Manager, GuaranLink, DHCP server, DDNS, ARP, Telnet,
TCP/IP, UDP, SMTP, Remote SMS Control, Syslog, SNMPv1/v2c/v3, Serial
Console, Telnet Console, Web Console, Wireless Search Utility
FirewallFilter: MAC, IP protocol, port-based, Access IP list
RoutingNAT, Port forwarding
SecurityHTTPS
Time ManagementSNTP Client

IPsec VPN

AuthenticationPSK/X.509/RSA
EncryptionDES, 3DES, AES, MD5, SHA-1, DH2, DH5
Concurrent VPN Tunnels5

OpenVPN

OpenVPNOpenVPN (client and server), Tunnel mode (routing) and TAP mode (bridge)
EncryptionBlowfish CBC, DES CBC, DES-EDE3 CBC, AES-128/192/256 CBC
Concurrent VPN Tunnels5

Power Parameters

Input Current0.8 A (max.)
Input Voltage9 to 36 VDC
Power Consumption5 W (typ.)
Power ConnectorTerminal block
Reverse Polarity ProtectionSupported
Power ButtonReset button

Physical Characteristics

HousingMetal
IP RatingIP30
Dimensions128.5 x 26 x 89.1 mm (5.06 x 1.02 x 3.51 in)
Weight550 g (1.22 lb)
InstallationDIN-rail mounting, Wall mounting (with optional kit)

Environmental Limits

Operating TemperatureStandard Models: 0 to 55°C (32 to 131°F)
Wide Temp. Models: -30 to 70°C (-22 to 158°F)
Storage Temperature (package
included)
-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity5 to 95% (non-condensing)

Standards and Certifications

EMCEN 55032/24, EN 61000-6-2/-6-4
EMICISPR 22, FCC Part 15B Class A
EMSIEC 61000-4-6 CS: 10 V; 150 kHz to 80 MHz
IEC 61000-4-8: 30 A/m
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
FreefallIEC 60068-2-32
Hazardous LocationsATEX, IECEx, Class I Division 2
Radio FrequencyFCC, PTCRB
Cellular StandardsEN 301489-1/17
EN 301511
EN 301908-1
AS/CA S042
EN 62311(MPE SAR)
SafetyUL 60950-1, UL 62368-1
ShockIEC 60068-2-27
VibrationIEC 60068-2-6

MTBF

Time585,775 hrs
StandardsTelcordia SR332

Warranty

Warranty Period5 years
DetailsSee www.moxa.com/warranty
Name Type Version Release Date
Datasheet for OnCell 3120-LTE-1 Series Datasheet V1.0 31 December 2019
