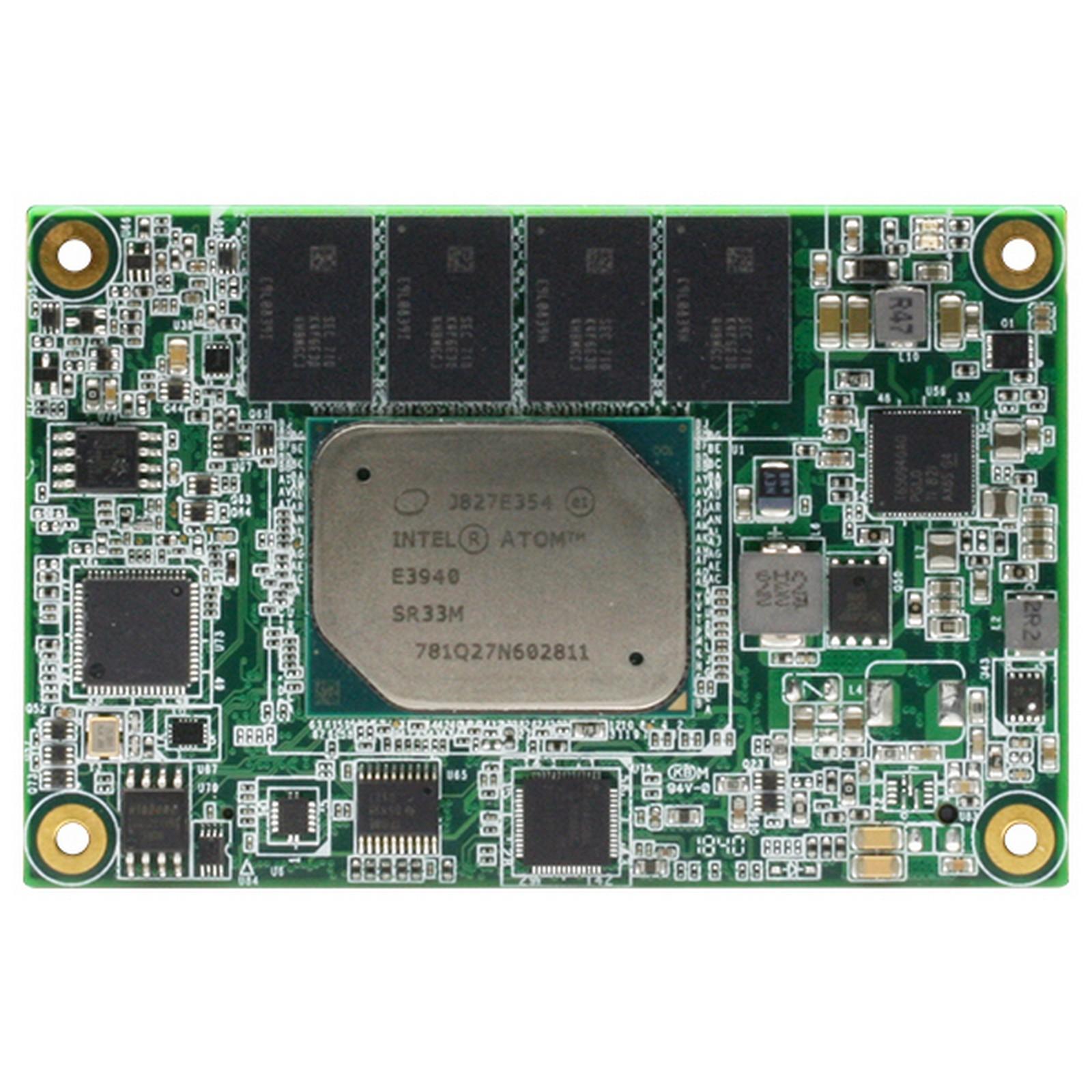

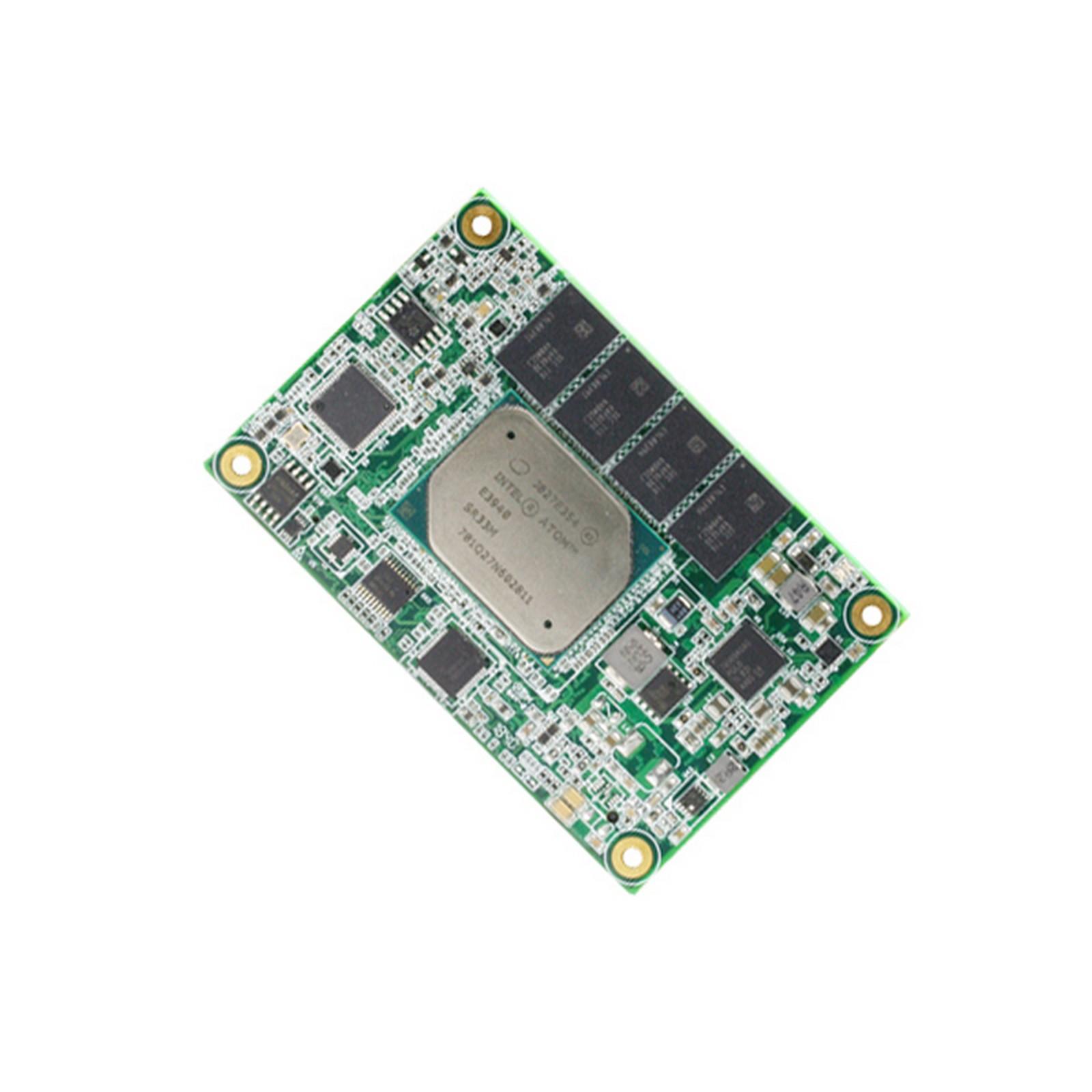

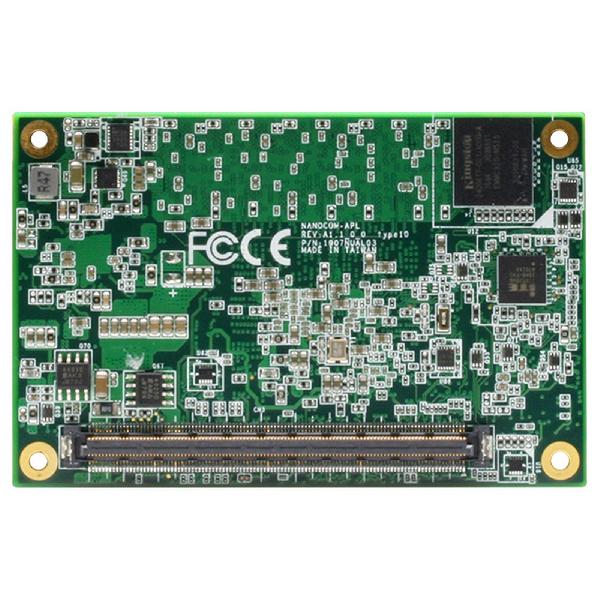

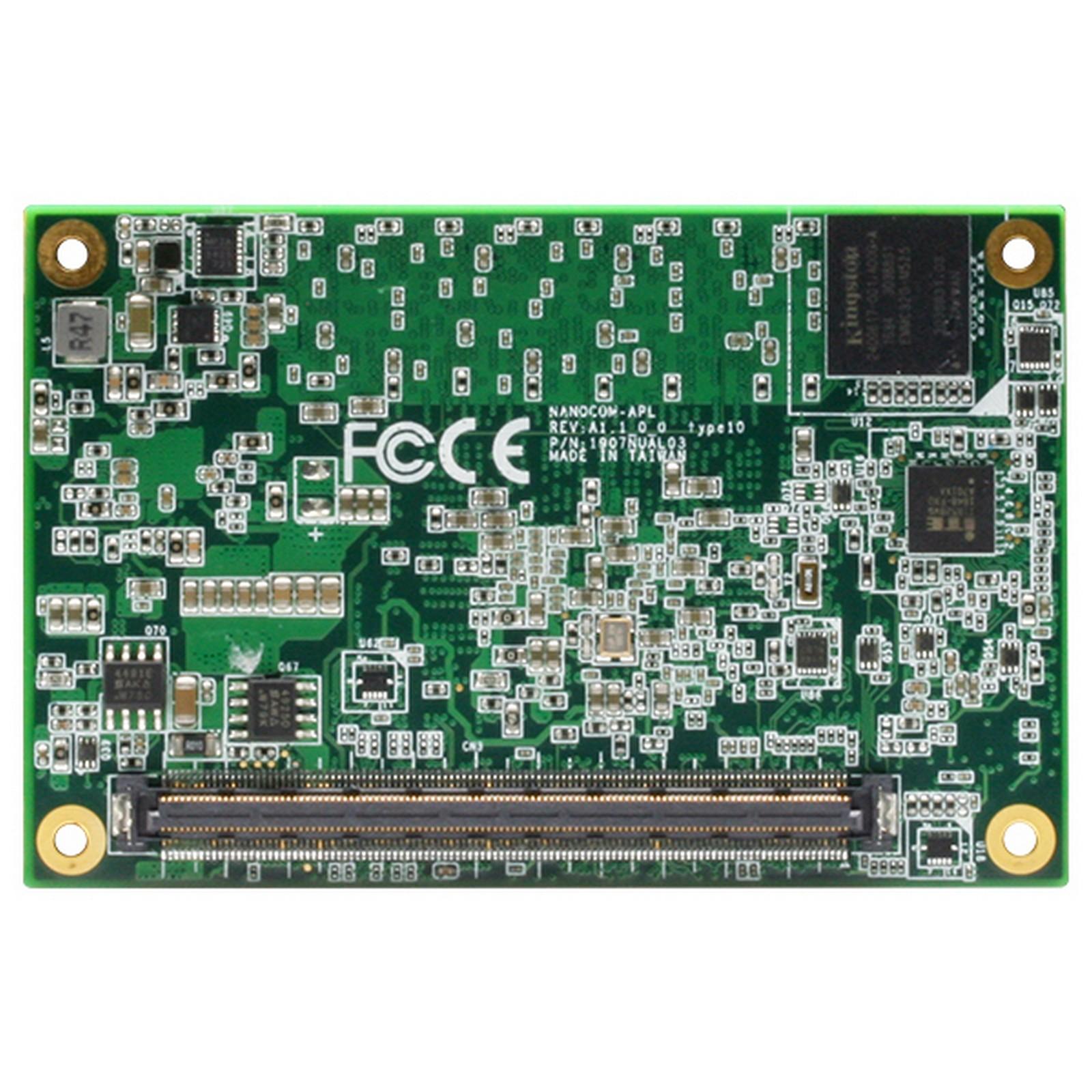

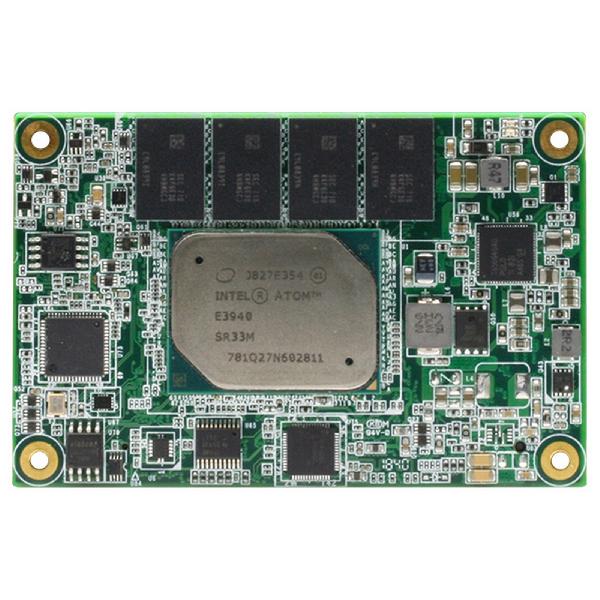

COM Express Type 10 Module with Intel® Atom™ SoC

Product Feature

  • Intel® Atom™/Celeron®/Pentium® SoC
  • Onboard Memory LPDDR4 4GB/8GB
  • Intel I210/I211
  • Support eDP/LVDS, DDI D
  • SATA x2, eMMC 5.x (optional, up to 64GB)
  • USB 2.0 x 8 + USB 3.2 Gen 1 x 2
  • 2-wire UART, Tx/Rx x2
  • PCI-Express [x1] x4, 3 device available at any time.
  • DC Input Range, 12V
  • COM Express Mini Size, Pin-Out Type 10

The NanoCOM-APL is built around a 6th Generation Intel® Atom™, Celeron®, or Pentium® processor and features onboard LPDDR4 memory with a capacity of up to 8GB. The 7W module’s low power-consumption architecture means it can be used at the heart of hand-held, battery-powered devices and fully enclosed IP67 applications.

Combined with an FPGA controller and an AI chip, the NanoCOM-APL is being used as the centerpiece of advanced machine vision systems that scan products to create 3D images that can be checked for faults. Because of its size and industrial operating temperature range, these systems can be used on a production line or even on a robotic arm.

The module also features 1GbE LAN connections, optional onboard eMMC storage of up to 64Gb, a PCIe x4 expansion slot, an LVDS, DDI, or eDP connections, and support for up to eight USB3.0 and two USB2.0 ports.

SYSTEM
FORM FACTORCOM Express, Mini size, Pin-out Type 10
CPUOnboard 6th Generation Intel® Atom™/Celeron®/Pentium® SoC
CPU FREQUENCYE39xx series, N4xxx series
CHIPSETIntel® Atom™/Celeron® Processor SoC
MEMORY TYPEOnboard LPDDR4
MAX. MEMORY CAPACITY8GB LPDDR4 Onboard
BIOSSPI type
WAKE ON LANYes
WATCHDOG TIMER255 Levels
POWER REQUIREMENTStandard : +12V, AT/ATX (Optional: +5V, AT/ATX)
POWER SUPPLY TYPEAT/ATX
POWER CONSUMPTION (TYPICAL)Up to E3950 TDP 12W CPU
DIMENSION (L X W)3.31" x 2.17" (84mm x 55mm)
OPERATING TEMPERATURE32 °F ~ 140 °F (0 °C ~ 60 °C)
-40 °F ~ 185 °F (-40 °C ~ 80 °C)
STORAGE TEMPERATURE-40°F ~ 176°F (-40°C ~ 80°C)
OPERATING HUMIDITY0% ~ 90% relative humidity, non-condensing
MTBF (HOURS)80,000
CERTIFICATIONCE/FCC
DISPLAY
DISPLAY CONTROLLERIntel® HD Graphic
VIDEO OUTPUTLVDS LCD/eDP, DDI x 1
LVDS INTERFACESupports 18-bit and 24-bit Single channel
I/O
ETHERNETIntel® I210IT
AUDIOHigh Definition Audio Interface
USB SUPPORTUSB 2.0 x 8, USB 3.2 Gen 1 x 2
SERIAL PORTTX/RX x 2
HDD INTERFACESATA 3 x 2
ONBOARD STORAGEOptional onboard eMMC
EXPANSION SLOTPCIe [x1] x 4 (up to 3 devices)
LPC
SMBus
I2C
GPIOGPIO 8-bit
TPM
Name Type Version Release Date
NANOCOM-APL Datasheet Datasheet V1.0 06 June 2020
