RTC-1010

Home  >   AAEON  >   Rugged Mobile Devices  >
Rugged Tablet Computers

10.1” Rugged Tablet Features with Intel® N3350/N4200 Processor with Windows®

Product Feature

  • 10.1" WXGA (1280 x 800) 800-nit / 300-nit TFT LCD
  • Intel® Celeron™ N3350 1.1 GHz Dual Core Up to 2.4 GHz (N4200 Optional)
  • Onboard DDR3L Memory, 4GB (Default)
  • eMMC 64GB (mSATA III Up to 512GB Optional)
  • Projected Capacitive Multi-Touch Screen
  • WiFi 802.11b/g/n, Bluetooth 4.2, LTE (Optional)
  • 2MP Front and 8MP Rear Camera
  • RS-232/422/485 COM Port + 10/100/1000 Base-T RJ45
  • USB 3.2 Gen 1 x 2 (USB Type-C x 1), USB 2.0 x 2
  • 2D Barcode Scanner & Smart Card Reader (Optional)
  • HF RFID Reader (Optional)
  • Up to 3 GNSS, GPS+Galileo(Default), GLONASS or BeiDou(Optional)
  • One Hot-swappable Battery + Internal Battery, Up to 44W Battery Capacity
  • MIL-STD-810G, IP65 Compliant, Drop 122cm
  • Programmable Function Key: F0, F1, F2, F3, Volume Up/Down, With LED Illumination
  • Windows® 10 IOT

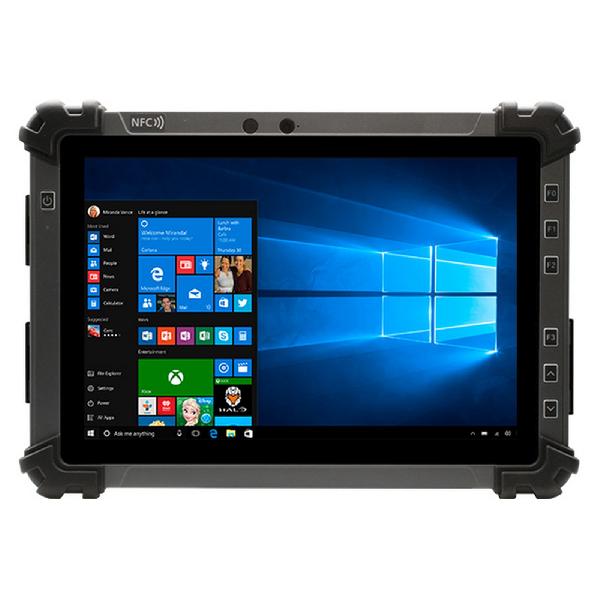

The robust RTC-1010 rugged tablet features an LCD bonded with a scratch-resistant projected capacitive multi-touch screen. The ruggedized tablet is designed to operate in a range of tough conditions, with an operating temperature range of -20°C to 50°C and meets MIL-STD-810G specifications for vibration resistance and drop testing from 122cm. The RTC-1010 boasts waterproof tablet design with its IP65 compliant construction which also keeps out dust and other contaminants.

The RTC-1010 ruggedized tablet is powered by an Intel® Pentium™ or Celeron™ processor and supports Windows 10 IoT. It features 4GB DDR3L memory and 64GB eMMC storage, and an additional 512GB mSATA storage device can be added thanks to an internal Mini Card slot.

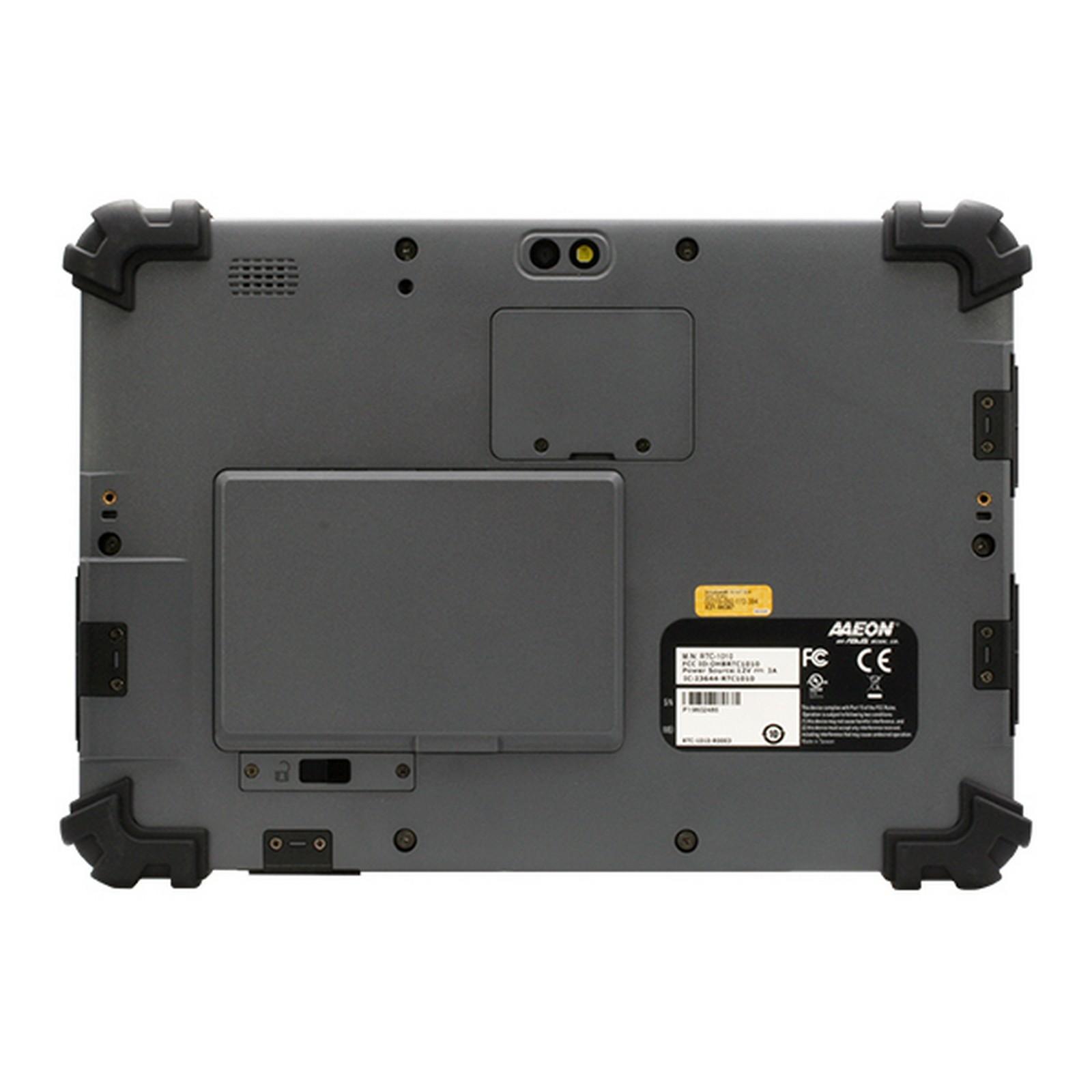

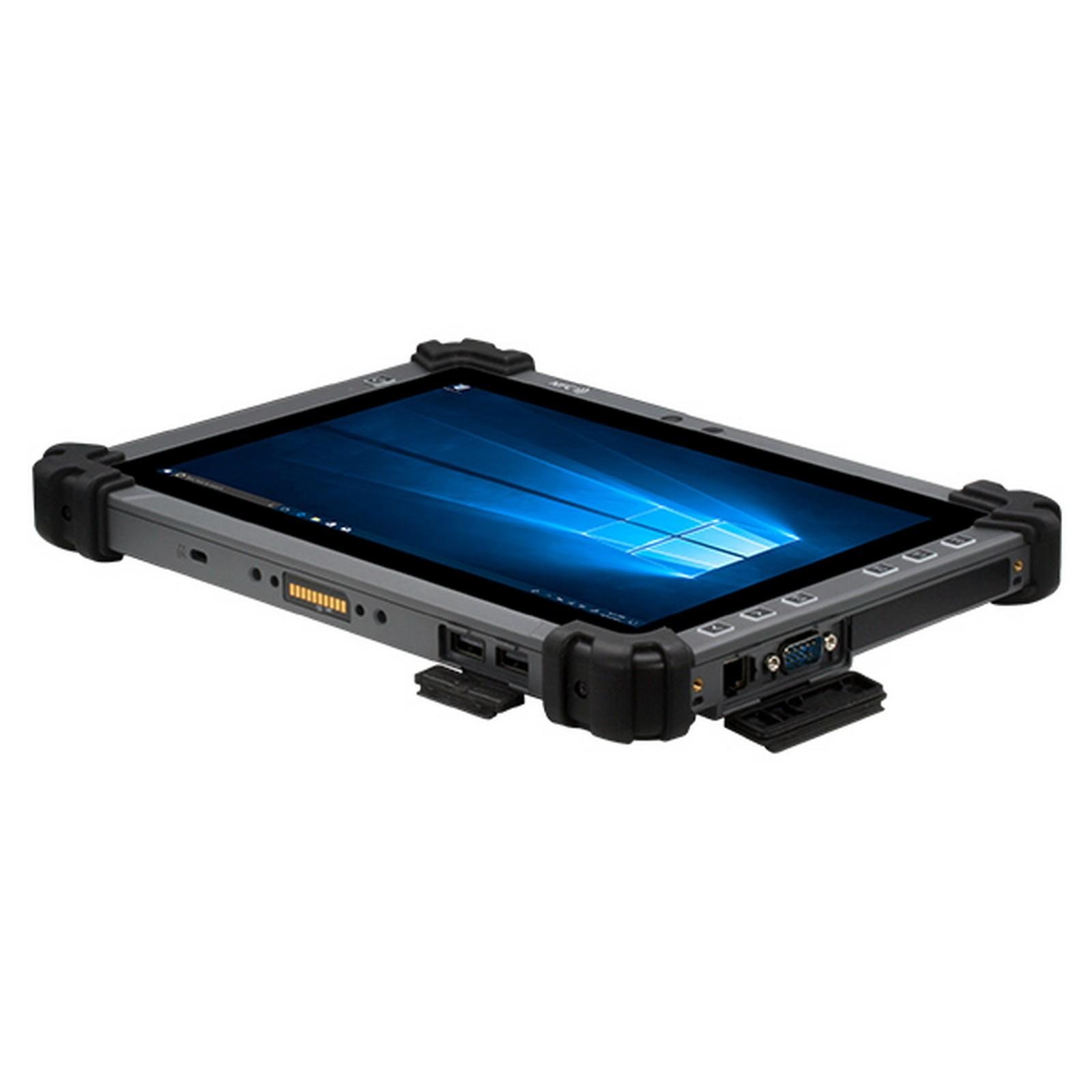

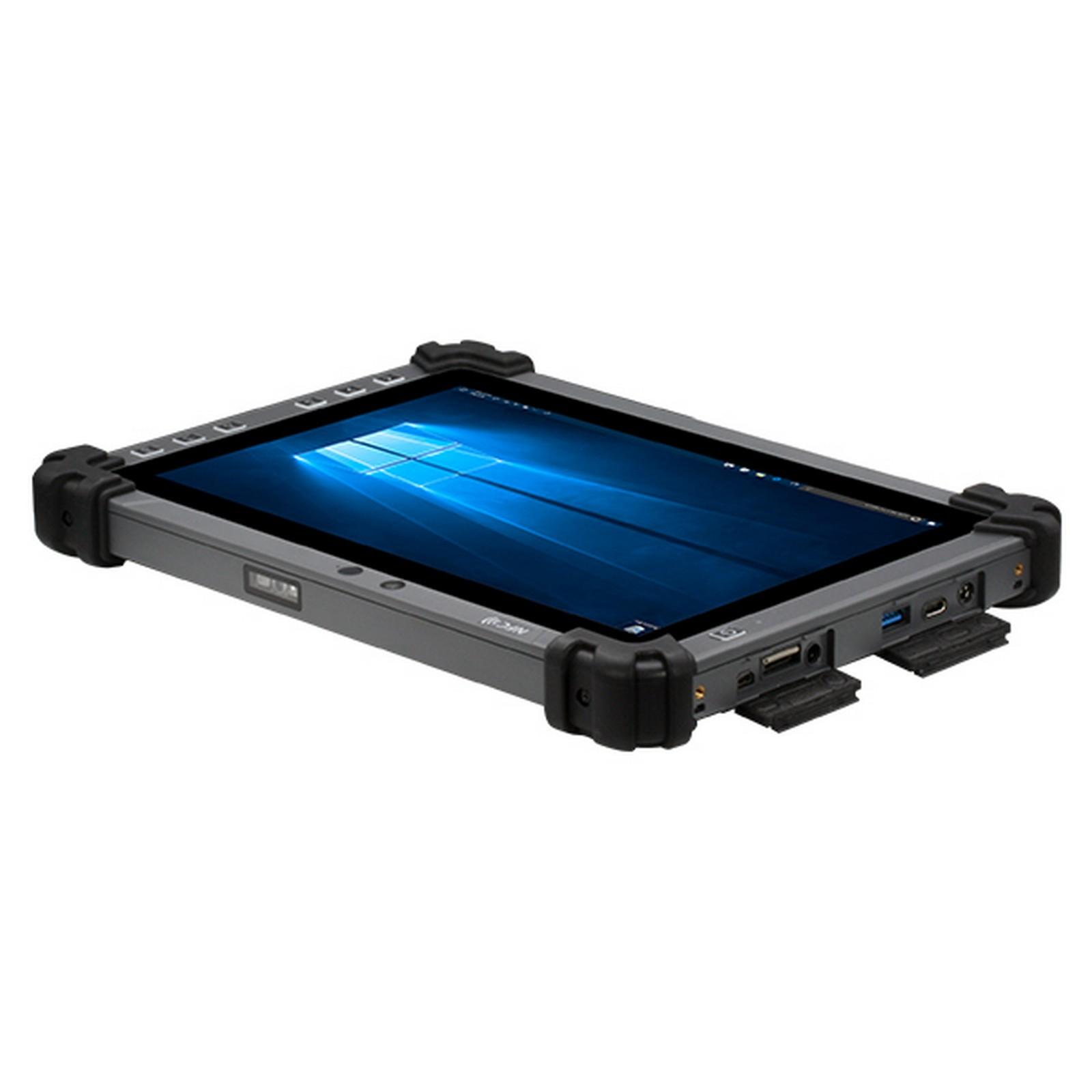

The RTC-1010 ruggedized tablet features a 2MP front camera and 8MP rear camera with flash. It has 2D barcode, smart card, and NFC readers, and it can be customized to include a magnetic stripe reader. Multiple USB 3.2 Gen 1 and USB 2.0 ports along with micro HDMI, COM and LAN ports enable greater functionality and connections to peripherals devices.

The RTC-1010 rugged tablet comes with built-in Wi-Fi and Bluetooth, and a 4G LTE module can be added via a second Mini Card slot. The RTC-1010 supports global navigation options including GPS, Beidou, or can be configured for other navigation systems.

The RTC-1010 ruggedized tablet is fitted with a hot-swappable battery to allow for easy, continuous usage. A broad range of accessories also provide greater flexibility and ease of use, including hand and shoulder straps, a docking station, and a charging dock.

The RTC-1010’s ruggedized specifications, flexibility, usability and waterproof tablet design makes it an indispensable tool for everything from field work to powering factory automation applications, and people who spend their working days out in the field.

SYSTEM
PROCESSORIntel® Celeron® N3350 1.1GHz Dual core up to 2.4GHz Intel® Pentium® N4200 1.1GHz Quad core up to 2.5GHz
OPERATING SYSTEMWindows® 10 IOT Enterprise SAC (Default)
MEMORYOnboard DDR3L 4GB (Default)
STORAGEeMMC 64GB (mSATA III up to 512GB via inside mini-card slot, Optional)
DISPLAY10.1" WXGA (1280x800) 300-nit TFT LCD
With Projected Capacitive Multi-Touch Screen
I/O PORTMicro-HDMI port x 1
SIM card slot x 1
Micro-SD card slot x 1
Audio jack x 1
USB 3.2 Gen 1 x 2 (USB Type-C x 1),
USB 2.0 x 2, DC-in jack x 1,
RS-232/422/485 COM Port x 1,
10/100/1000 Base-T RJ45 x 1,
Smart card reader x 1 (Optional, Without IP protection)
COMMUNICATIONWi-Fi 802.11 b/g/n, Bluetooth v4.2(EDR+BLE)
NAVIGATIONUp to 3 GNSS, GPS + Galileo(Default), GLONASS, BeiDou (Optional)
WWAN (OPTIONAL)LTE via mini-card slot (Optional)
CAMERA2MP front camera, 8MP rear camera with flash
SENSORG-sensor, E-compass, Gyro-sensor, Light-sensor
EXPANSION SLOTInside mini-card slot x 1, Mini-card slot x 1, Docking connector: USB 2.0 x 1
BARCODE SCANNER (OPTIONAL)2D Barcode scanner, OPTICON MDI-4100-USB (Optional)
HF RFID (OPTIONAL)ISO 15693 (R/W)
ISO 18092 (R/W)
ISO 14443-A (R/W)
ISO 14443-B (Only Read UID)
Depend on card type
PHYSICAL KEYF0 or Windows (Windows Start Key), F1(BCR Trigger Button (When BCR is enabled)), F2(Screenprint), F3(Ctrl+Alt+Del as Soft Reboot), Volume Up, Volume Down
MECHANICAL
COLORBlack & Dark Gray
DIMENSIONS (W X H X D)10.71" x 7.48" x 0.80" (272.0 mm x 190.0 mm x 20.4 mm)
GROSS WEIGHT2.2 lb (1.0 Kg) based on configurations
ENVIRONMENTAL
OPERATING TEMPERATURE-4°F ~ 122°F (-20°C ~ 50°C)
STORAGE TEMPERATURE-67°F ~ 158°F (-55°C ~ 70°C)
HUMIDITY0% ~ 90% relative humidity, non-condensing
ENVIRONMENTAL SEALINGIP65
VIBRATIONMIL-STD-810G-514.6 Procedure I Cat.24, Fig 514.6E-1 & 514.6E-2 (Unit is
non-operating)
ASTM 4169-99 Truck Assurance Level II, Schedule E (Unit is non-operating)
DROPMIL-STD-810G-516.6, Procedure IV
Drop height: 122 cm
Number of Drop: 26 times, for all surfaces, edges and corners Condition: Based on 2" plywood over concrete
SHOCK
ESDAir charge: +/- 8KV, Contact charge: +/- 4KV
CERTIFICATIONS AND STANDARDSUL60950-1, CE, FCC
POWER SUPPLY
AC/DC ADAPTERAC 100 ~ 240 V, 50 ~ 60 Hz, Output: 12V/ 3A/ 36W
BATTERY LIFELi-ion Battery 8-hour battery life based on test configurations
MASTER BATTERYHot-swappable battery: 14.4V, 2270mAh, 32.7W
SLAVE BATTERY7.4V, 1530mAh, 11.3W
DISPLAY
LCD10.1" TFT-LCD/ 16:10 with LED backlight
RESOLUTION1280 x 800
MAX. COLORSN/A
DOT SIZE0.1692 (H) x 0.1692 (V) mm
BRIGHTNESS300 nits (800 nits optional)
VIEWING ANGLEHorizontal: 170° (Typ.), Vertical: 170° (Typ.)
TOUCH SCREEN
TOUCHSCREEN TYPEProjected capacitive multi-touch screen (PCT)
LIGHT TRANSMISSIONMin 85%
Name Type Version Release Date
RTC-1010, datasheet Datasheet V2.0 24 November 2020
