ADDERLink™ INFINITY 100T

Home  >   Adder  >   Matrix  >
Enterprise IP-based Matrix

ZeroU™ IP-based high performance KVM for extension/matrix of video, audio and USB over a single cable

Product Feature

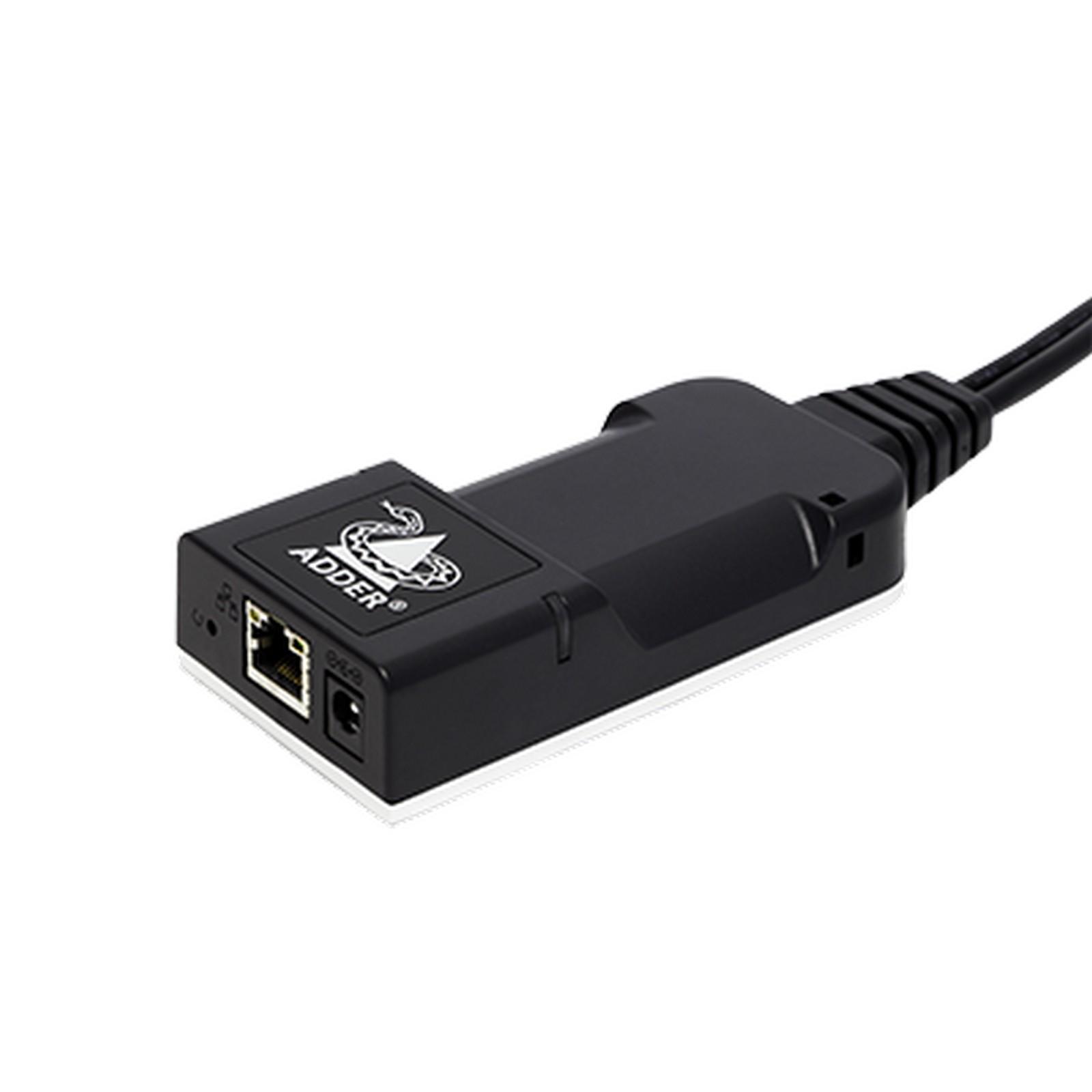

  • ZeroU™ size: The ADDERLink™ INFINITY 100T (ALIF100T) takes ZeroU™ of rack space in the server room allowing for ultimate flexibility and ease of installation
  • IP-based: Use your existing networking infrastructure to extend or matrix your computing resources to your users
  • USB powered: The device can be powered from USB. This means there is no need to provision for an external PSU. Options for powering from an external PSU or redundant PSU are also available
  • Low power consumption: Requiring less than 3 Watts, the unit can be powered from USB. This means it could use less than a quarter of the energy when compared to other solutions
  • Multiple video options: The system supports resolutions to a maximum of 1920x1200 @60Hz through either DVI, DisplayPort™ and VGA interfaces.
  • USB 1.1: Enables you to connect any USB human interface device from mouse and keyboards through to graphics tablets, jog shuttles, joysticks and 3D explorers

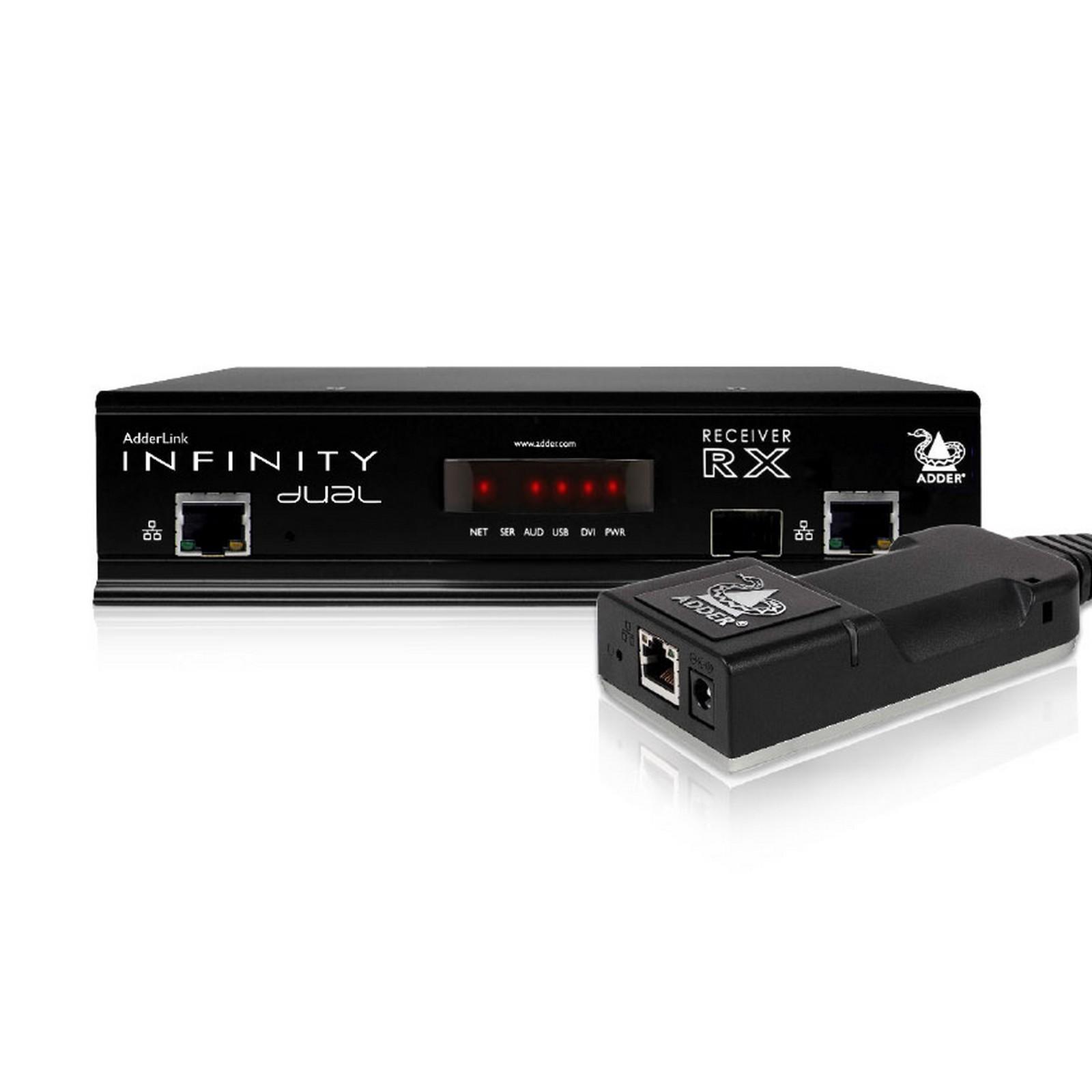

  • Seamless integration with the ADDERLink™ INFINITY range: The ALIF100T can integrate seamlessly into your existing ADDERLink™ INFINITY setup, replacing or working in conjunction with your existing ALIF endpoints
  • Perfect digital video: The ALIF100T uses an encoding system that is spatially-lossless, with 1:1 pixel mapping, so the digital video you receive is the same as the digital video leaving the remote computer ensuring the very best picture available and colour accuracy
  • USB audio: The system delivers USB stereo audio (Line In, Line Out) digitally across the network
  • EDID management: The system has intelligent EDID management to either allow the true characteristics of the monitor to be passed back to the computer, or controlled resolutions to be imposed
  • Digital KVM matrix: By the addition of ADDERLink INFINITY Management system (AIM) you can turn multiple point to point extenders into a matrix system that allows any workstation to connect to any computer connected to the network. See the AIM page on the Adder website for details

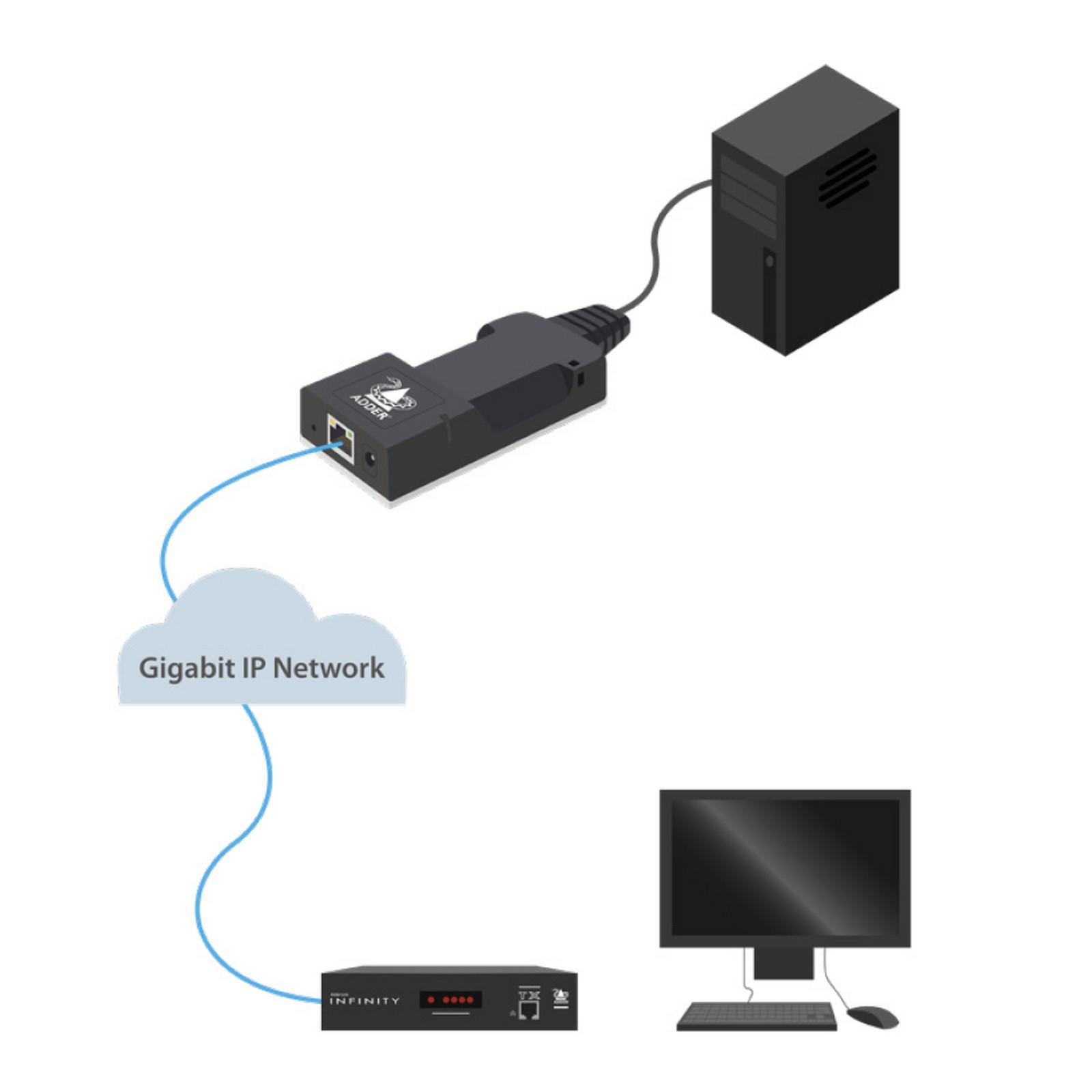

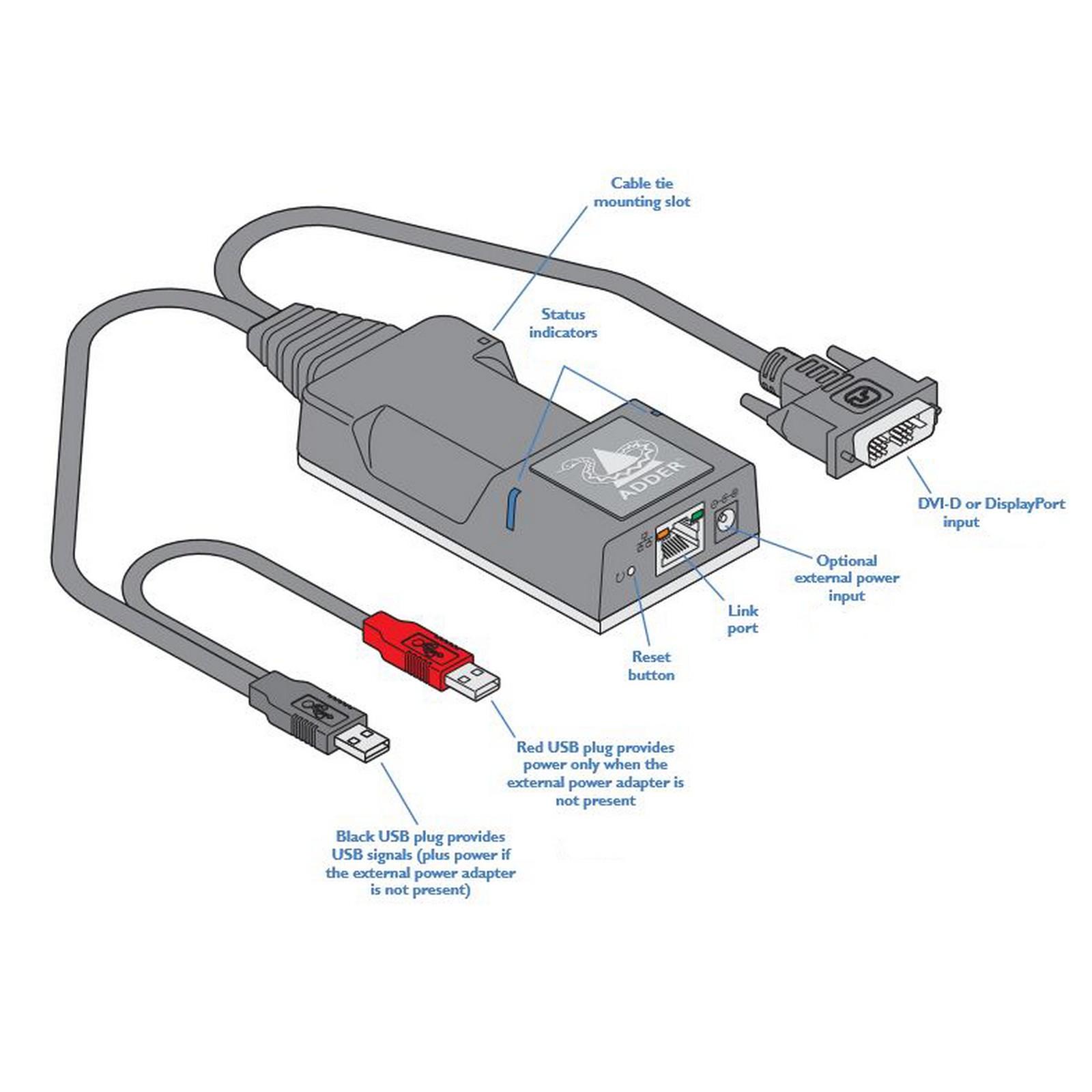

ADDERLink™ INFINITY 100T (ALIF100T) is a ZeroU™, high performance IP KVM (Keyboard, Video, Mouse) extender and/or matrix that enables the use of standard IT infrastructure to extend computers away from the user environment.

  • Zero U form factor
  • IP-based: use your existing network
  • USB powered
  • Low power consumption
  • Supports multiple video resolutions
  • Easy retrofit into existing infrastructure
  • Plug and play

Note: If using with an AIM Manager, the AIM must be running firmware version 4.7 or above

broadcast beat award for innovation



Queens award for innovation 2014




Operating/storage conditions

Operating temperature:  0 to 50ºC / 32 to 122ºF
Storage temperature: -10 to 60ºC / 14 to 140ºF
Storage and operating relative humidity: 10-90% non-condensing
Altitude: < 3000m
MTBF: >500,000 hours

Power

USB power: 2 x USB2.0 (2x 500mA @5V) 5W
External power: 5VDC, 1A, (LPS)
Typical power consumption: 3W
BTU: 10.2BTU/hr

Physical

Dimensions: (L)110mm /4.3” x (W)55mm/2.17” x (D)25mm/1” with 30cm/12” cable length
Weight: 0.2kg /0.4 lb
Materials: ABS and aluminium construction

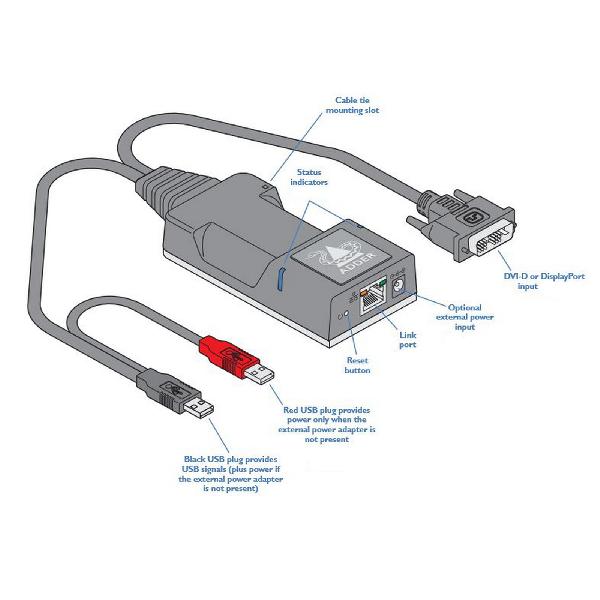

Connectors

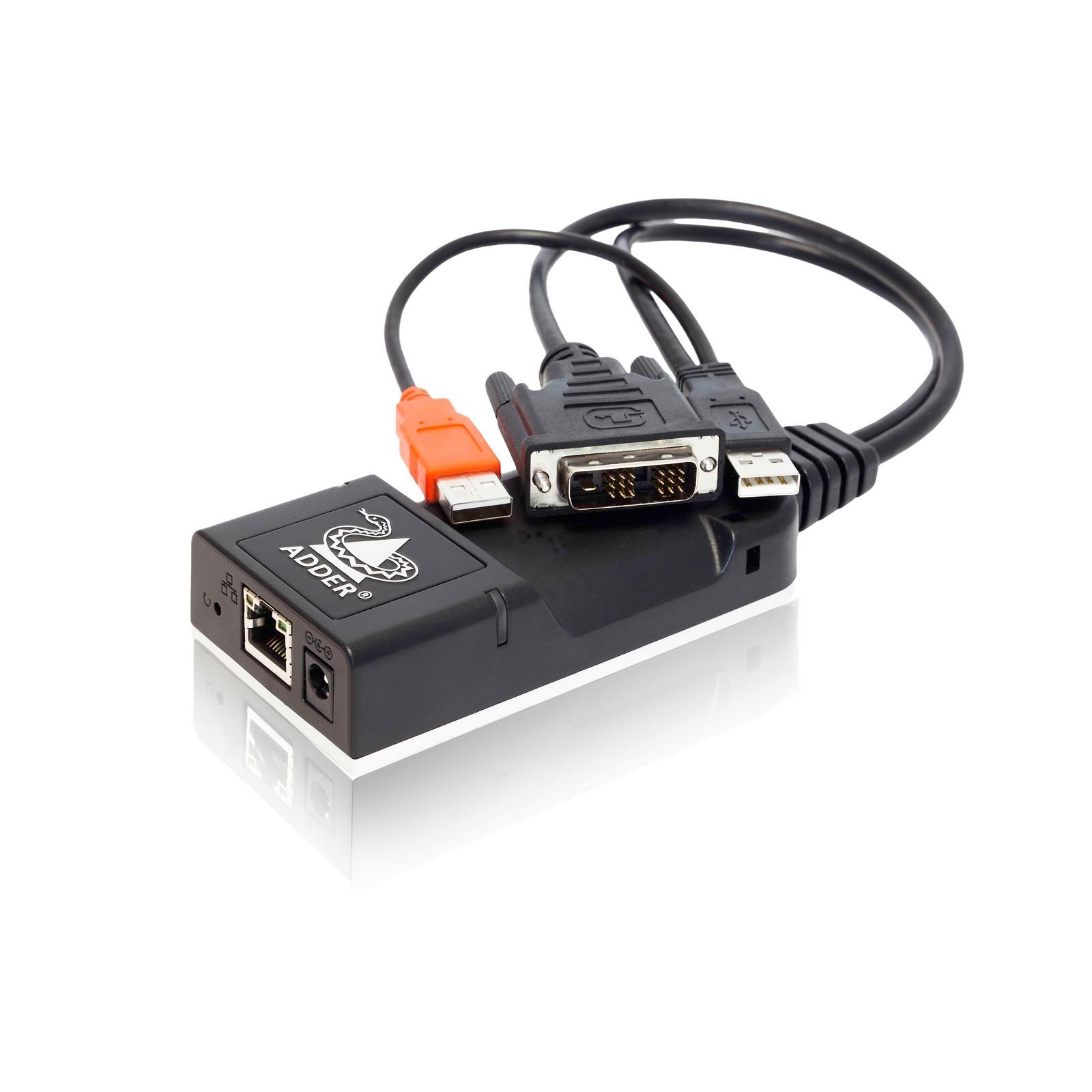

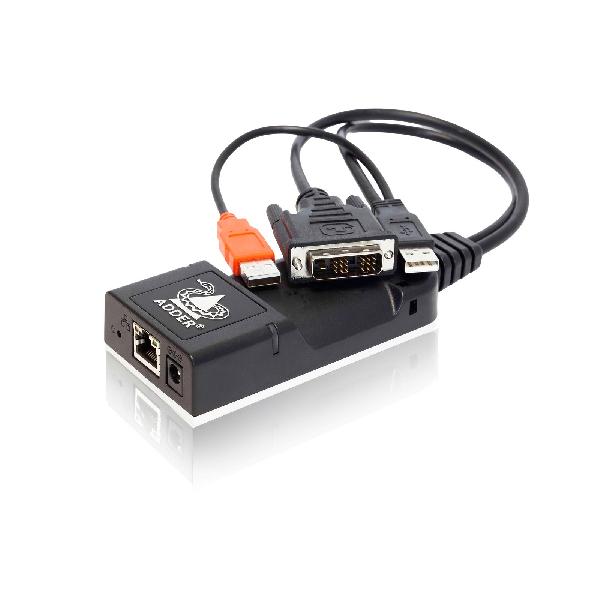

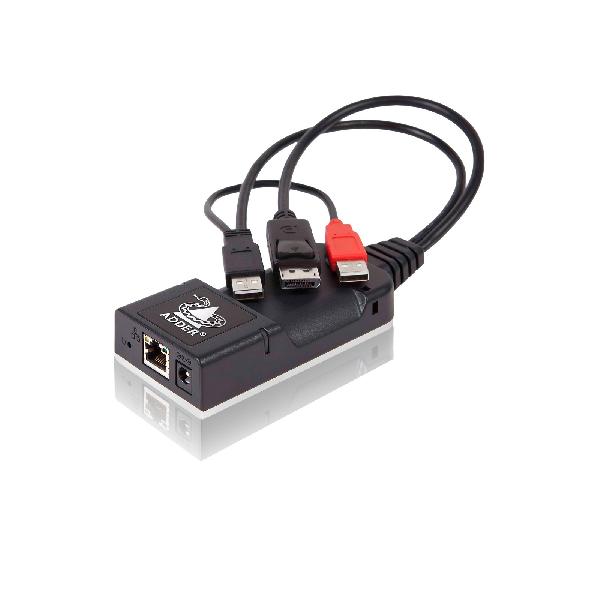

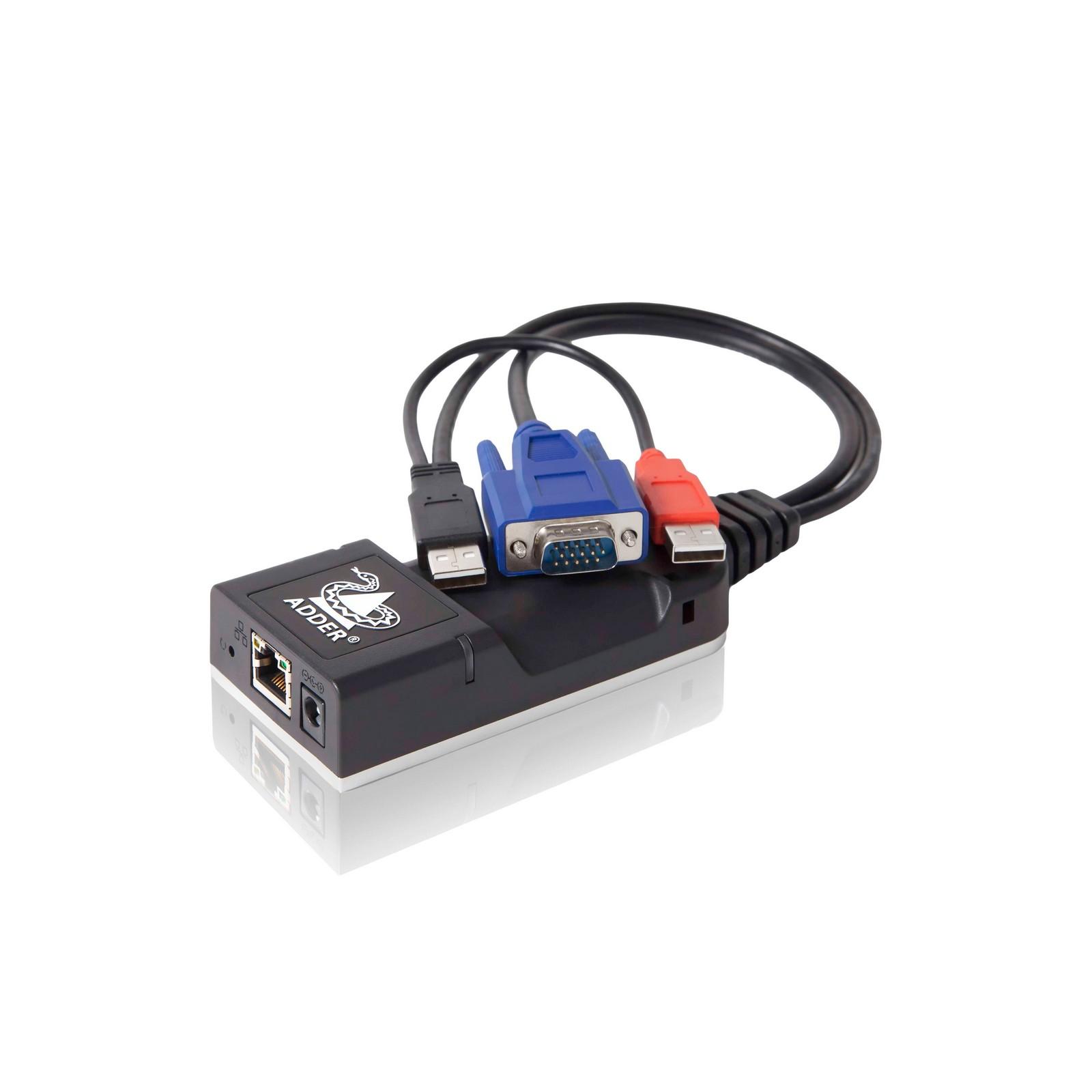

Computer: DVI-D, DisplayPort™, or  VGA
Ethernet: 1 x 8p8c (RJ45)
Power: 2.5mm socket
2x USB Type-A

Specification

USB: USB1.1 full and low speed (No HS support)
USB features: Keyboard, mouse and touch
USB device seen as: 7 or 13 port hub
Max video resolution: Up to 1920x1200 @60Hz
Audio: Line in/out USB audio 2 channel 16bit 48KHz
DisplayPort™ Audio: None
Ethernet: 1GbE (No 10/100 support)
DisplayPort™ version requires source to be DisplayPort™ Dual-Mode (DP++) compliant

Packing Box

Dimensions: (L) 292mm /11.5” (W) 245mm/9.6” (D) 55mm/2.1”
Weight: 0.5kg / 1.1lb

Approvals / Compliance

CE and FCC: See the compliance web page for the full list

Cable types recommendations

Cat5e and above

Cable length rules

Ethernet specifications rules apply 100m/300ft maximum run

Name Type Version Release Date
ADDERLink™ INFINITY 100T Datasheet 1.0 12 January 2021
ADDERLink™ INFINITY 100T Manual 1.0 12 January 2021
