ADDERLink™ INFINITY 1002

Home  >   Adder  >   Matrix  >
Enterprise IP-based Matrix

A single link, single head digital video and USB2.0 fanless KVM extender that runs over a single cable using your standard IP network

Product Feature

  • Perfect digital video: uncompressed video extension and pixel perfect digital video up to 24 bits per color at a maximum of 1920x1200 single link or single head with real time control
  • Digital Stereo Audio: digitally delivered crystal clear audio across the network
  • Distribution: of DVI-D, USB, audio and bidirectional RS232 across up to 10km
  • Power redundancy: the units can detect whether the network is in operation and will utilize the second network port is failure detected
  • EDID management: Extended Display Identification Data (EDID) enables the remote system to exactly mirror the date coming from the source monitor
  • Plug and Play: the ADDERLink INFINITY range is delivered in a zero config state so they work as soon as they are connected, without the need for drivers or software
  • Robust yet lightweight: small form factor, rack mountable device
  • USB True Emulation: USB 2.0 enables connection to any USB human interface device from mice and keyboards through to graphics tablets, jog shuttles, joysticks and 3D explorers

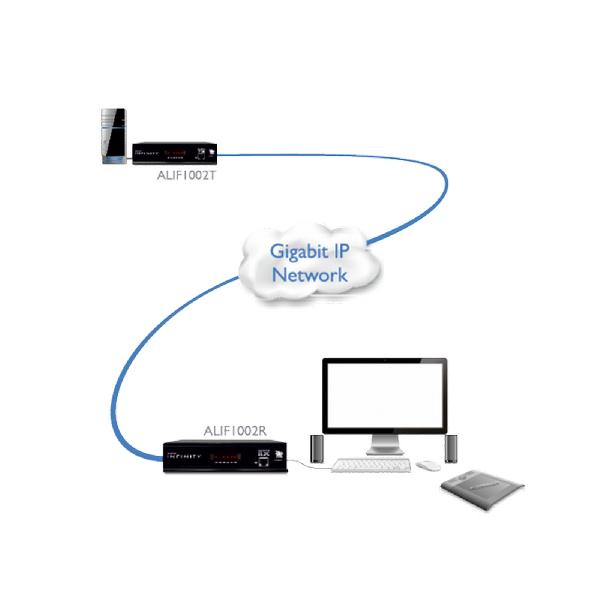

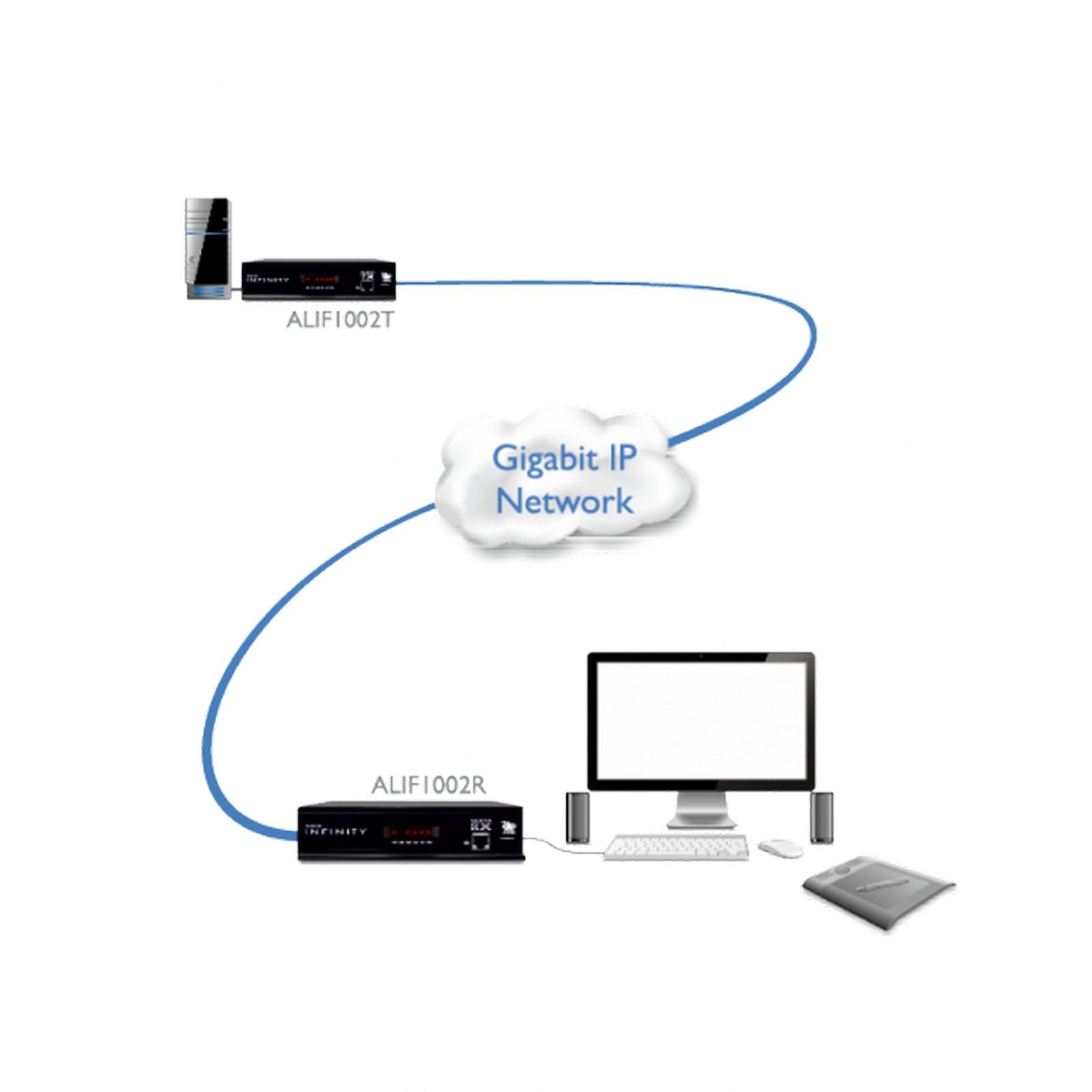

As part of the ADDERLink™ INFINITY range, ADDERLink INFINITY 1002 is a high performance KVM extender that enables you to locate your critical computing hardware in a secure and temperature controlled environment, isolated from the user work station. Configurable as a single head or single link, this extender provides pixel perfect video with minimal lag across a distance of up to 10km. This KVM extender can be used as a point-to-point extender, or integrated into a wider matrix system when combined with the ADDERLink INFINITY Manager (AIM).

  • ‘At-the-PC’ experience: single link or single head, 24 bits per color at a maximum resolution of 1920 x 1200 at 60Hz with minimal lag
  • Adaptable to suit your needs: delivers uncompressed digital video with audio, and option to compress video to minimize bandwidth usage over copper or fiber
  • IP-based: standard IP protocols, ensuring maximum compatibility with your existing IT infrastructure and staff skillset
  • Flexible solution: from point-to-point extender to an infinitely extensible matrix
  • In-built security measures: compliant with universal enterprise grade security standards (AES 256 bit encryption and RSA 2048 bit public key authentication)
broadcast beat award for innovation



Queens award for innovation 2014





ADDERLink INFINITY 1002

Approvals / Compliance

  • CE
  • FCC

Video Resolutions

The system supports either single link or single head DVI resolutions to a maximum of 1920 x 1200@ 60Hz

Audio

The system delivers analogue stereo audio (Line in, Line Out) via digital signalling between any transmitter/receiver pair.

Audio output of any transmitter can be multicast to many receivers.

Standards

Supports USB2.0 devices (Low, Full and High speed). The system has a security feature, which allows the blocking of non-HID devices. Isochronous devices are not supported (i.e. USB audio or video devices).

Cable Requirements

CATx (up to 100m/330ft) or fiber (requirements dependent)

Environmental

0 to 40ºC / 32 to 104ºF

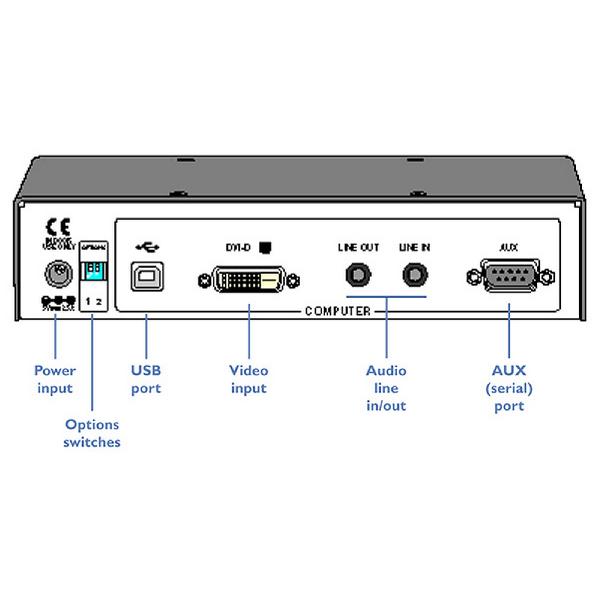

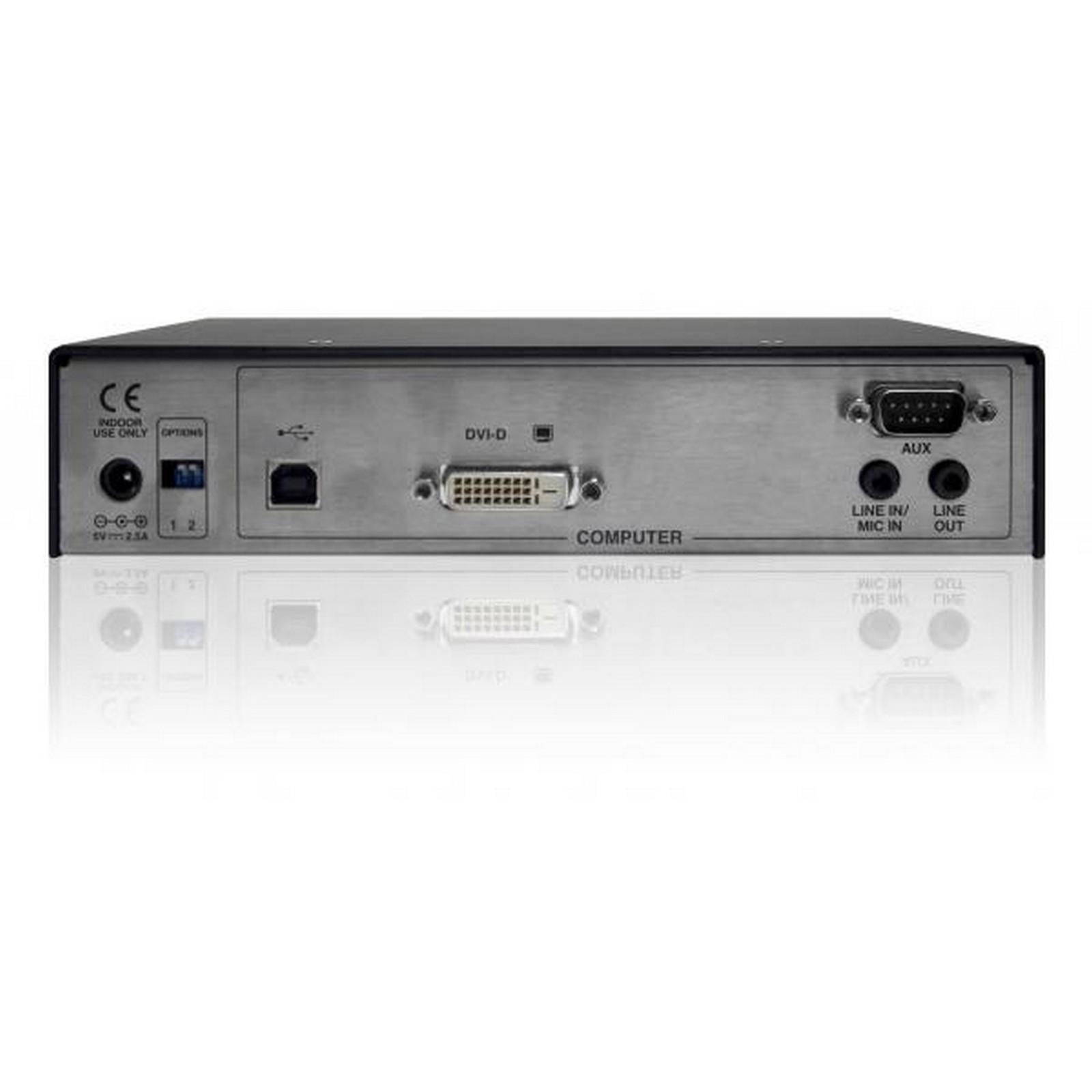

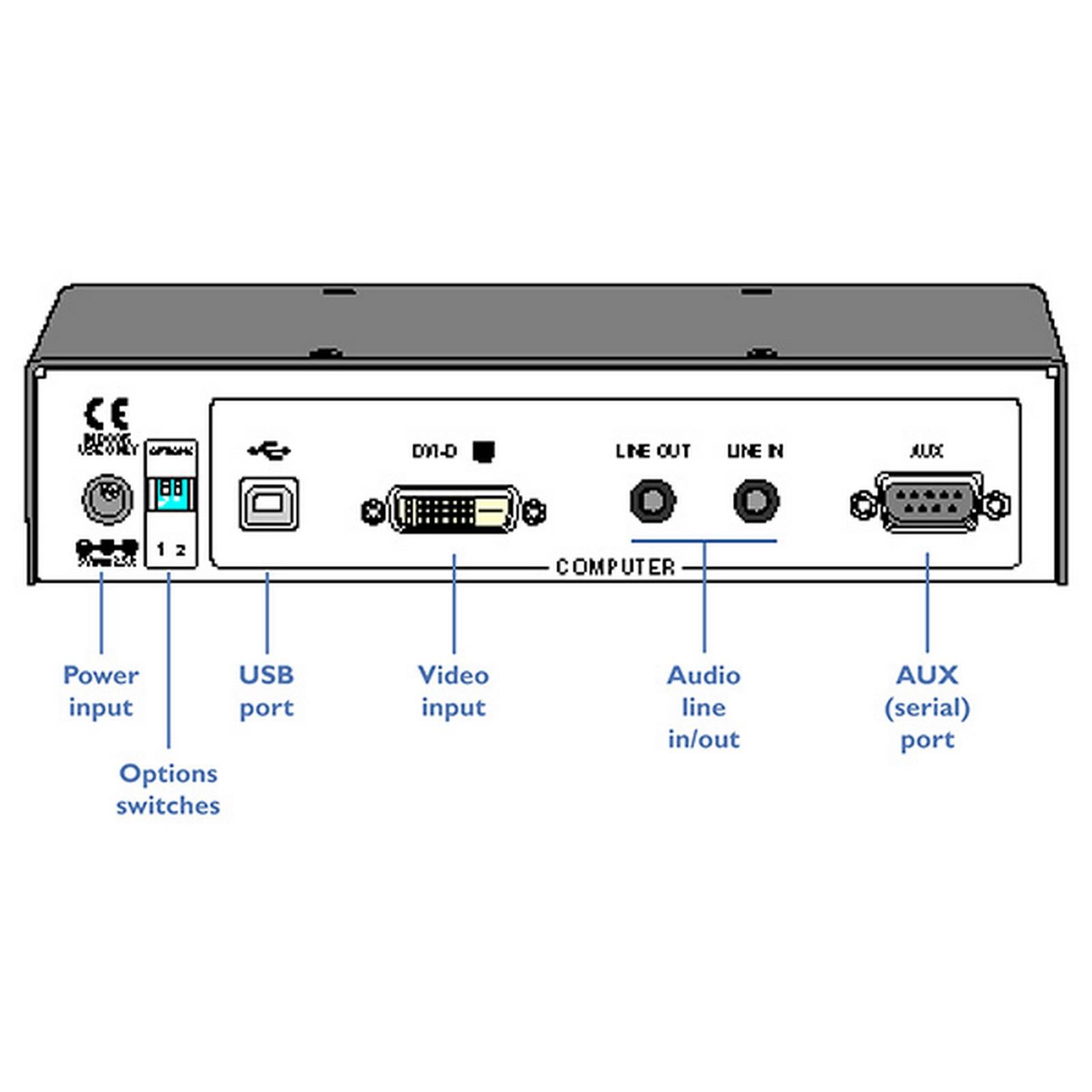

Connectors – Local Unit

1 x DVI-D, audio 3.5mm in, audio 3.5mm out, USB type B, RS232 9-pin D-type. 1 x 8p8c and 1 x SFP for ADDERLink INFINITY network connections.

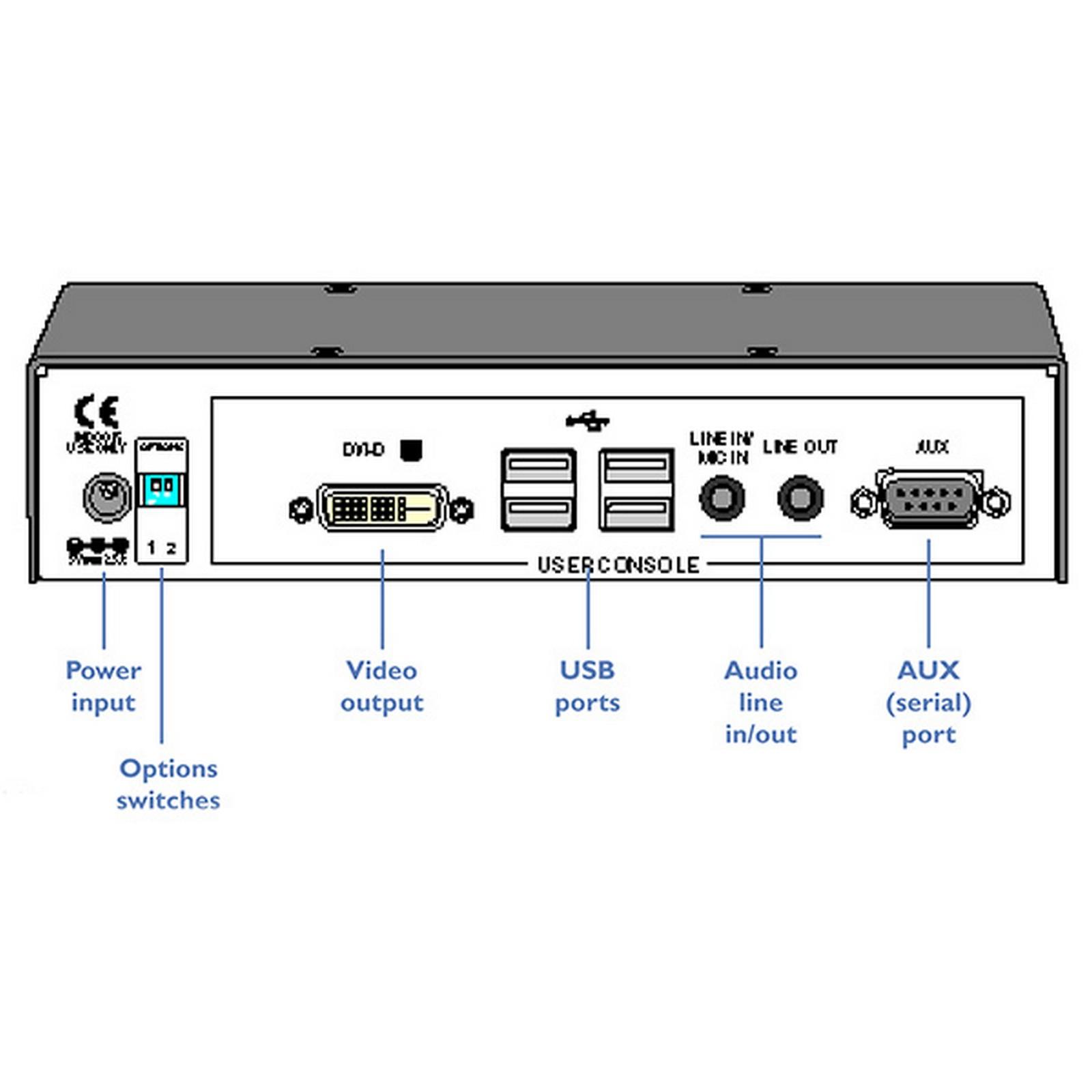

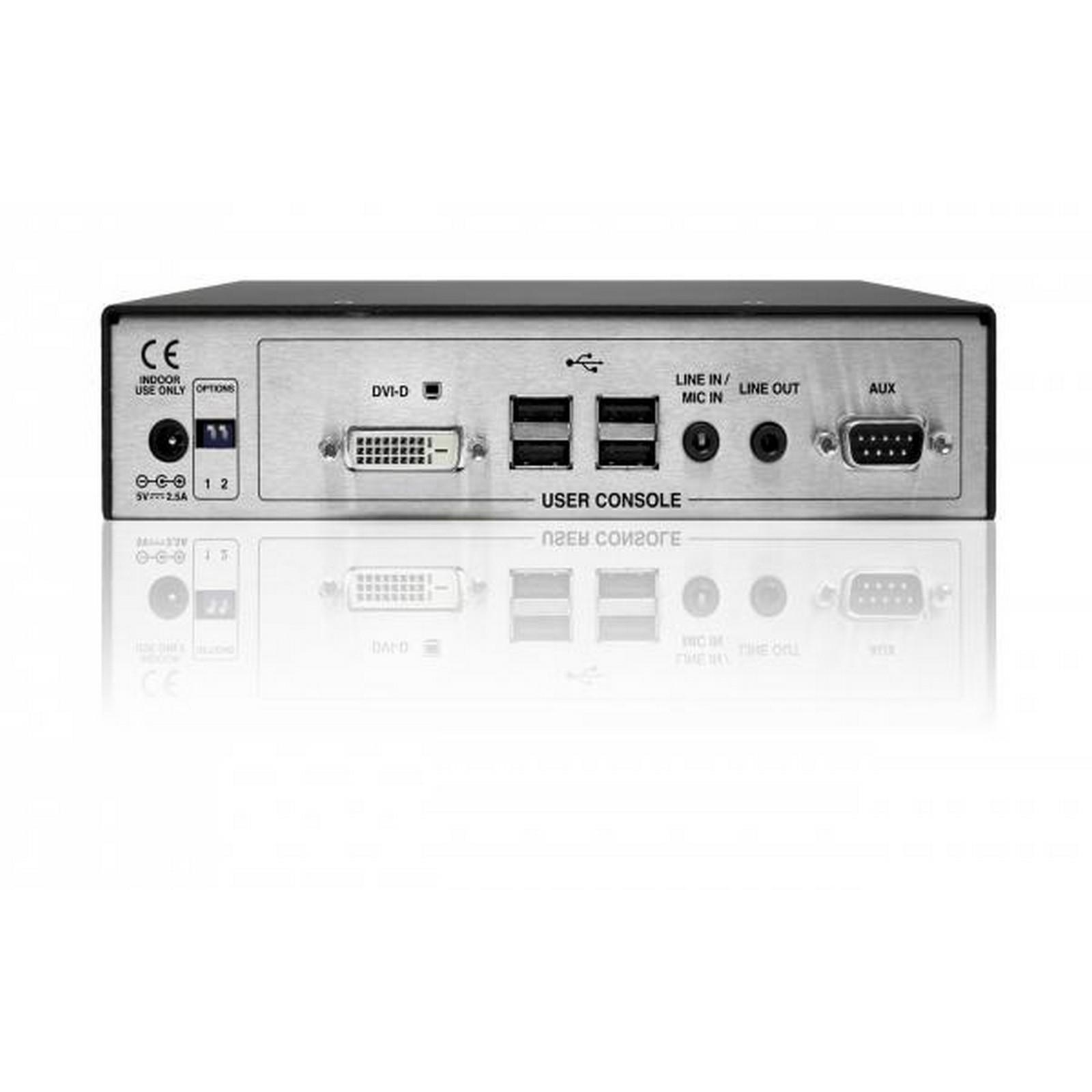

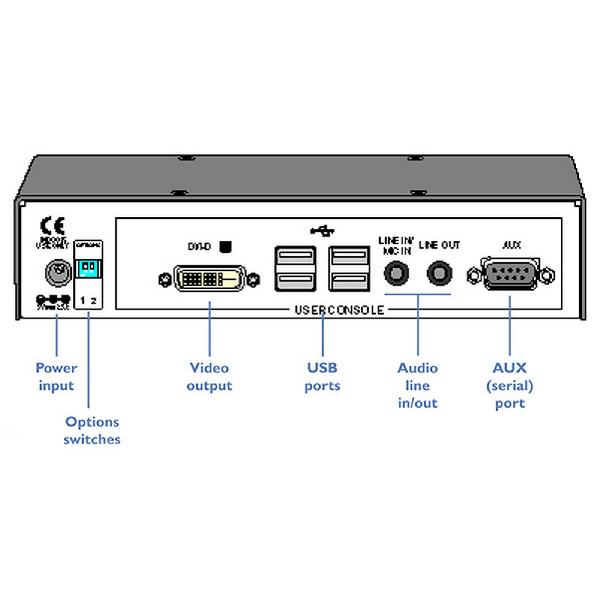

Connectors – Remote Unit

1 x DVI-D, audio 3.5mm in, audio 3.5mm out, 4 x USB type A, RS232 9-pin D-type. 1 x 8p8c and 1 x SFP for ADDERLink Infinity network connections.

Mechanical

1U compact case, robust metal construction. 198mm/7.92” (w), 44mm/1.76” (h), 150mm/6.0” (d), 1.1kg/2.7lbs.

Power

2.5mm DC jack (power adapter included),100-240VAC 50/60Hz, 0.8A, input to power adapter. 5VDC 20W output from power adapter.

Software

All known operating systems.

Name Type Version Release Date
ADDERLink™ INFINITY 1002 Manual 1.0 12 January 2021
