NE-4100 Series

Home  >   MOXA  >   Industrial Edge Connectivity  >
Serial Device Servers  >   Serial Embedded Modules

10/100 Mbps embedded serial device servers

Product Feature

  • 10/100 Mbps Ethernet interface
  • Supports baudrates up to 230.4 kbps
  • Choice of operation modes: Real COM, TCP Server, TCP Client, and UDP
  • Supports DHCP, BootP, Static IP, and ARP
  • SNMP and email alerts for event trapping and notifications
  • Half the size of a credit card—only 57 × 40 mm
  • Low power consumption at 1.5 W, with single +5 V input

Introduction

Moxa’s NE-4100 embedded device servers are designed for manufacturers who want to add sophisticated network connectivity to their serial devices. Moxa’s embedded device servers can be used to convert any device with a standard serial interface to an Ethernet-enabled device in no time. The NE-4100 embedded device servers support 10/100 Mbps Ethernet, and provide ready-to-use operation modes, including TCP Server, TCP Client, and UDP. In addition, a Real COM driver is included for backward compatibility with legacy software.



SNMP and Email Alerts for Event Trap and Notification

  • NE-4100 embedded device servers can be configured to send an SNMP trap or email under the following conditions:
  • Cold/warm start
  • Password authentication failure
  • Change in DSR/DCD line signal
  • Change in IP address
  • Change in password

Platform

CPU16-bit MCU

Memory

Flash2 MB
SDRAM1 MB

Input/Output Interface

Configurable DIO Channels (by
software)
4

Ethernet Interface

10/100BaseT(X) Ports, Auto
MDI/MDI-X

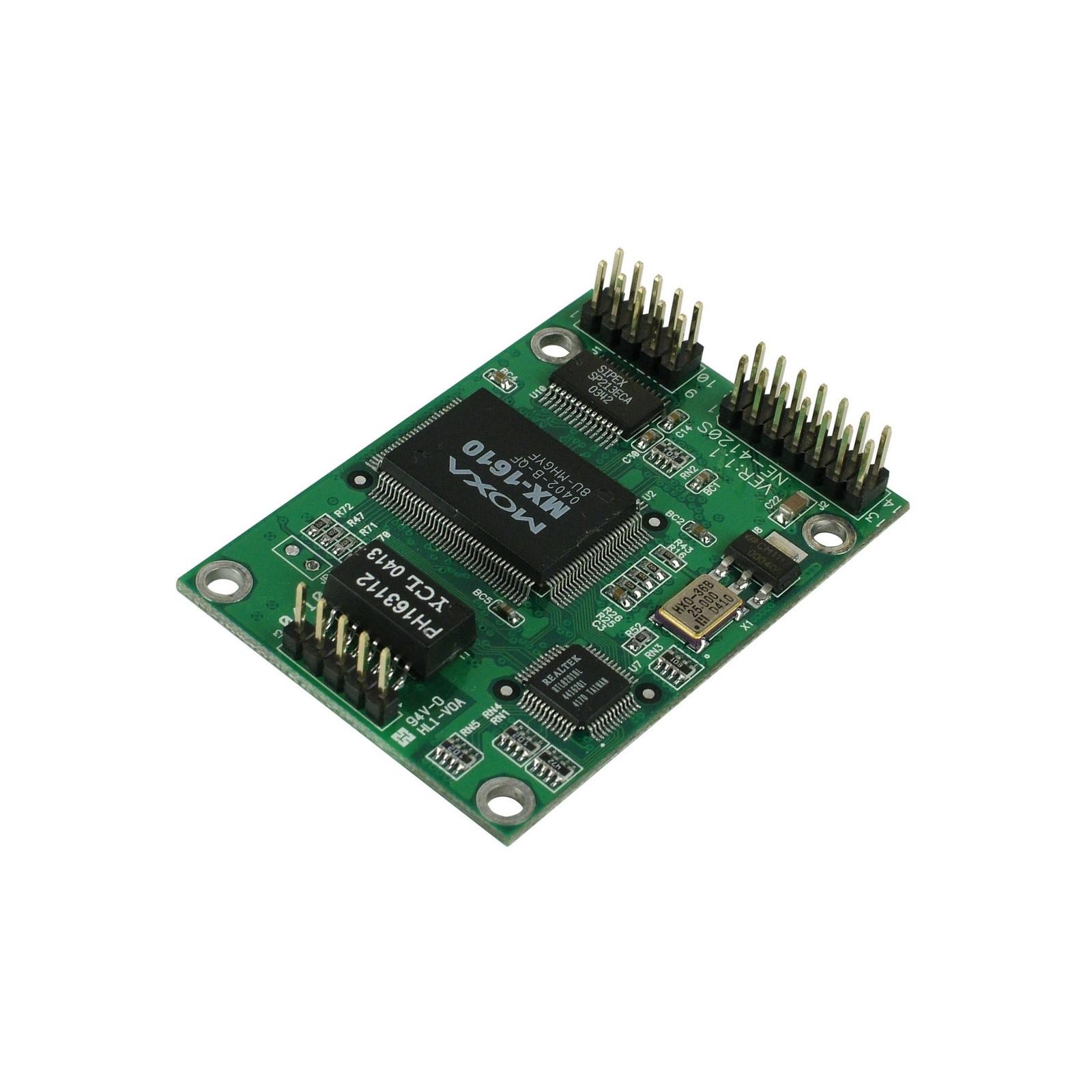

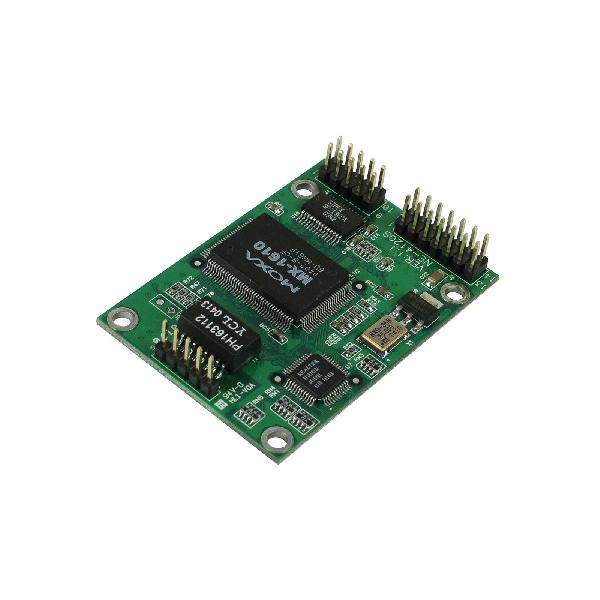

NE-4120S/4120A: 5-pin pin header

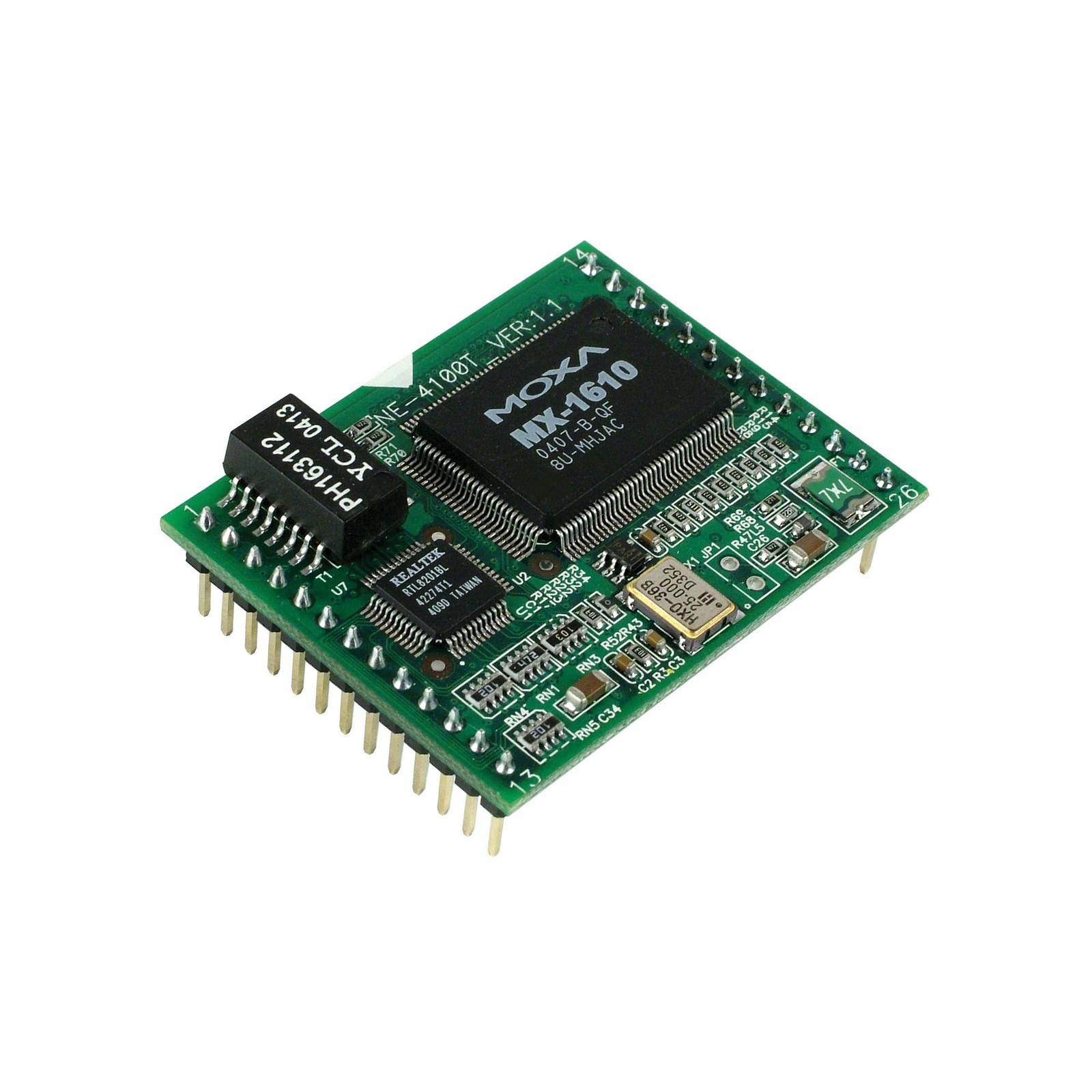

NE-4100T: 26-pin dual-in-line

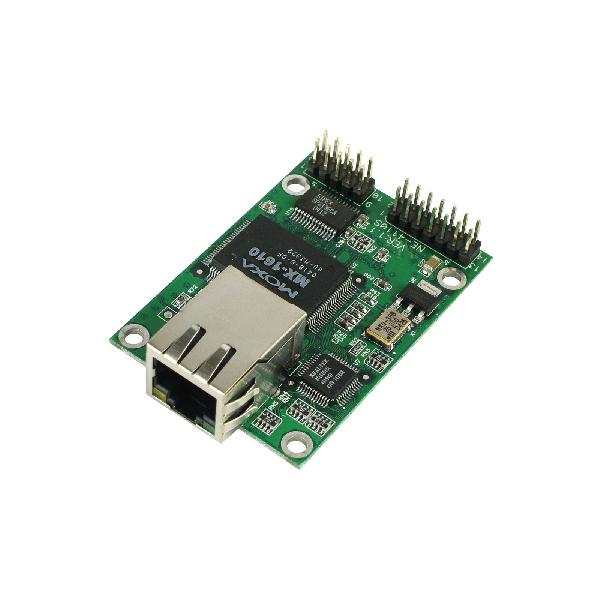

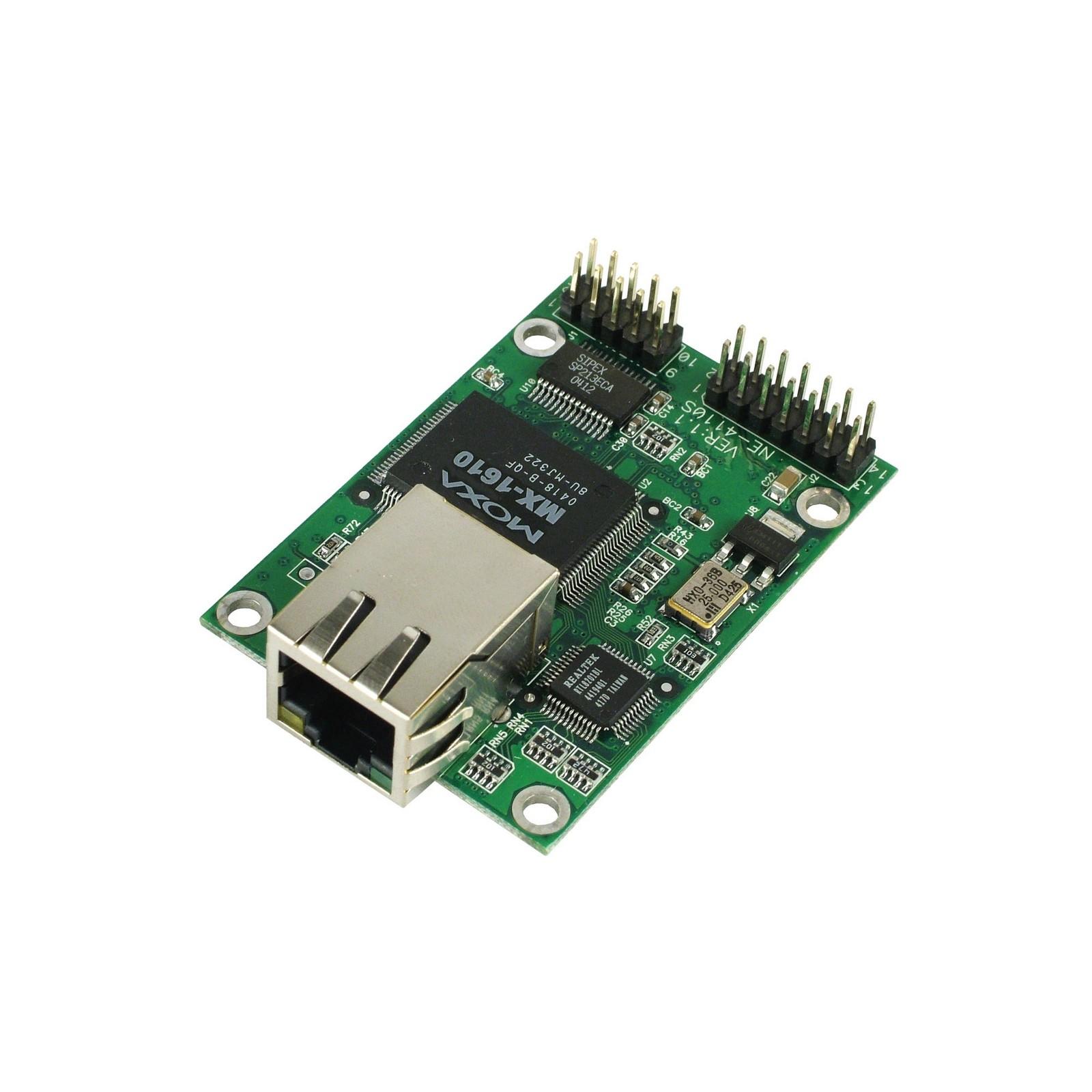

NE-4110S/4110A: 8-pin RJ45
Magnetic Isolation Protection1.5 kV (built-in)
StandardsIEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.3x for flow control

Ethernet Software Features

Configuration OptionsWeb Console (HTTP), Windows Utility, Telnet Console, Serial Console
ManagementARP, Device Search Utility (DSU), DHCP Client, HTTP, IPv4, SMTP,
SNMPv1/v2c, TCP/IP, Telnet, UDP, Web Console, ICMP
Windows Real COM DriversWindows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10
(x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows
Embedded CE 5.0/6.0, Windows XP Embedded
Linux Real TTY DriversKernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x
Fixed TTY DriversSCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10,
FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Android APIAndroid 3.1.x and later

Serial Interface

No. of Ports2 (1 for serial interface, 1 for TTL console port)
Serial StandardsNE-4110S/4120S Series: RS-232
NE-4110A/4120A Series: RS-422, RS-485
NE-4100T Series: TTL
Operation ModesReal COM mode, TCP Client mode, TCP Server mode, UDP mode
Baudrate110 bps to 230.4 kbps
Data Bits5, 6, 7, 8
Stop Bits1, 1.5, 2
ParityNone, Even, Odd, Space, Mark
Flow ControlNone, RTS/CTS, DTR/DSR, XON/XOFF

Serial Signals

RS-232NE-4110S/4120S: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422NE-4110A/4120A: TX+, TX-, RX+, RX-, GND
RS-485-4wNE-4110A/4120A: TX+, TX-, RX+, RX-, GND
RS-485-2wNE-4110A/4120A: Data+, Data-, GND

Power Parameters

Input Voltage5 VDC
Power Consumption290 mA @ 5 VDC

Physical Characteristics

DimensionsNE-4110/4120: 57 x 40 mm (2.24 x 1.57 in)
NE-4100T: 45 x 36 mm (1.77 x 1.42 in)
WeightNE-4110S/4110A: 40 g (0.09 lb)
NE-4120S/4120A/4100T: 20 g (0.04 lb)
Form Factor TypeNE-4110/4110A/4120S/4120A: Ready-to-go pin header modules
NE-4100T: Drop-in modules

Environmental Limits

Operating TemperatureStandard Models: 0 to 55˚C (32 to 131˚F)
Wide Temp. Models: -40 to 75˚C (-40 to 167˚F)
Storage Temperature (package
included)
-40 to 60°C (-40 to 140°F)
Ambient Relative Humidity5 to 95% (non-condensing)

Standards and Certifications

EMCEN 55032/24
EMICISPR 32, FCC Part 15B Class A
EMSIEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 1 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
IEC 61000-4-8 PFMF
Environmental TestingIEC 60068-2-1
IEC 60068-2-3
IEC 60068-2-14

Declaration

Green ProductRoHS, CRoHS, WEEE

MTBF

TimeNE-4100T: 288,173 hrs
NE-4110S: 290,276 hrs
NE-4110A/4120S/4120A: 289,573 hrs
StandardsTelcordia SR332

Warranty

Warranty Period5 years
DetailsSee www.moxa.com/warranty
Name Type Version Release Date
Datasheet for NE-4100 Series Datasheet V1.3 24 June 2020
