Moxa’s NE-4100 embedded device servers are designed for manufacturers who want to add sophisticated network connectivity to their serial devices. Moxa’s embedded device servers can be used to convert any device with a standard serial interface to an Ethernet-enabled device in no time. The NE-4100 embedded device servers support 10/100 Mbps Ethernet, and provide ready-to-use operation modes, including TCP Server, TCP Client, and UDP. In addition, a Real COM driver is included for backward compatibility with legacy software.
Platform | |
| CPU | 16-bit MCU |
Memory | |
| Flash | 2 MB |
| SDRAM | 1 MB |
Input/Output Interface | |
| Configurable DIO Channels (by software) | 4 |
Ethernet Interface | |
| 10/100BaseT(X) Ports, Auto MDI/MDI-X | NE-4120S/4120A: 5-pin pin header NE-4100T: 26-pin dual-in-line NE-4110S/4110A: 8-pin RJ45 |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3x for flow control |
Ethernet Software Features | |
| Configuration Options | Web Console (HTTP), Windows Utility, Telnet Console, Serial Console |
| Management | ARP, Device Search Utility (DSU), DHCP Client, HTTP, IPv4, SMTP, SNMPv1/v2c, TCP/IP, Telnet, UDP, Web Console, ICMP |
| Windows Real COM Drivers | Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Linux Real TTY Drivers | Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x |
| Fixed TTY Drivers | SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X |
| Android API | Android 3.1.x and later |
Serial Interface | |
| No. of Ports | 2 (1 for serial interface, 1 for TTL console port) |
| Serial Standards | NE-4110S/4120S Series: RS-232 NE-4110A/4120A Series: RS-422, RS-485 NE-4100T Series: TTL |
| Operation Modes | Real COM mode, TCP Client mode, TCP Server mode, UDP mode |
| Baudrate | 110 bps to 230.4 kbps |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | None, RTS/CTS, DTR/DSR, XON/XOFF |
Serial Signals | |
| RS-232 | NE-4110S/4120S: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | NE-4110A/4120A: TX+, TX-, RX+, RX-, GND |
| RS-485-4w | NE-4110A/4120A: TX+, TX-, RX+, RX-, GND |
| RS-485-2w | NE-4110A/4120A: Data+, Data-, GND |
Power Parameters | |
| Input Voltage | 5 VDC |
| Power Consumption | 290 mA @ 5 VDC |
Physical Characteristics | |
| Dimensions | NE-4110/4120: 57 x 40 mm (2.24 x 1.57 in) NE-4100T: 45 x 36 mm (1.77 x 1.42 in) |
| Weight | NE-4110S/4110A: 40 g (0.09 lb) NE-4120S/4120A/4100T: 20 g (0.04 lb) |
| Form Factor Type | NE-4110/4110A/4120S/4120A: Ready-to-go pin header modules NE-4100T: Drop-in modules |
Environmental Limits | |
| Operating Temperature | Standard Models: 0 to 55˚C (32 to 131˚F) Wide Temp. Models: -40 to 75˚C (-40 to 167˚F) |
| Storage Temperature (package included) | -40 to 60°C (-40 to 140°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
Standards and Certifications | |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF |
| Environmental Testing | IEC 60068-2-1 IEC 60068-2-3 IEC 60068-2-14 |
Declaration | |
| Green Product | RoHS, CRoHS, WEEE |
MTBF | |
| Time | NE-4100T: 288,173 hrs NE-4110S: 290,276 hrs NE-4110A/4120S/4120A: 289,573 hrs |
| Standards | Telcordia SR332 |
Warranty | |
| Warranty Period | 5 years |
| Details | See www.moxa.com/warranty |
| Name | Type | Version | Release Date | |
| Datasheet for NE-4100 Series | Datasheet | V1.3 | 24 June 2020 |

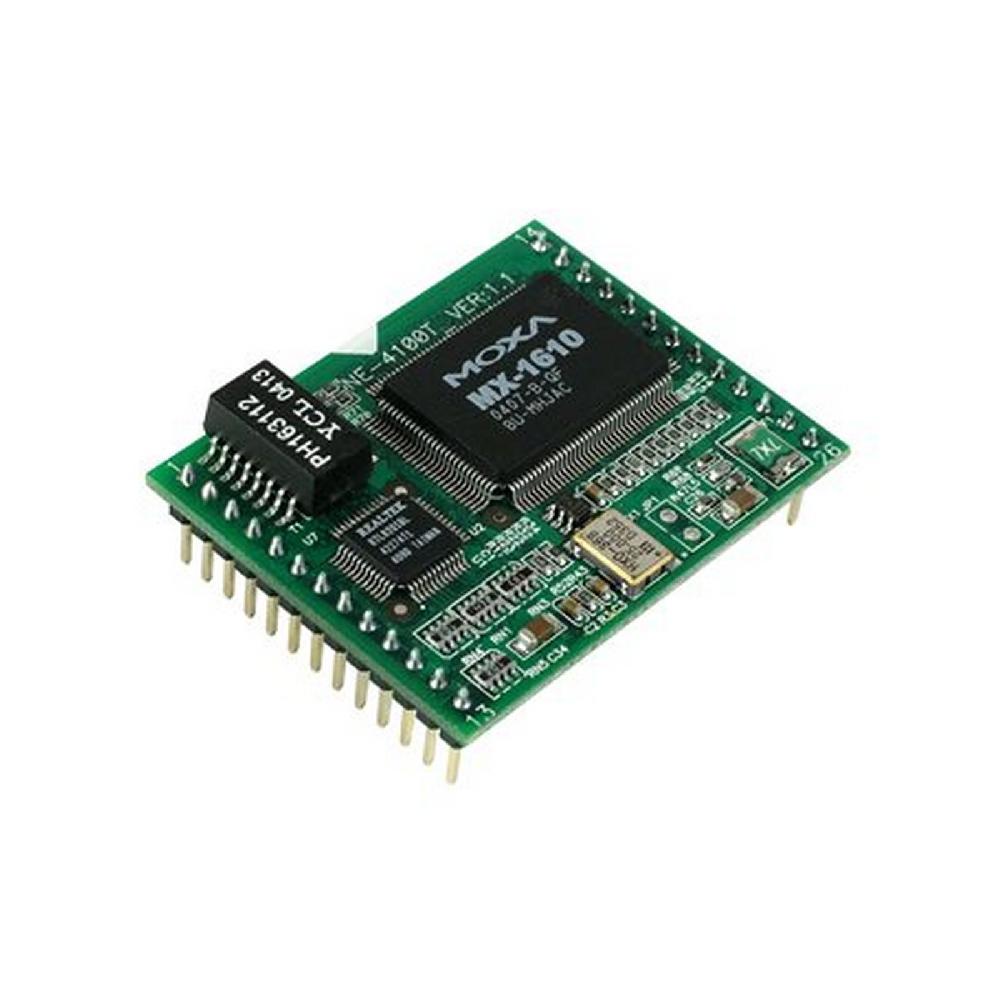

| Ethernet Interface | 26-pin dual-in-line |
| Serial Standards | TTL signals |
| Operating Temp. | 0 to 55°C |
| Form Factor Type | Drop-in module |
| Ethernet Interface | 26-pin dual-in-line |
| Serial Standards | TTL signals |
| Operating Temp. | -40 to 75°C |
| Form Factor Type | Drop-in module |

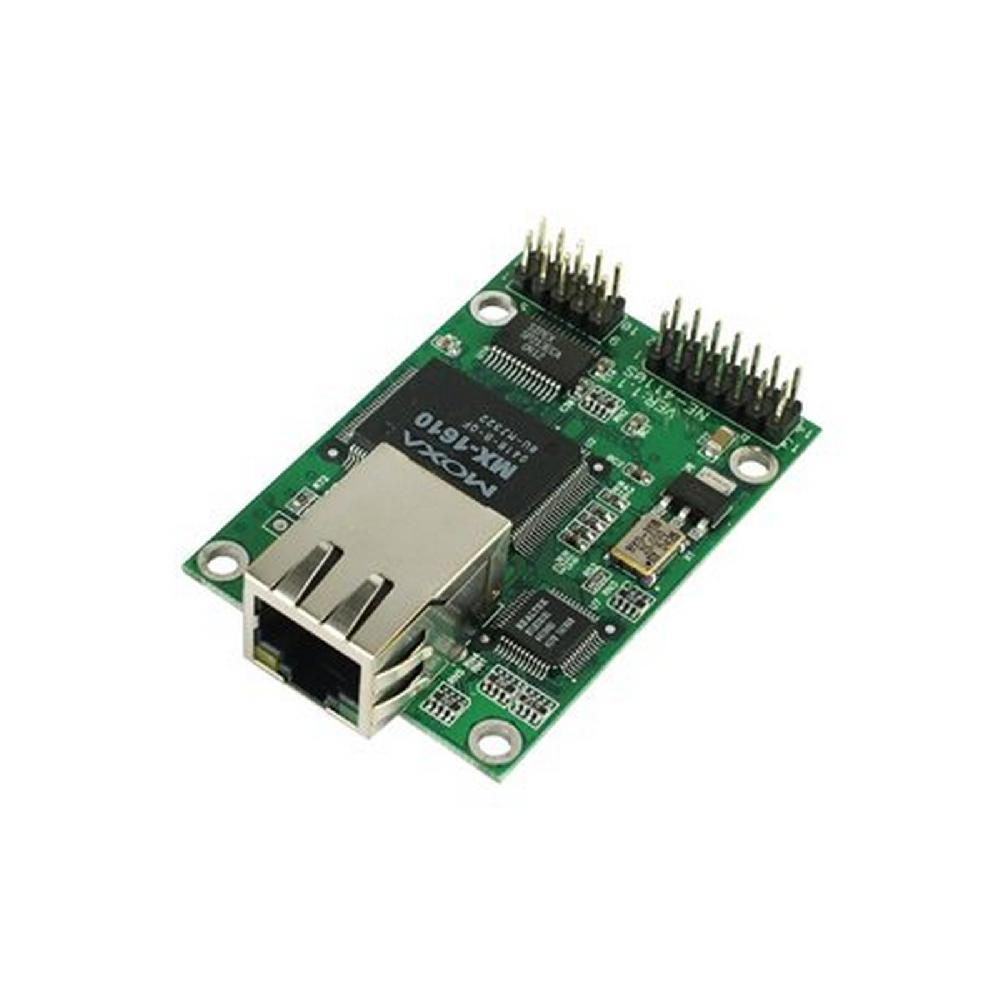

| Ethernet Interface | RJ45 |
| Serial Standards | RS-232 |
| Operating Temp. | 0 to 55°C |
| Form Factor Type | Ready-to-go pin header module |
| Ethernet Interface | RJ45 |
| Serial Standards | RS-232 |
| Operating Temp. | -40 to 75°C |
| Form Factor Type | Ready-to-go pin header module |
| Ethernet Interface | RJ45 |
| Serial Standards | RS-422/485 |
| Operating Temp. | 0 to 55°C |
| Form Factor Type | Ready-to-go pin header module |
| Ethernet Interface | RJ45 |
| Serial Standards | RS-422/485 |
| Operating Temp. | -40 to 75°C |
| Form Factor Type | Ready-to-go pin header module |

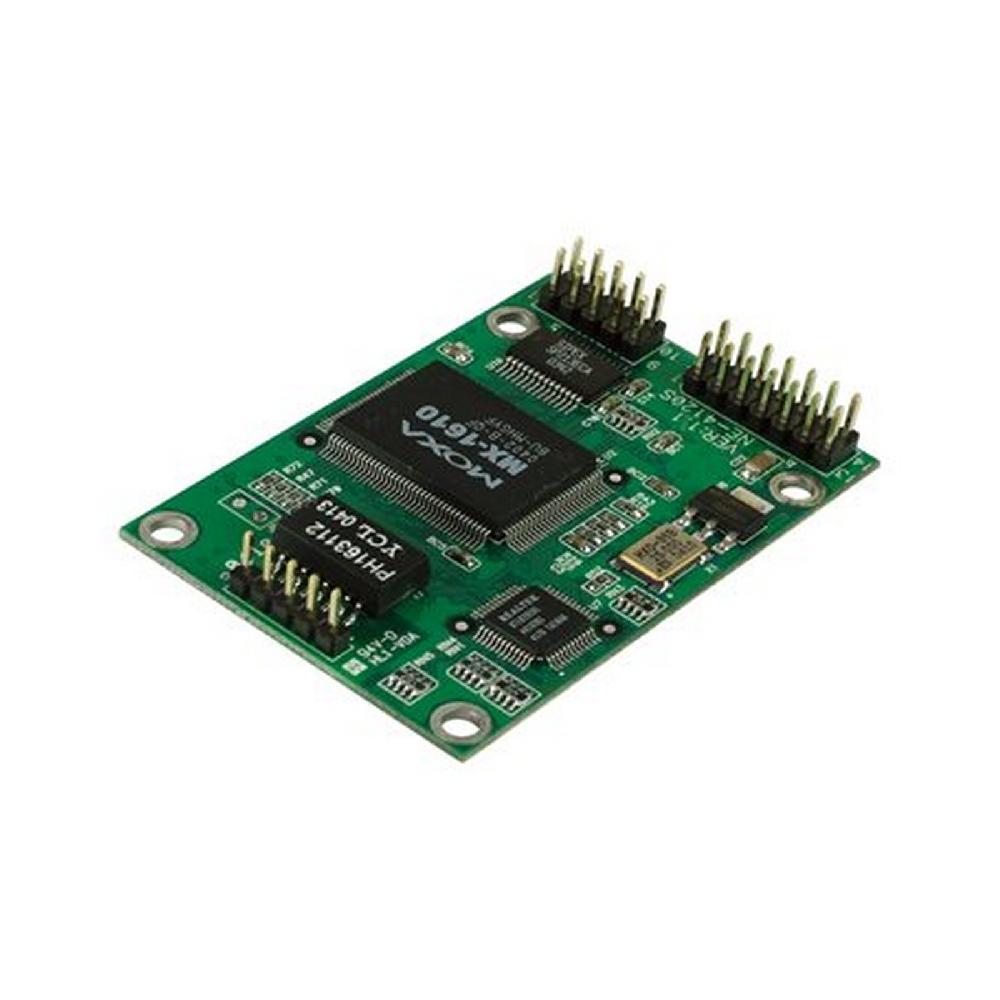

| Ethernet Interface | 5-pin pin header |
| Serial Standards | RS-232 |
| Operating Temp. | 0 to 55°C |
| Form Factor Type | Ready-to-go pin header module |
| Ethernet Interface | 5-pin pin header |
| Serial Standards | RS-232 |
| Operating Temp. | -40 to 75°C |
| Form Factor Type | Ready-to-go pin header module |
| Ethernet Interface | 5-pin pin header |
| Serial Standards | RS-422/485 |
| Operating Temp. | 0 to 55°C |
| Form Factor Type | Ready-to-go pin header module |
| Ethernet Interface | 5-pin pin header |
| Serial Standards | RS-422/485 |
| Operating Temp. | -40 to 75°C |
| Form Factor Type | Ready-to-go pin header module |
