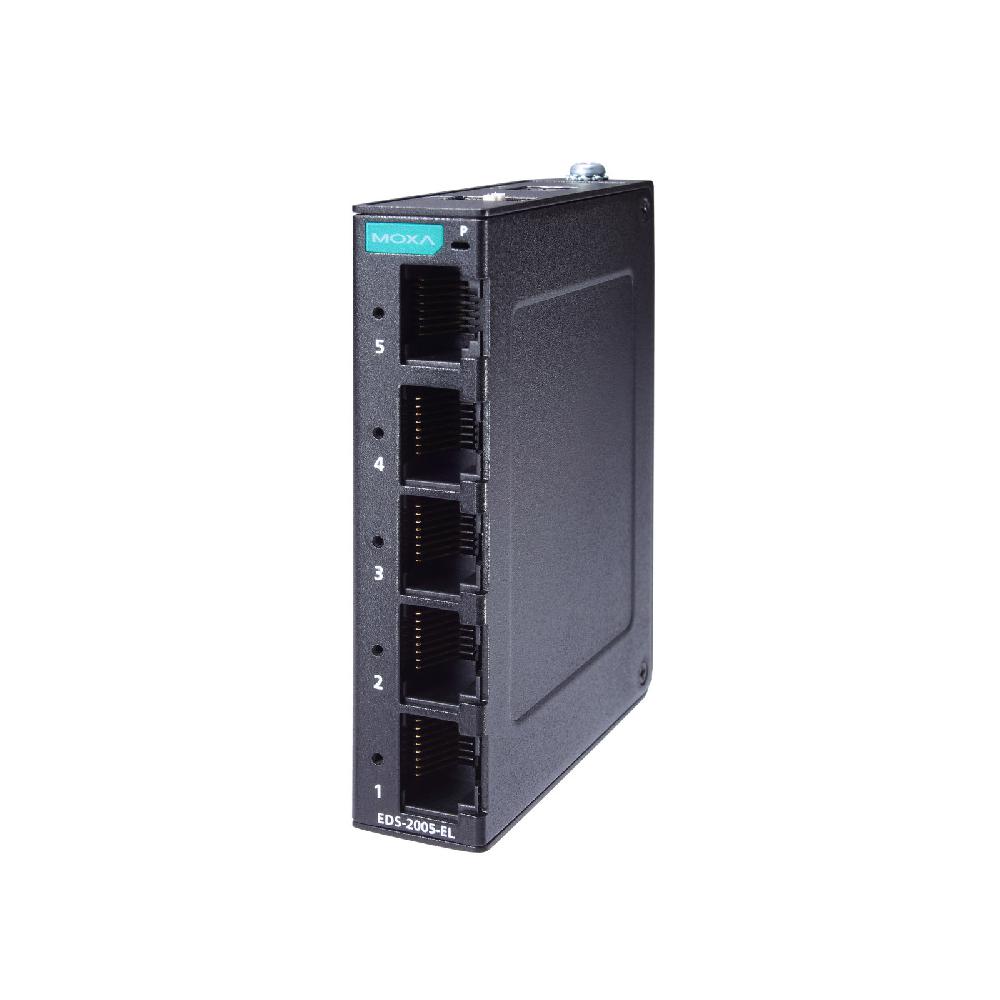

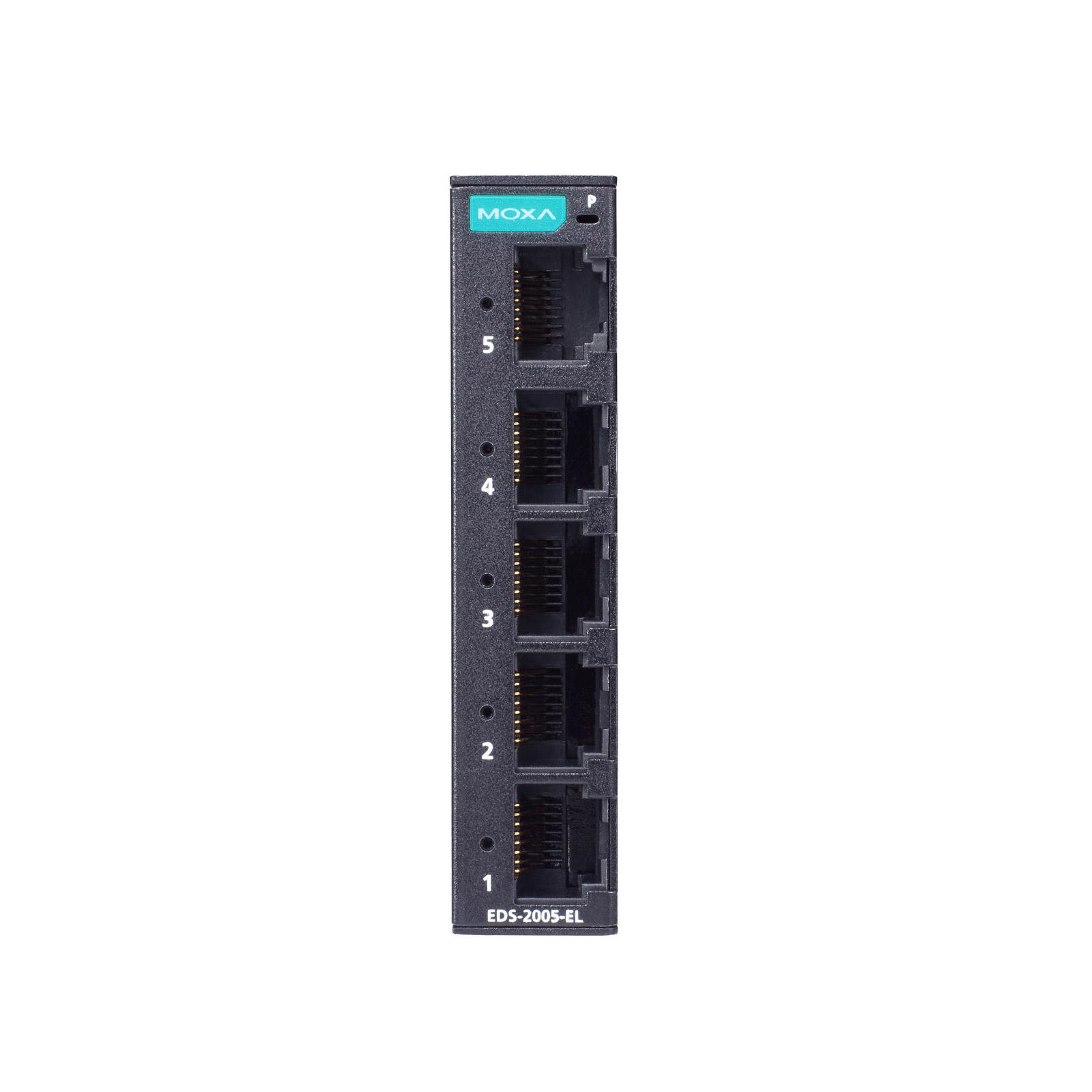

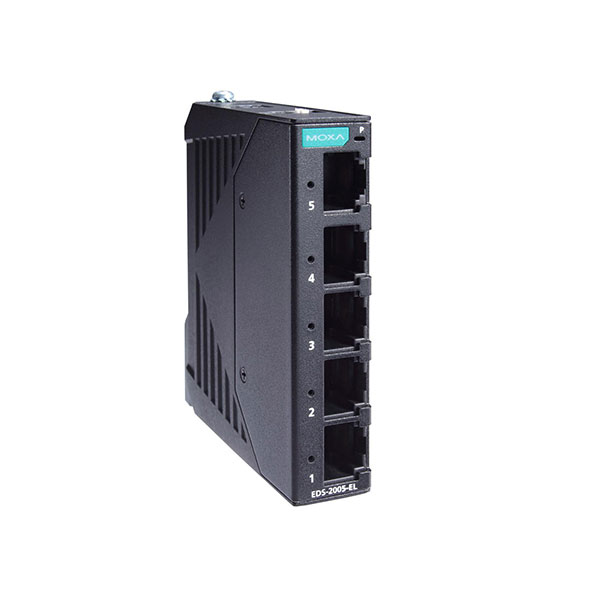

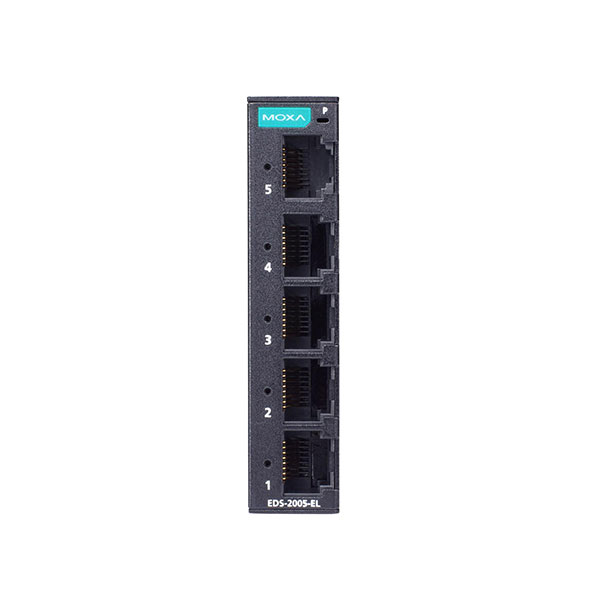

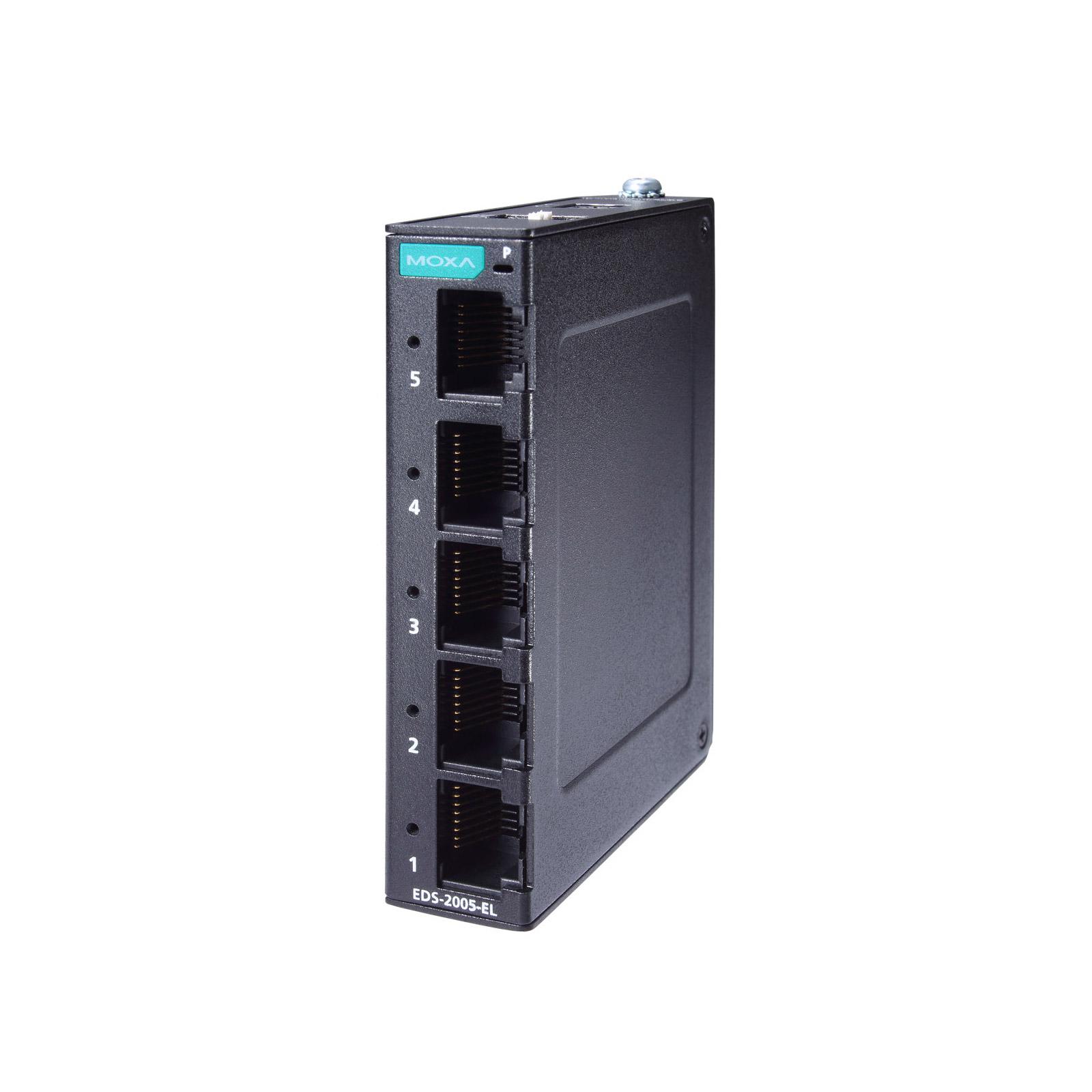

The EDS-2005-EL series of industrial Ethernet switches have five 10/100M copper ports, which are ideal for applications that require simple industrial Ethernet connections. Moreover, to provide greater versatility for use with applications from different industries, the EDS-2005-EL Series also allows users to enable or disable the Quality of Service (QoS) function, and broadcast storm protection (BSP) with DIP switches on the outer panel. In addition, the EDS-2005-EL Series has a rugged metal housing to ensure suitability for use in industrial environments.
The EDS-2005-EL Series has a 12/24/48 VDC single power input, DIN-rail mounting, and high-level EMI/EMC capabilities. In addition to its compact size, the EDS-2005-EL Series has passed a 100% burn-in test to ensure it will function reliably after it has been deployed. The EDS-2005-EL Series has a standard operating temperature range of -10 to 60°C with wide-temperature (-40 to 75°C) models also available.
Ethernet Interface | |
| 10/100BaseT(X) Ports (RJ45 connector) |
|
| Standards |
|
Switch Properties | |
| Processing Type | Store and Forward |
| MAC Table Size | 8 K |
| Packet Buffer Size | 4 Mbits |
DIP Switch Configuration | |
| Ethernet Interface | Quality of Service (QoS), Broadcast Storm Protection (BSP) |
Power Parameters | |
| Connection | 1 removable 2-contact terminal block(s) |
| Input Current | 0.045 A @ 24 VDC |
| Input Voltage | 12/24/48 VDC |
| Operating Voltage | 9.6 to 60 VDC |
| Overload Current Protection | Supported |
| Reverse Polarity Protection | Supported |
Physical Characteristics | |
| Dimensions | 18 x 81 x 65 mm (0.7 x 3.19 x 2.56 in) |
| Installation | DIN-rail mounting, Wall mounting (with optional kit) |
| Weight | 105 g (0.23 lb) |
| Housing | Metal |
Environmental Limits | |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Operating Temperature |
|
| Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
Standards and Certifications | |
| Safety | UL 61010-2-201, EN 62368-1 (LVD) |
| EMC | EN 55032/35 |
| EMI | CISPR 22, 32, FCC Part 15B Class A |
| EMS |
|
| Shock | IEC 60068-2-27 |
| Vibration | IEC 60068-2-6 |
| Freefall | IEC 60068-2-32 |
MTBF | |
| Time | 4,814,369 hrs |
| Standard | Telcordia (Bellcore), GB |
Warranty | |
| Warranty Period | 5 Years |
| Details | See www.moxa.com/warranty |
Package Contents | |
| Device | 1 x EDS-2005 Series switch |
| Documentation |
|
| Name | Type | Version | Release Date | |
| Datasheet for EDS-2005-EL Series | Datasheet | v1.3 | 13 Febuary 2020 |
| 10/100BaseT(X) Ports (RJ45 connector) | 5 |
| Operating Temperature | -10 to 60°C |
| 10/100BaseT(X) Ports (RJ45 connector) | 5 |
| Operating Temperature | -40 to 75°C |
