GETAC EX80

Home  >   Getac  >   Tablets  >

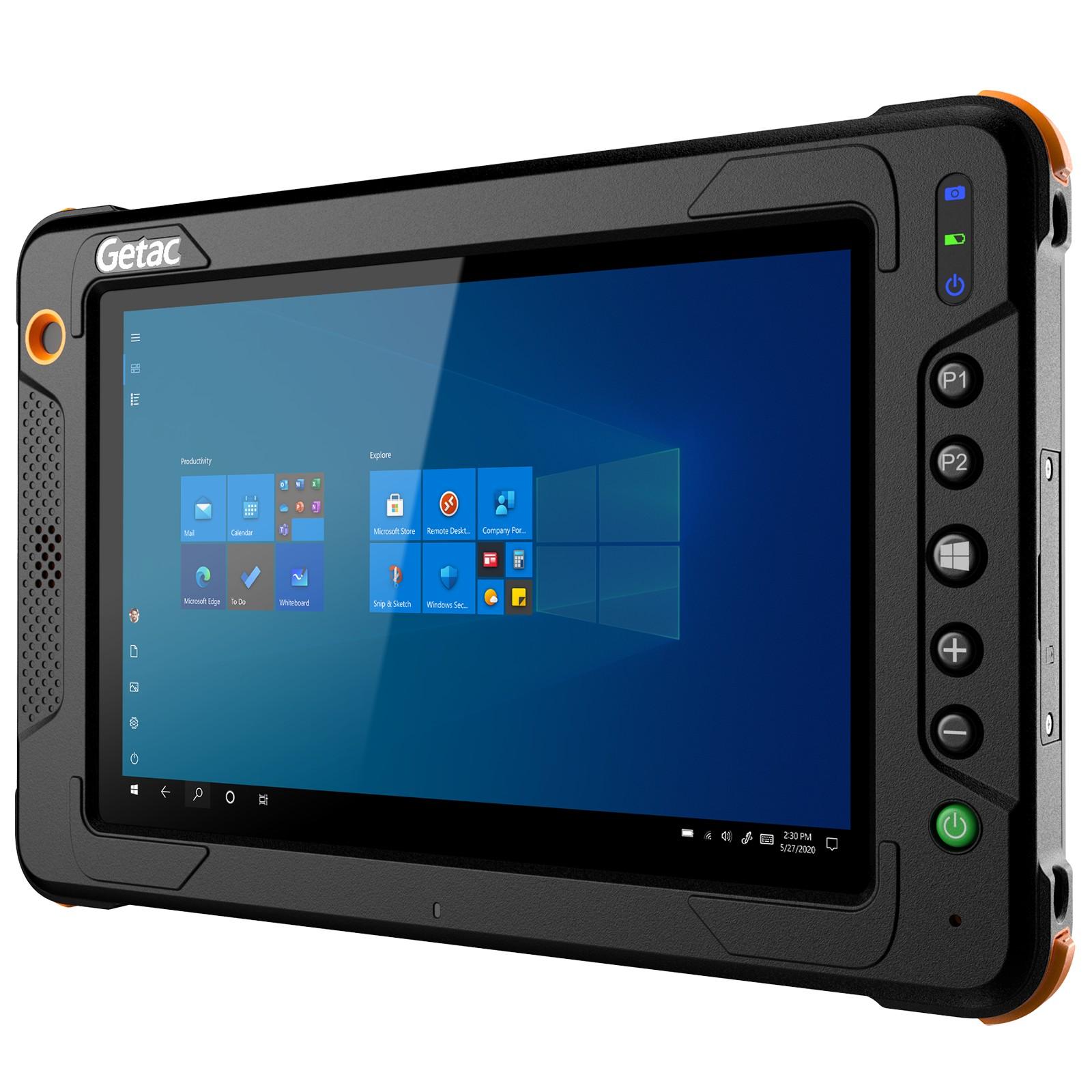

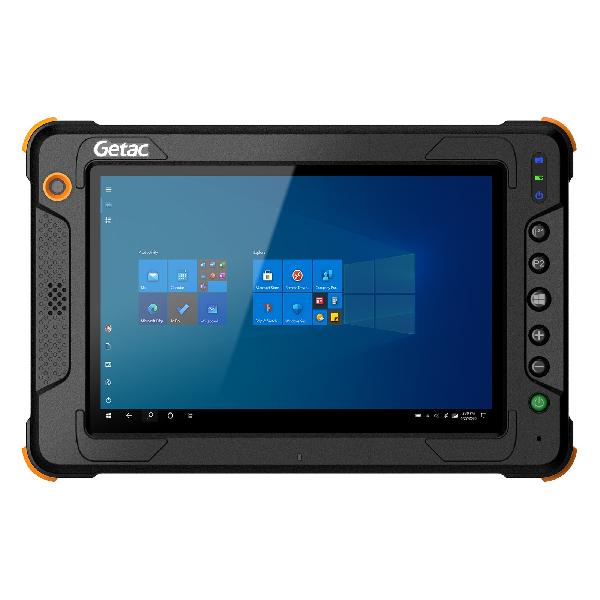

The ruggedly designed EX80 tablet delivers Windows touchscreen technology to the frontlines of the oil and gas industry.

Product Feature

  • Windows 10 Pro
  • Front and Rear Cameras
  • Security Redefined
  • Dual Band 802.11a/b/g/n Wi-Fi
  • Bluetooth 4.0
  • Excellent Connectivity
  • Dedicated GPS
  • Advanced WWAN Performance
  • Full-Shift Battery Life

Certified for duty under harsh conditions and where fire hazards may be present, the EX80 brings image clarity, precision input ability, and maximum safety, along with the proven power of the Windows 10 operating system, wherever work takes you.

The fully rugged EX80 tablet offers great convenience and productivity in a single intrinsically safe mobile device that allows cross-zone operations in Zone 1, Zone 2, and non-hazardous areas. The EX80 has passed extremely stringent tests for explosive environment and received certifications from a reputable third party. The EX80 is certified with ATEX & IECEx Zone 0/20 and UL913 Class I/II Division 1.

Operating SystemWindows 10 Pro
Mobile Computing PlatformIntel Atom® x5-Z8350 Processor 1.44GHz, burst up to 1.92 GHz
-2MB Cache
VGA ControllerIntel® HD Graphics
Display8” IPS TFT LCD WXGA (1280x800)
600 nits LumiBond® display with Getac sunlight readable technology
Capacitive multi-touch screen
Storage & Memory4GB LPDDR3
128GB eMMc
KeyboardPower button
5 tablet programmable buttons
Pointing DeviceTouchscreen
- Capacitive multi-touch screen
I/O InterfaceFHD webcam x 1
8M pixels auto focus rear camera with LED flash x 1
Docking connector
Optional: SIM card slot x 1
Communication InterfaceWi-Fi 802.11 a/b/g/n
Bluetooth (v4.0)i
Dedicated GPS (with internal antenna)
Optional: 4G LTE mobile broadband
Pre-installed SoftwareGetac Utility
Optional: Absolute Persistence®
Security FeaturesTPM 2.0
HF RFID reader
PowerLi-Ion battery (7.4V, typical 4200mAh; min. 4080mAh)
Office Dock (Charging cradle with AC adapter, 24W, 100-240VAC, 50 / 60Hz)ii
Dimensions (W x D x H) & Weight240 x 155 x 29mm (9.4" x 6.1" x 1.14")
1.48Kg (3.2lbs)iii
Rugged FeaturesMIL-STD-810G certified
IP67 certified
Vibration & 6 feet (1.8m) drop resistantv
Salt fog certified
ATEX & IECEx
Environmental SpecificationsTemperatureiv:
- Operating: -21°C to 50°C / -5.8°F to 122°F
- Storage: -51°C to 71°C / -60°F to 160°F
Humidity:
- 95% RH , non-condensing
Explosion ProtectionATEX/IECEX
Ex II 1 GD
Ex ia op is IIC T4 Ga
Ex ia op is IIIC T135ºC Da

UL913
Class I, Zone 0, AEx ia op is IIC T4 Ga
Class II, Zone 20, AEx ia op is IIIC T135ºC Da
Class I, Division 1, Groups A, B, C, D
Class II, Division 1, Groups E, F, G
Class III, Division 1
AccessoriesCapacitive stylus with tether
Rotating Hand Strap with Kick Stand and Stylus Holder
Optional:
Multi-Bay Charger (Six-Bay)
Office Dock (Charging Cradle with AC adapter, 24W, 100-240VAC, 50/60Hz) ii
Capacitive stylus with tether
Shoulder Strap (2-point)
Shoulder Harness (4-point; handsfree)
Stylus Holder
Bumper-to-Bumper WarrantyAccidents can take your equipment out of service when you least expect it, especially in a rugged environment, which can cause costly equipment downtime.
That is why Getac has introduced accidental damage as standard under our Bumper-to-Bumper warranty, to help minimize your enterprise IT costs.
Bumper-to-Bumper is your hassle-free guarantee. That means you can depend on us to have your unit back in service within days.

Standard
3 years Bumper-to-Bumper
Name Type Version Release Date
GETAC EX80 datasheet Datasheet V1.0 08 April 2021
