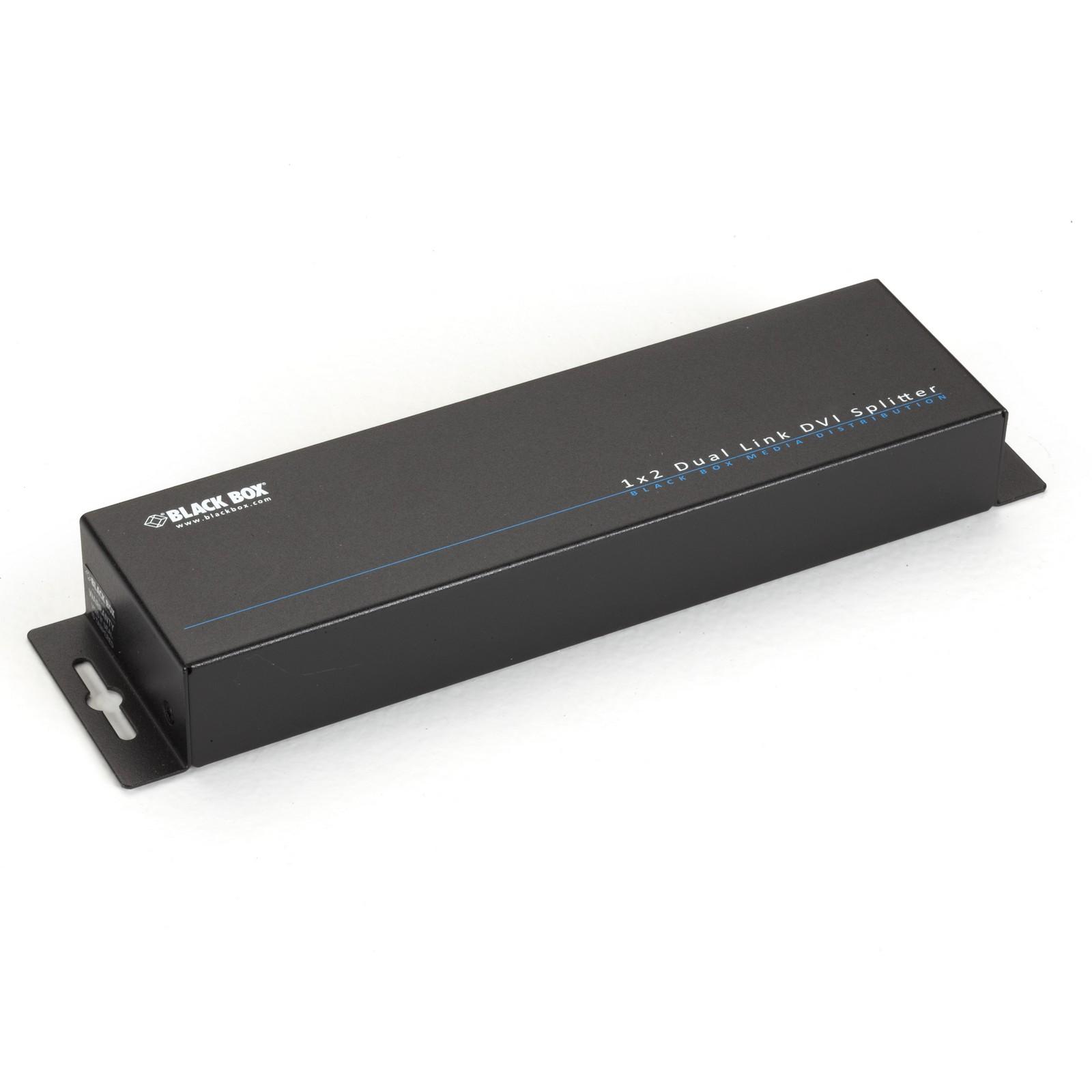

Dual-Link DVI-D Splitter - 1x2

Home  >   Black Box  >   VIDEO SPLITTERS  >
DVI

Easily split dual-link DVI for display output without loss in video quality.

Product Feature

  • Two-port splitter for duplicating dual-link DVI-D video.
  • Features a wide video frequency range, up to 300 MHz.
  • Use for digital signage, studios, classroom and conference presentations, any video broadcasting application.
  • DIP switch-selectable EDID learning of screen info.
  • Features electrostatic discharge (ESD) protection.
  • Wallmountable, durable metal chassis.

Use this affordable splitter to transmit quality dual-link video (ultra high-resolution video up to 2560 x 1600) from a DVI source to two screen locations without any loss in quality.

This distribution amplifier enables you to output DVI 1.1-compliant source video on two DVI screens simultaneously for video sharing. Just plug in DVI cables into dual-link DVI ports and connect your screens.

Compliance
cUL0
FCC
UL0
General
CE ApprovalYes
DVI StandardDVI 1.1
Input DDC Signal5 volts (peak-to-peak, TTL)
Input TMDS Signal1.2 volts (peak-to-peak)
PowerInput: AC input: 100-240 VAC, 50-60 Hz, 0.6 A; Output: 5 VDC, 4 A; Consumption (maximum): 20 watts
RoHSYes
Video Bandwidth300 MHz
Item Specifications

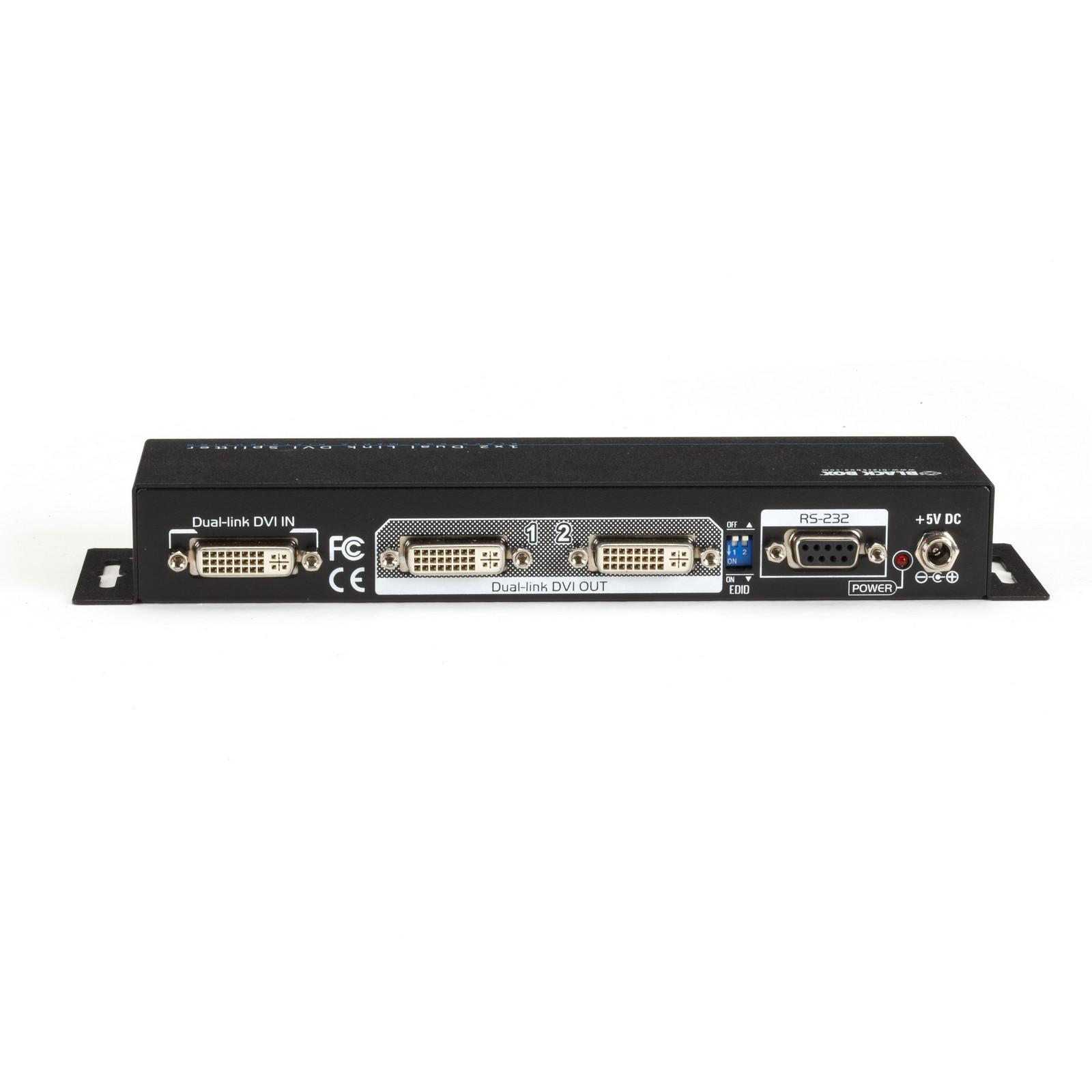

ConnectorsVideo input: (1) DVI-I F; Video output: (2) DVI-I F; Serial: (1) DB9 F (RS-232 for firmware updates)
Dimensions1"H x 8.2"W x 2.2"D (2.5 x 20.8 x 5.6 cm)
Weight0.9 lb. (0.4 kg)
Name Type Version Release Date
Dual-Link DVI-D Splitter - 1x2 Manual V.1.0 07 May 2021
