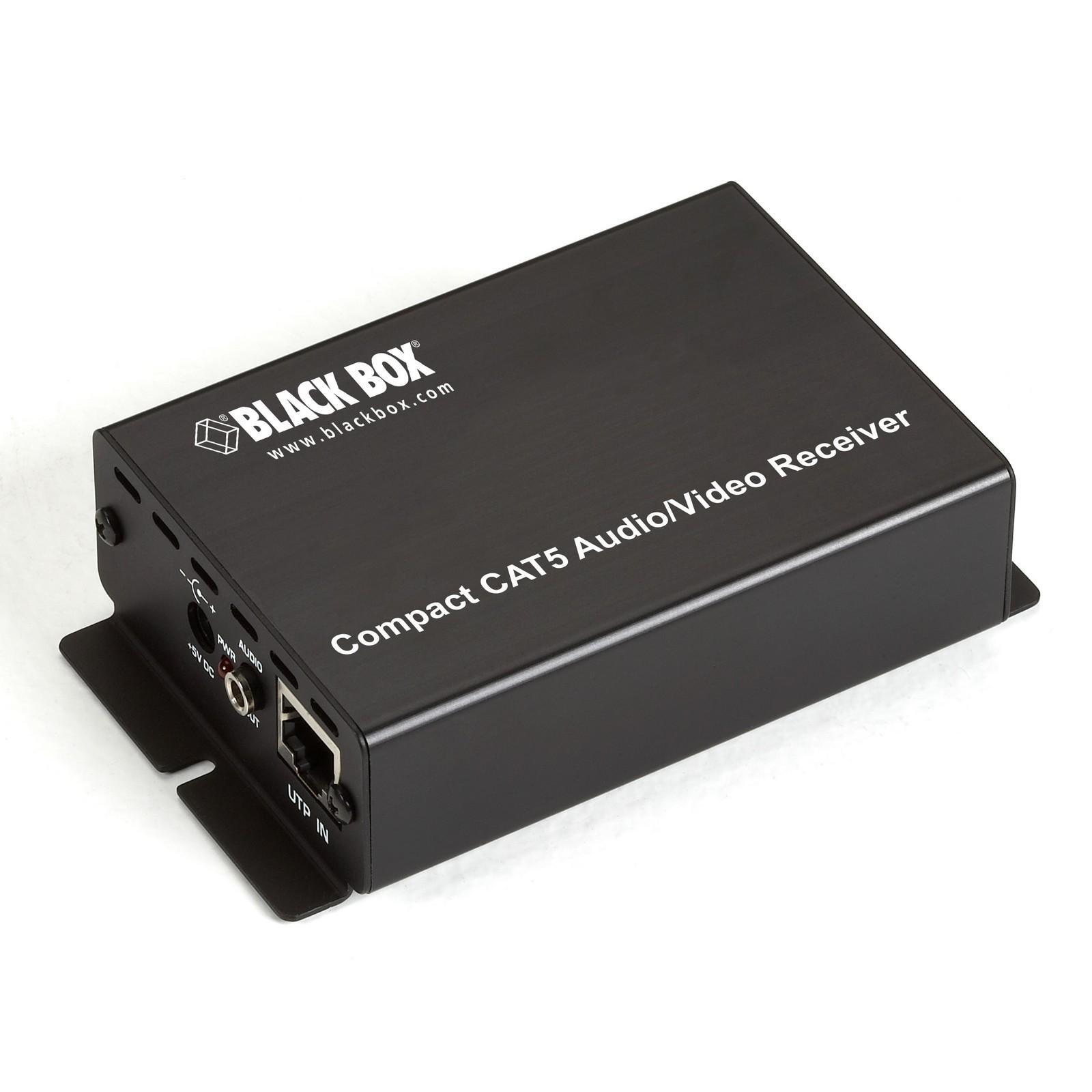

Compact CAT5 Audio/Video Receiver

Home  >   Black Box  >   VIDEO SPLITTERS  >
RGB/VGA

Use one receiver for each remote station.

Product Feature

  • Works with Compact CAT5 Audio/Video Splitters.
  • Order this receiver for each remote station. (Youll also need a splitter [AC154A-2 or AC154A-8] for the CPU end.)
  • Plug-and-play.
  • Theres no software to install, and there are no switches to set.
  • Uses CAT5 cable (shielded CAT5 is recommended), so you may even be able to use it on the cabling you already have installed!

Works with Compact CAT5 Audio/Video Splitters. Order this receiver for each remote station. (Youll also need a splitter [AC154A-2 or AC154A-8] for the CPU end.) Plug-and-play. Theres no software to install, and there are no switches to set.

Compliance
cUL0
FCC
UL0
General
CE ApprovalYes
Distance (Maximum)750 ft. (228.6 m) over standard CAT5 cable
Power115 VAC/60 Hz, external; 230 VAC/50 Hz version on request
Resolution1280 x 1024 at refresh rates of 60-85 Hz
Item Specifications

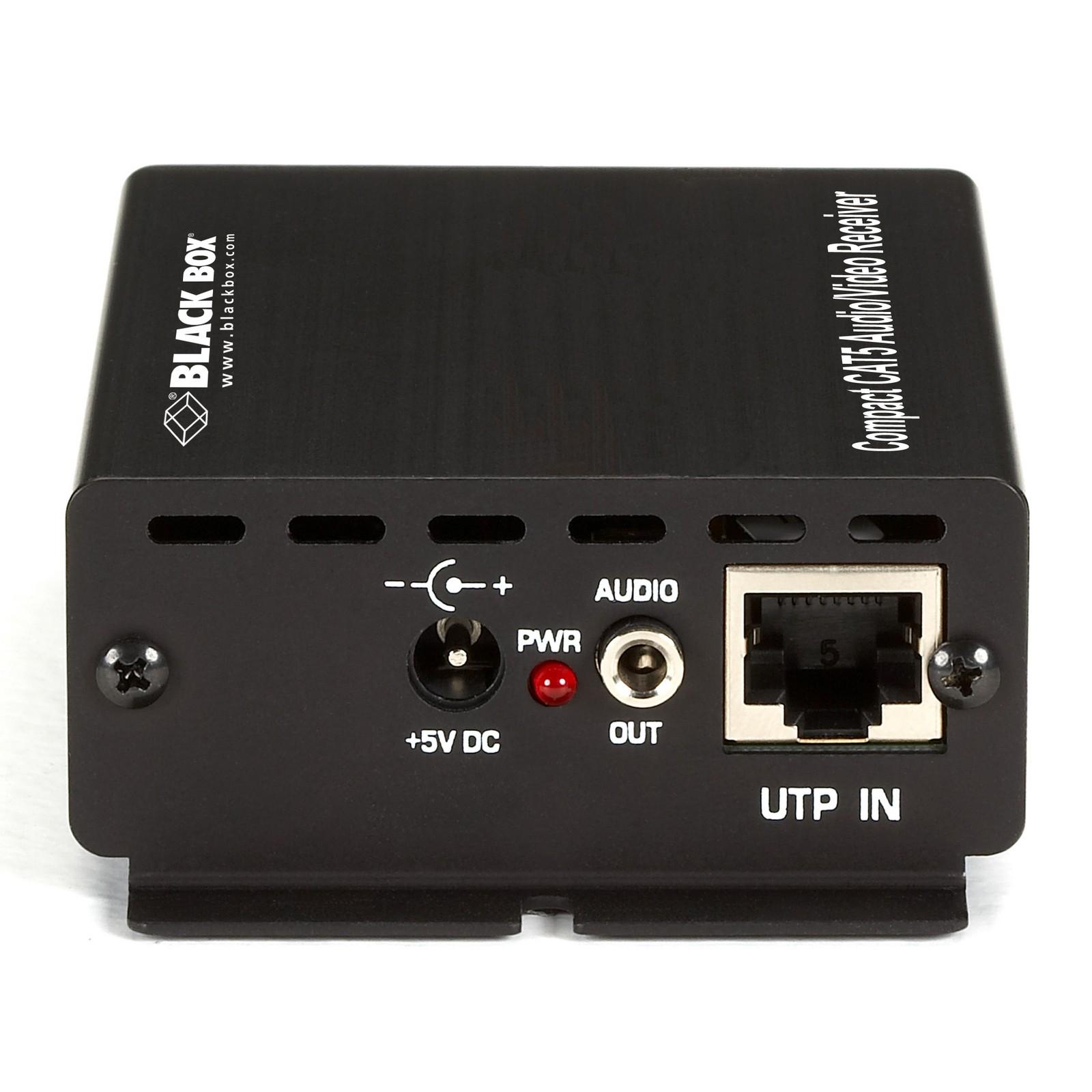

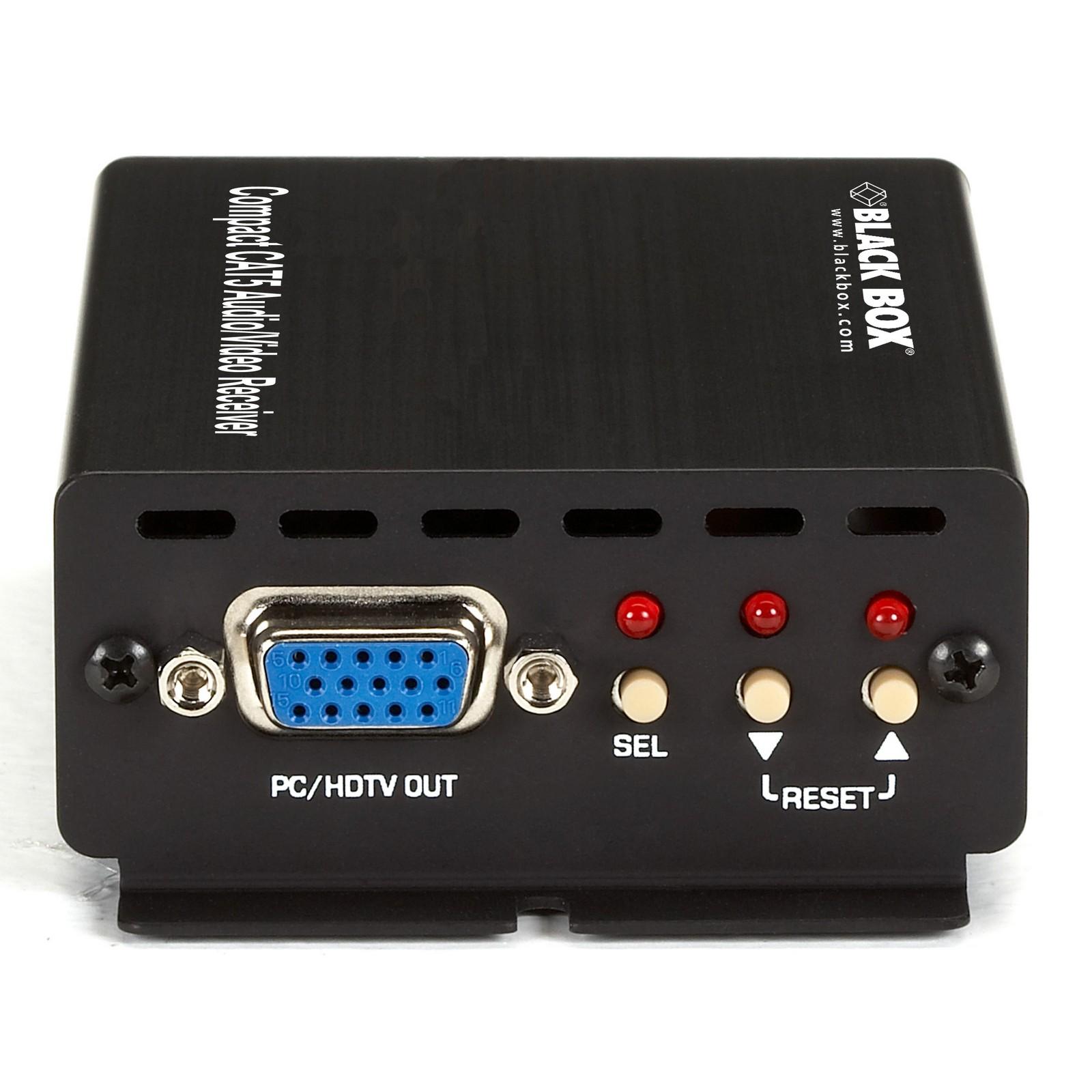

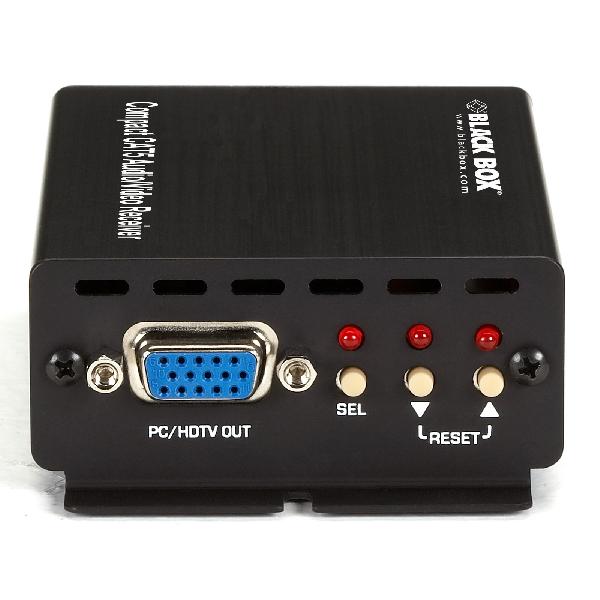

Connectors(1) RJ-45, (1) HD15 F out, (1) 3.5-mm mini stereo jack
Dimensions1.2"H x 4.2"W x 2.5"D (3 x 10.7 x 6.4 cm)
Weight0.6 lb. (0.3 kg)

This product works with:


NOTE(s):

Product works with:

  • Compact CAT5 Audio/Video Splitters (AC154A-2, AC154A-8)
  • CAT5 Shielded Twisted Pair with Snagless Boots, Solid, 4-Pair, Plenum, (EVNSL71)

  • CAT5 Shielded Solid, 100-MHz Bulk Cables, 4-Pair (EVMSL70A, etc.)

  • Premium VGA Video Extension Cable, HD15, PVC, Straight Hoods, Male/Male (EVNPS05-MM)
Name Type Version Release Date
4-Port XGA Video Splitter Datasheet 11 May 2021
Compact CAT5 Audio/Video Receiver Manual Manual 11 May 2021
