GENE-BT05

Home  >   AAEON  >   Embedded Boards  >
Embedded Single Board Computers  >   3.5” SubCompact Boards

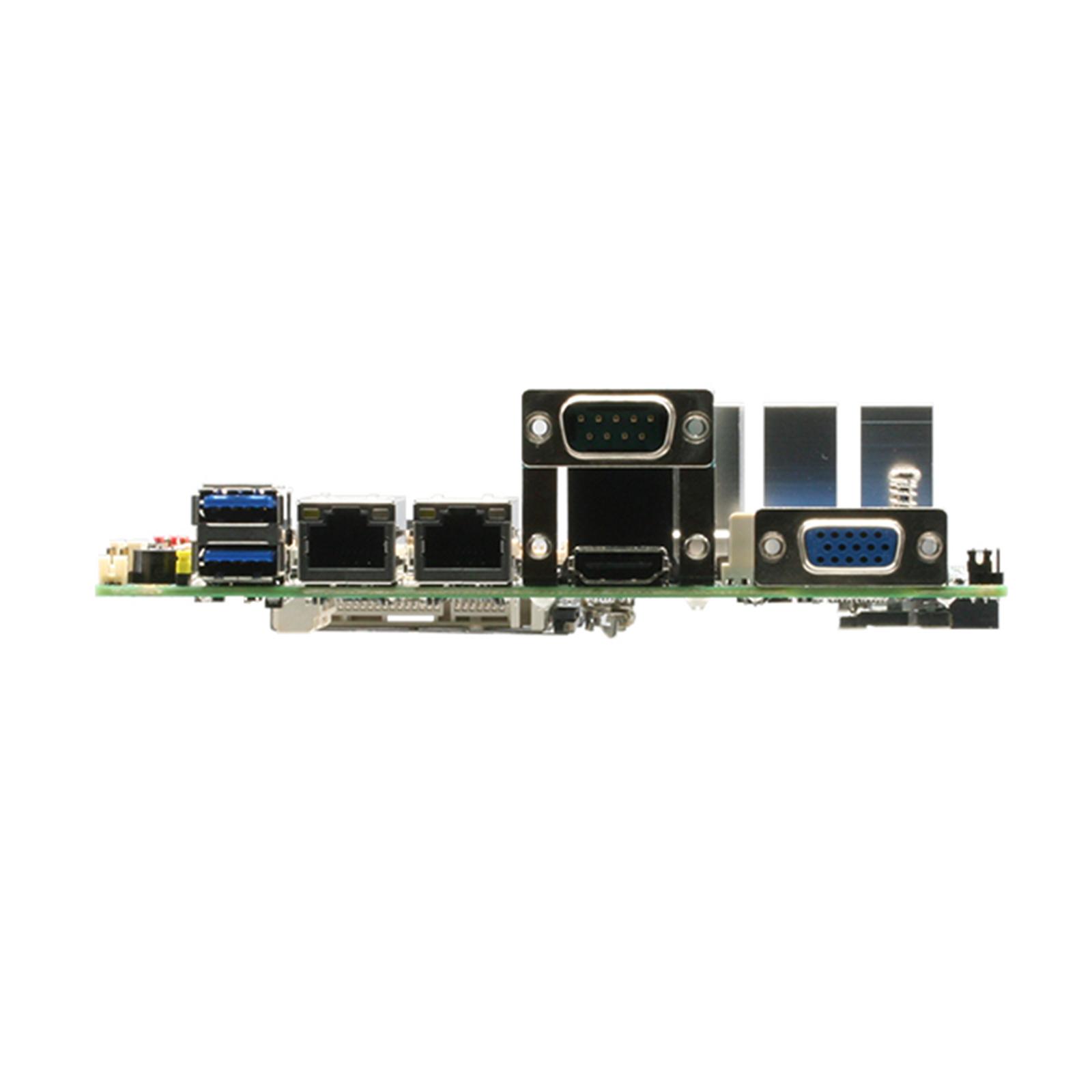

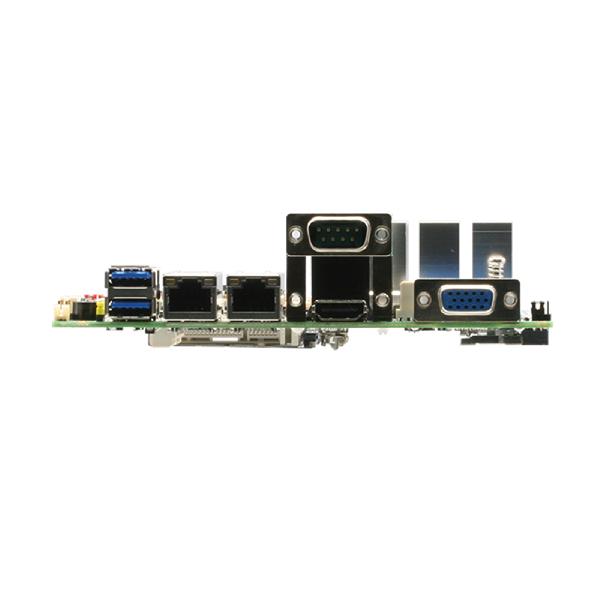

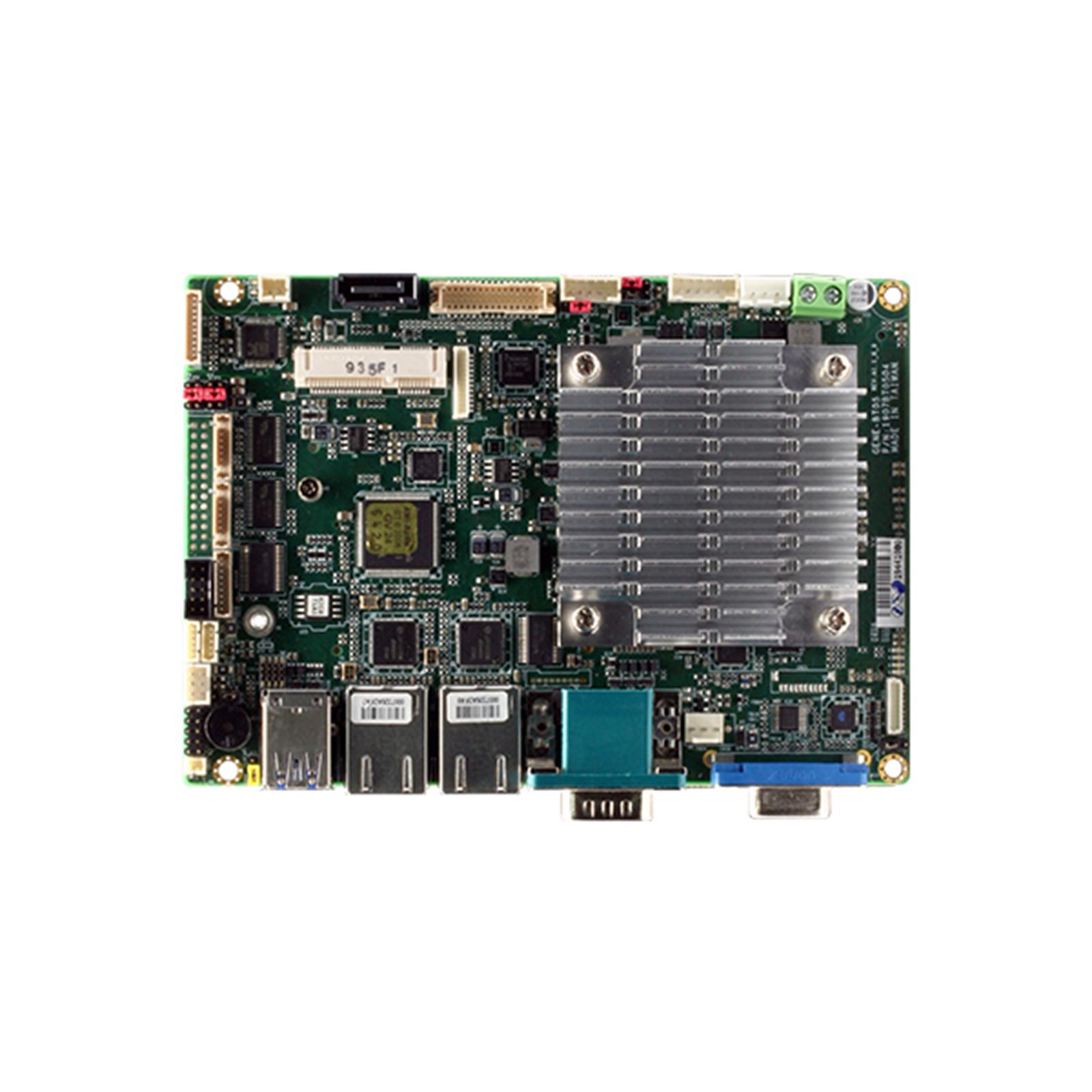

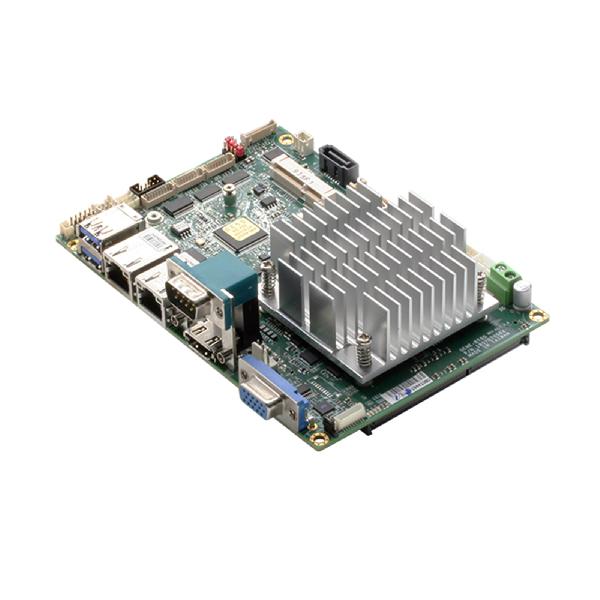

GENE-BT05,3.5” SubCompact Board with Intel® Atom™ and Celeron® Processor SoC

Product Feature

  • Onboard Intel® Atom™ and Celeron® Processor SoC
  • DDR3L 1066/1333 MHz SODIMM x 1, Up to 8 GB
  • Gigabit Ethernet x 2, RJ-45 x 2
  • CRT, 18/24-bit Dual-Channel LVDS LCD, HDMI
  • 2CH HD Audio
  • SATA 3.0 Gb/s x 1, CFast™ x 1
  • USB 3.2 Gen 1 x 1, USB2.0 x 3, COM x 4, 8-bit Digital I/O
  • Mini-Card x 2 (Full-size x 1, Half-size x 1)
  • DC 12V, AT/ATX Mode
  • Onboard 4/5/8-wire Resistive Touch Screen Controller (Optional)
  • AAEON Hi-Safe/SDK/Utility Supported
  • mSATA x 1 (Optional, Share Mini-Card Interface)
  • Onboard Trusted Platform Module (Optional)

GENE-BT05 adopts Intel® Celeron® N2930/N2807 Processor. The system memory is deployed with 204-pin SODIMM DDR3L 1066/1333 up to 8 GB. In addition, Intel® I211 supports two 10/100/1000Base-TX that allows a faster network connections.

The display of GENE-BT05 supports CRT/LCD, HDMI/ LCD simultaneous and dual view displays. This model applies two Mini Card and LPC bus for flexible expansions. Moreover, one SATA 3.0Gb/s, one CFastTM, and optional Half-size mSATA provide ample storage. Three USB2.0, one USB3.0, four COM Ports (two RS-232, two RS-232/422/485) and 8-bit digital I/O are configured on the GENE-BT05 as well. Full functions make GENE-BT05 a flexible and user friendly solution. This brand new SubCompact board is developed to cater to the requirements of Automation, Medical, ticket machine, transportation, gaming, KIOSK, and POS/POI applications.

Applications

  • Building/ Factory Automation
  • KIOSK
  • Medical Equipment
  • Test & Measurement
