Audio/Video Splitter - 2-Port

Home  >   Black Box  >   VIDEO SPLITTERS  >
RGB/VGA

It's 400-MHz, 2048 x 1536 resolution keeps pace with today's highest video standards.

Product Feature

  • Transmit video and audio signals from one PC to two monitors and headphones located up to 213.2 feet (65 m) away.
  • Use this anywhere you need to split video and audio signals.
  • Pixel resolutions up to 400 MHz.
  • Support monitor resolutions up to 2048 x 1536 at 60 Hz, meeting today’s highest video standards.

The 2-Port Audio/Video Splitter is cascadable up to 2 levels. So you can link up to 3 monitors and headphones to the source PC using the AC650A-2

The splitter features easy-to-use front-panel select switches and support the VESA DDC, DDC2, DDC2B standards (for video out Port 1).

Plus, the splitter is compatible with a broad range of video interfaces, including VGA, SVGA, XGA, UXGA, QXGA, and multisync.

Video signal enhancement enables you to place monitors up to 213.2 feet (65 m) away.

Compliance
cUL0
FCC
UL0
General
ApprovalsCE
Distance213.2 ft. (65 m) maximum
InterfaceVGA, SVGA, XGA, UXGA, QXGA, and multisync
Pixel Frequency400 MHz
PowerAdapter: 12 VDC, 600 mA, 7.2 W
Resolution2048 x 1536 at 60 Hz maximum
Item Specifications

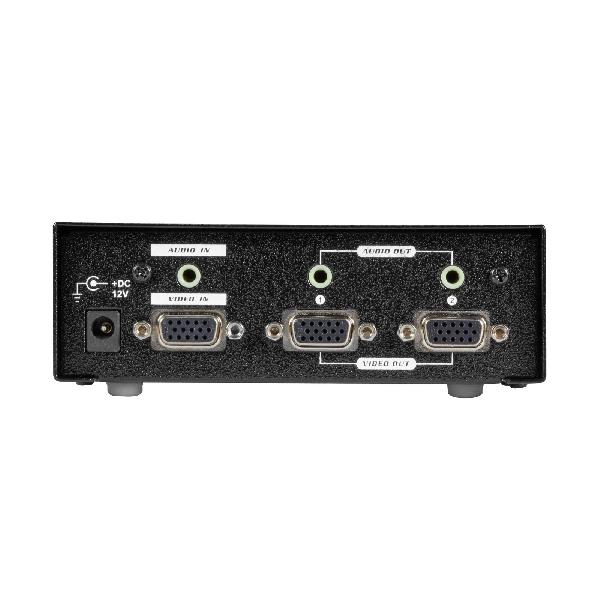

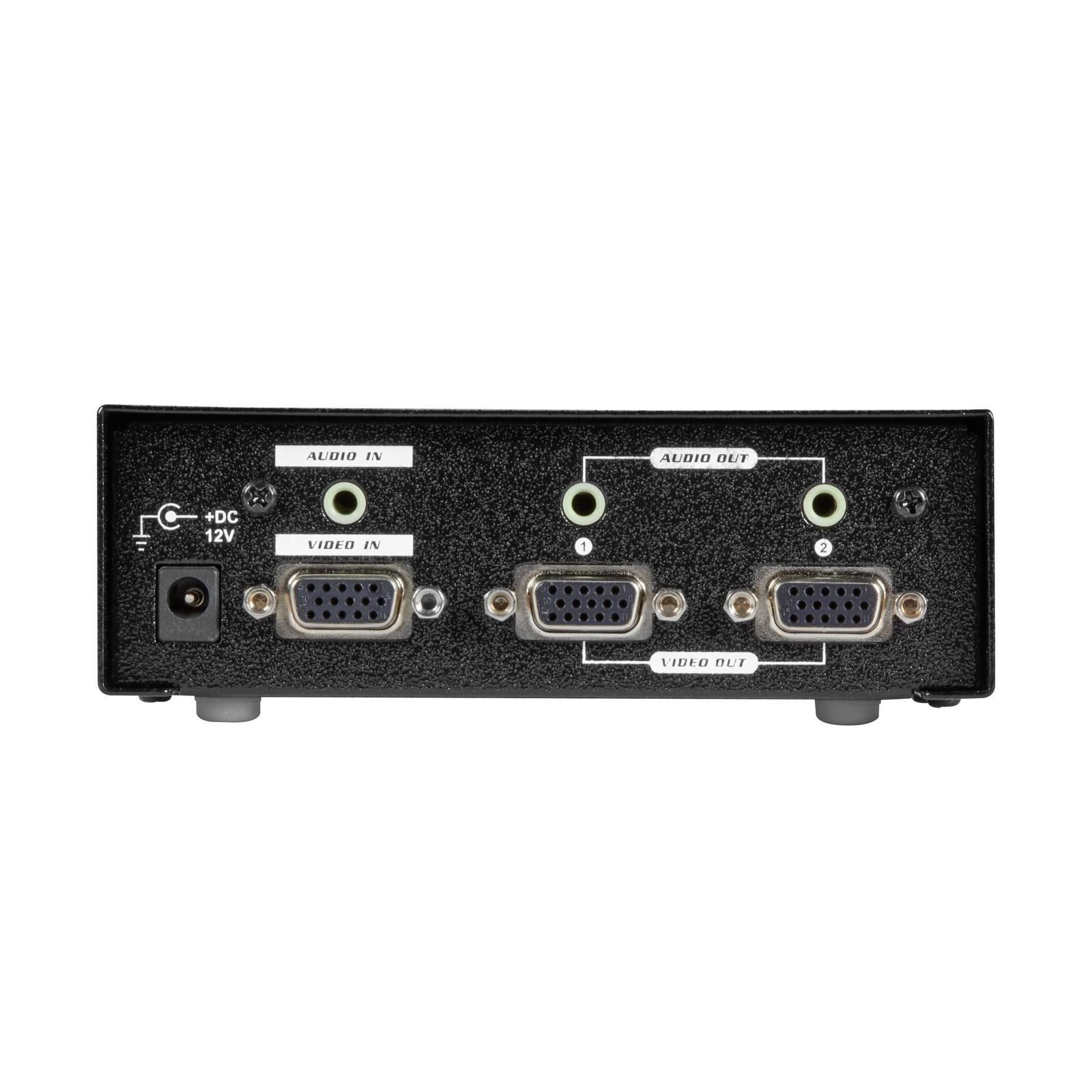

ConnectorsVideo input: Both: (1) HD15 F; Video output: (2) HD15 F Audio input: 3.5-mm stereo F Audio output: (2) 3.5-mm stereo F
Dimensions1.7"H x 5.1"W x 3"D (4.3 x 13 x 7.6 cm)

This product works with:


NOTE(s):

Product works with:

  • Premium VGA Video Extension Cable (EVNPS05)
  • VGA Baluns (AC640A–AC642A)
  • NEC-Mitsubishi 17" and 19" LCDs (LCD1770NX, LCD1770NX-BK, LCD1970NX, LCD1970NX-BK)
Name Type Version Release Date
2-Port and 4-Port Audio/Video Splitters Manual 13 May 2021
